Kirk QRLB-T Universal Quick Release Tall L-Bracket

By accessing the video, I agree that my data will be transmitted to YouTube or Vimeo and that I have read the privacy policy.
Product information

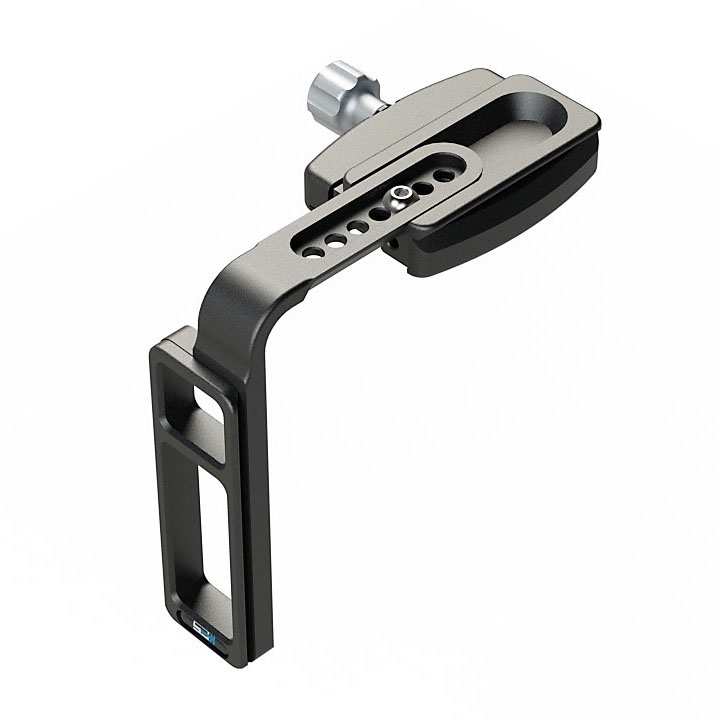

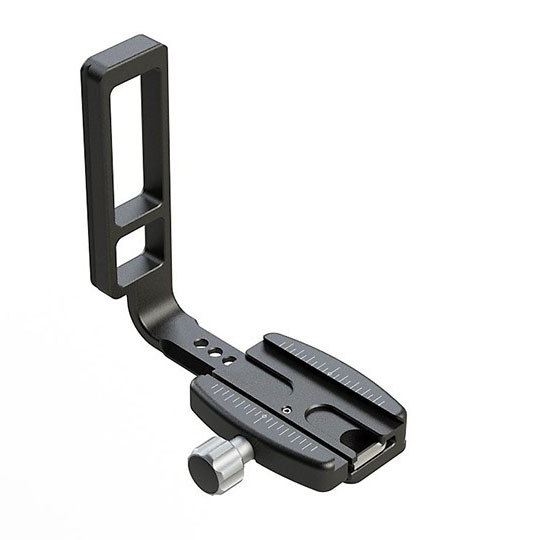

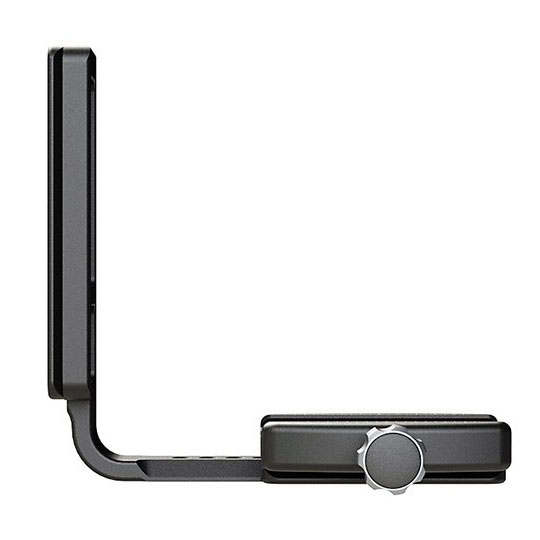

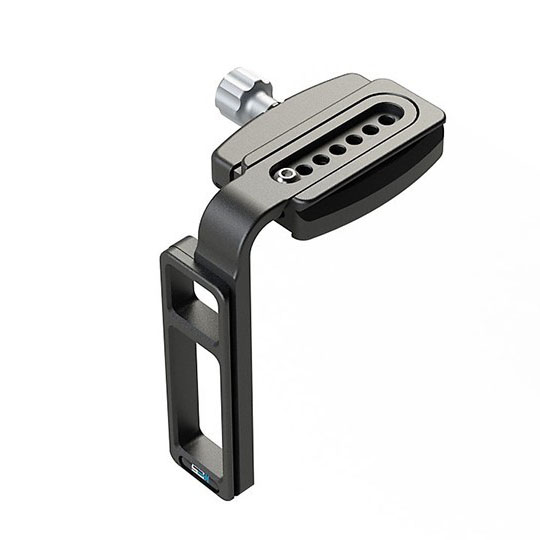

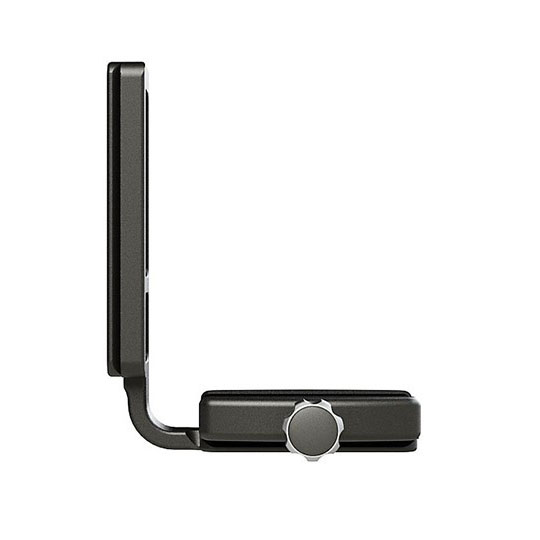

Kirk QRLB-T Universal Quick Release Tall L-Bracket
Feature
  • Arca compatible
QR profile fits
  • ARCA SWISS compatible (according to manufacturer) 38 mm clamp
universal
  • yes

This L-bracket allows quick work with 38 mm Dovetail compatible quick release clamps (including Kirk and Wimberley) in landscape and portrait format.



The integrated quick release allows the camera to be moved sideways (without the use of tools).

This gives you enough space between the vertical leg and the camera side to use remote triggers, HDMI or USB plugs with L-bracket in portrait and landscape format.





ATTENTION:



The bracket requires the presence of a KIRK camera plate specially adapted to the body or battery grip shape! It is therefore particularly suitable for users who use several cameras with an L-angle.



It is also a good choice for cameras with a swivel display such as Canon EOS R, R5 or R6, as conventional L-brackets that remain permanently on the camera often reduce the swivel range of the display here.



This high version of the bracket is for cameras with large bodies or with battery grip, but also fits all other cameras with an already installed camera plate with 38mm dovetail.

The orientation of the clamp's locking knob can be rotated 180 degrees.

Free access to all camera connections

Made from lightweight 6061TG aluminium

The 3" clamp allows the distance of the camera from the side arm of the L-bracket to be adjusted variably.

The clamp itself can also be mounted at different positions on the L-bracket.

Height from top of clamp to top of bracket: 12.2 cm

Weight: 275 g



Feature
  • Arca compatible
QR profile fits
  • ARCA SWISS compatible (according to manufacturer) 38 mm clamp
universal
  • yes
