Product information
Leofoto LQ-324C Carbon Fiber Tripod + LH-40 Ball Head Mr. Q-Series
Center Column
  • existing
Folded length / cm
  • 58
Gewicht
  • 2,0
Leg Ø / mm
  • 32 / 28 / 25 / 22
Material
  • Carbon fiber Tubes
  • Carbon fiber Tubes / 10x layers
Minimum height / cm
  • 16,5
Number of Leg Sections (per Leg)
  • 4
QR base fits
  • ARCA SWISS compatible (according to manufacturer) 38 mm dovetail
Thread for tripod foot
  • 3/8" UNC female thread
Transportlänge
  • 60
Tripod Thread
  • 3/8" UNC photo thread Mounting bolt
Tripod type
  • Tripod
  • Tripod with centre column
  • Tripod with head
Weight / kg
  • 1,95
max. Aufbauhöhe >= / m
  • 1,6
max. Height / m with center column
  • 1,685
max. height / m w/o center column
  • 1,395
max. installation height / cm **
  • 169
maximum payload / kg
  • 10,0
min. Aufbauhöhe
  • 18
min. installation height / cm **
  • 17
recommended for
  • DSLM
  • Ground level work
  • Landscape photography
  • Macro photography
  • Reportage photography
  • Travel photography

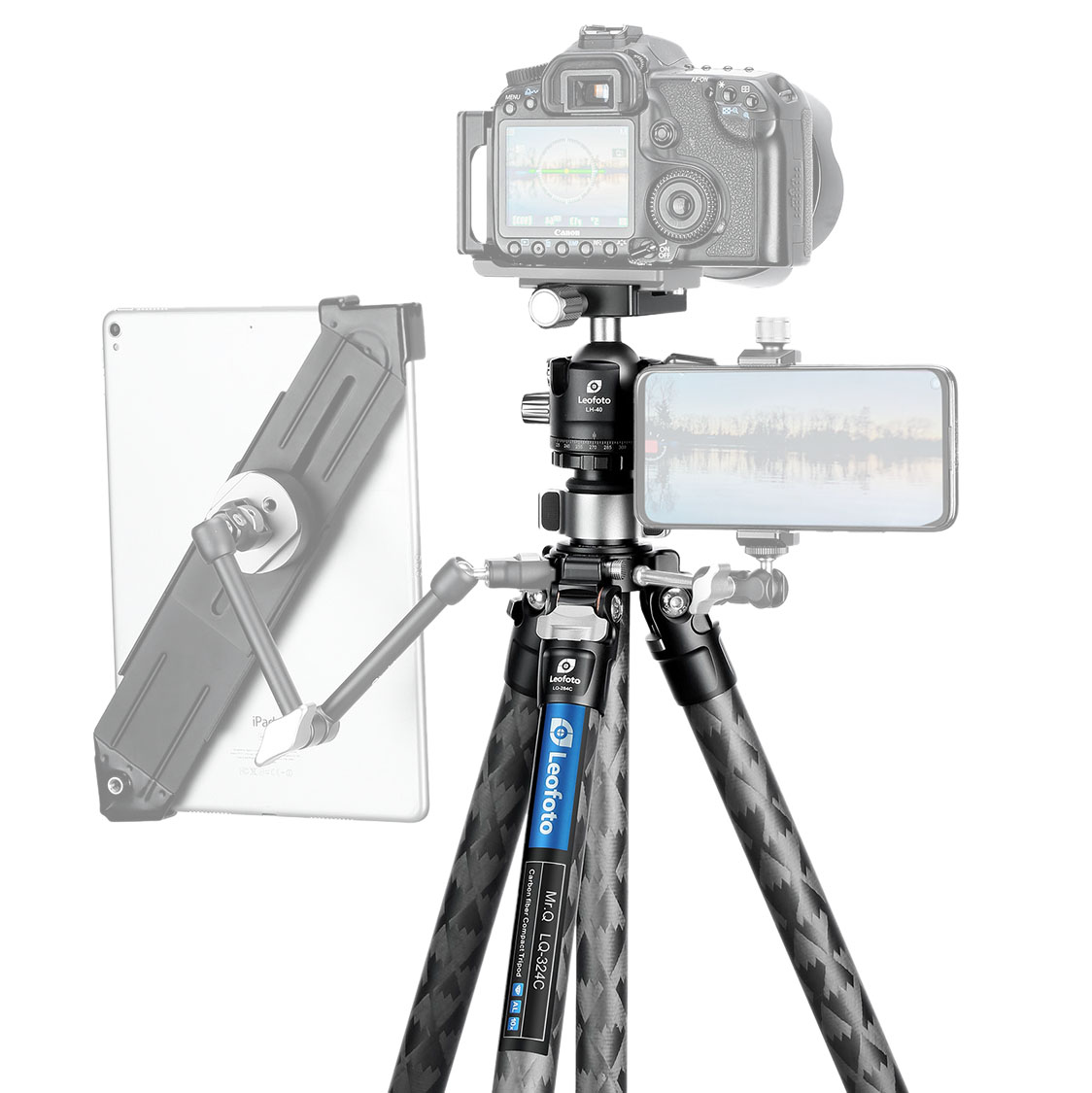

The Leofoto LQ-324C carbon tripod is part of the versatile Leofoto Mr.Q tripod collection. The LQ-324C has four leg segments and reaches a maximum working height of 168.5 cm when using the removable center column. On the other hand, the minimum working height of this tripod is only 16.5 cm, which is convenient when you want to work close to the ground. Despite its light weight of only 1.46 kilos, it has a load capacity of 15 kilograms. The LQ-324C tripod comes with an LH-40 ball head, a multifunctional center column and useful accessories.

The 10-layer woven carbon makes the LQ-324C tripod strong, while it is relatively lightweight, including the ball head, at only 1.98 kg. In addition, the 3rd generation carbon weave gives the tripod a rugged and eye-catching appearance. On the side of the tripod platform, there is a 3/8-inch and ¼-inch screw thread so that the tripod can be extended with a Magic Arm or other accessories.

Center column

The Leofoto Mr. Q tripod has a removable tripod platform with a diameter of 56 mm. On this tripod platform you mount the LH-40 ball head. It is possible to remove the platform in a few seconds and use the included center column instead. Placing the center column takes only a few seconds and no tools are required. The height of the center column can be adjusted with the silver wing nut with non-slip rubber. The center column (⌀ 28mm) is 31 cm long and provides the remarkable maximum working height. This makes the tripod an all-rounder in studio photography, landscape photography and even macro photography.

Features:

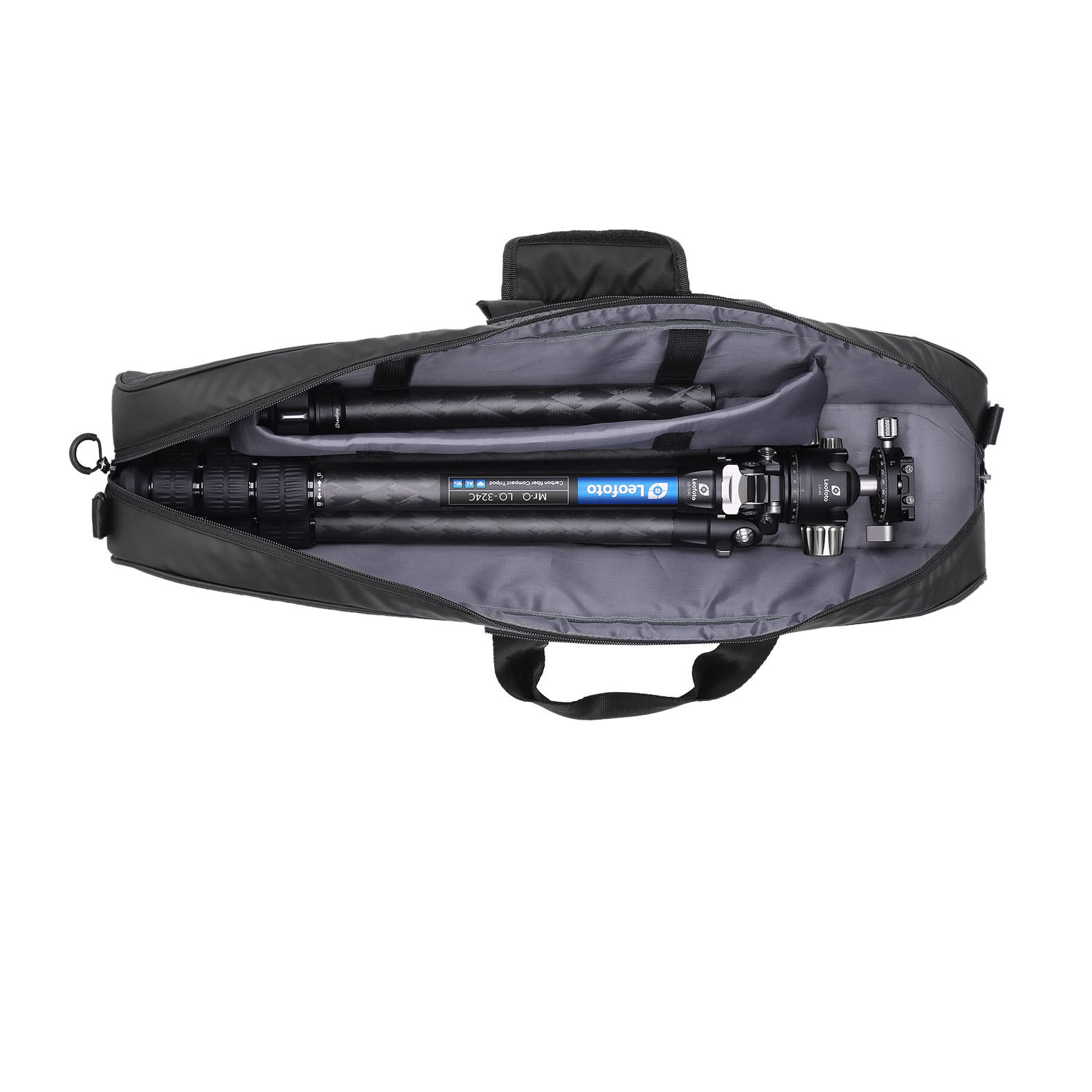

The legs are height adjustable thanks to the intuitive TwistLock system. This allows you to remove or attach a leg segment of the tripod in no time. The rubber twist grips also allow you to operate the legs while wearing gloves. In addition, you can adjust the tilt angle of the carbon tripod legs in three angles: 23°, 55° and 85°. At the largest tilt angle, the tripod legs lie almost flat on the ground. This allows you to achieve a minimum working height of 16.5 cm. In addition, the tripod is equipped with rubber feet that prevent the legs from sliding on a slippery surface. You can replace the feet with the included spikes. The spikes provide more grip on soft surfaces. This Leofoto carbon tripod with ball head comes with a water-resistant asymmetrical carrying bag for more convenience during transportation.

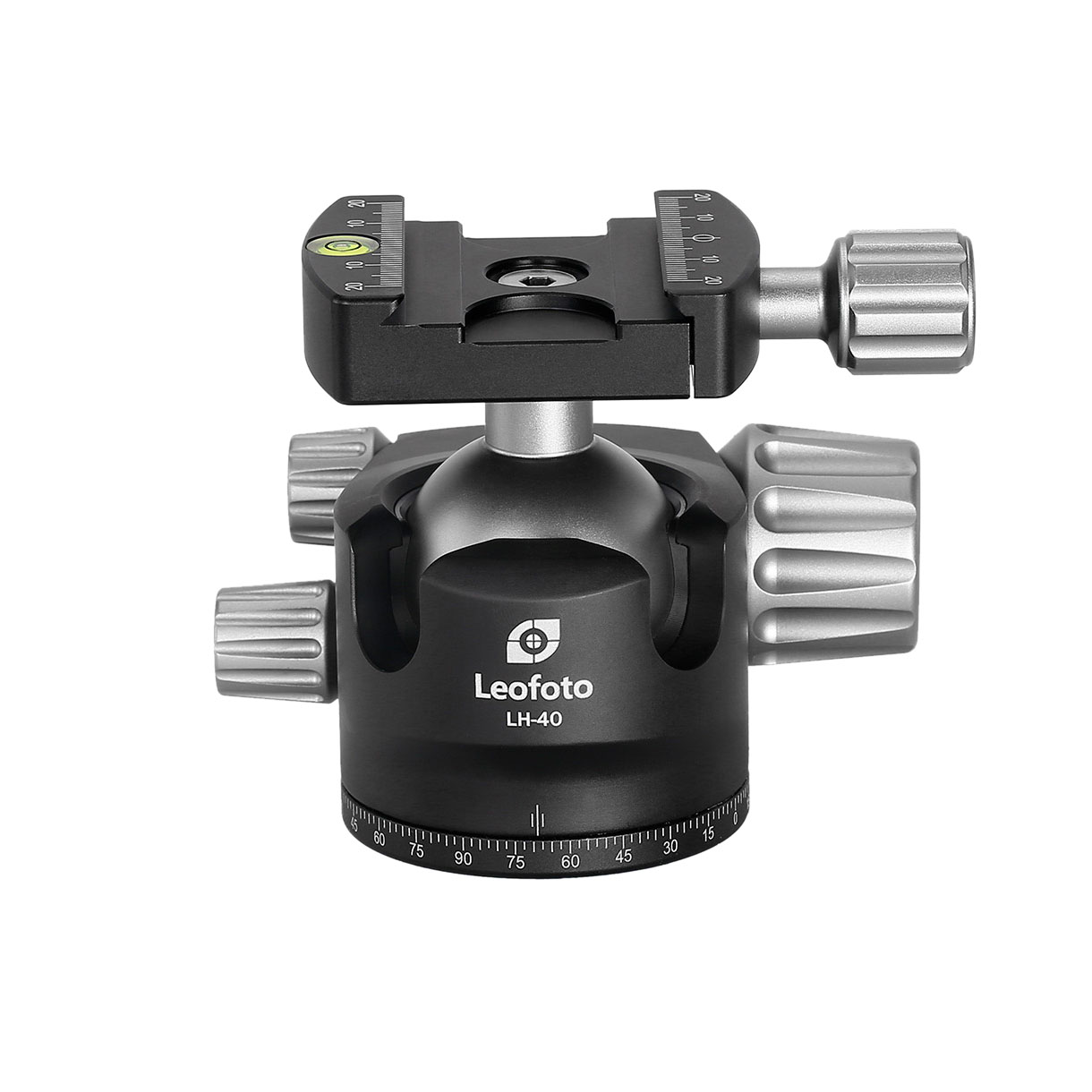

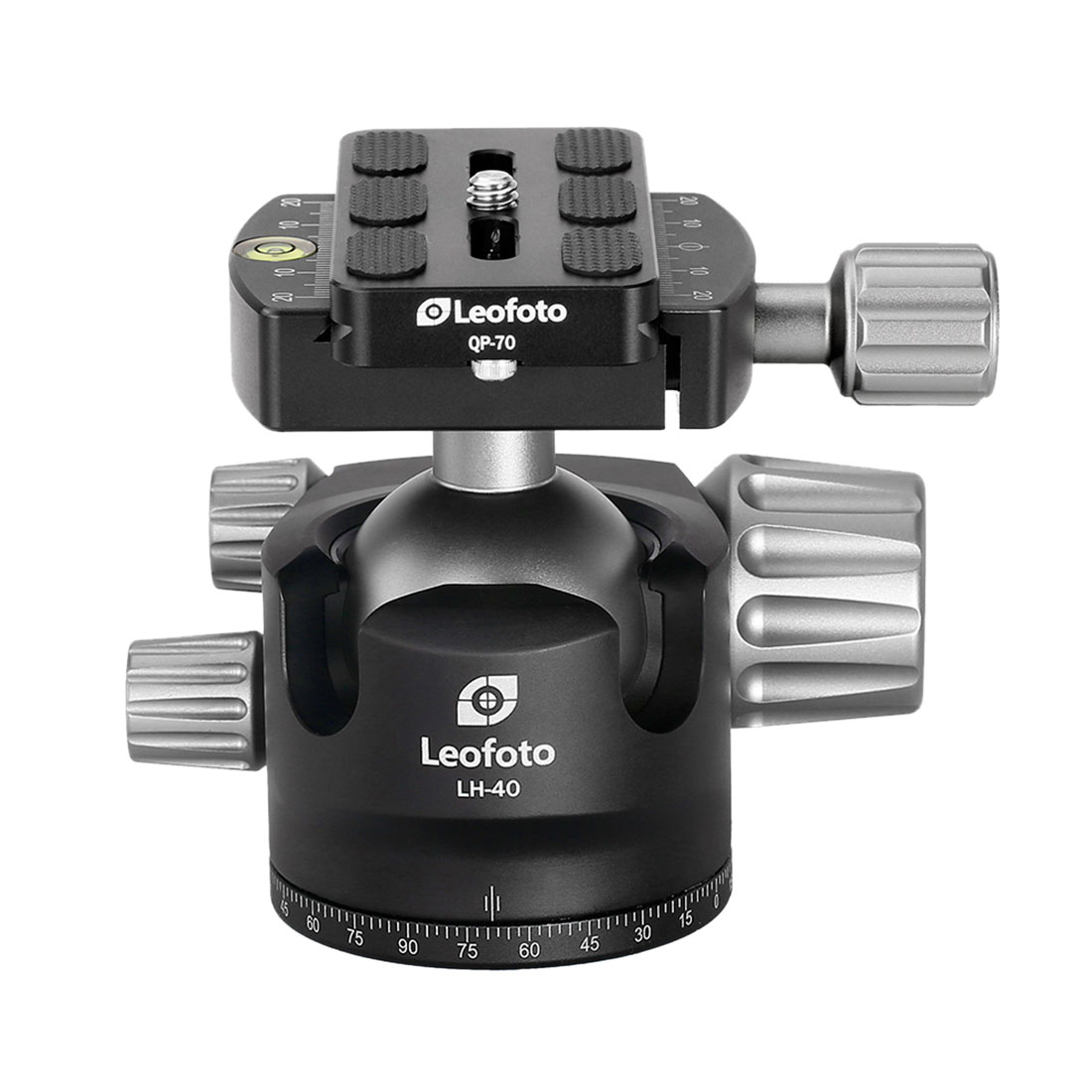

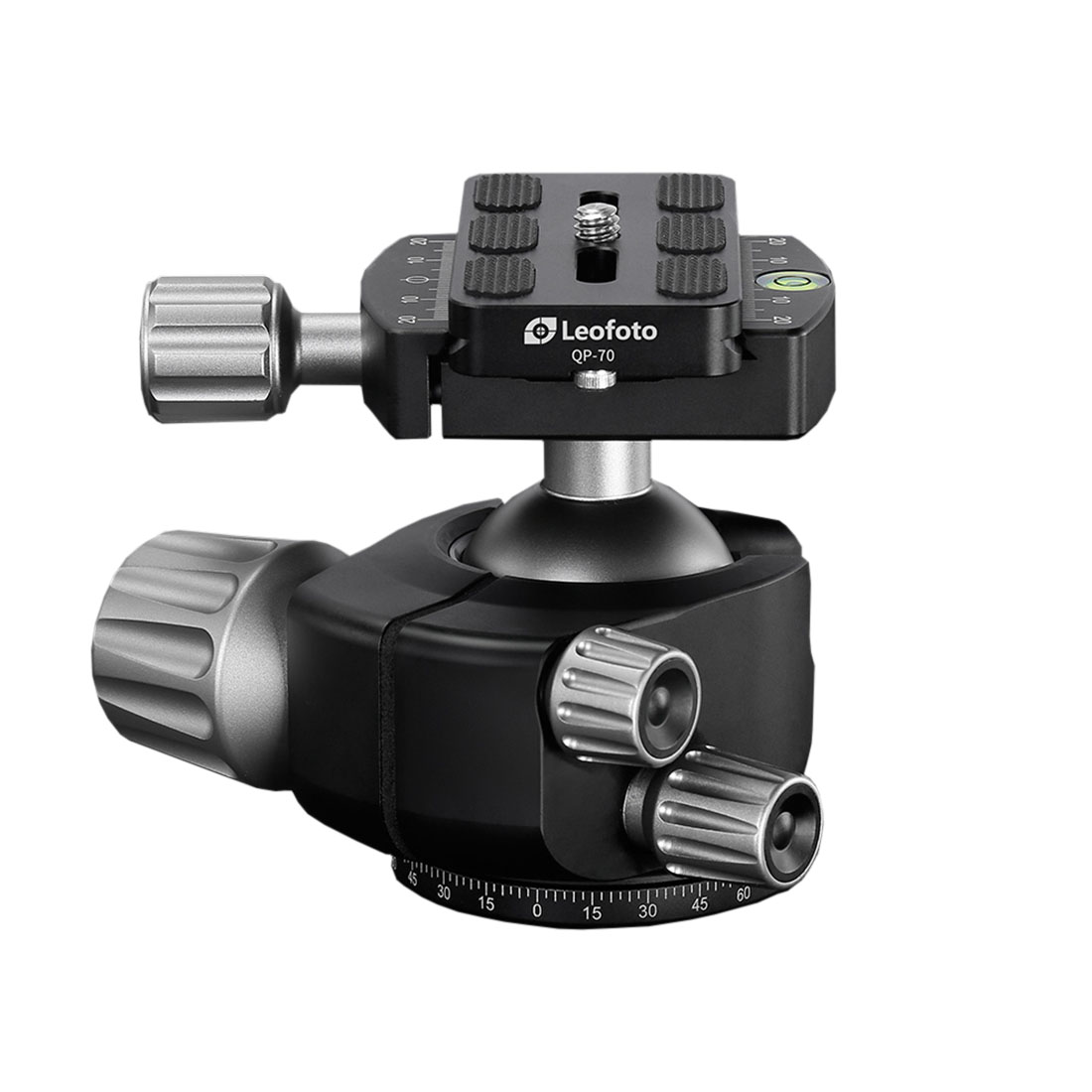

LH-40 ball head with QP-70 quick release plate:

The professionalLH-40 ball head can be rotated 360 degrees and tilted from portrait to landscape position, and features a universal 3/8" tripod screw that allows you to attach almost any camera. The friction is adjustable via a knob that offers precise adjustment options. The ball head has a diameter of 40 mm and a swivel base of 57 mm. The height is 87 mm. This ball head comes with a QP-70 quick release plate and is Arca-Swiss compatible. It has a load capacity of up to 18 kilos and weighs 498 grams itself.

Center Column
  • existing
Folded length / cm
  • 58
Gewicht
  • 2,0
Leg Ø / mm
  • 32 / 28 / 25 / 22
Material
  • Carbon fiber Tubes
  • Carbon fiber Tubes / 10x layers
Minimum height / cm
  • 16,5
Number of Leg Sections (per Leg)
  • 4
QR base fits
  • ARCA SWISS compatible (according to manufacturer) 38 mm dovetail
Thread for tripod foot
  • 3/8" UNC female thread
Transportlänge
  • 60
Tripod Thread
  • 3/8" UNC photo thread Mounting bolt
Tripod type
  • Tripod
  • Tripod with centre column
  • Tripod with head
Weight / kg
  • 1,95
max. Aufbauhöhe >= / m
  • 1,6
max. Height / m with center column
  • 1,685
max. height / m w/o center column
  • 1,395
max. installation height / cm **
  • 169
maximum payload / kg
  • 10,0
min. Aufbauhöhe
  • 18
min. installation height / cm **
  • 17
recommended for
  • DSLM
  • Ground level work
  • Landscape photography
  • Macro photography
  • Reportage photography
  • Travel photography
