Leofoto MBC-20 Mini Ballhead with Panning Base

By accessing the video, I agree that my data will be transmitted to YouTube or Vimeo and that I have read the privacy policy.
Product information
Leofoto MBC-20 Mini Ballhead with Panning Base
Stativkopftyp
  • Kugelkopf
clamp release type
  • Lever release
  • Screw locking

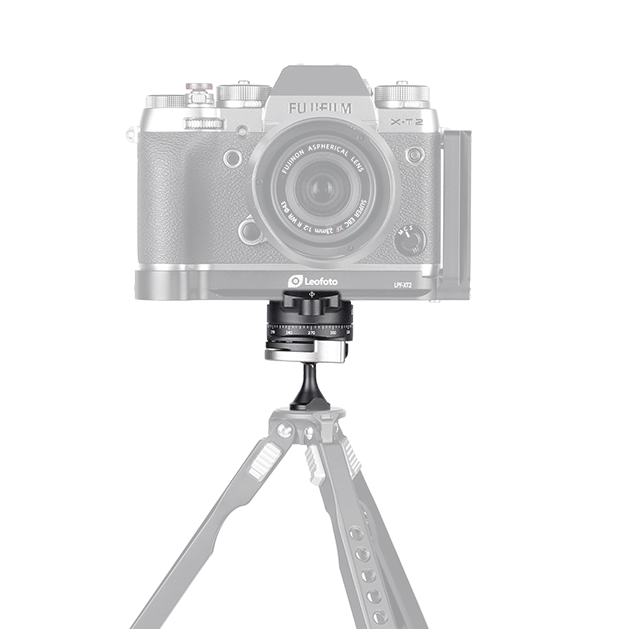

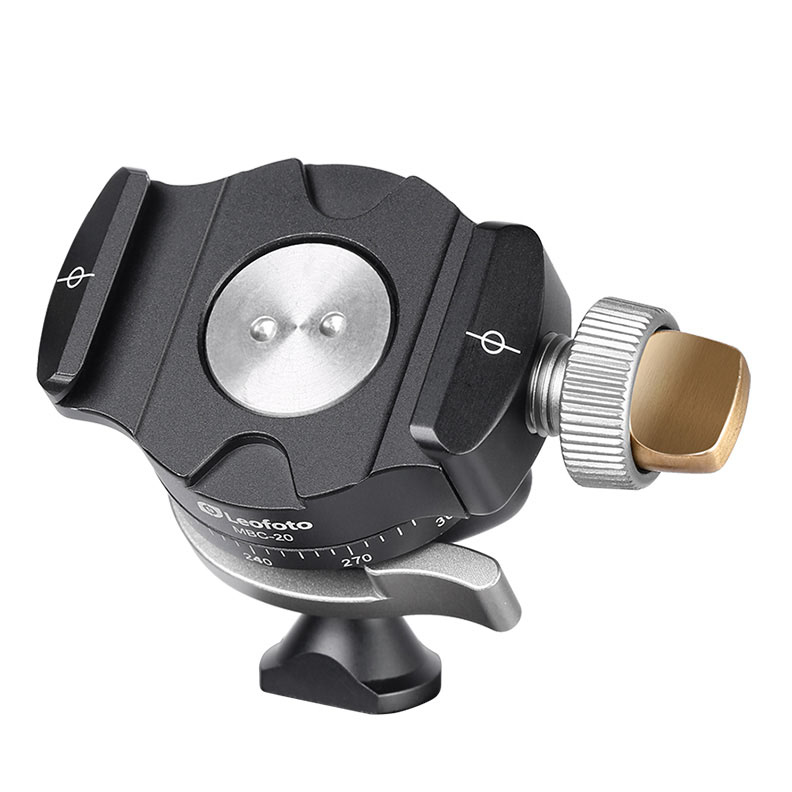

Leofoto MBC-20 Microball with Panning is a 104 g compact and portable ball head that has a 8kg weight capacity, which makes it suitable for small DSLRs, mirrorless cameras, or other small accessories used for photographic or video use. Moreover, the integrated screw knob locks the Arca-type compatible clamp down while the second locking wheel, which surrounds the first knob, enables the head to rotate a full 360°. Meanwhile, at the top of the stem, the quick release lever disengages to allow movement on the ball, and the cut notch at the bottom of the head allows it to be placed at a 90° angle.

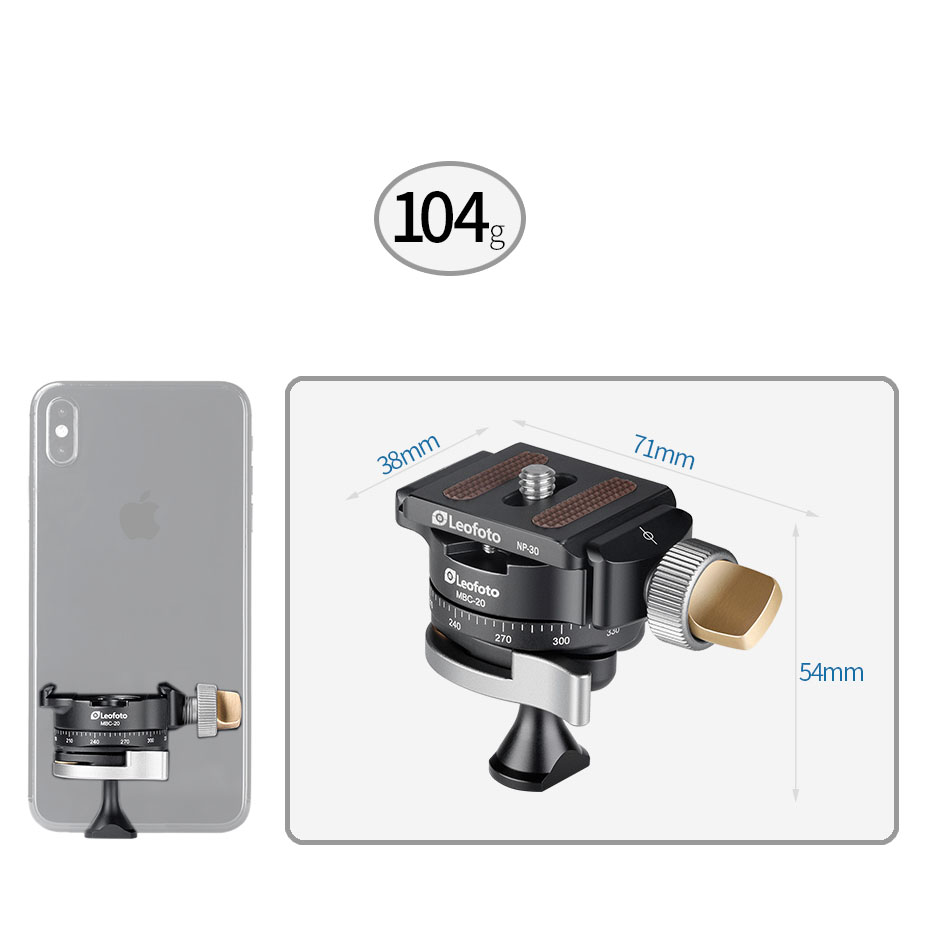

The 54 mm tall Microball is constructed using 6061-T6 aluminum with steel components. Both metals have a durable finish. Namely, the aluminum has a type II black anodized finish while the steel components are ferritic nitrocarburized, which protect the surfaces from scuffs and oxidation. At the bottom of the stem, a UNC 1/4"-16 female threaded mount is available.

 Features:

  • Low Centre of Gravity: Height 54 mm
  • Made of Aircraft Aluminum Alloy

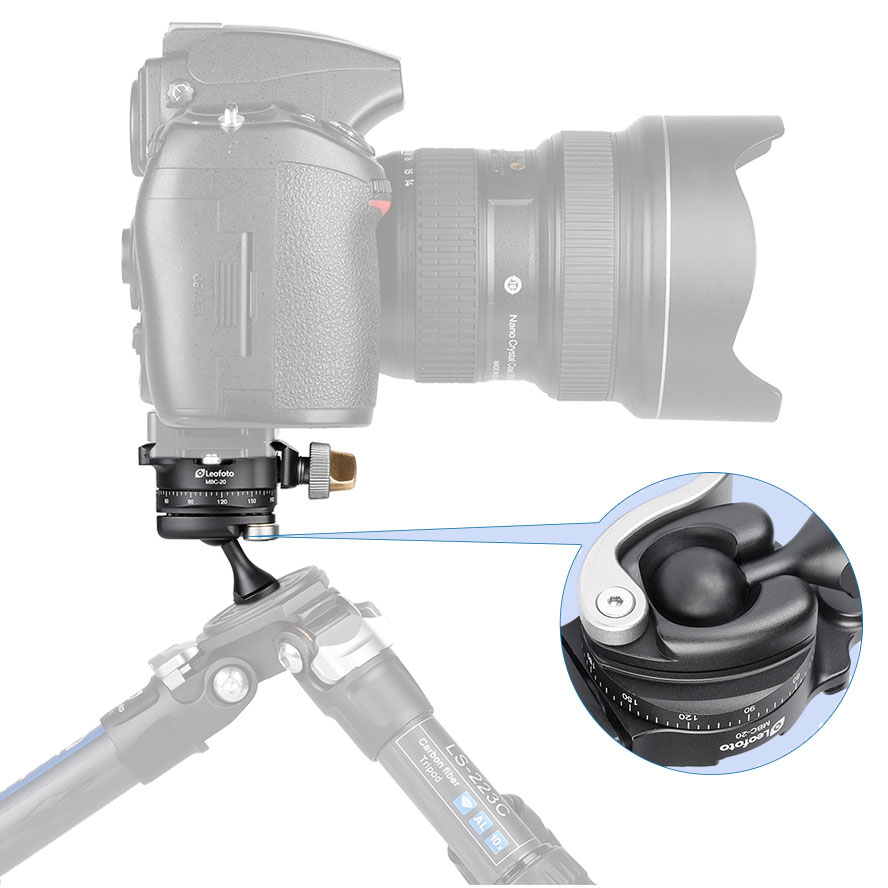

  • 90° Portrait Notch
  • Load Capacity: 8kg
  • Panning Base with Index Mark for Separate Rotation
  • bottom connection: 1/4" UNC thread
Stativkopftyp
  • Kugelkopf
clamp release type
  • Lever release
  • Screw locking
