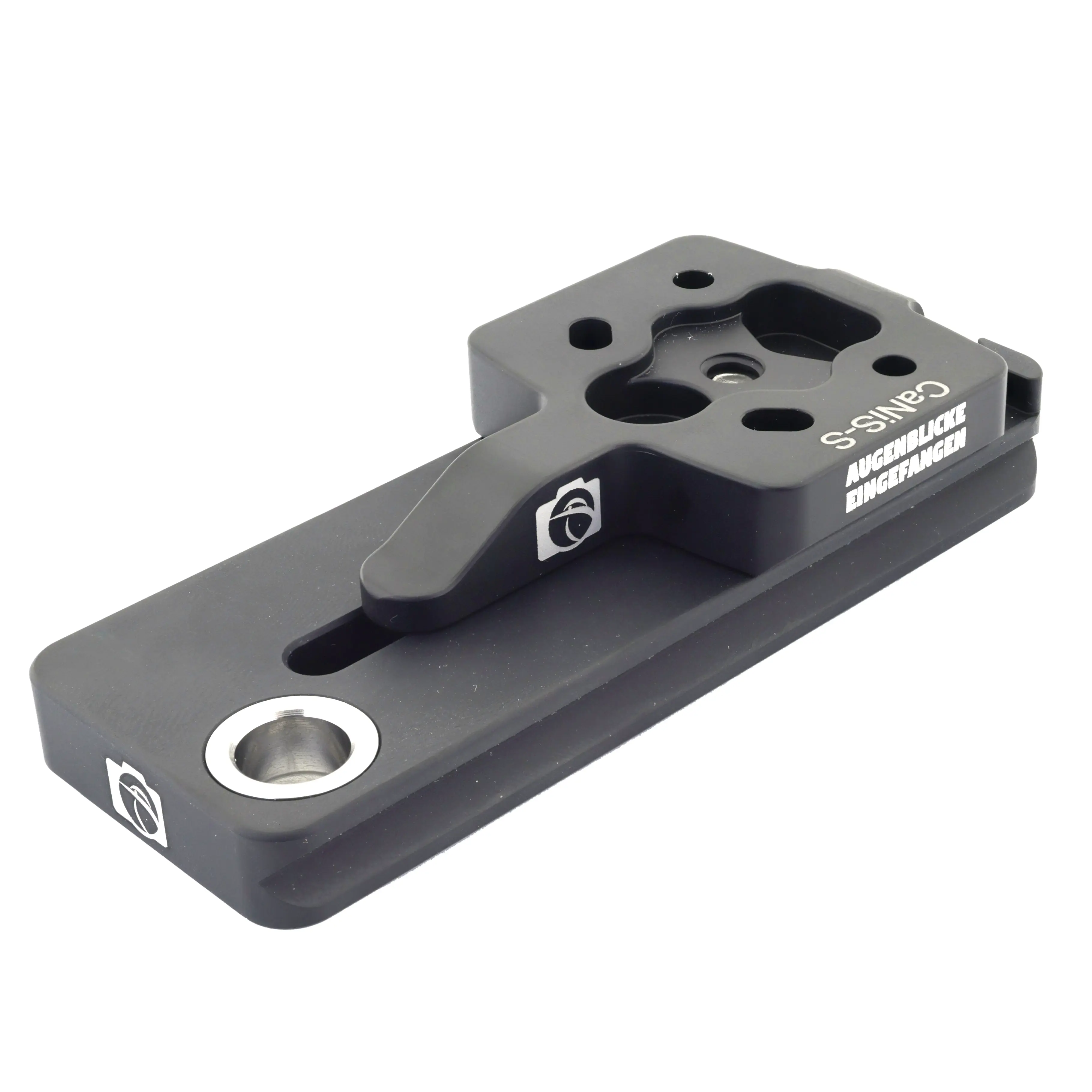

Modular Replacement Lens Foot CaNis-S 100 for Sony-Canon-Nikon Tele Lens
Info
- Article No.: AE21837
- Manufacturer No.: CaNiS-S 100
- Shipping weight: 0.6 kg
- in stock: 2
Your benefits
- ✔ Fast DHL delivery
- ✔ Payment in installments via PayPal possible
- ✔ Purchase on account
- ✔ Order and payment receipt by 1 pm (Mondays to Fridays except holidays) - same day shipment
- ✔ DHL-Express shipping possible
Our promise
- ✔ Individual expert advice via email or live chat
- ✔ Qualitative high-quality equipment
By accessing the video, I agree that my data will be transmitted to YouTube or Vimeo and that I have read the privacy policy.
Product information

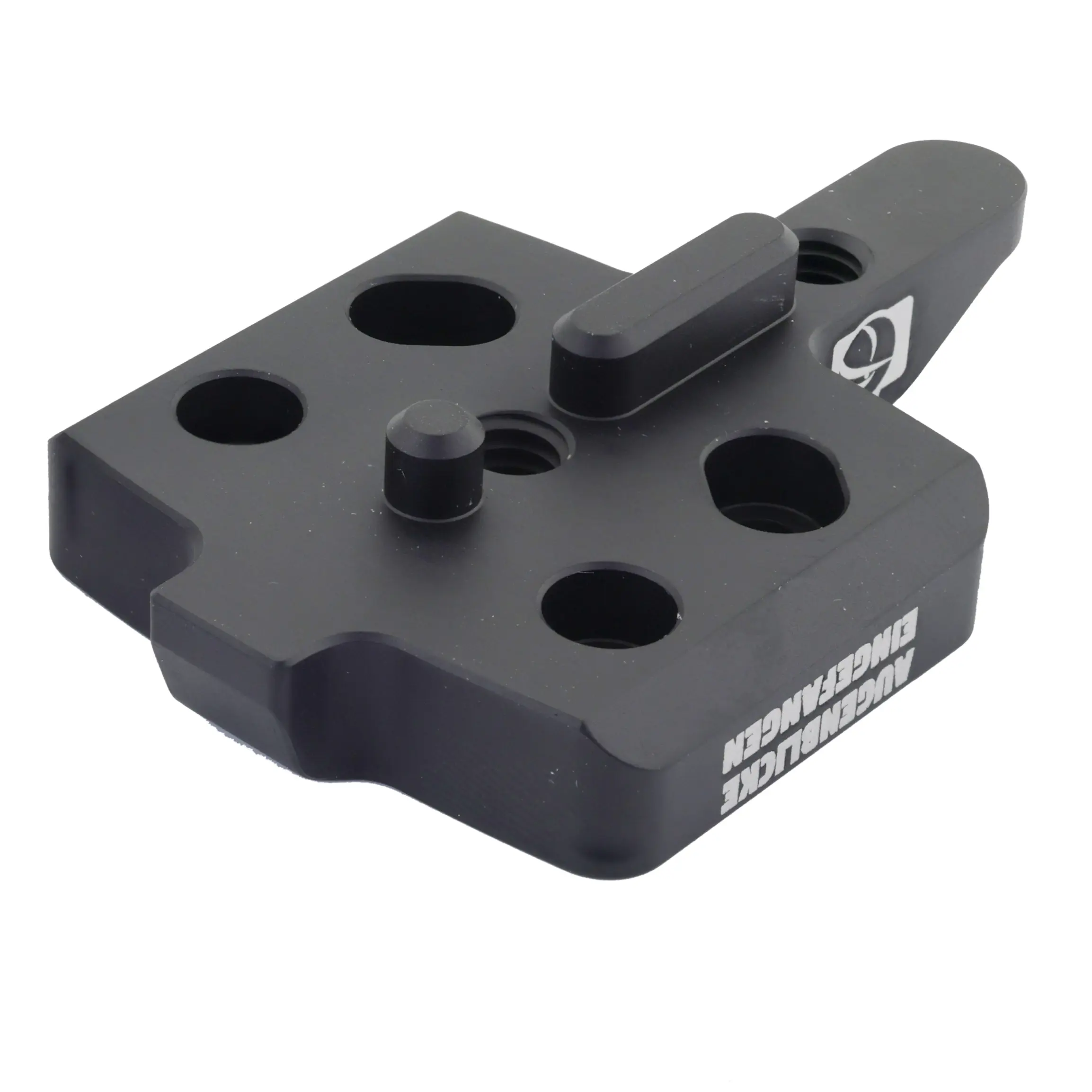

Modular Replacement Lens Foot CaNis-S 100 for Sony-Canon-Nikon Tele Lens

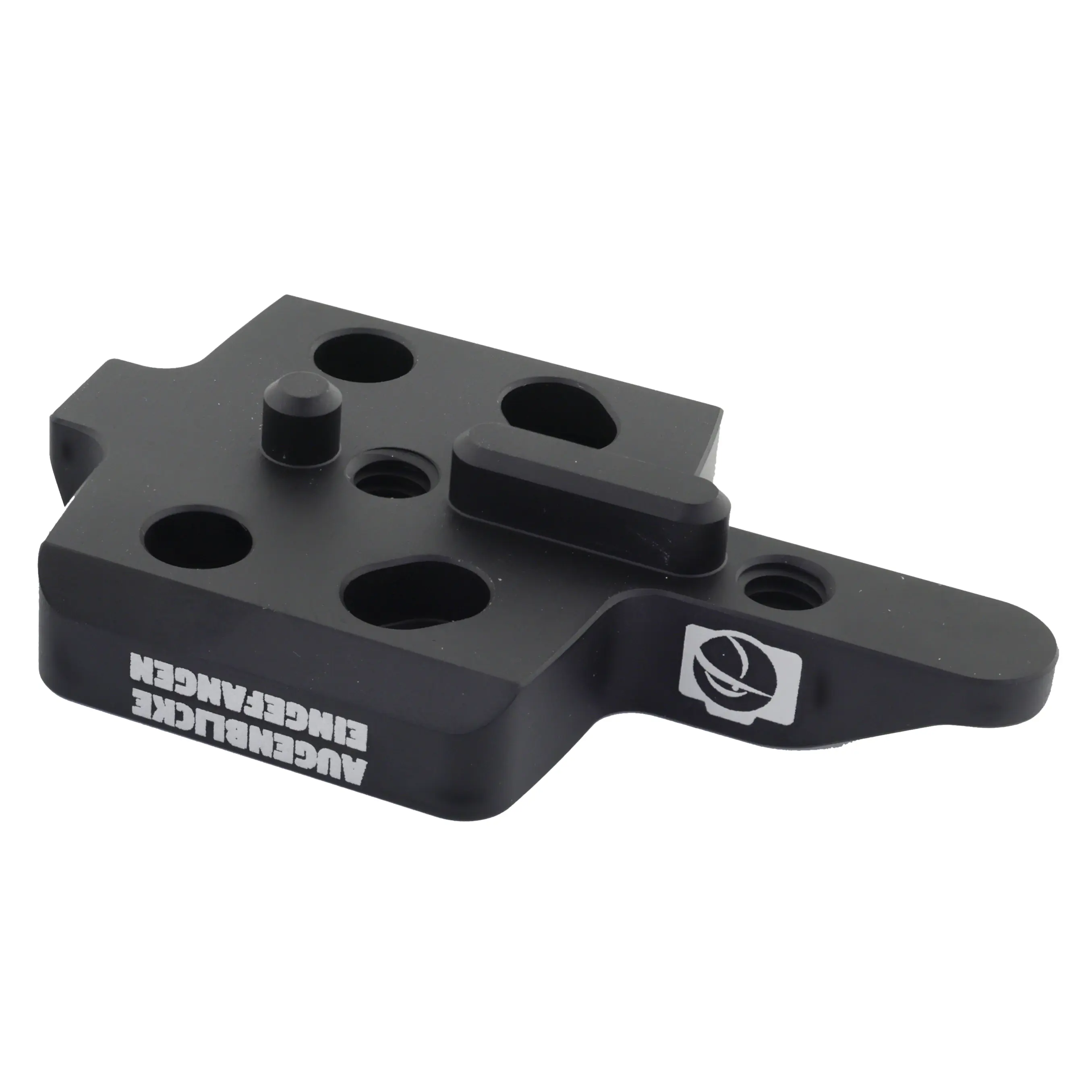

Anti rotating Pins/Flange
- 2x Raised Anti-Rotation Nubs
Dovetail design
- double
Dovetail length (bottom) / cm
- 10,0
Feature
- Arca compatible
- QD compatible
Finish
- black anodized
Height / cm
- 2,0
Integrated QD Socket
- yes, 2
Length / cm
- 10,0
Manufacturing method
- Milling
Material
- 7075 aluminum
QR profile fits
- ARCA SWISS compatible (according to manufacturer) 38 mm clamp
Safety mechanism
- 2 safety stop screws
Special features
- 2 QD belt anchor eyes for extra safety and the possibility of redundant 2-point belt attachment with QD belt anchors
- Base can be moved on the base plate for optimal adjustment to the lens and the center of gravity of the lens-camera combination
- Made in Germany
Weight / g
- 120
Width / cm
- 4,4
for Canon Lenses
- Canon EF 200-400mm f/4L IS USM Extender 1.4x
- Canon EF 300mm f/2.8L IS II USM
- Canon EF 400mm f/2,8 L IS II

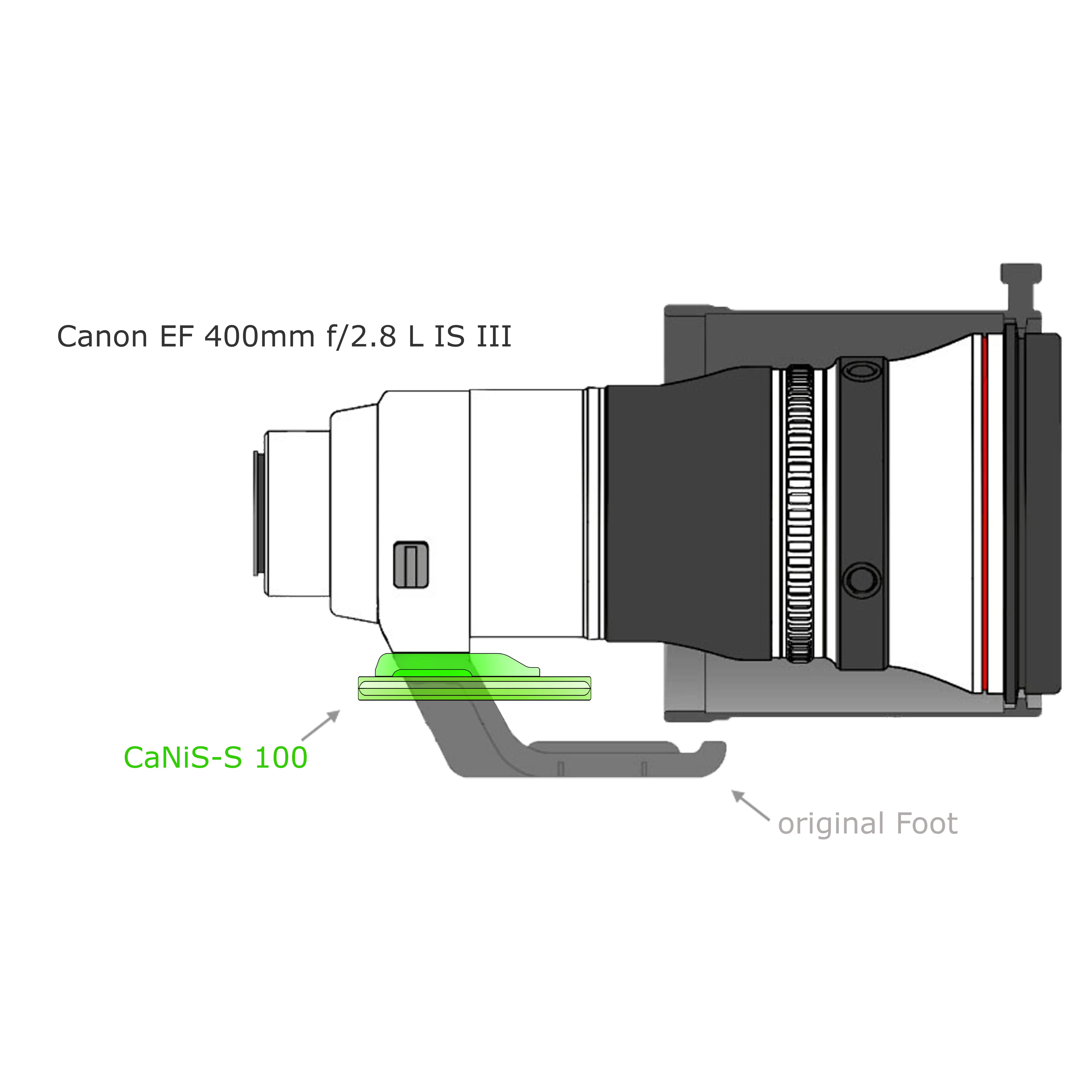

- Canon EF 400mm f/2.8 L IS III
- Canon EF 400mm f/4 DO IS II USM
- Canon EF 500mm f/4L IS II USM

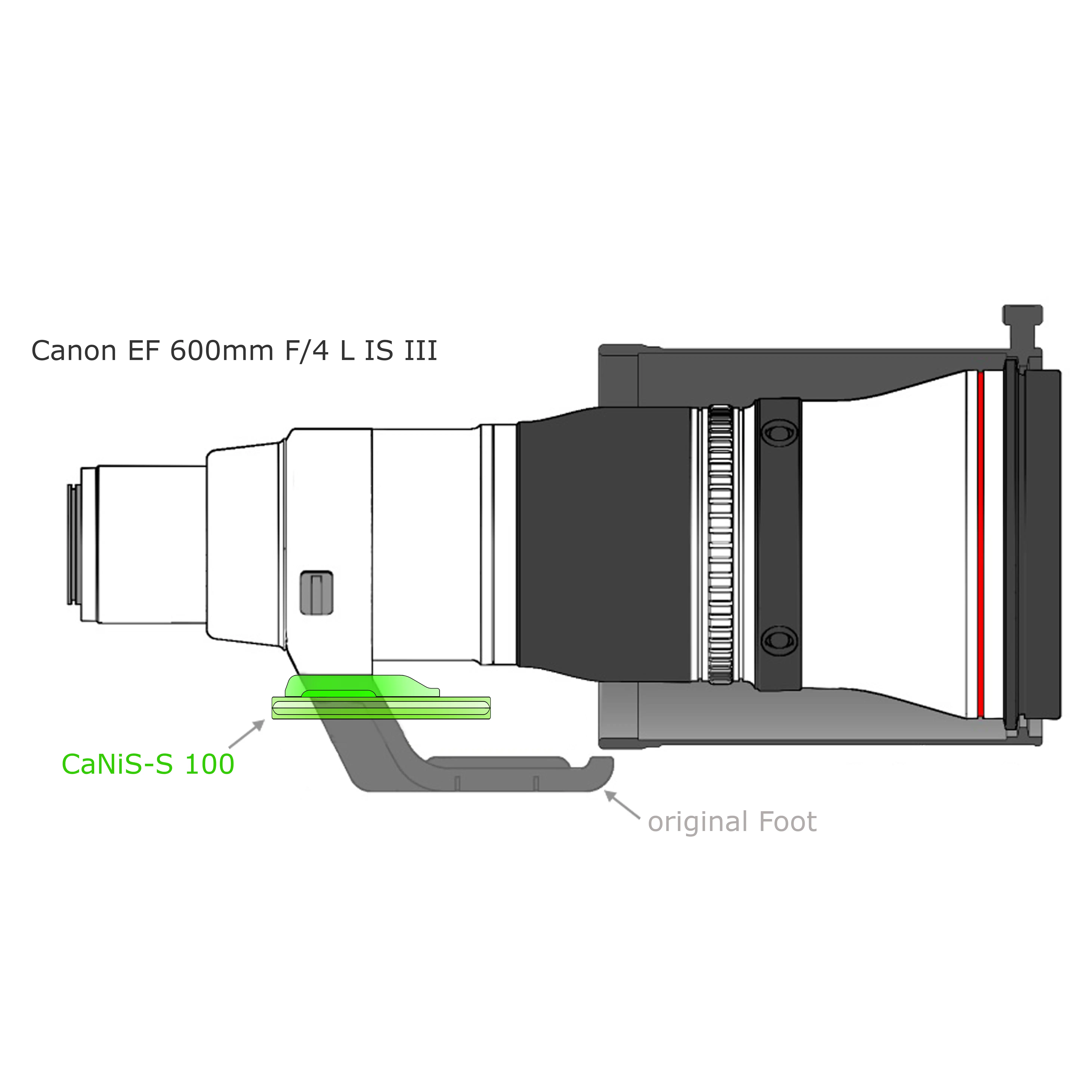

- Canon EF 600mm f/4 L IS III USM
- Canon EF 600mm f/4L IS II USM
- Canon EF 800mm f/5.6L IS USM
for Canon RF lenses
- Canon RF 100-300mm f/2.8 L IS USM (2023)

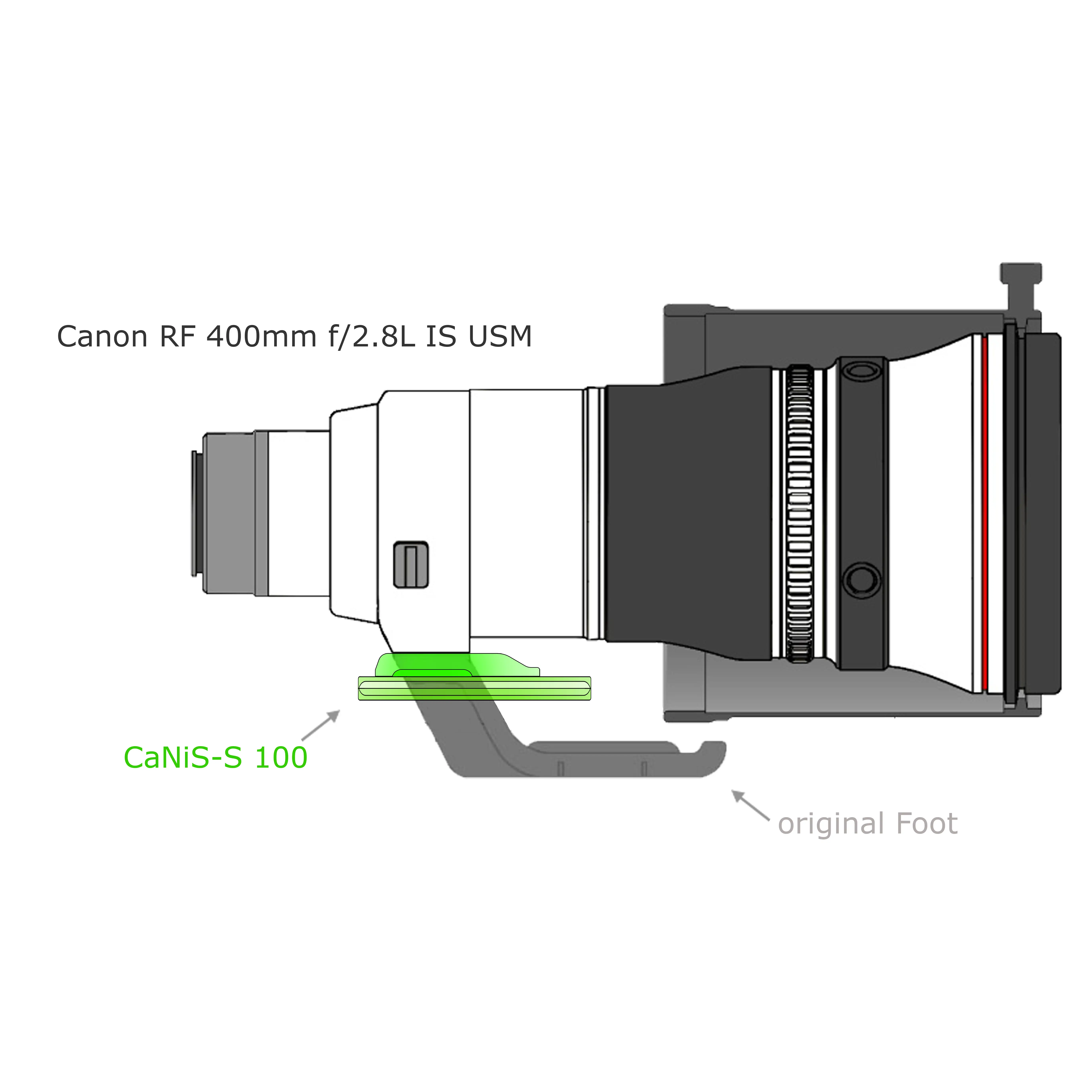

- Canon RF 400mm f/2.8L IS USM (2021)

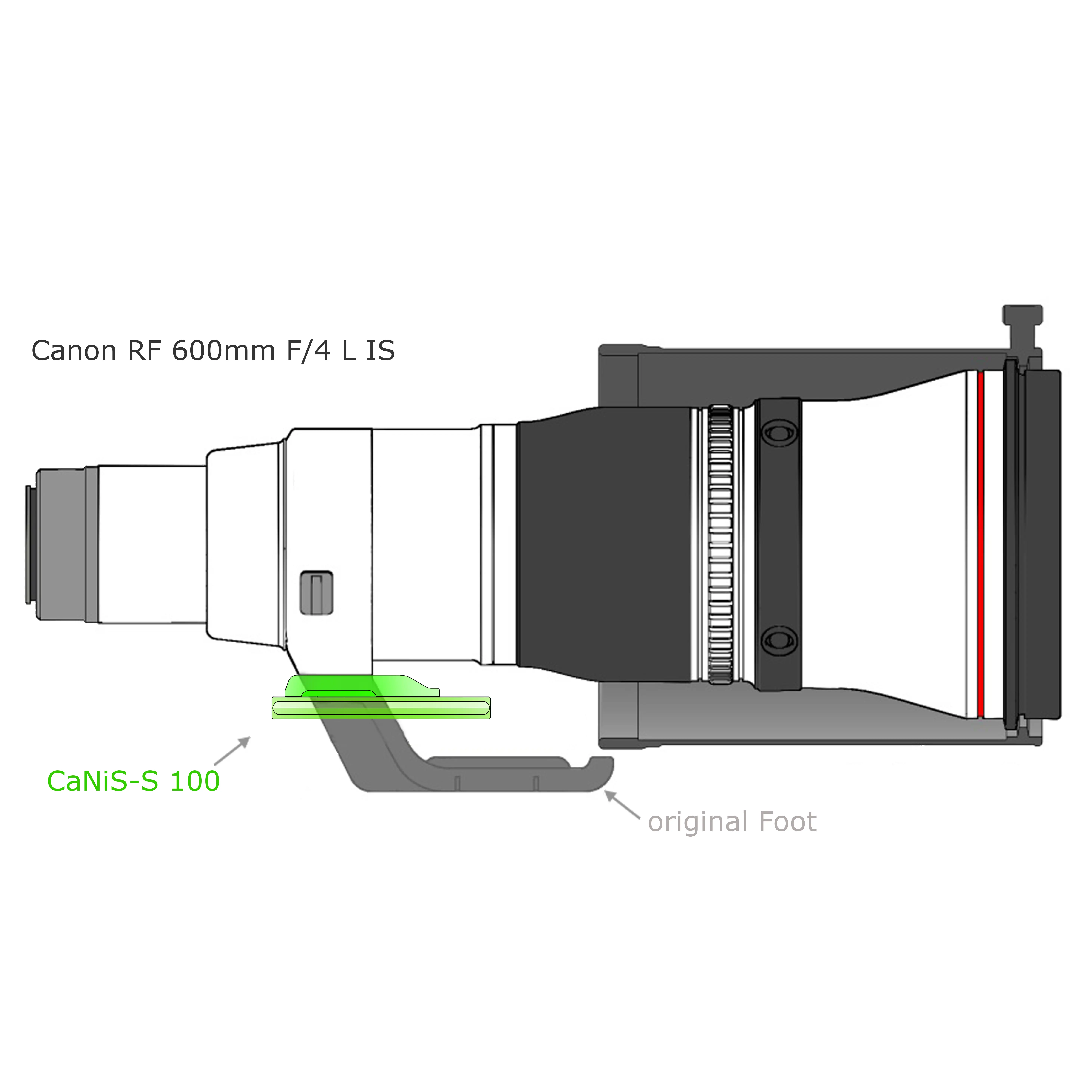

- Canon RF 600mm f/4L IS USM (2021)

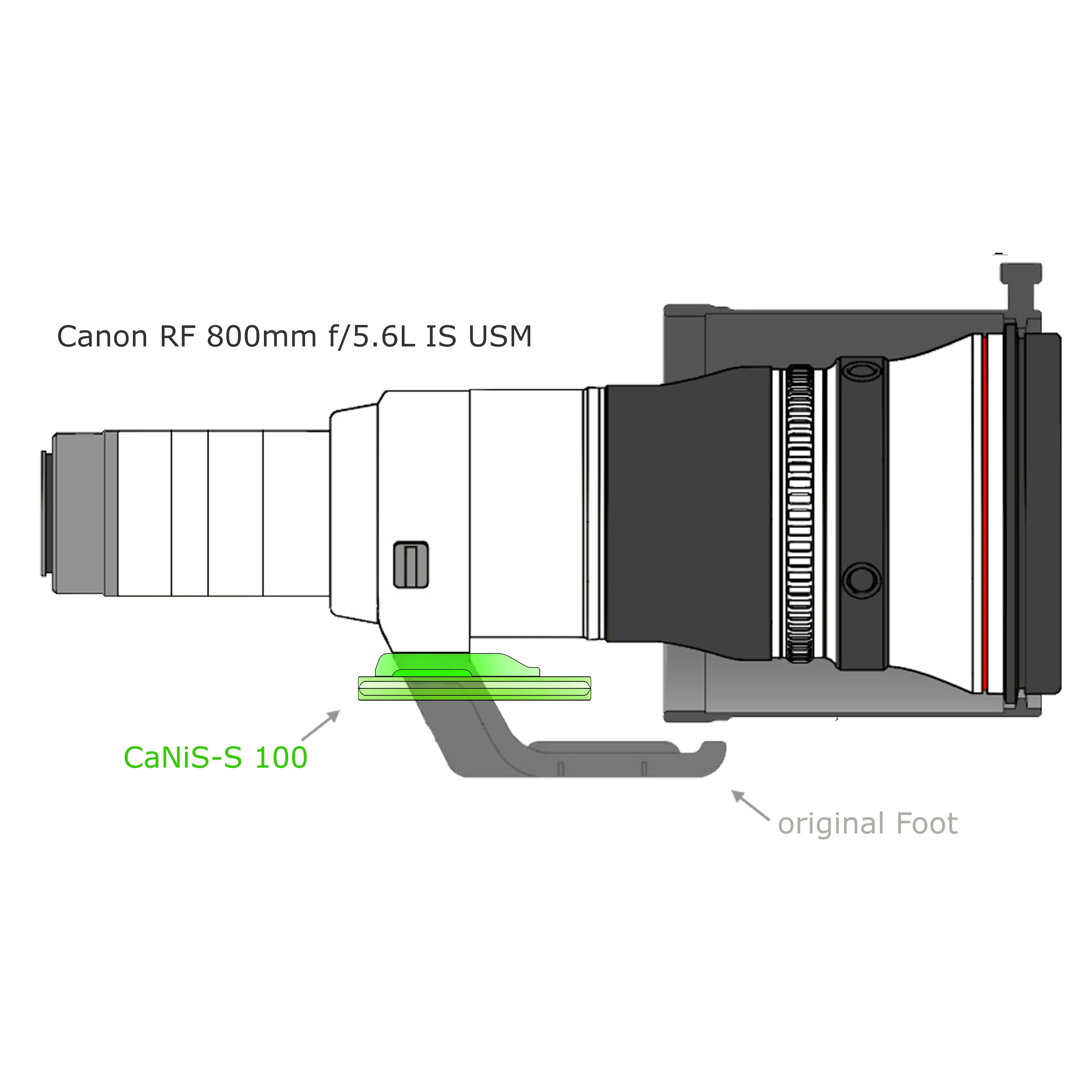

- Canon RF 800mm f/5.6L IS USM (2022)
- Canon RF 1200mm f/8L IS USM (2022)
for Nikon Z Lenses

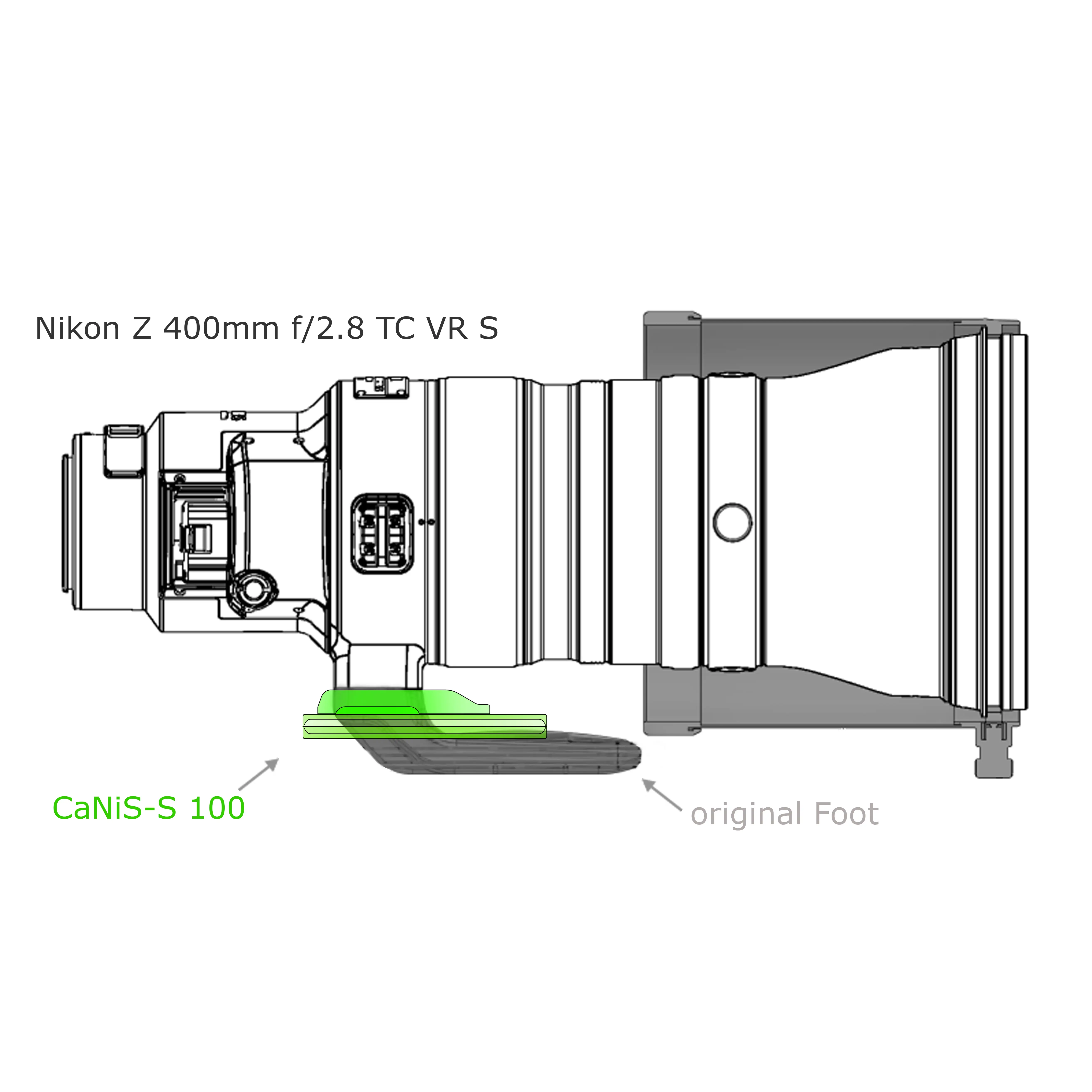

- Nikon Z 400mm f/2.8 TC VR S NIKKOR (2022)

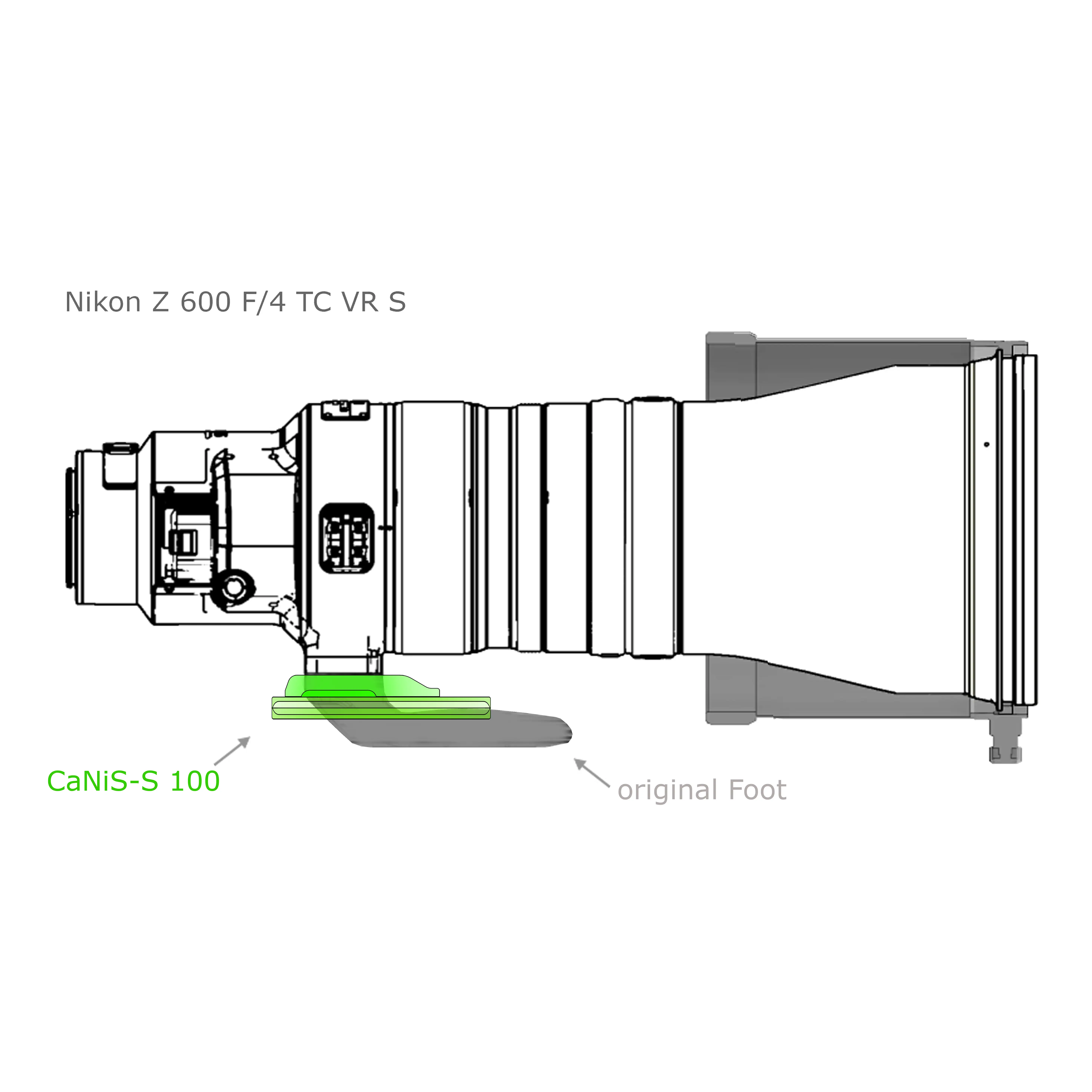

- Nikon Z 600mm f/4 TC VR S NIKKOR (2022)

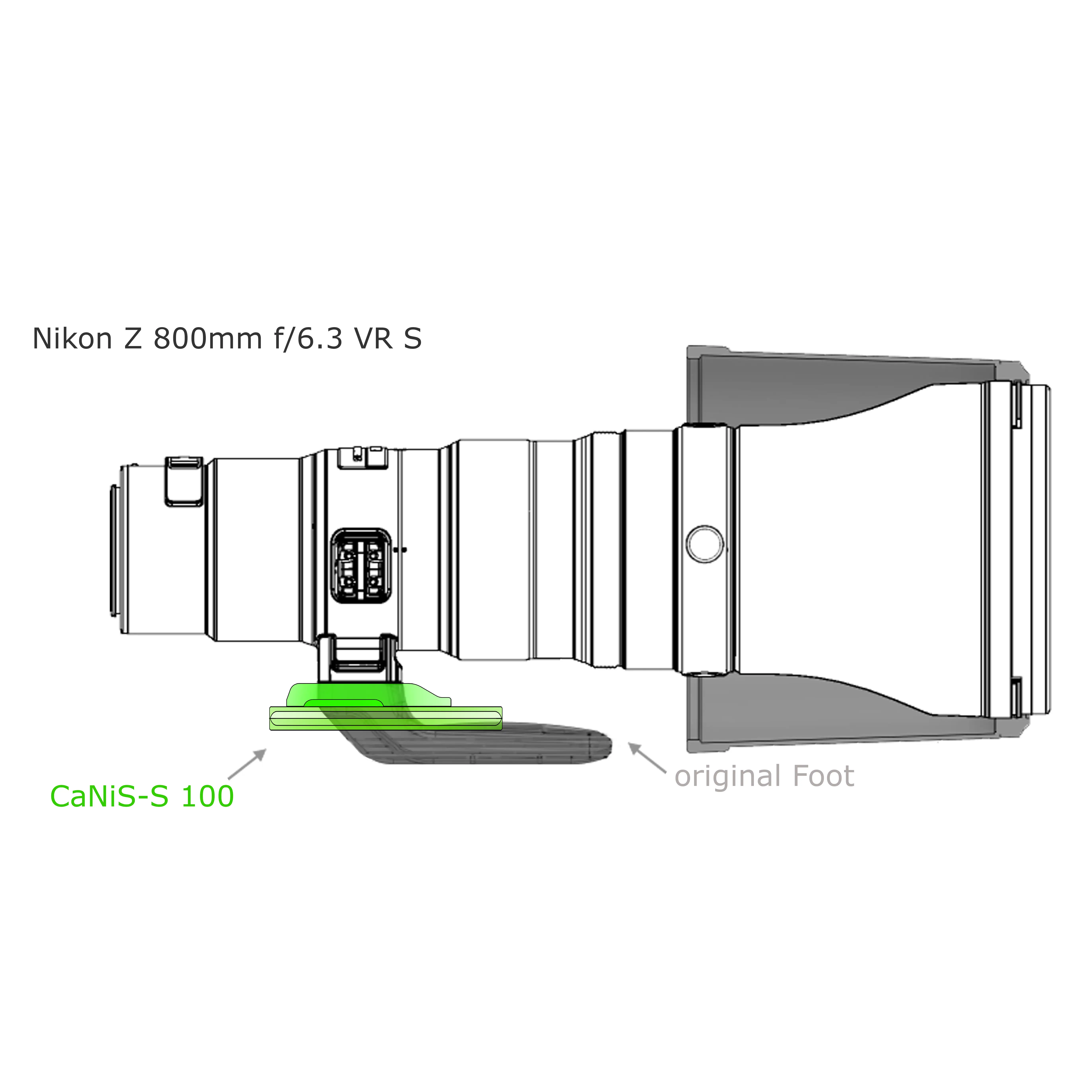

- Nikon Z 800mm f/6.3 VR S NIKKOR (2022)
for Sigma lenses
- SIGMA 60-600mm f/4,5-6,3 DG DN OS | Sports (E- & L-Mount)
- Sigma 60-600mm f/4,5-6,3 DG OS HSM / Sports (Canon EF, Nikon F, Sigma SA)
- Sigma 70-200 f/2.8 DG OS HSM Sports
- Sigma 150-600mm f/5-6,3 DG DN OS Sports

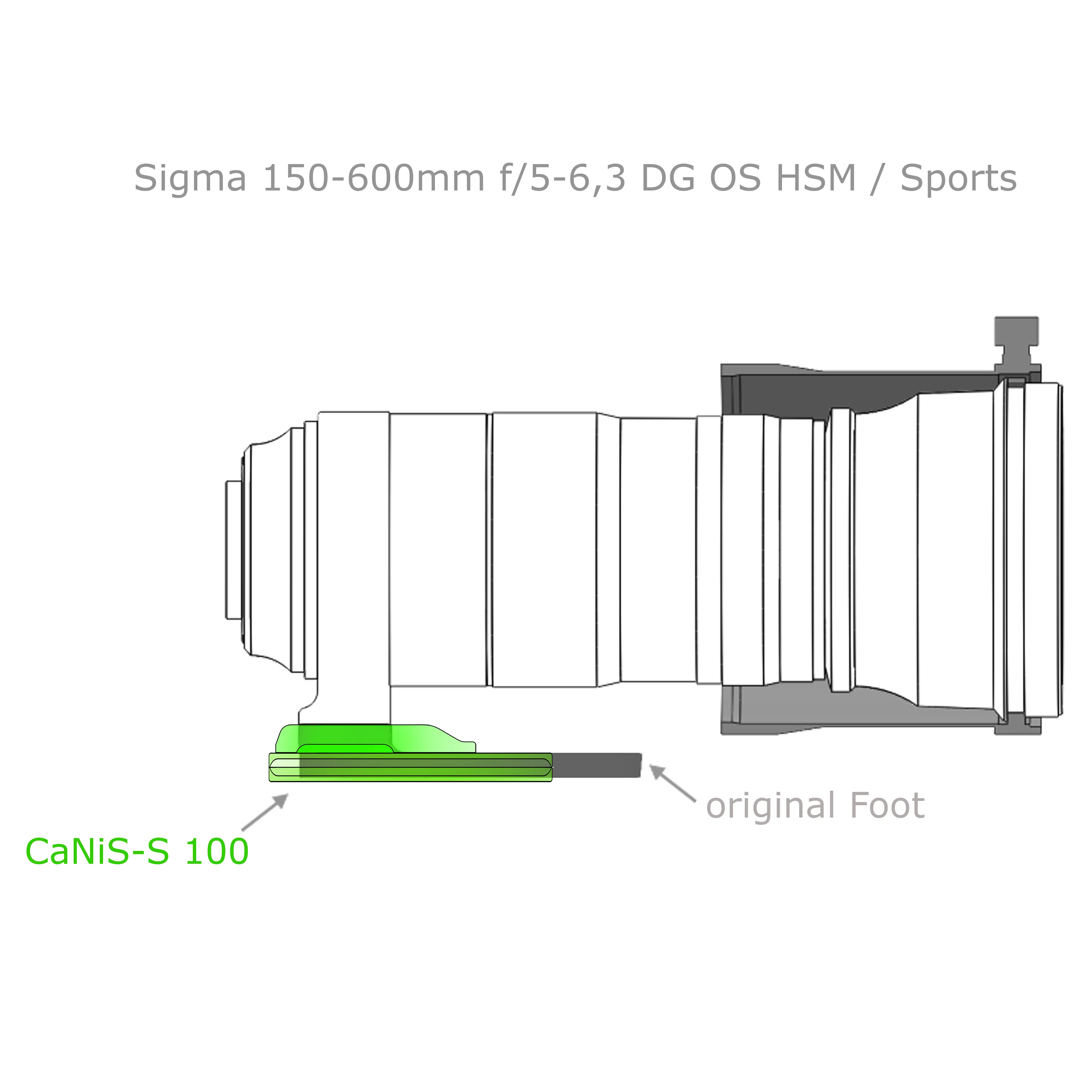

- Sigma 150-600mm f/5-6,3 DG OS HSM / Sports
- Sigma 500mm F4 DG OS HSM | Sports
for Sony Lenses

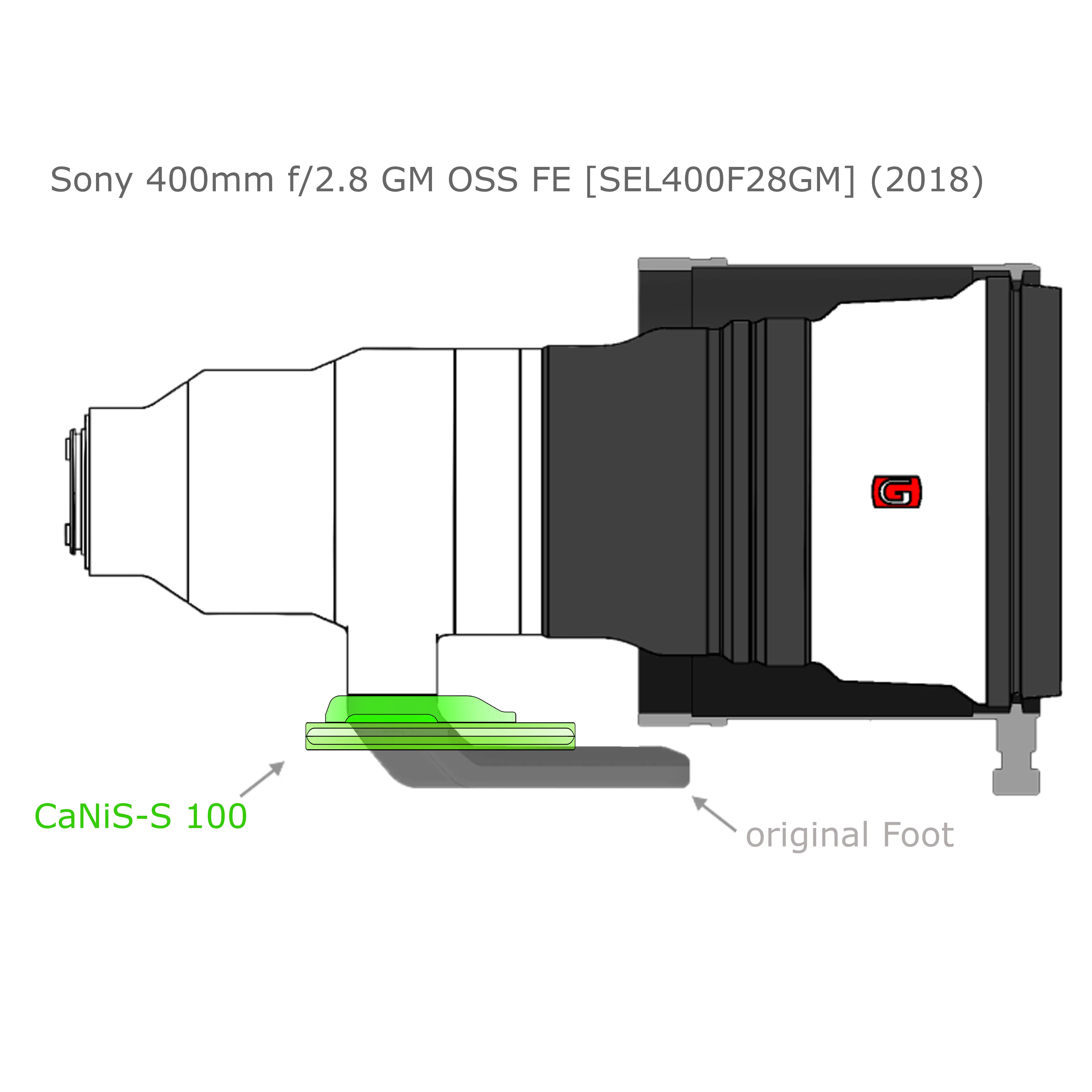

- Sony 400mm f/2.8 GM OSS FE [SEL400F28GM] (2018)

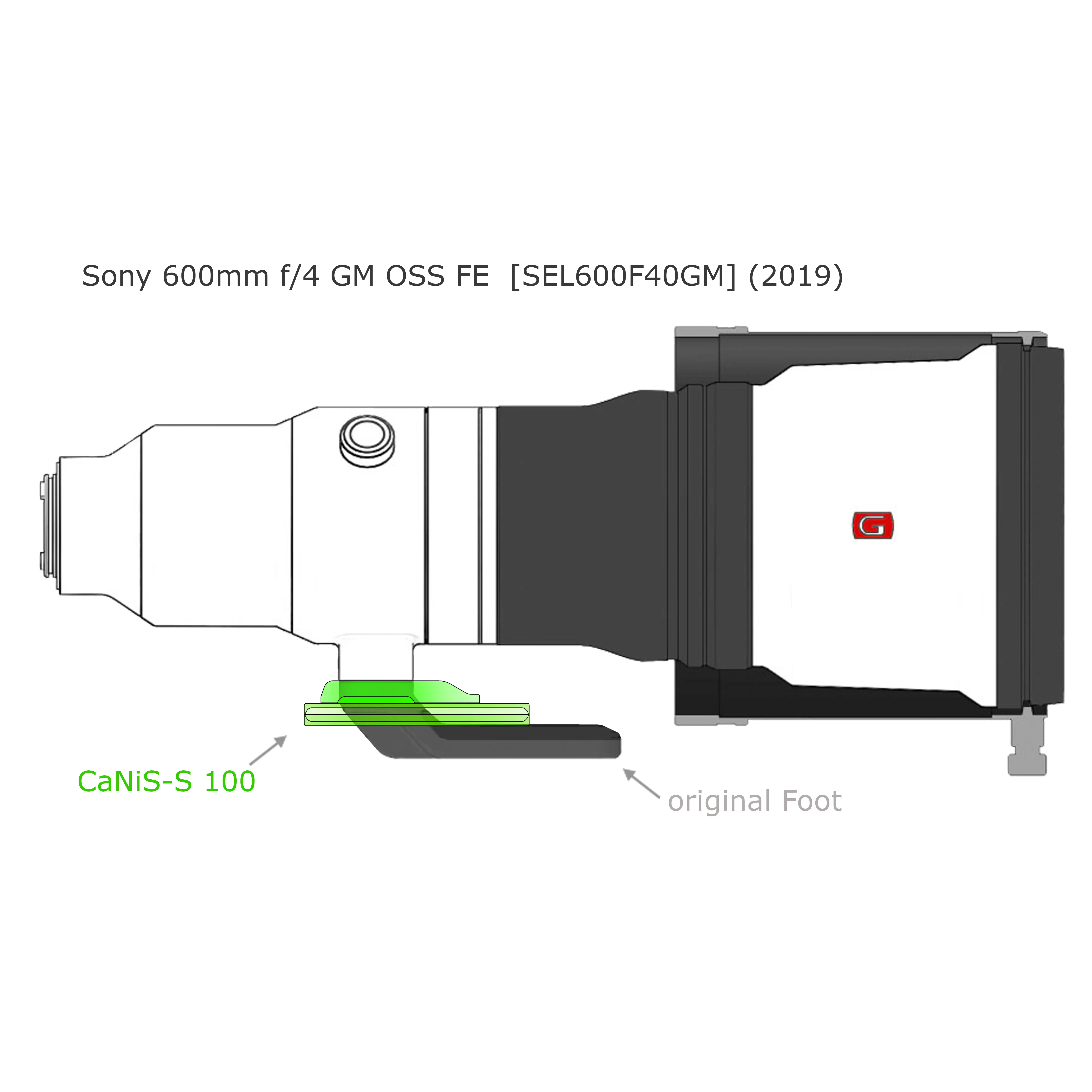

- Sony 600mm f/4 GM OSS FE [SEL600F40GM] (2019)
included
- Allen wrench
- Captive screws 1/4-20 stainless (2x)
- M4 mounting screws
- Safety stop screws M3 x 5 mm (2x)
note
- Please follow assembly instructions!

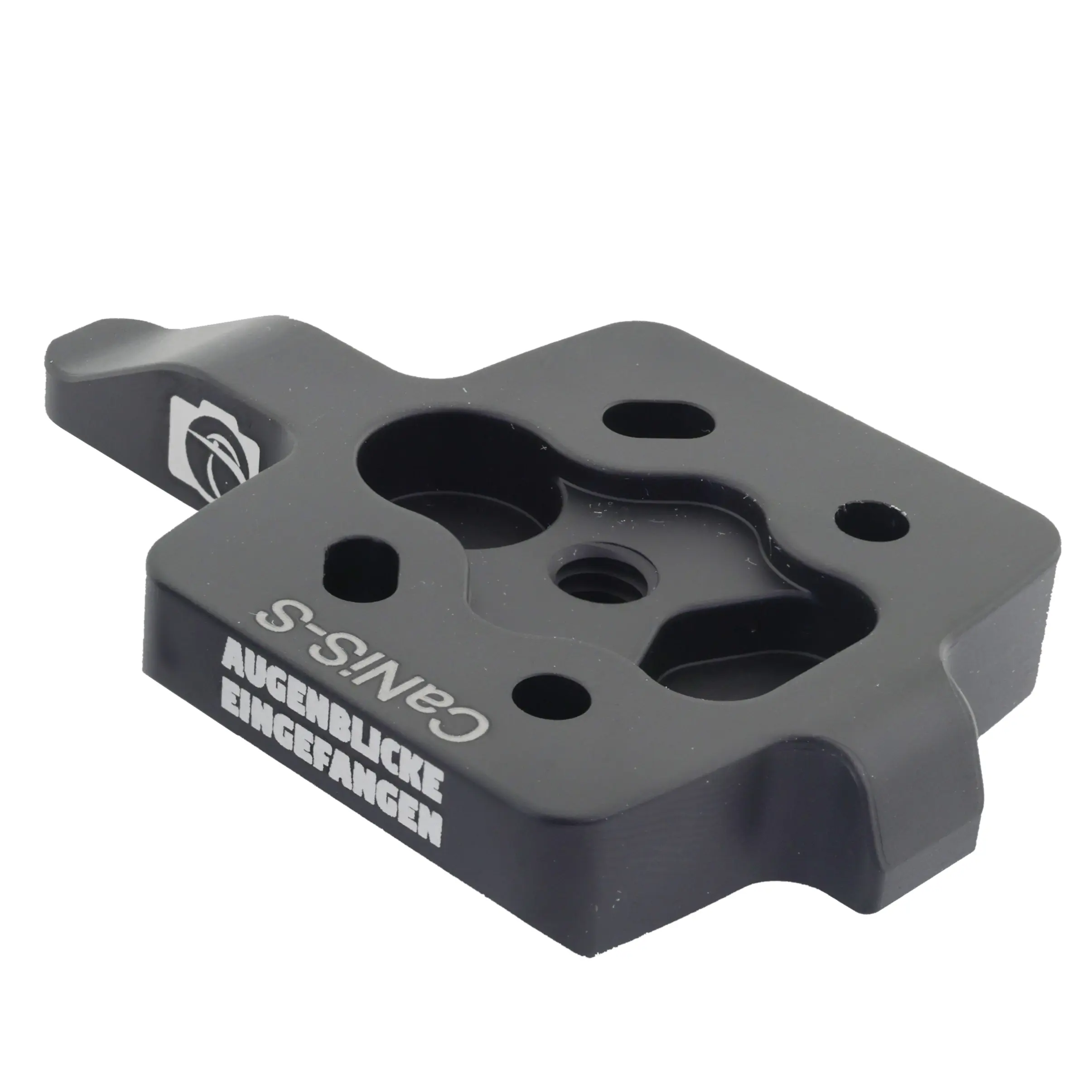

The super-flat modular replacement base for Nikon-, Canon-, Sigma or Sony telephoto lenses is a true all-rounder. The base can be moved on the plate depending on the desired center of gravity and ensures that your camera/lens combination sits perfectly on the tripod head.
The lens replacement foot is made of 7075 aluminum and has a high-quality surface coating. All Made in Germany. 2 x QD- mounts on the bottom of the replacement foot provide even more security when carrying.
Attention: Only compatible with original Magpul belt anchors. Do not use third-party adapters, e.g. from Leofoto, ProMediaGear, etc.!
