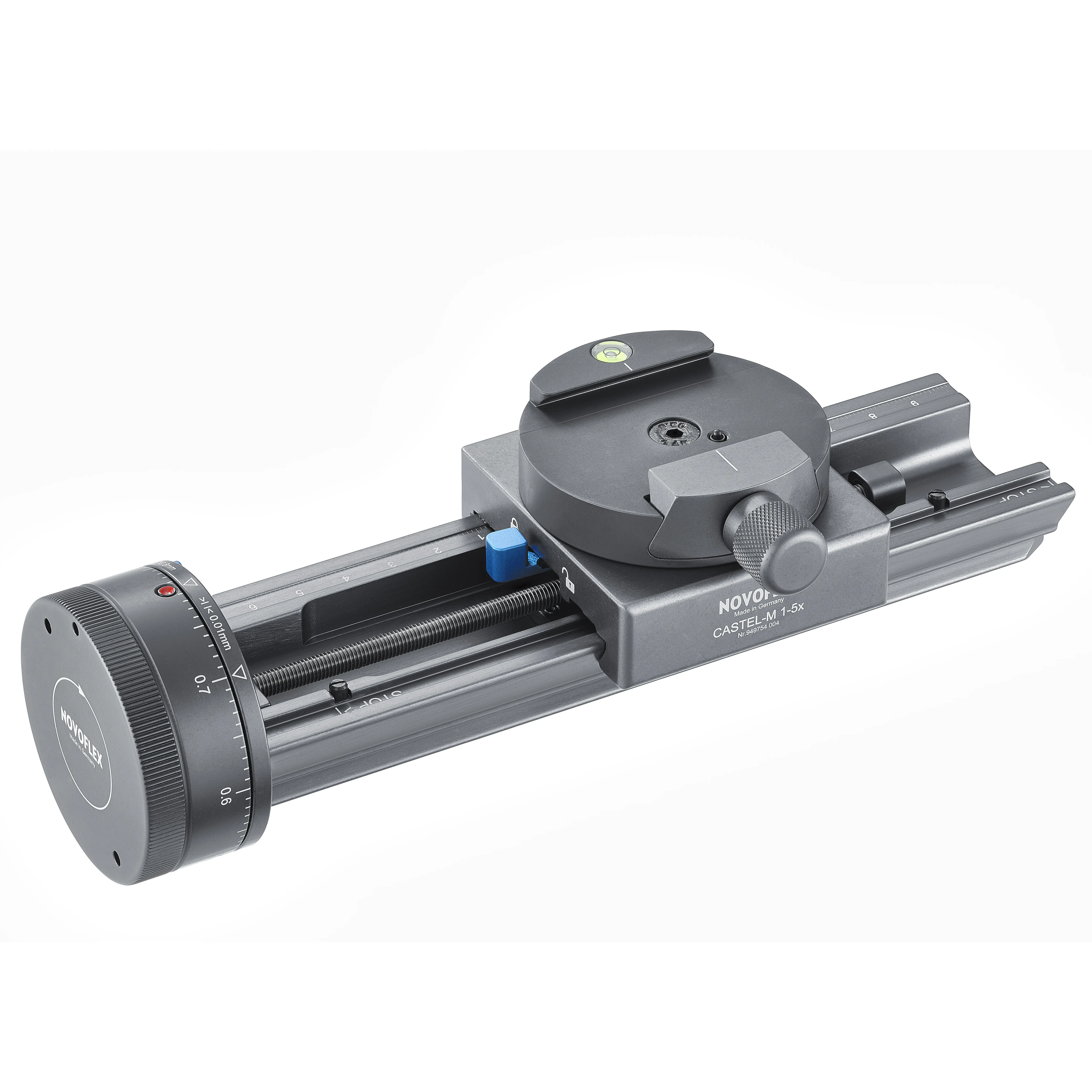

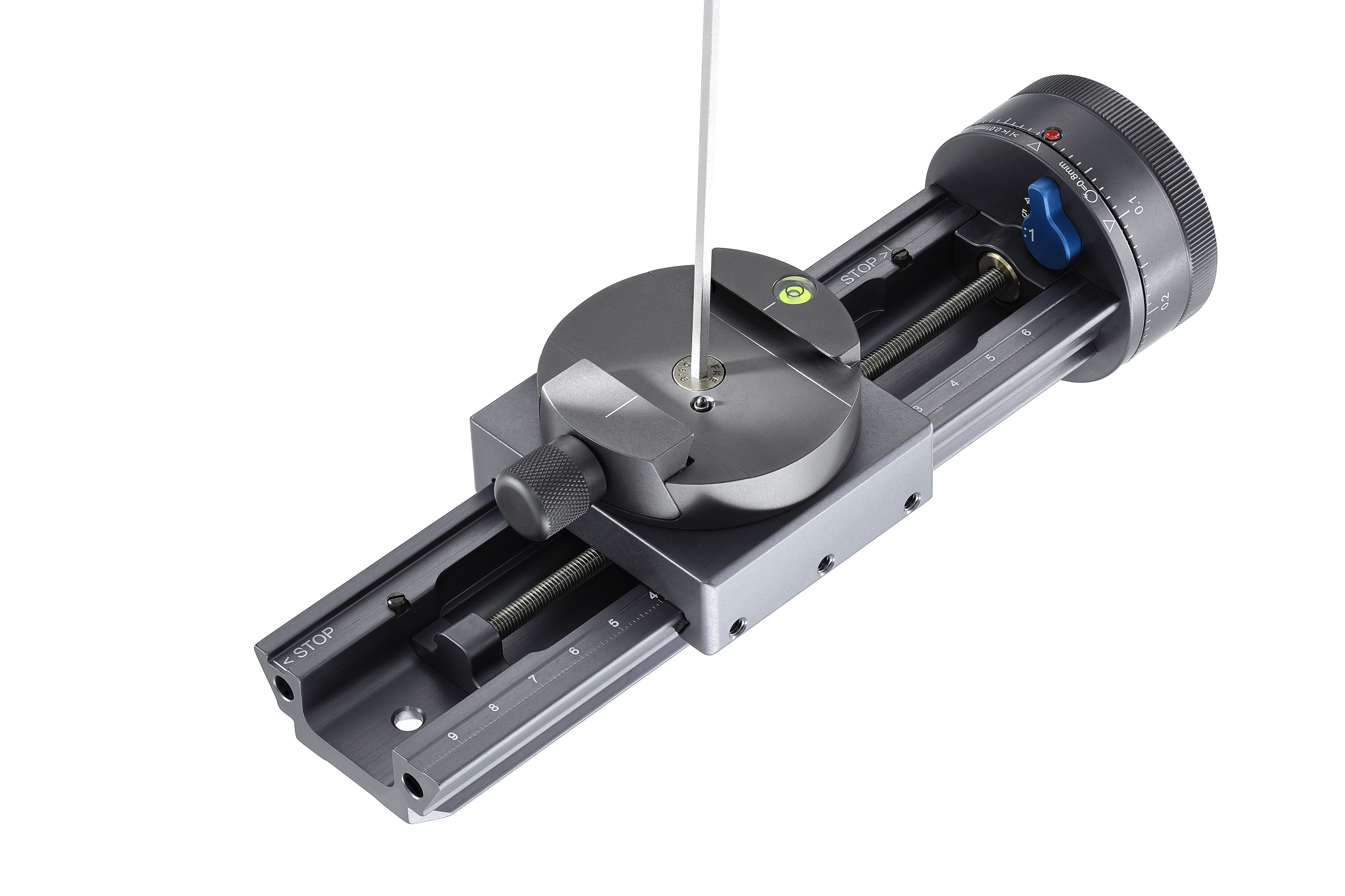

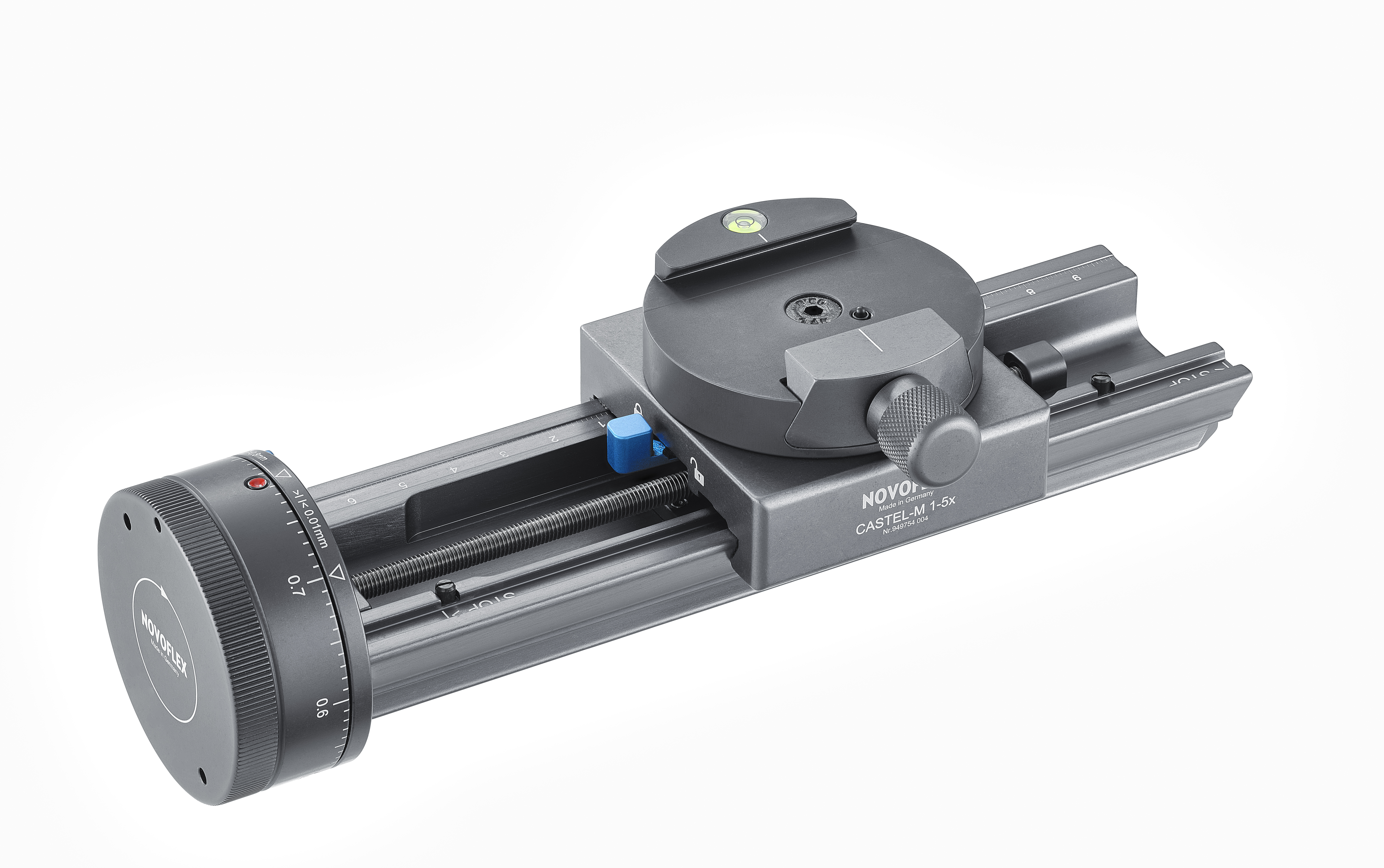

Novoflex CASTEL-M Focusing Rail with click stops for magnifications up to 5:1

By accessing the video, I agree that my data will be transmitted to YouTube or Vimeo and that I have read the privacy policy.
Product information
Novoflex CASTEL-M Focusing Rail with click stops for magnifications up to 5:1
Feature
  • Arca compatible
Height / cm
  • 5,5
Length / cm
  • 20,5
QR base fits
  • ARCA SWISS compatible (according to manufacturer) 38 mm dovetail
  • ARCA Swiss-UniQ/C Standard
QR profile fits
  • ARCA SWISS compatible (according to manufacturer) 38 mm clamp
Weight / g
  • 679
Width / cm
  • 6,5
clamp release type
  • Screw locking
recommended for
  • DSLM
  • DSLR
  • Macro photography
  • Panoramic photography
  • Studio Photography

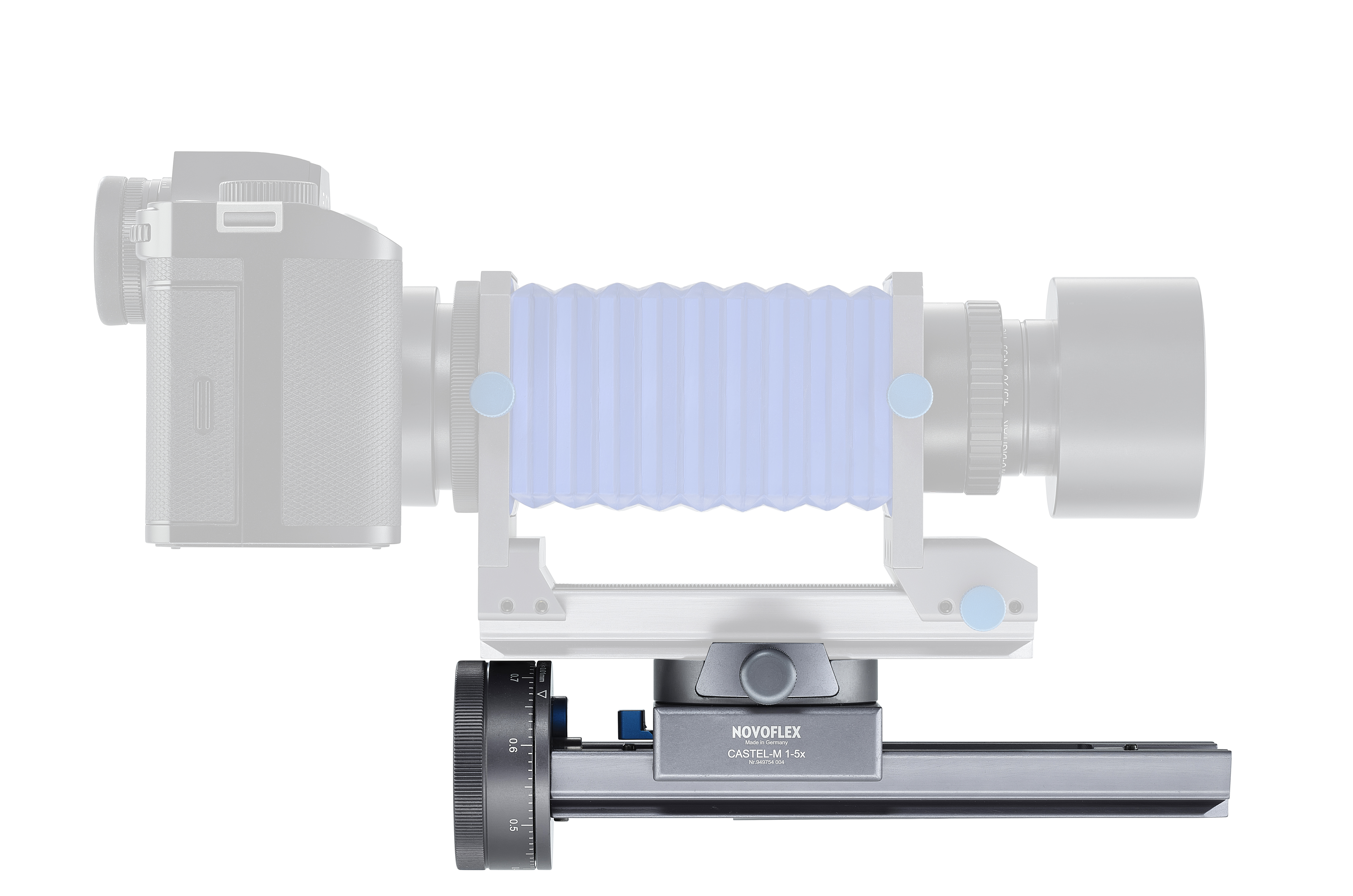

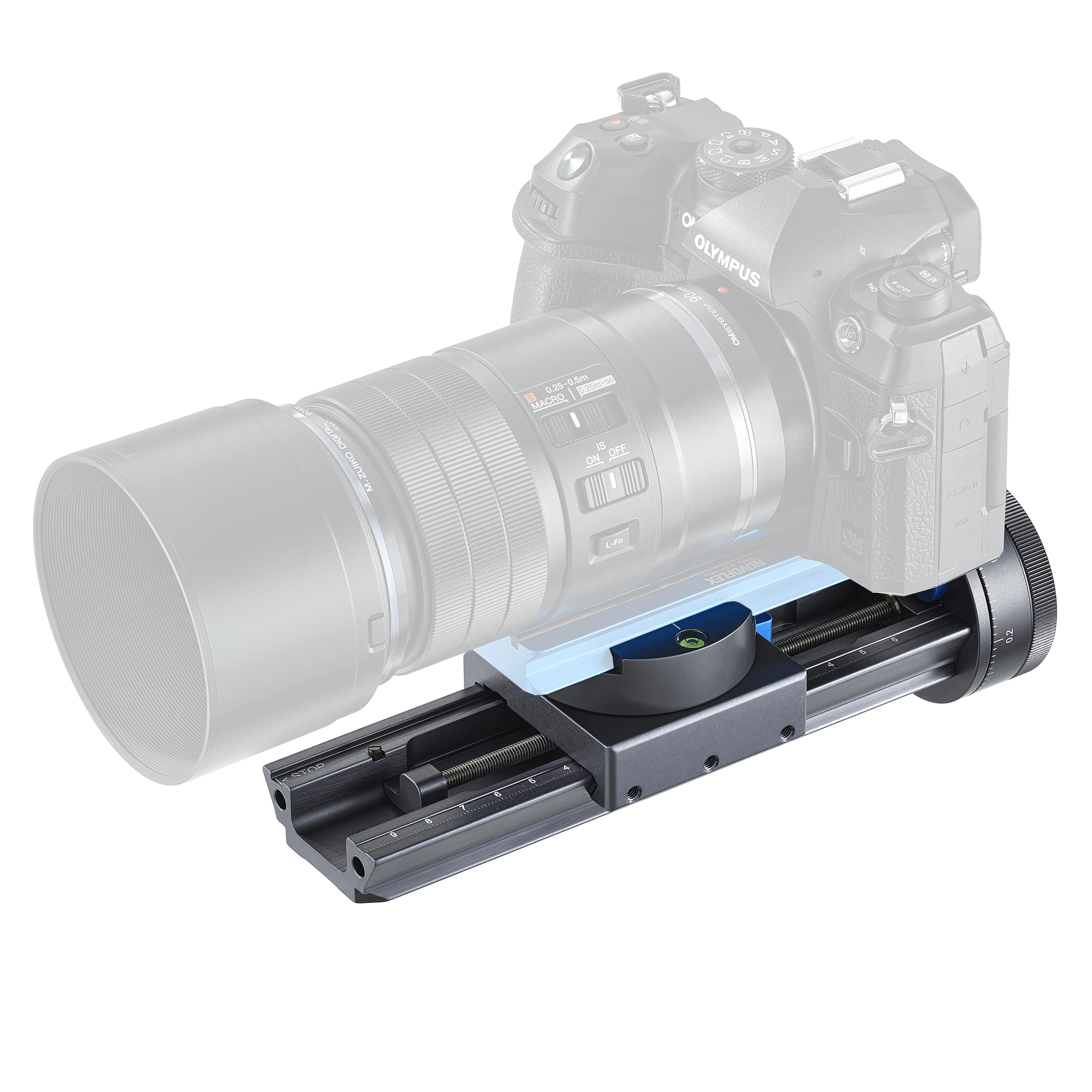

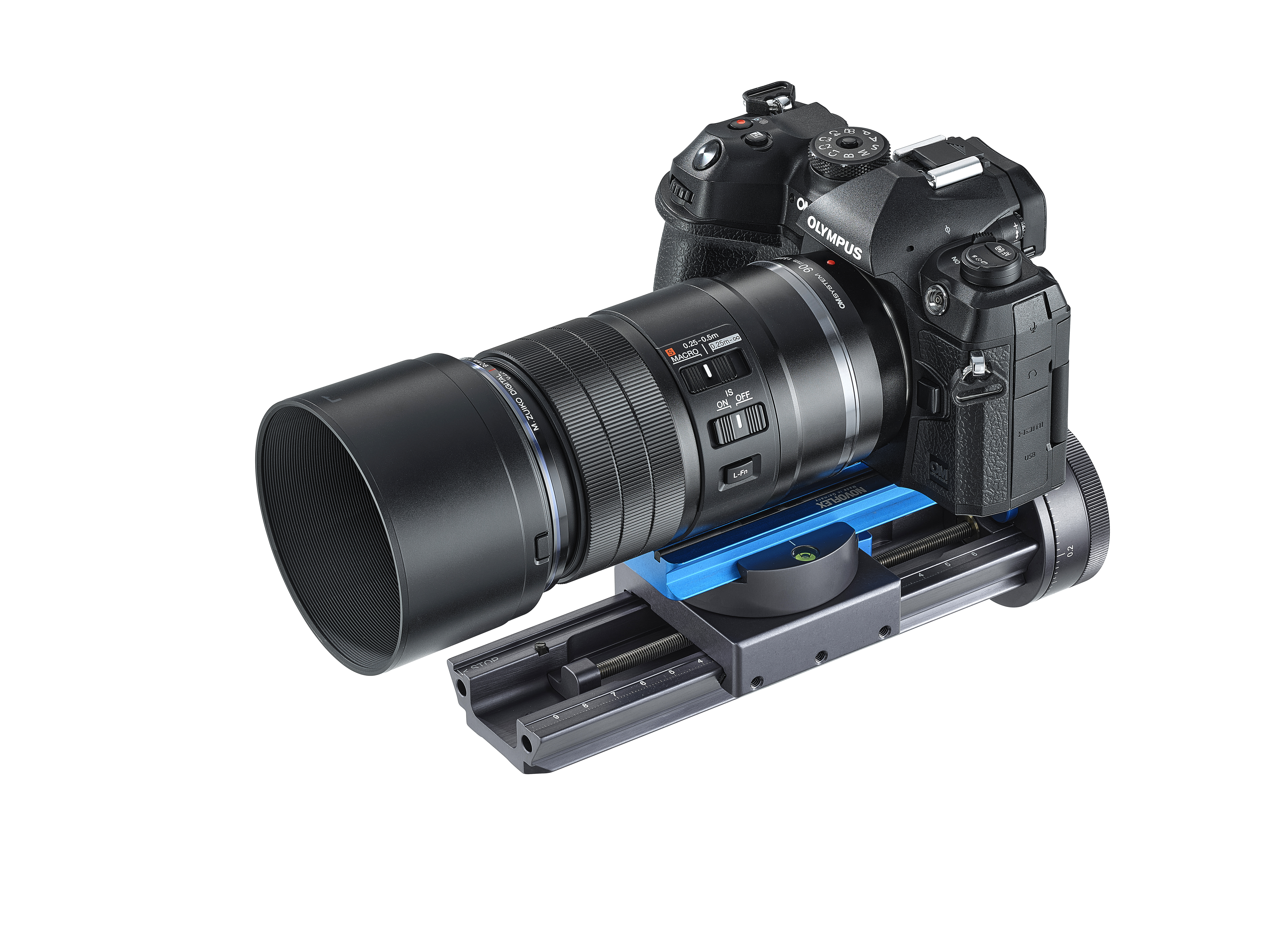

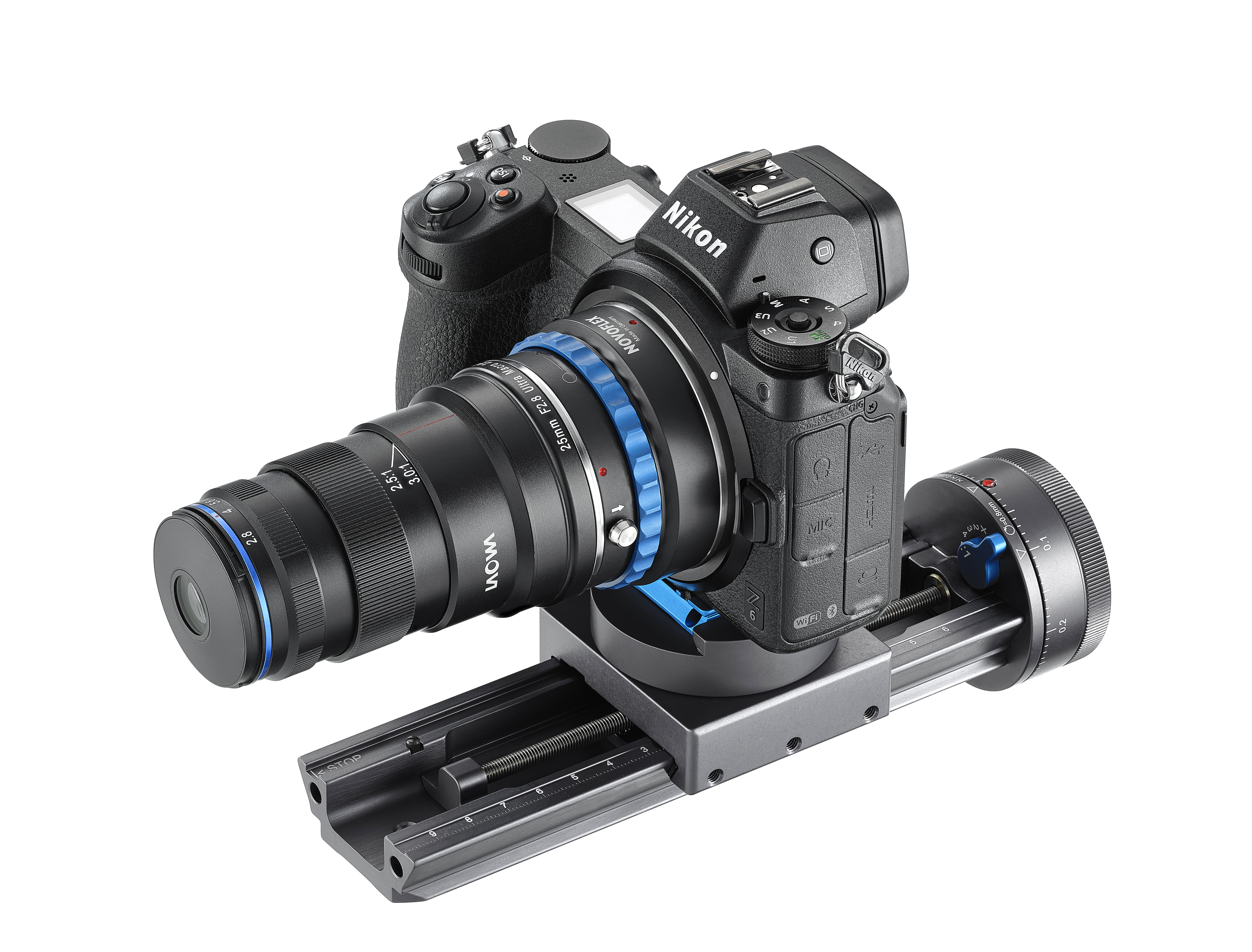

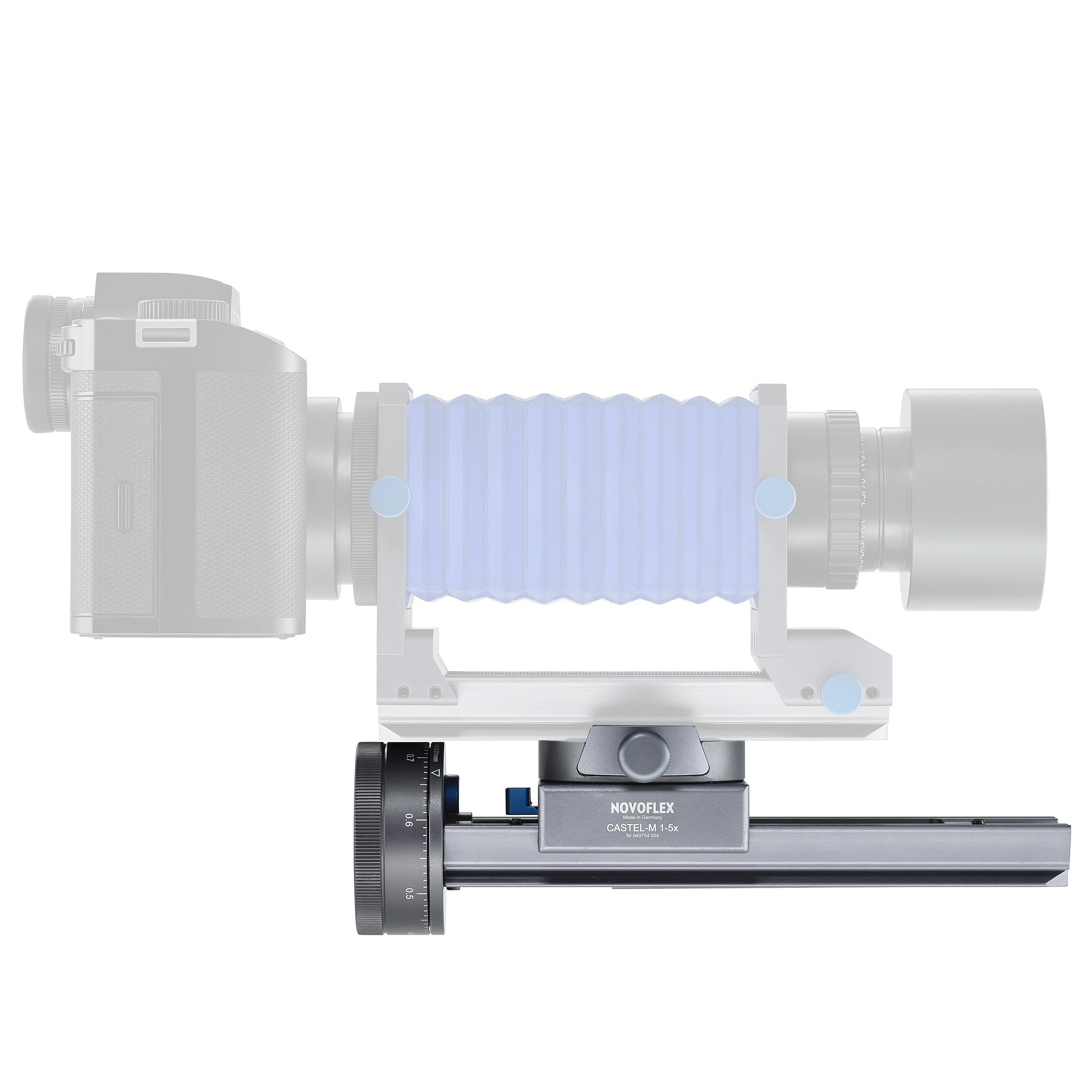

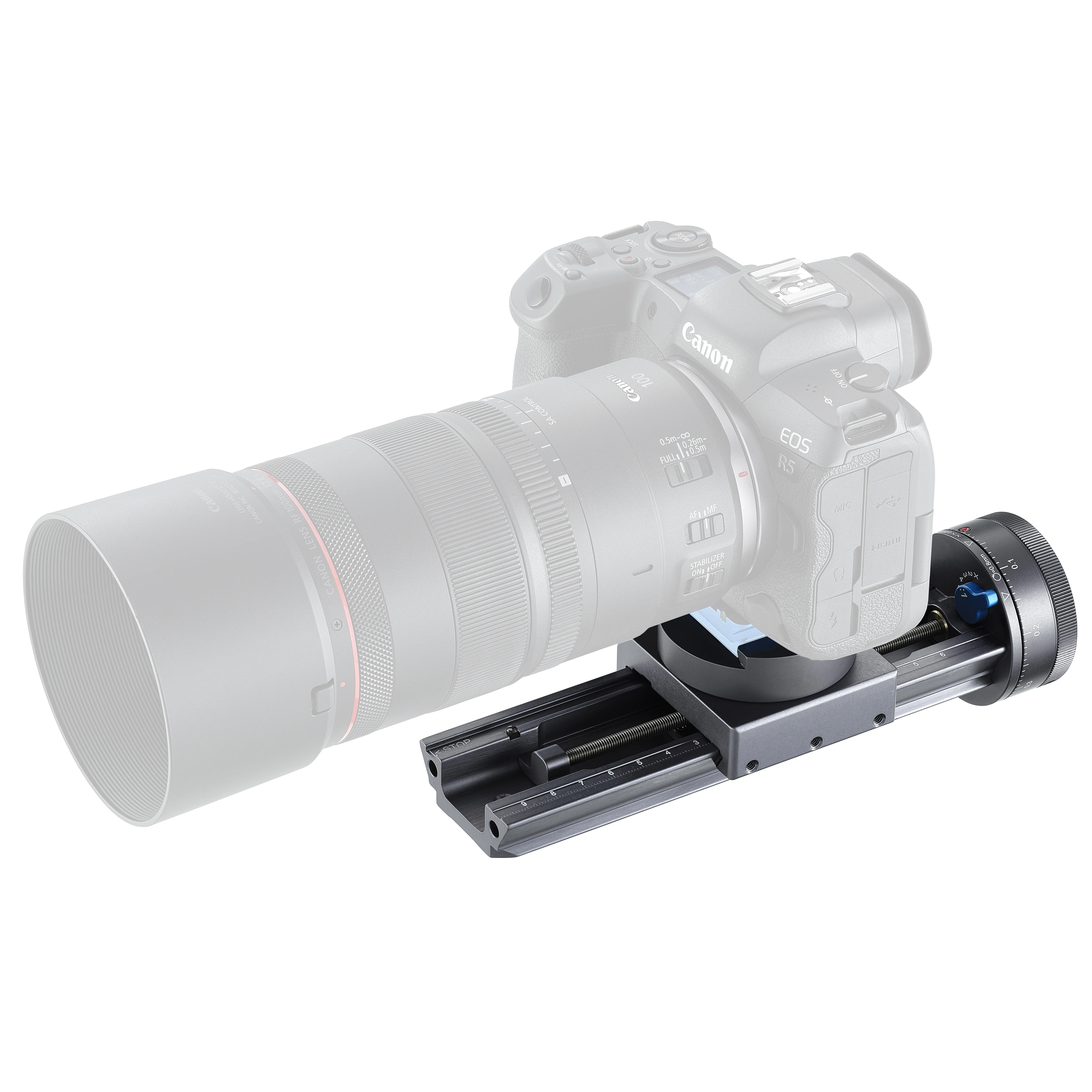

With the CASTEL-M, NOVOFLEX has developed an adjustment slide for focus stacking with reproduction scales of up to 5:1. Its design is aimed at photographers who frequently work in image scales from 1:1 to 5:1.

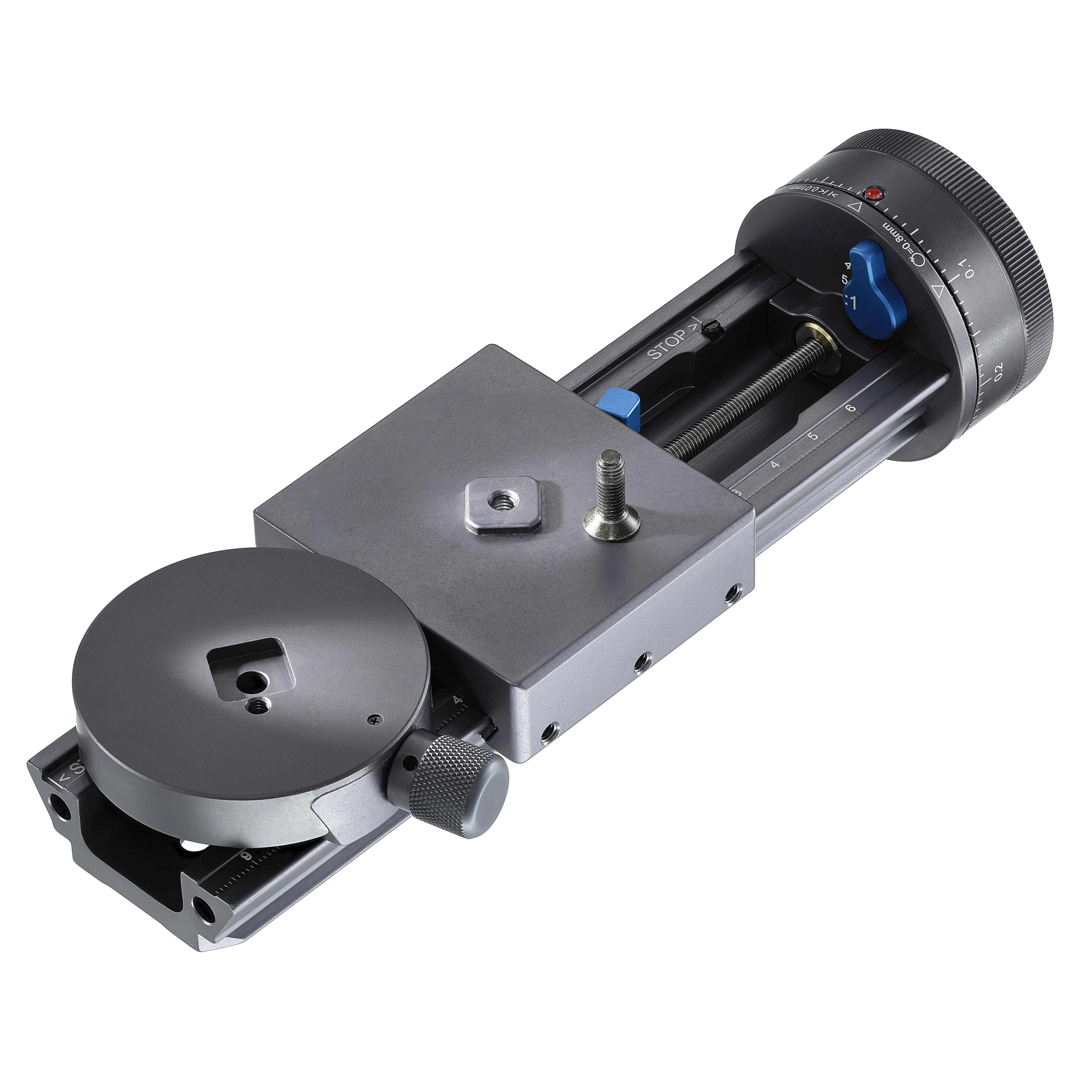

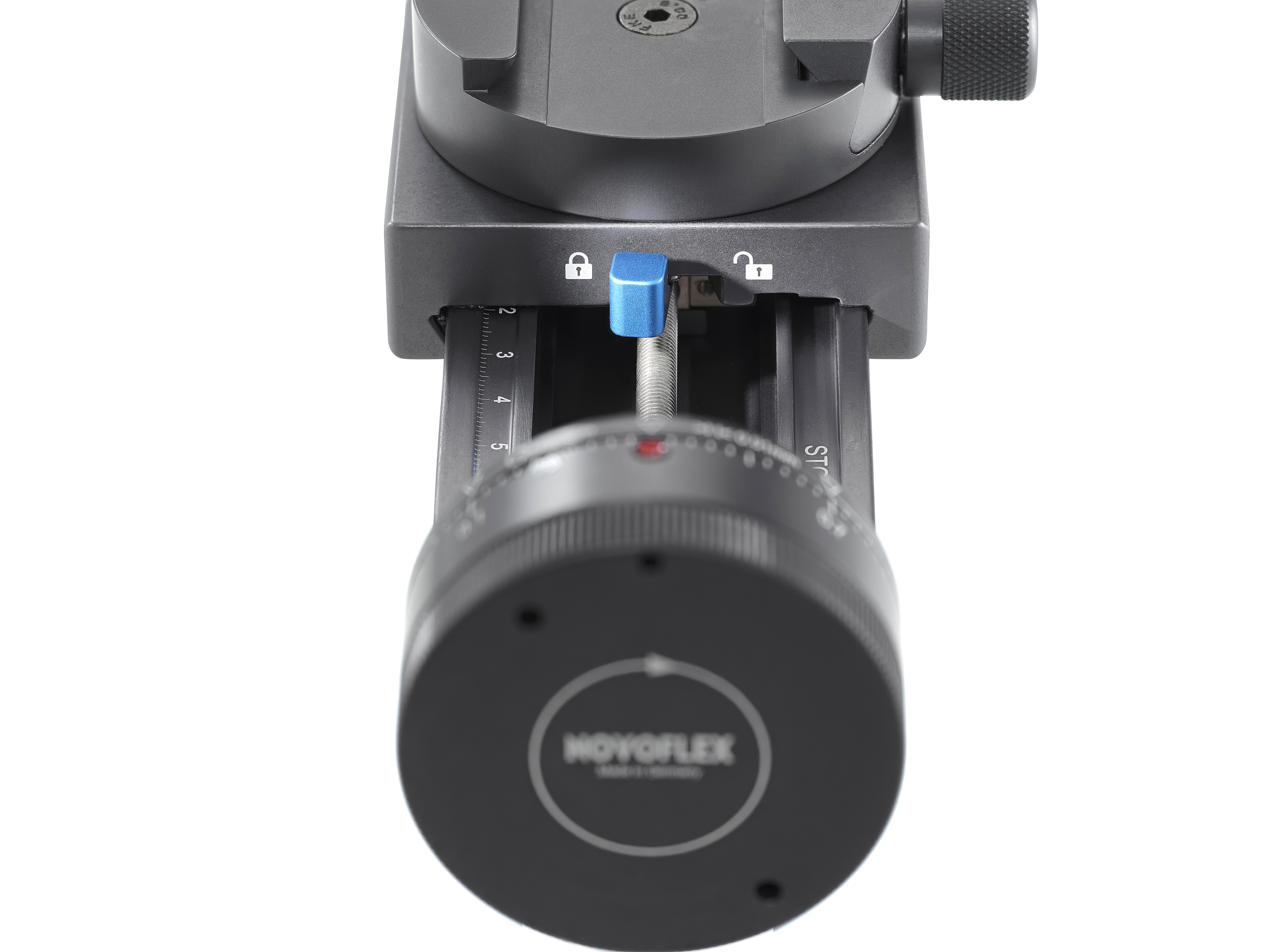

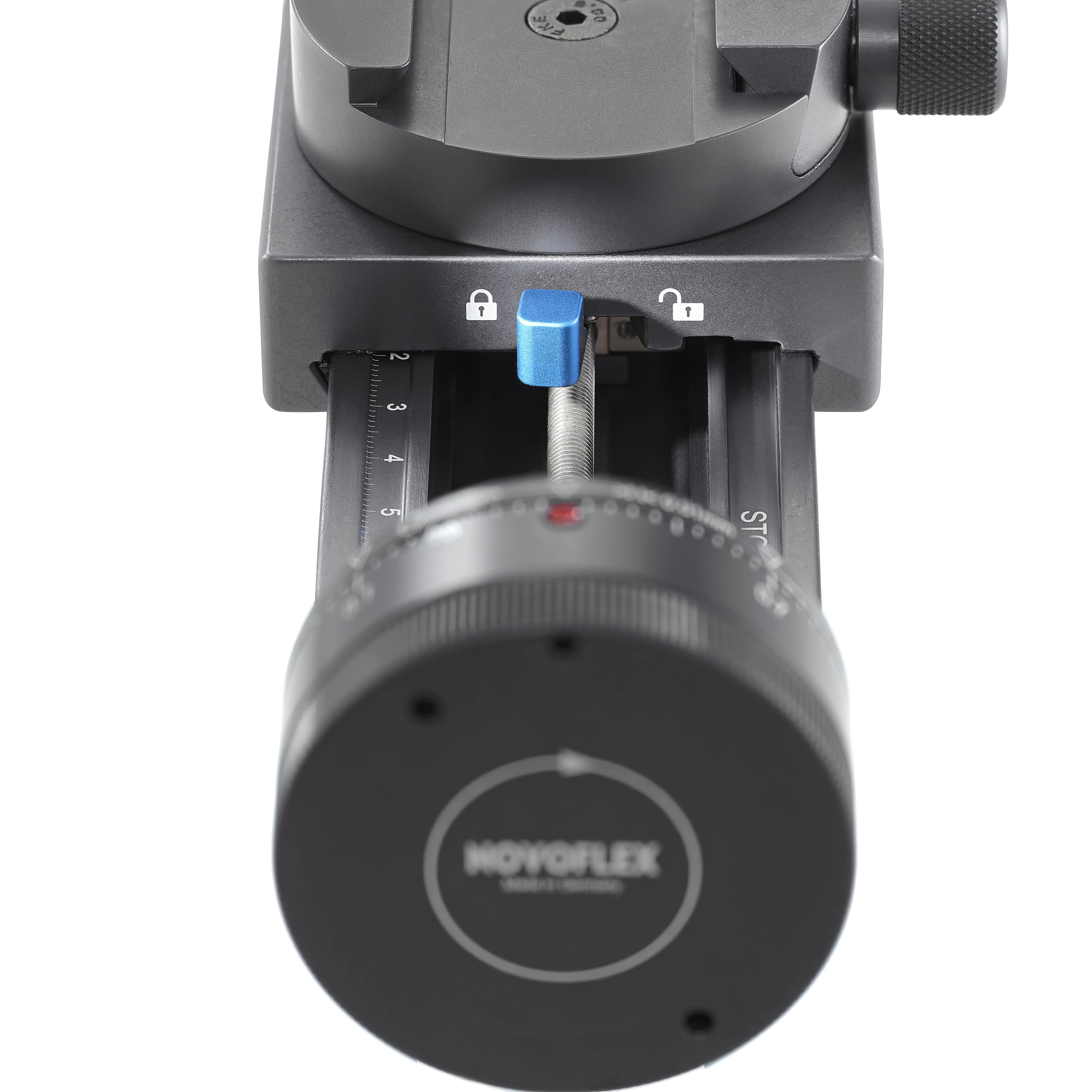

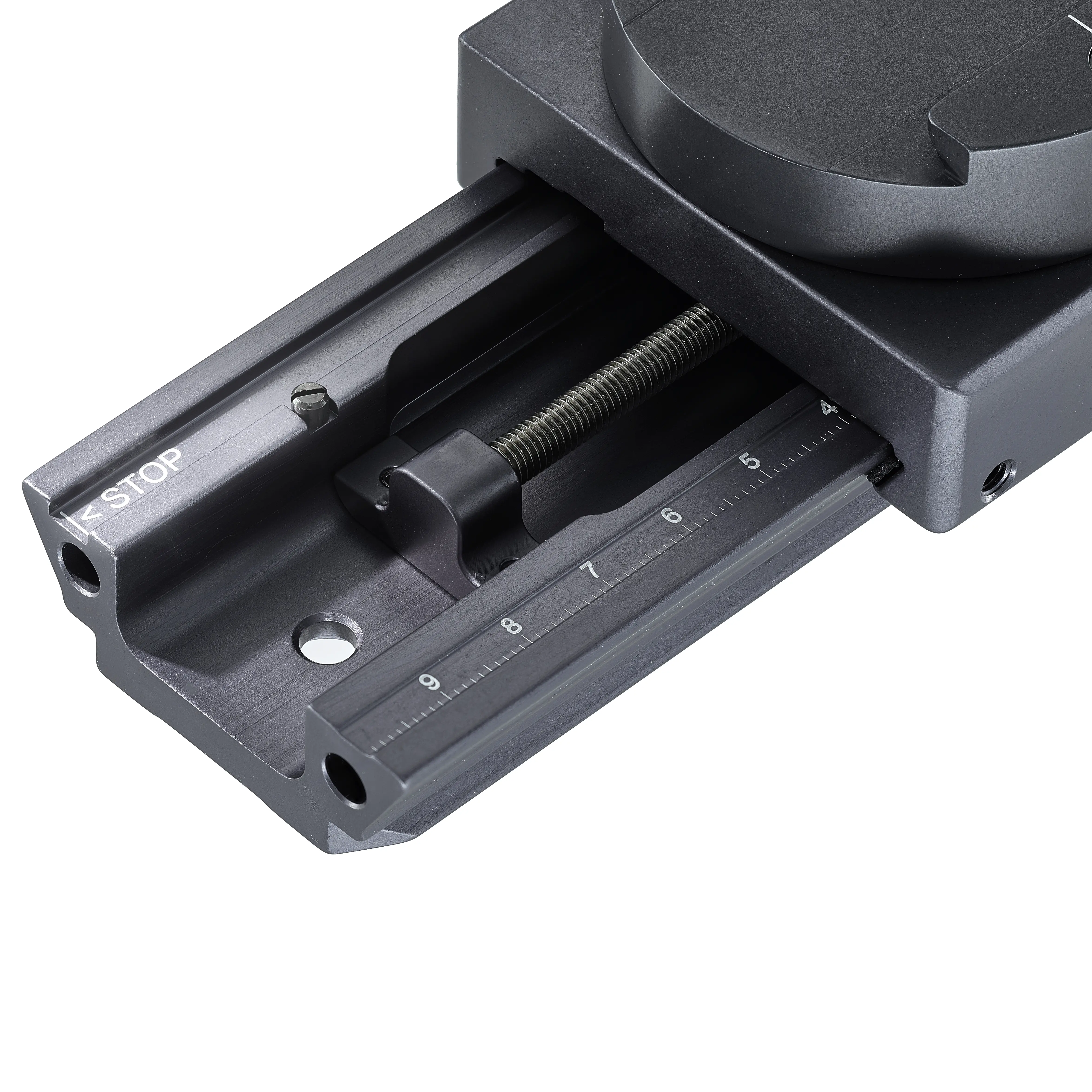

For rough pre-focusing, the sliding piece can be unhooked from the spindle and moved by hand. After positioning, it is securely hooked back into the spindle with the help of a slider.

Specs:

  • Length: 20.5 cm
  • Width: 6.5 cm at the slider, 5cm at the rail, 5.5cm at the focus wheel
  • Height: 5.5 cm measured at focus wheel, 4.5cm rail with slider and coupling
  • Weight: 679 g
  • Travel of the slider: 10 cm

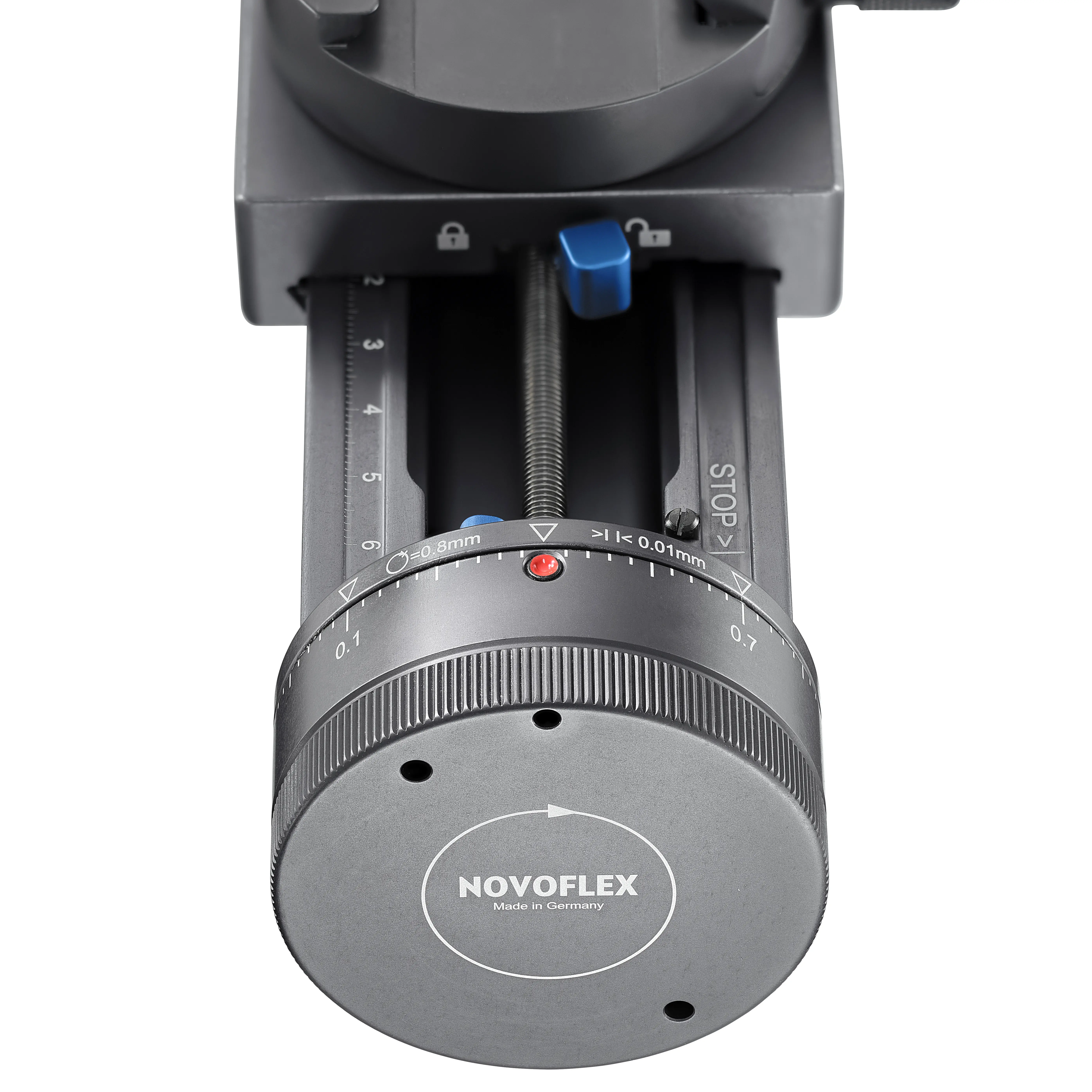

  • One full rotation of the focus wheel corresponds to 0.8 mm feed rate

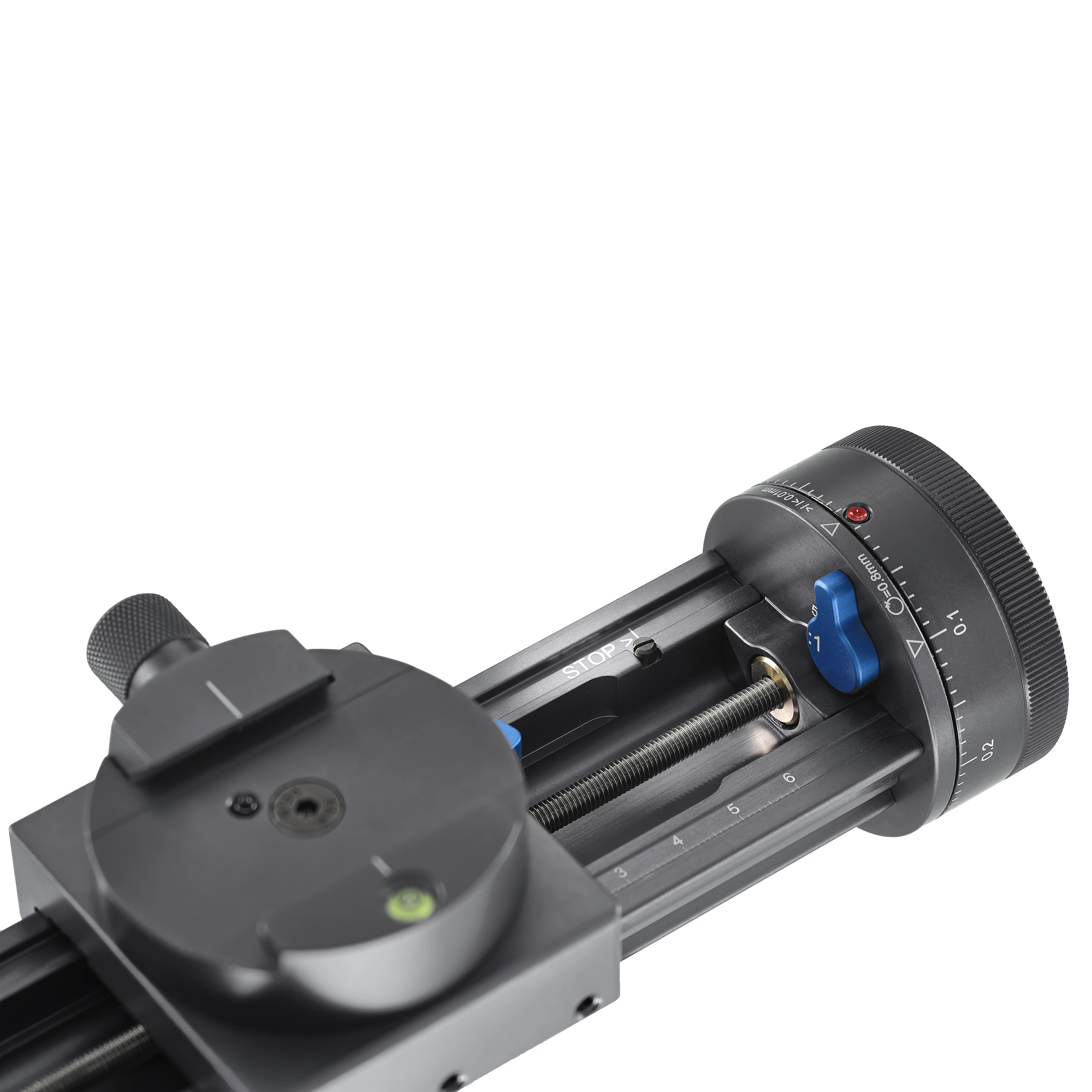

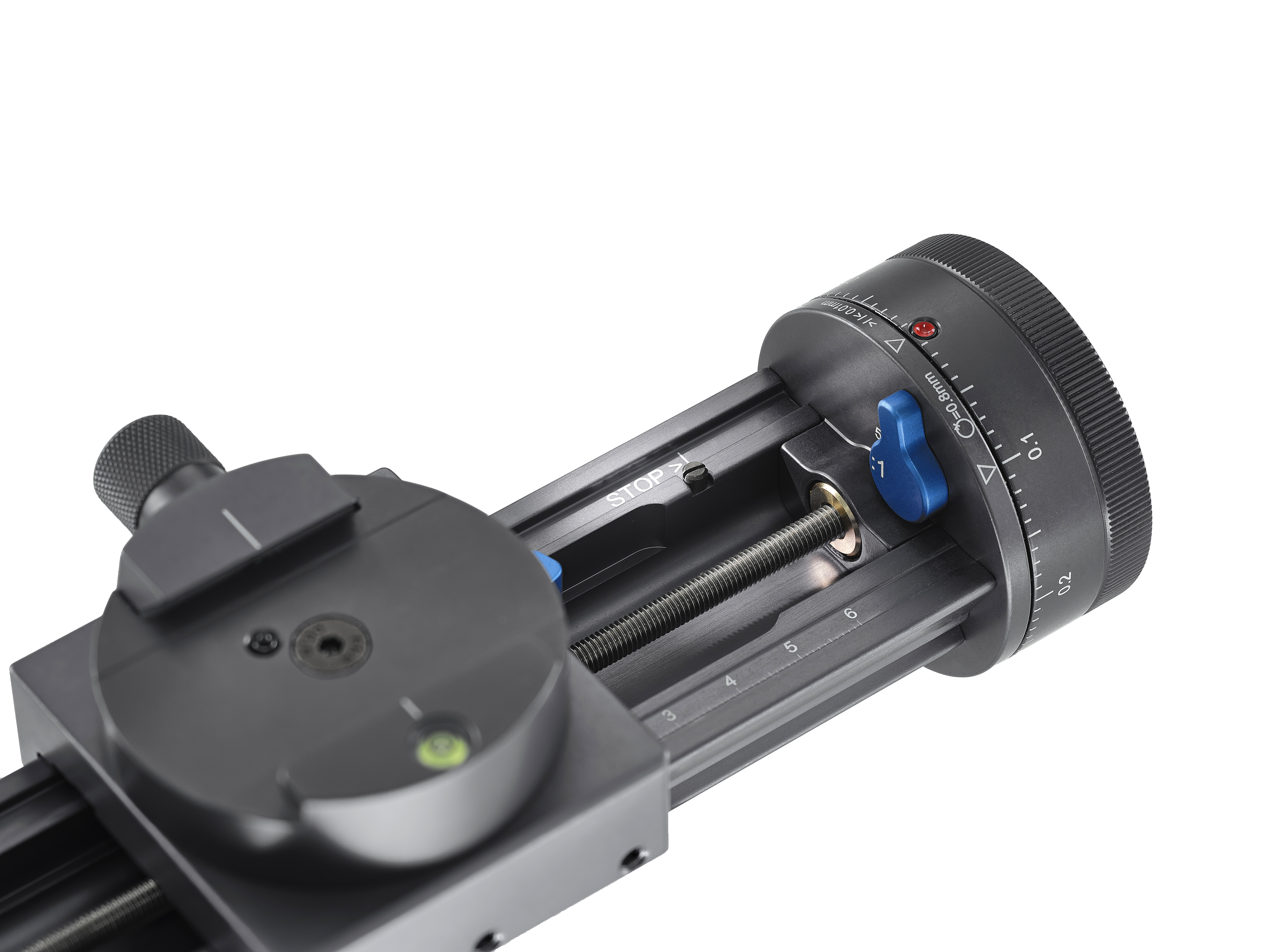

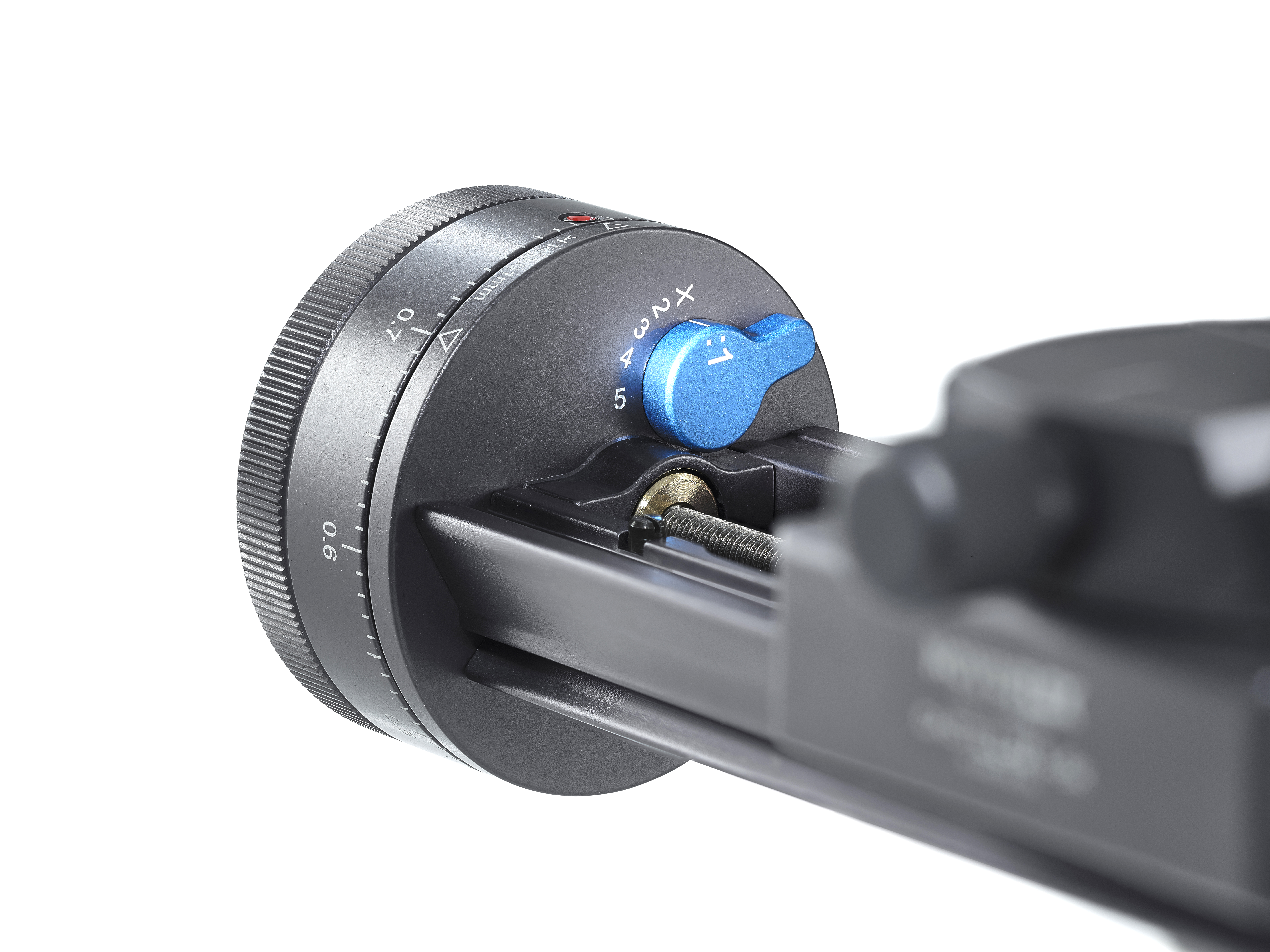

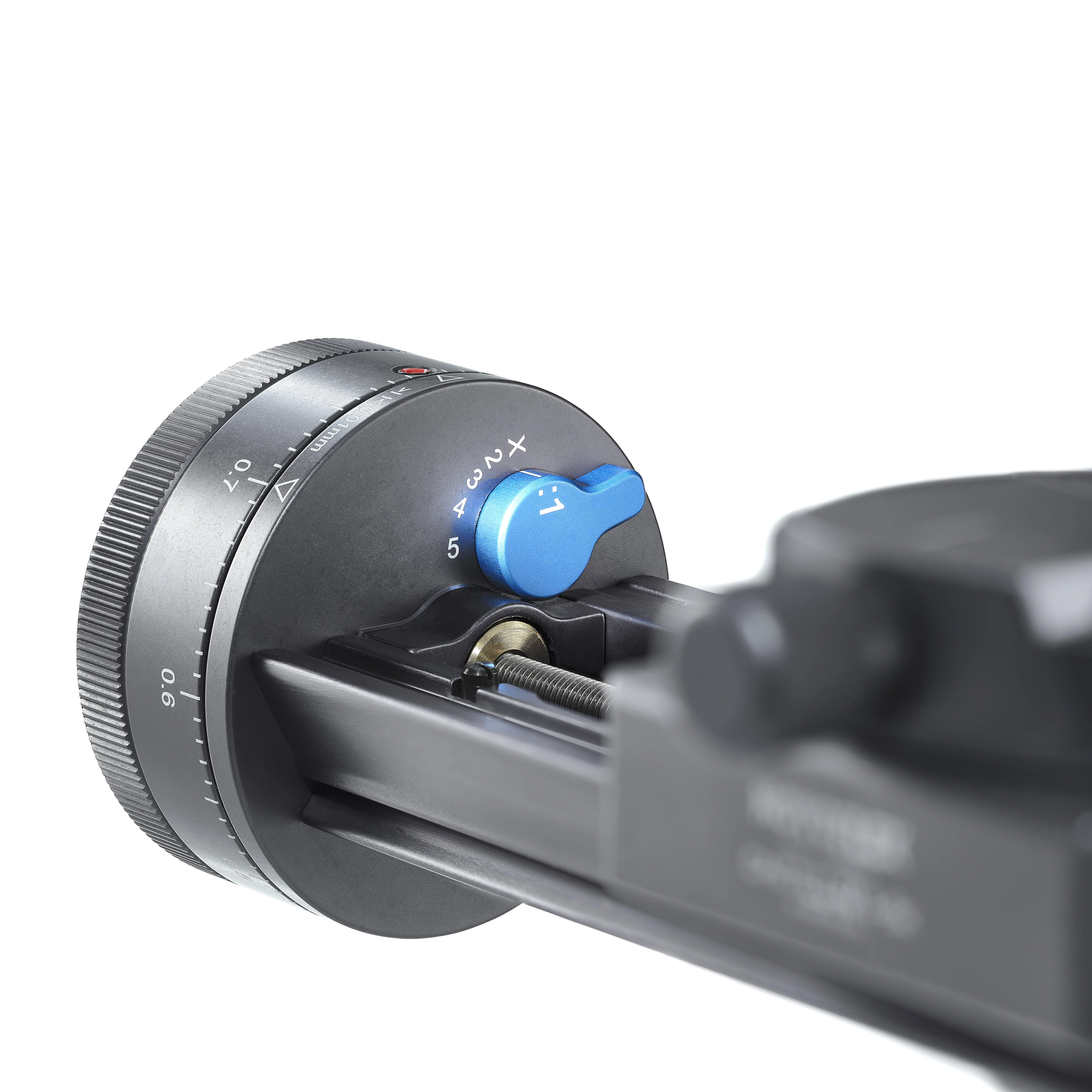

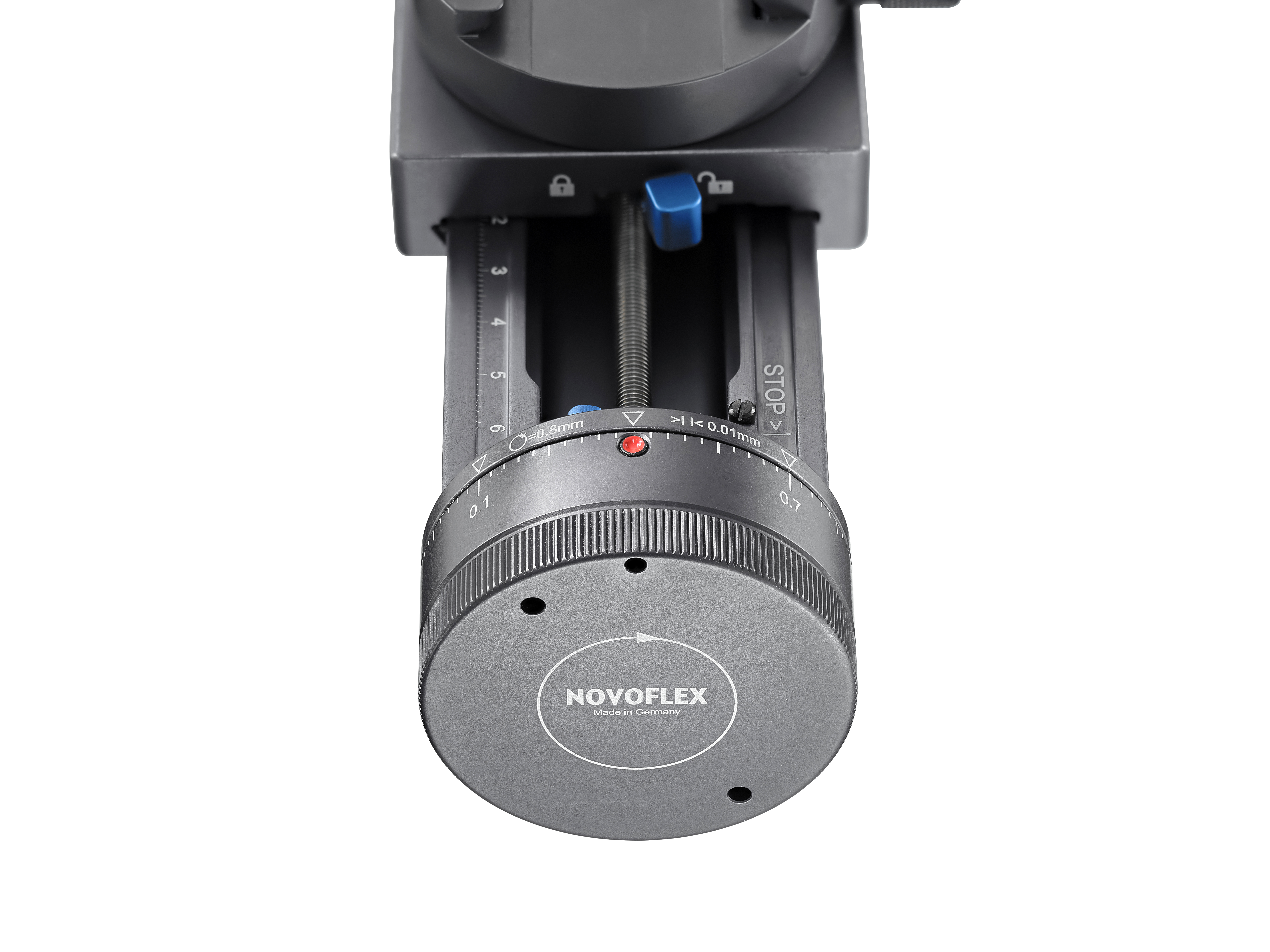

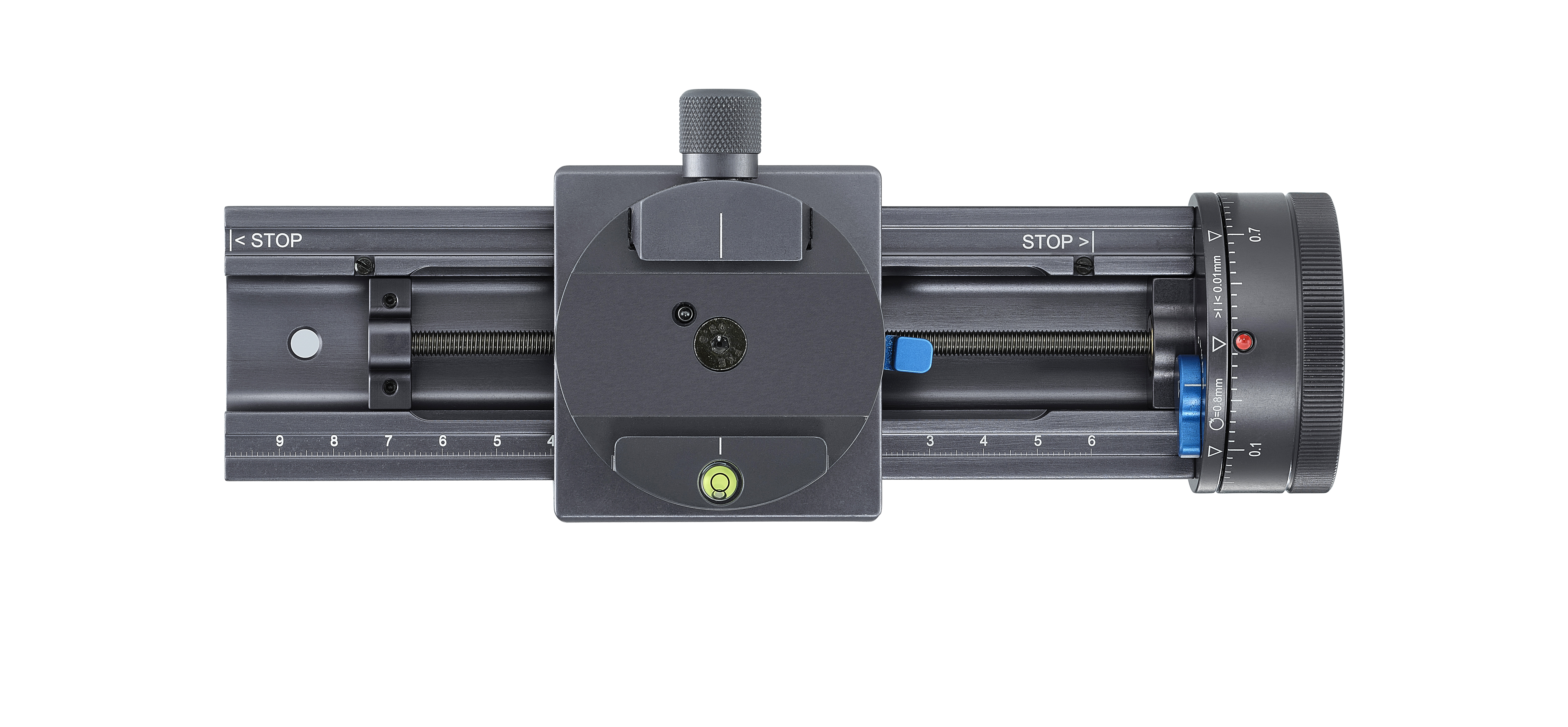

  • Laser engraved scale on the focus wheel with 0.01 mm graduation
  • Max. Load in vertical mounting: 4 kg

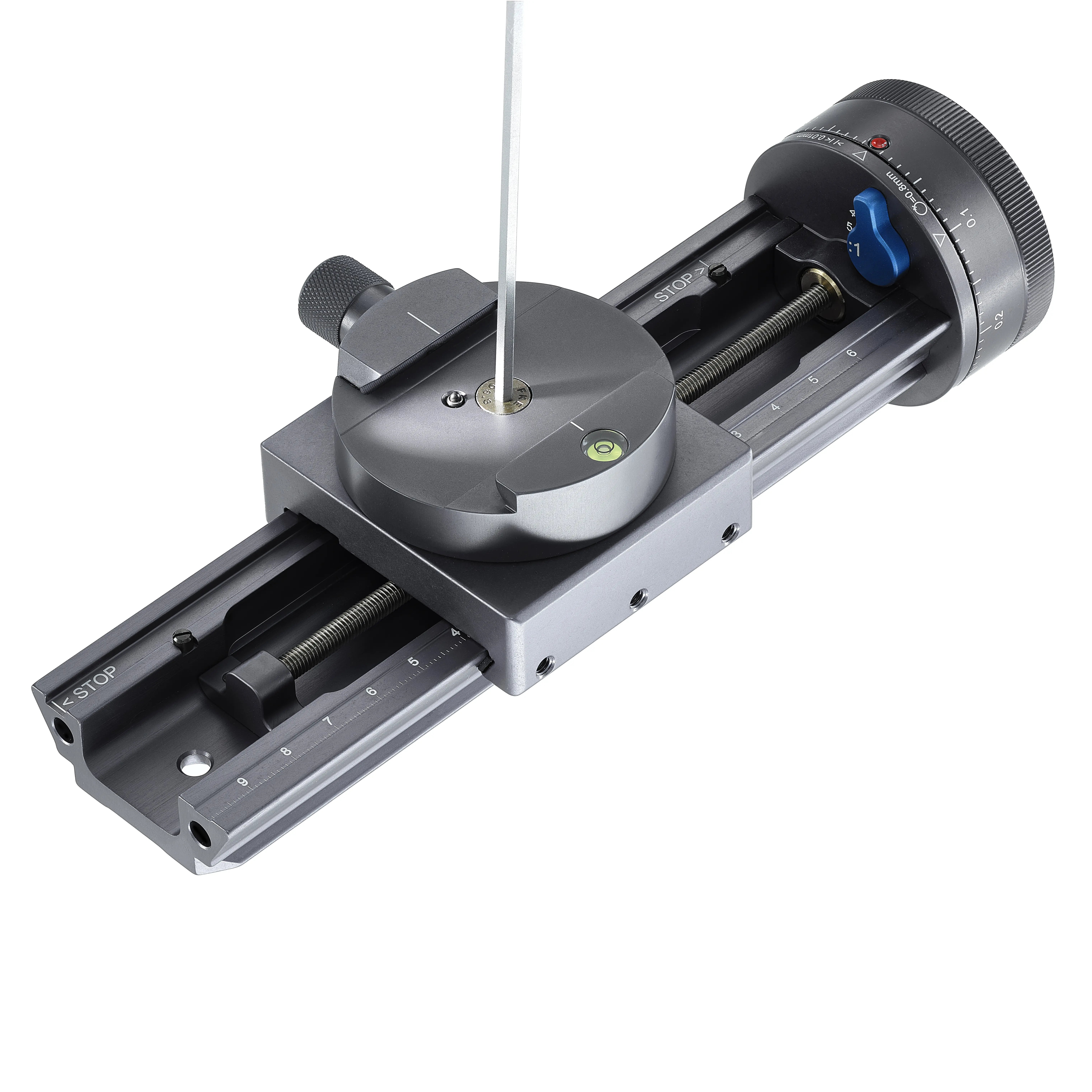

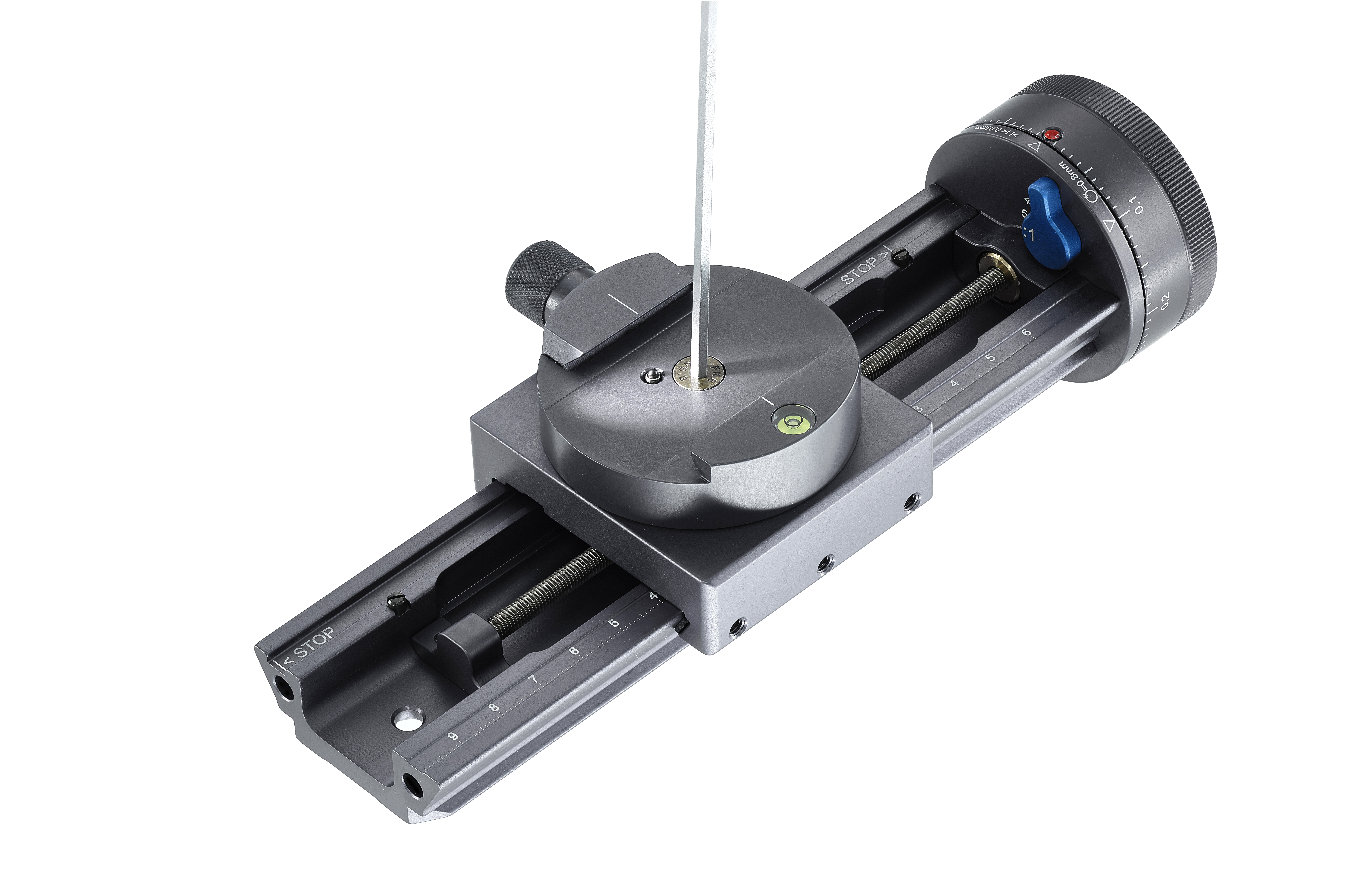

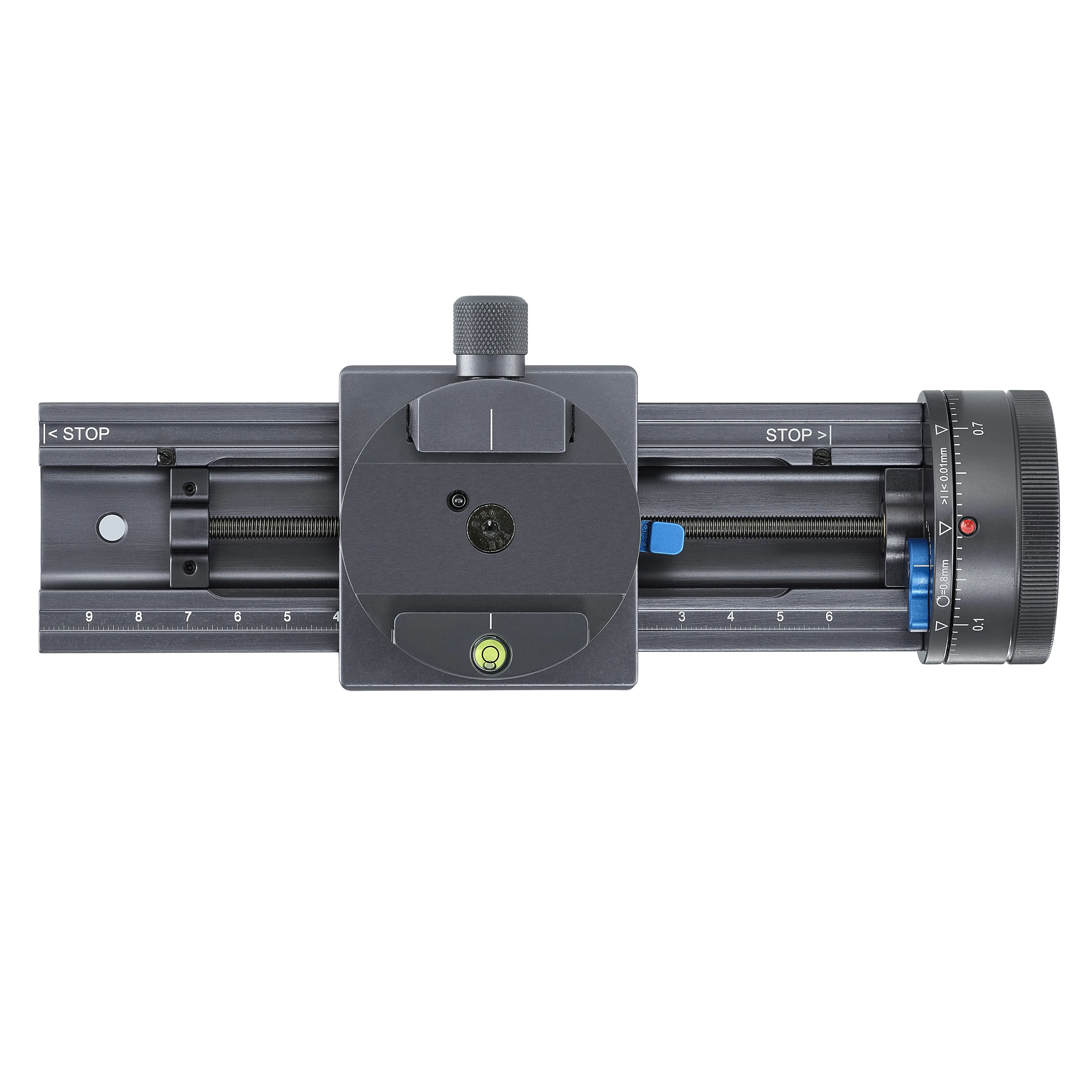

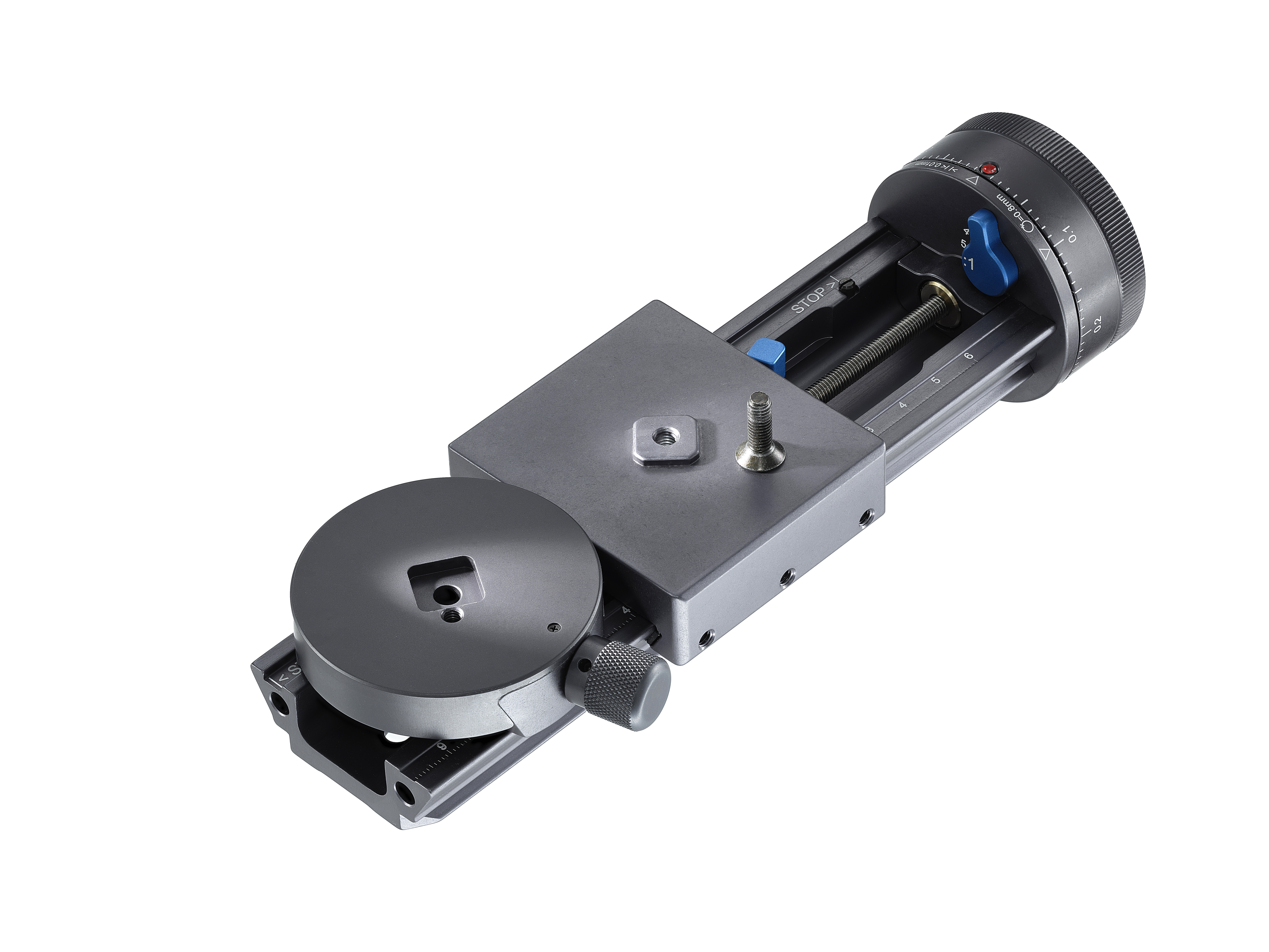

  • Coupling mount: ARCA/ UniQ/c compatible, rotatable 90°, bubble level, safety pin for NOVOFLEX coupling plates

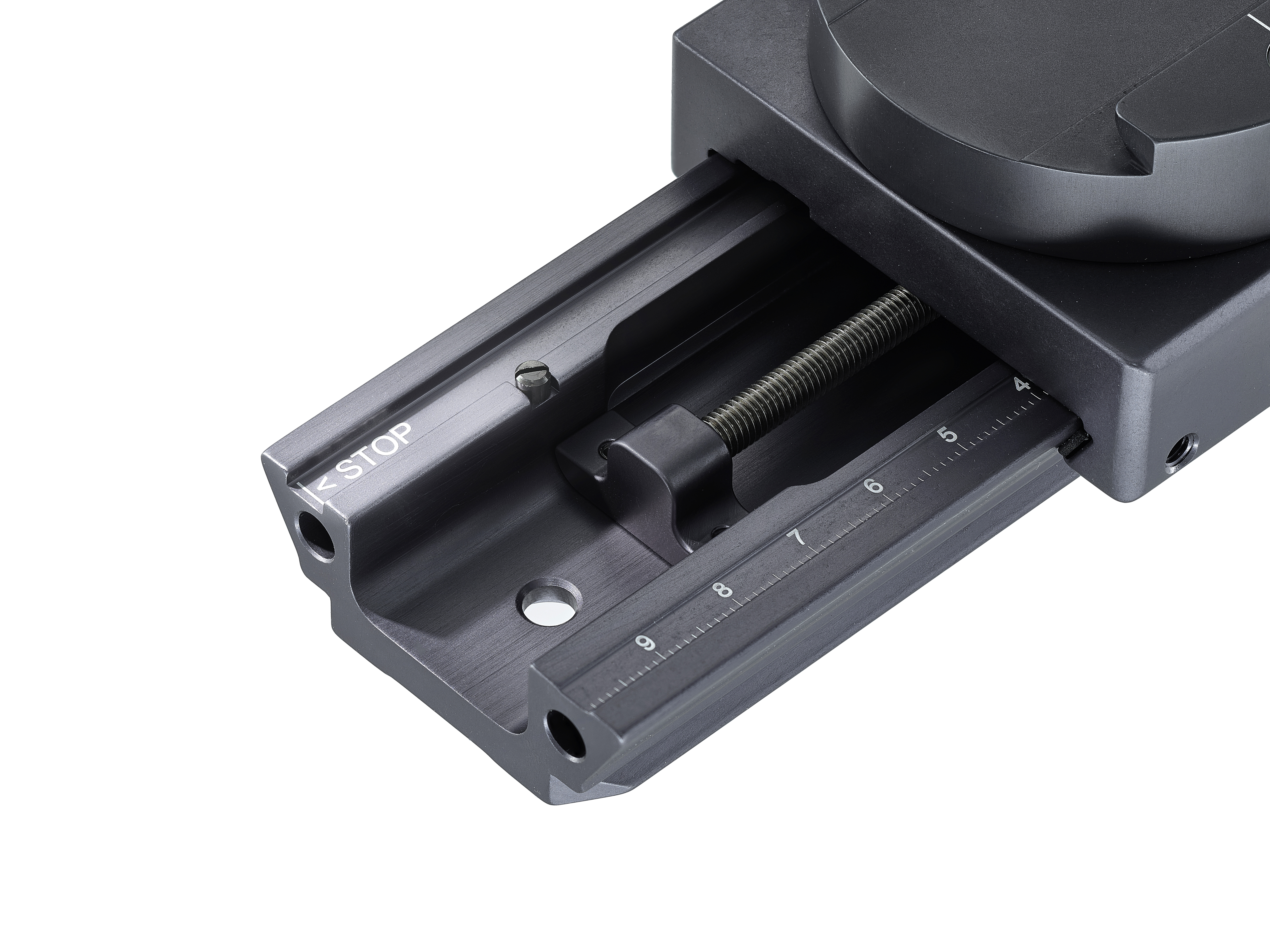

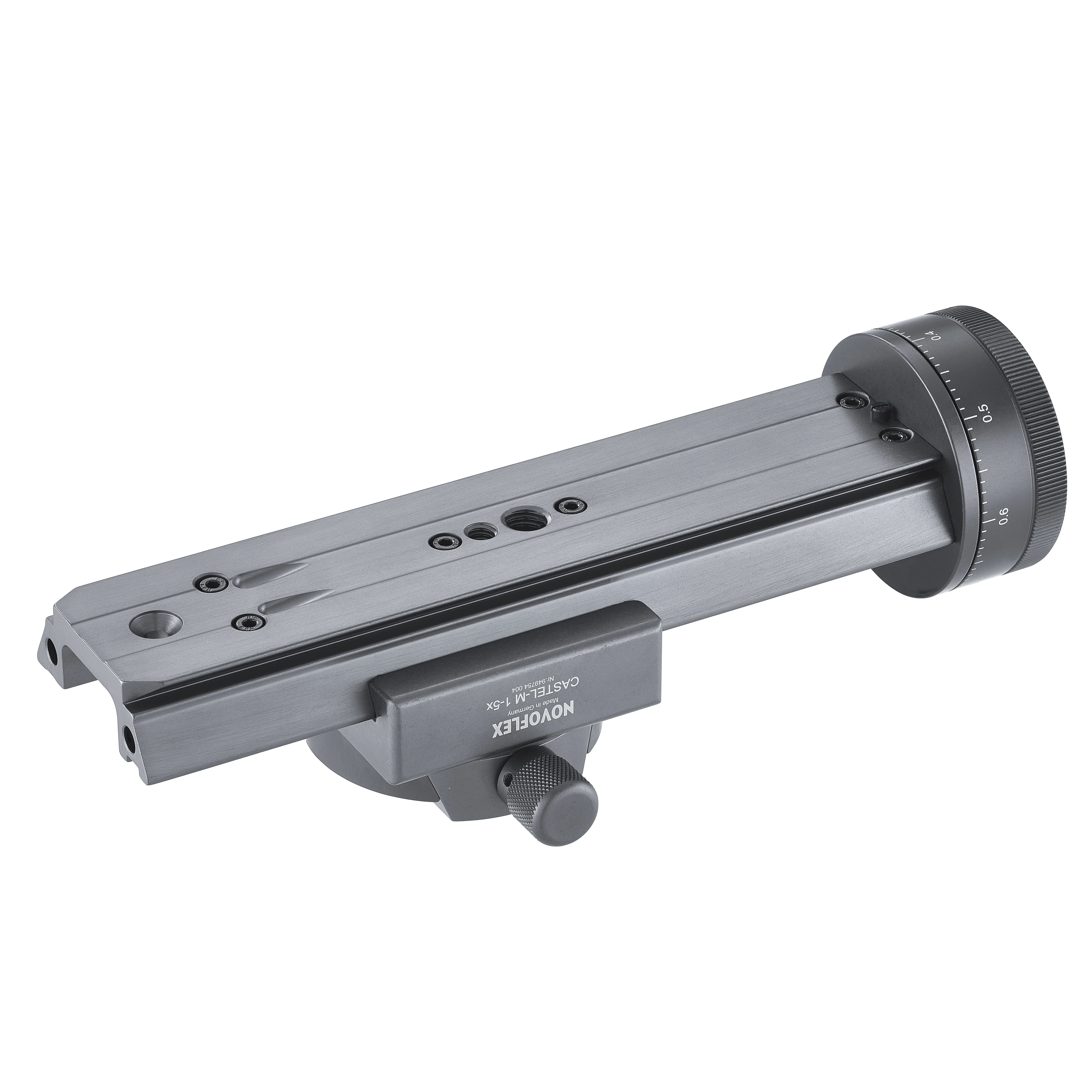

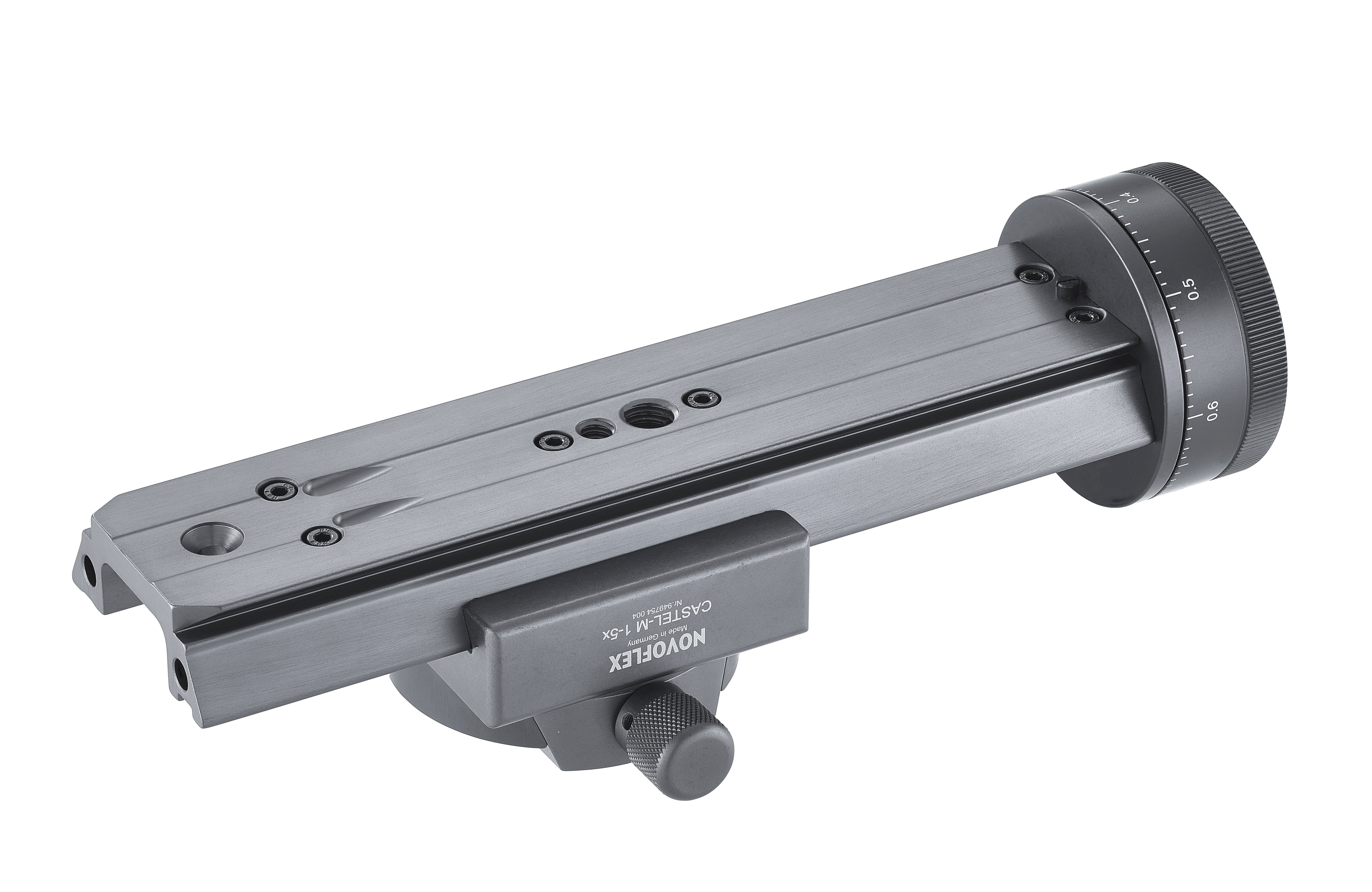

  • Rail: on the bottom ARCA/ UniQ/c compatible over the complete length, 1/4" and 3/8" thread



Feature
  • Arca compatible
Height / cm
  • 5,5
Length / cm
  • 20,5
QR base fits
  • ARCA SWISS compatible (according to manufacturer) 38 mm dovetail
  • ARCA Swiss-UniQ/C Standard
QR profile fits
  • ARCA SWISS compatible (according to manufacturer) 38 mm clamp
Weight / g
  • 679
Width / cm
  • 6,5
clamp release type
  • Screw locking
recommended for
  • DSLM
  • DSLR
  • Macro photography
  • Panoramic photography
  • Studio Photography
