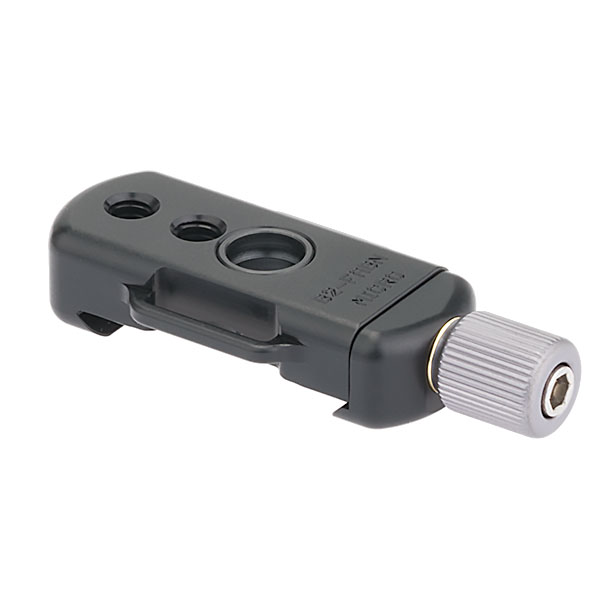

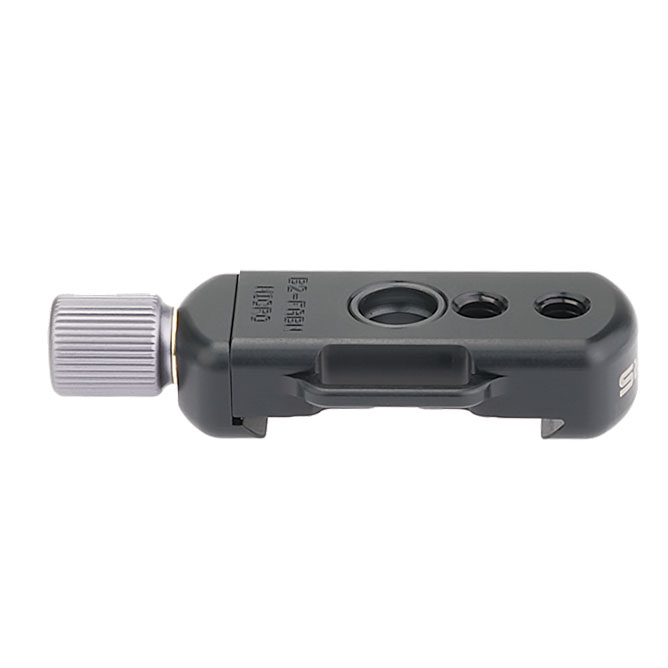

Really Right Stuff B2-FABN-Micro: Mini-Clamp

By accessing the video, I agree that my data will be transmitted to YouTube or Vimeo and that I have read the privacy policy.
Product information
Really Right Stuff B2-FABN-Micro: Mini-Clamp
Center lines
  • Laser engraving
Feature
  • QD compatible
Finish
  • black anodized
Hand Strap Loop
  • Two present
Height / cm
  • 1,4
Integrated QD Socket
  • yes, 1
Jaw length / cm
  • 2,2
Length / cm
  • 7,3
Material
  • Aluminum
QR base fits
  • ARCA SWISS compatible (according to manufacturer) 38 mm dovetail
  • Kirk dovetail
  • Really Right Stuff dovetail
  • Wimberley dovetail
Thread (bottom side)
  • 2 x 1/4" UNC
Weight / g
  • 40
Width / cm
  • 2,2
clamp release type
  • Screw locking

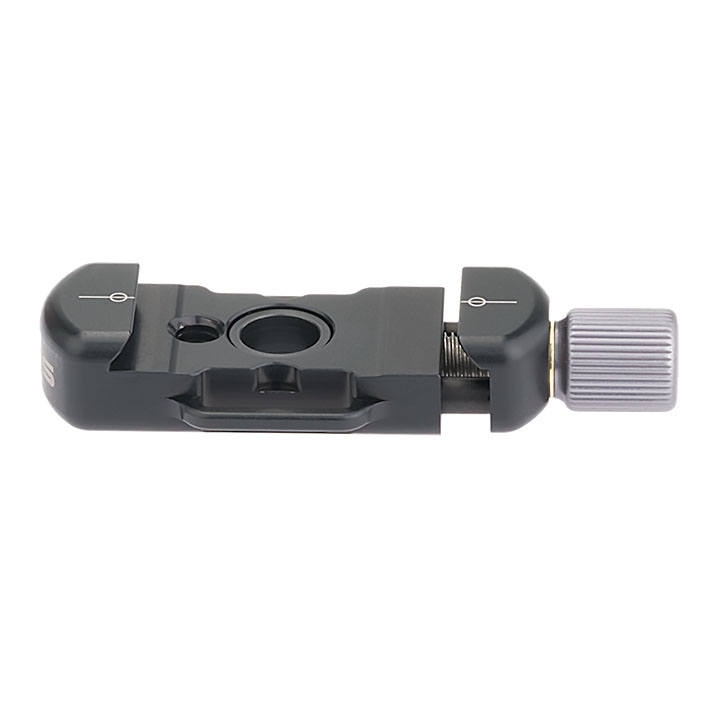

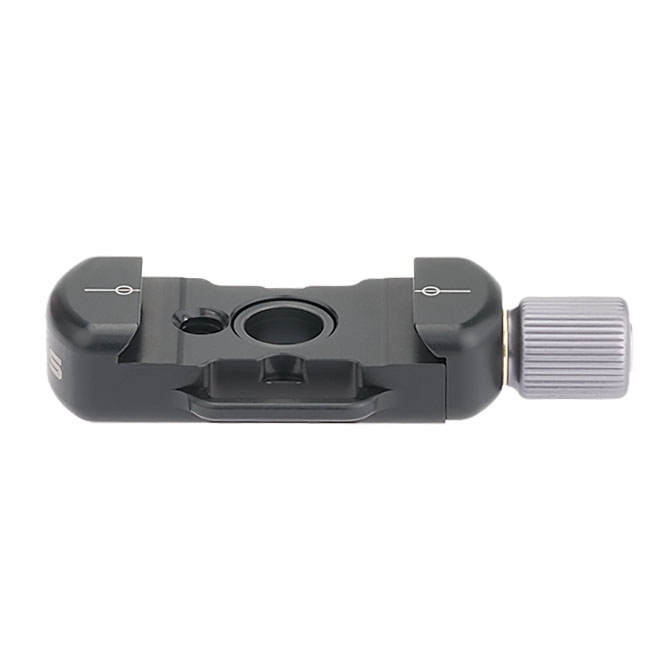

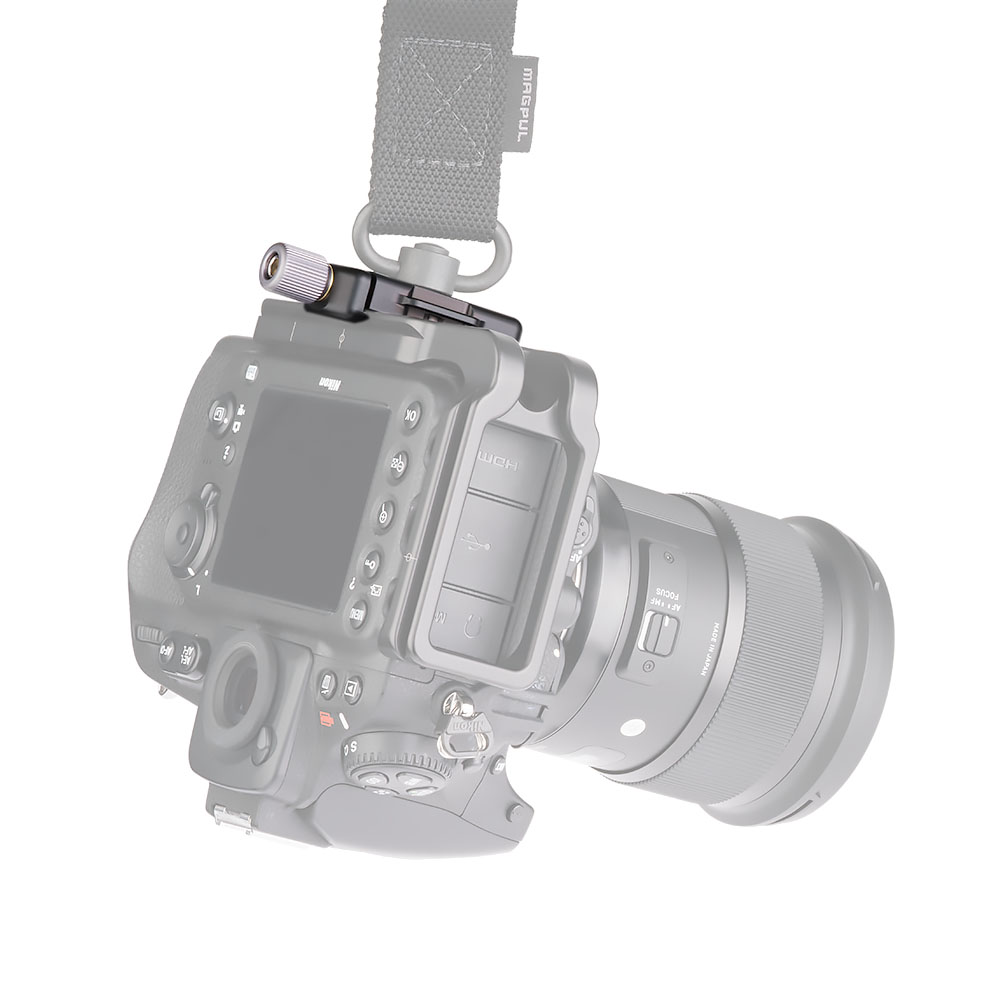

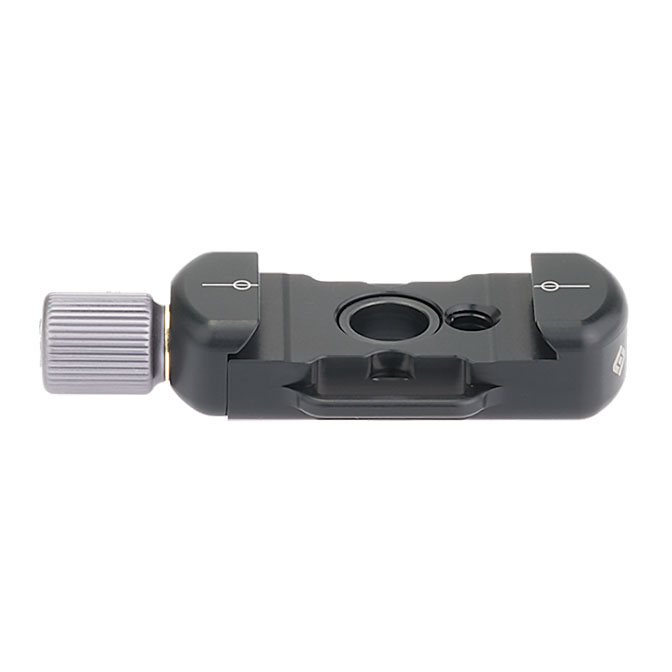

The RRS B2-FABN Micro clamp is the perfect strap accessory for RRS plates. Attach your favorite strap to the clamp, then mount the clamp to any of your RRS plates. Straps can be attached to the clamp in one of three ways:

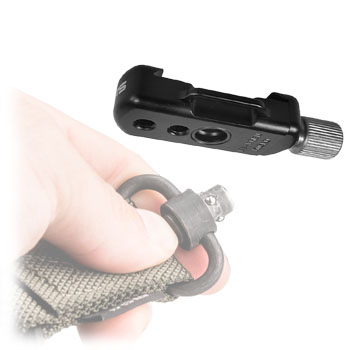

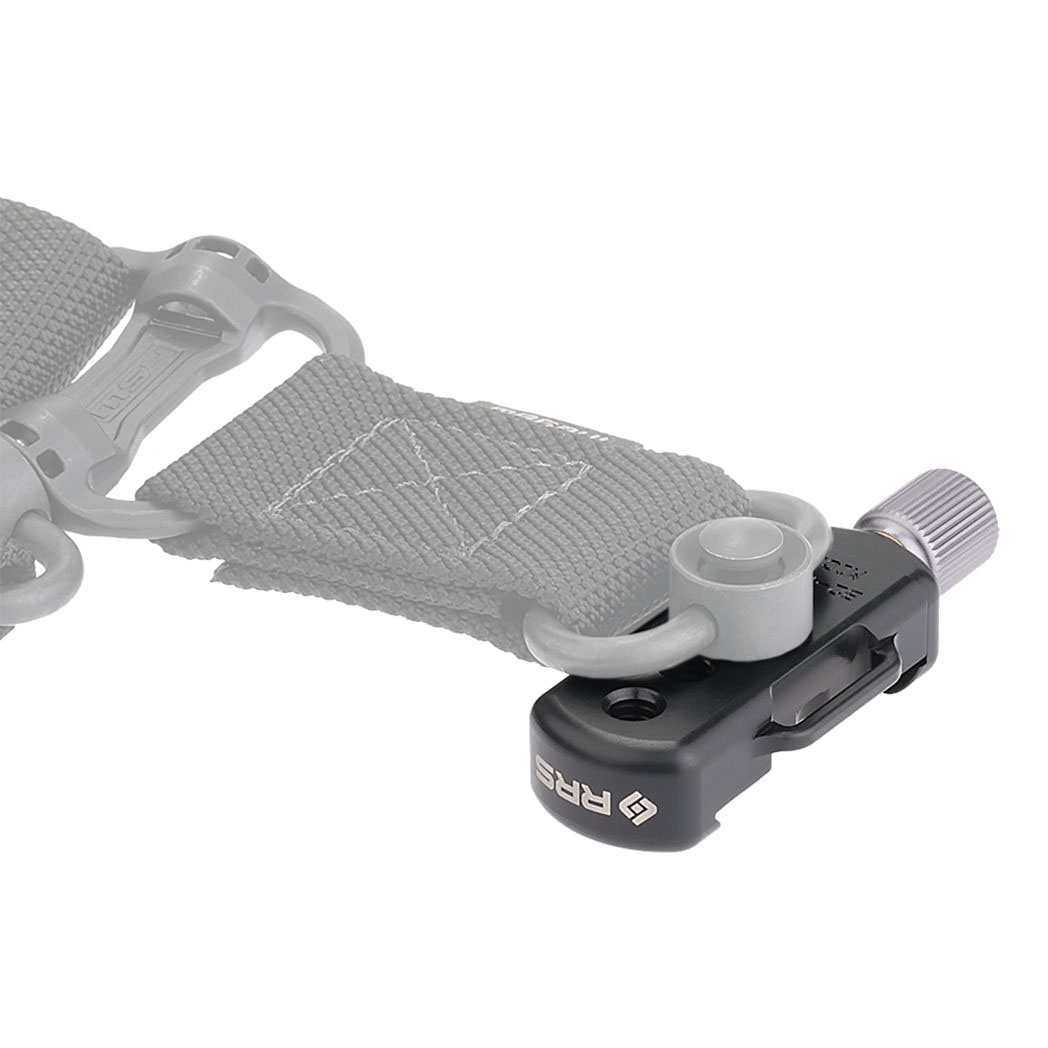

  • Use the centered QD socket (compatible with all industry standard push-button QD mounts). Try our favorite QD Sling Strap or buy a QD Swivel Mount and use your own strap.

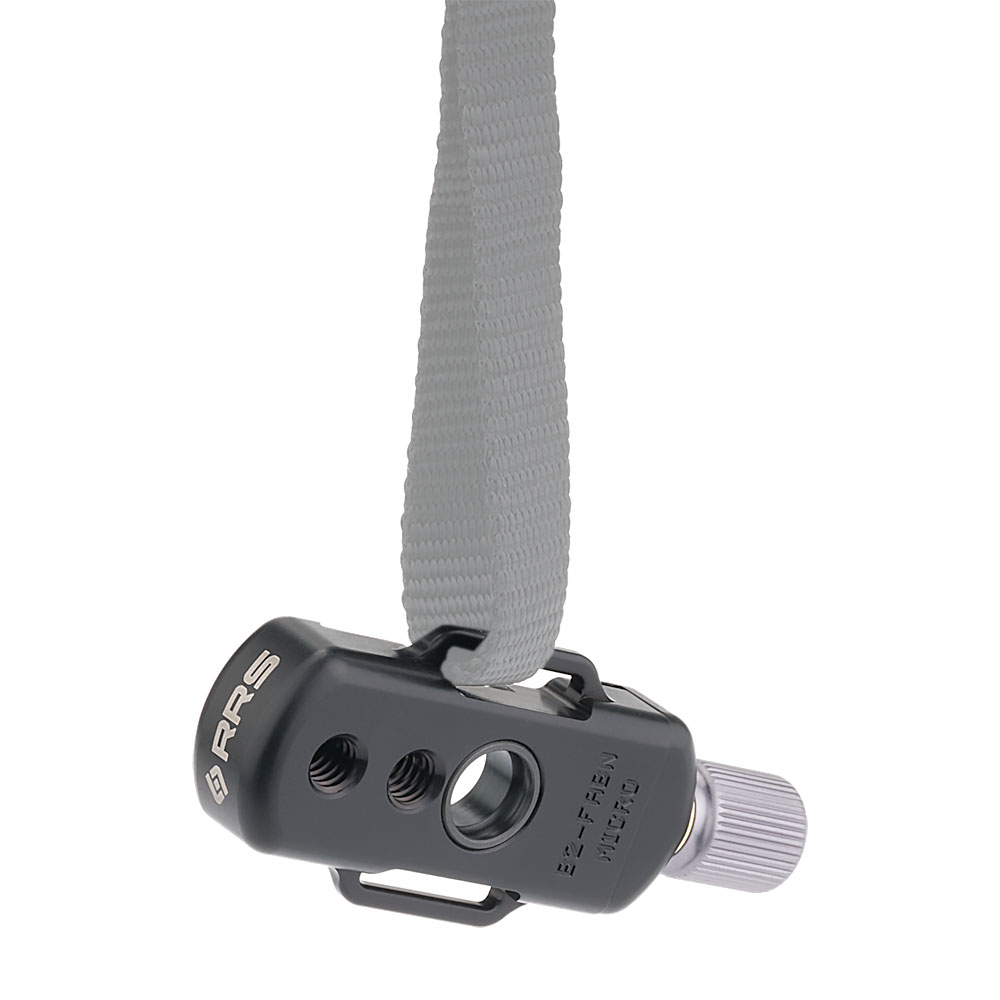

  • Thread your strap directly through the strap lugs

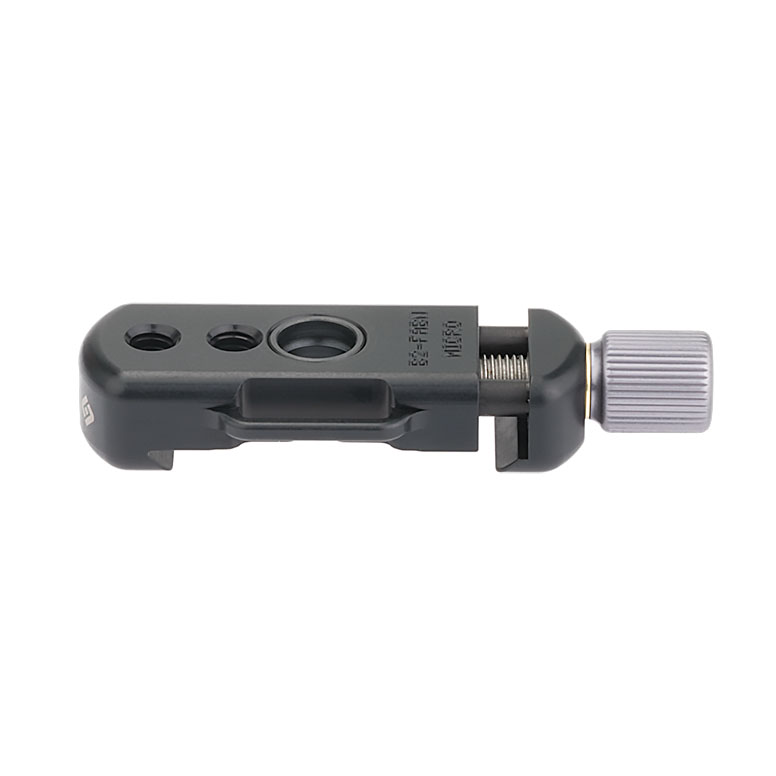

  • Screw your strap's ¼"-20 swivel or strap attachment point into one of the two ¼" sockets

The RRS B2-FABN Micro clamp makes it quick & easy to attach and remove almost any strap to your RRS plates.

Specifications

  • Jaw Length: 0.9" / 22 mm
  • Width of Jaw: 0.875 in, 22.23 mm
  • Length, when closed on an RRS Dovetail: 2.882 in, 73.20 mm
  • Height, not including knob: 0.540 in, 13.72 mm
  • Height, including knob: 0.565 in, 14.36 mm
  • Weight: 1.4 oz / 40 g
  • Centered Socket: steel QD with ferritic nitrocarburizing treatment for a hard, wear-resistant surface
  • Off-Center Sockets: two ¼"-20
  • Width of Strap bosses: 1.188 in, 30.16 mm
  • Max Strap size: 5/8 wide, 1/8 thickt mounted in the Clamp = 0.2 inches / 5.5 mm

Features:

  • Entirely CNC machined 6061T aluminum body with 1144 Steel QD Socket insert
  • Centered QD socket is steel with ferritic nitrocarburizing treatment for a hard, wear-resistant surface
  • Two strap lugs accommodate straps up to 5/8" (16mm) wide and 1/8" (3mm) thick
  • Clamp mounts to any RRS-style plate or rail
  • Two ¼"-20 sockets accept ¼"-20 swivel or strap attachment hardware
  • Captive clamp knob is contoured for grip and stops at maximum opening
  • Pro-style knob locks securely onto most 38 mm Dovetail style plates
  • Integrated Steel QD Socket supports up to 25 lbs
  • Two ¼-20 tapped sockets allow clamp to be used in a variety of applications
  • Two strap bosses can accept straps up to 5/8 wide

This clamp features a fully integrated Quick Disconnect (QD) mounting system. This allows users the ability to rapidly mount or dismount a support strap system from the clamp. QD release systems are a professionally proven system with many already existing third party options, offering a robust 50lbs load capacity when used with RRS quick release plates.

Center lines
  • Laser engraving
Feature
  • QD compatible
Finish
  • black anodized
Hand Strap Loop
  • Two present
Height / cm
  • 1,4
Integrated QD Socket
  • yes, 1
Jaw length / cm
  • 2,2
Length / cm
  • 7,3
Material
  • Aluminum
QR base fits
  • ARCA SWISS compatible (according to manufacturer) 38 mm dovetail
  • Kirk dovetail
  • Really Right Stuff dovetail
  • Wimberley dovetail
Thread (bottom side)
  • 2 x 1/4" UNC
Weight / g
  • 40
Width / cm
  • 2,2
clamp release type
  • Screw locking
