Really Right Stuff MPR-192 192mm Multi Purpose Rail

By accessing the video, I agree that my data will be transmitted to YouTube or Vimeo and that I have read the privacy policy.
Product information

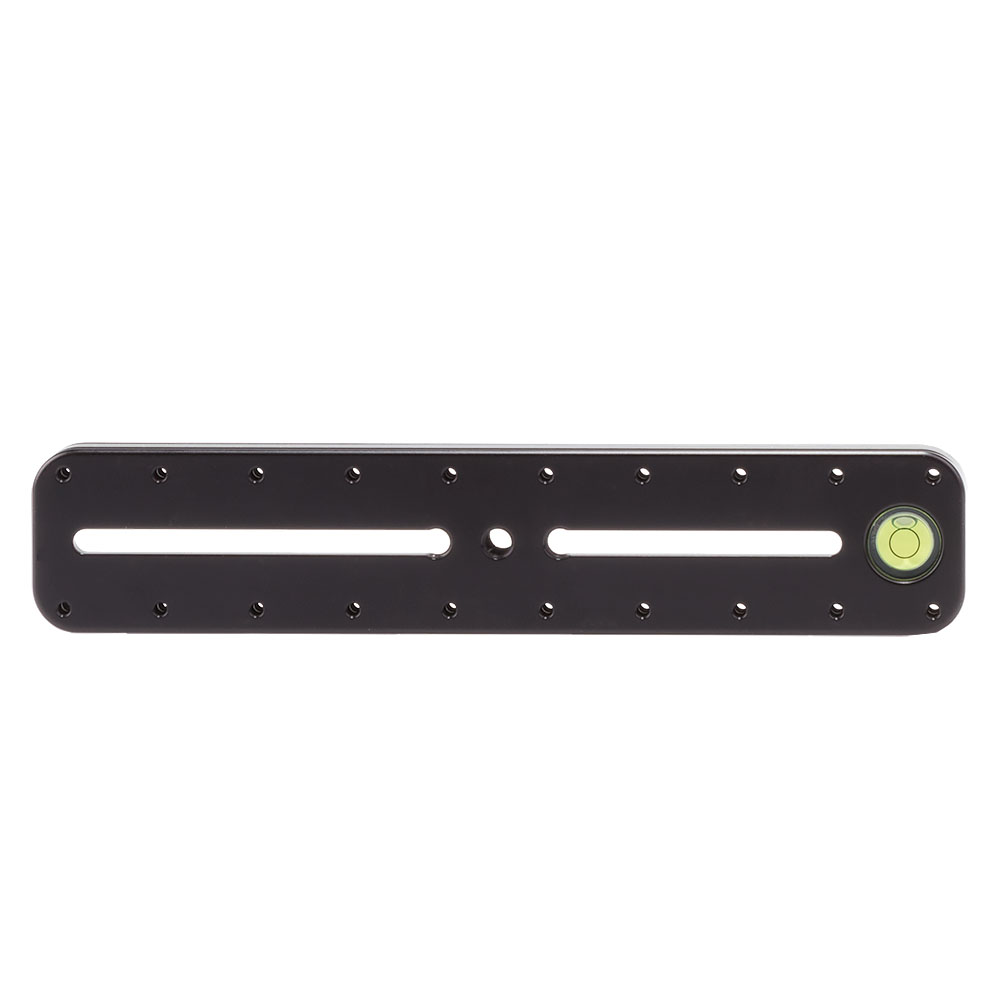

Really Right Stuff MPR-192 192mm Multi Purpose Rail
Dovetail design
  • double
Feature
  • Arca compatible
Finish
  • Typ II black anodized
Height / cm
  • 1,7
Length / cm
  • 19,2
Material
  • 6061-T6 Aluminum
QR profile fits
  • ARCA SWISS compatible (according to manufacturer) 38 mm clamp
Safety mechanism
  • 2 safety stop screws
Scale
  • scaled (without unit)
Spirit level bubble
  • 1 x circular level
Weight / g
  • 187
Width / cm
  • 3,8
for Nikon Lenses (non Z)
  • Nikon 600mm f/4G ED VR AF-S NIKKOR

Features:

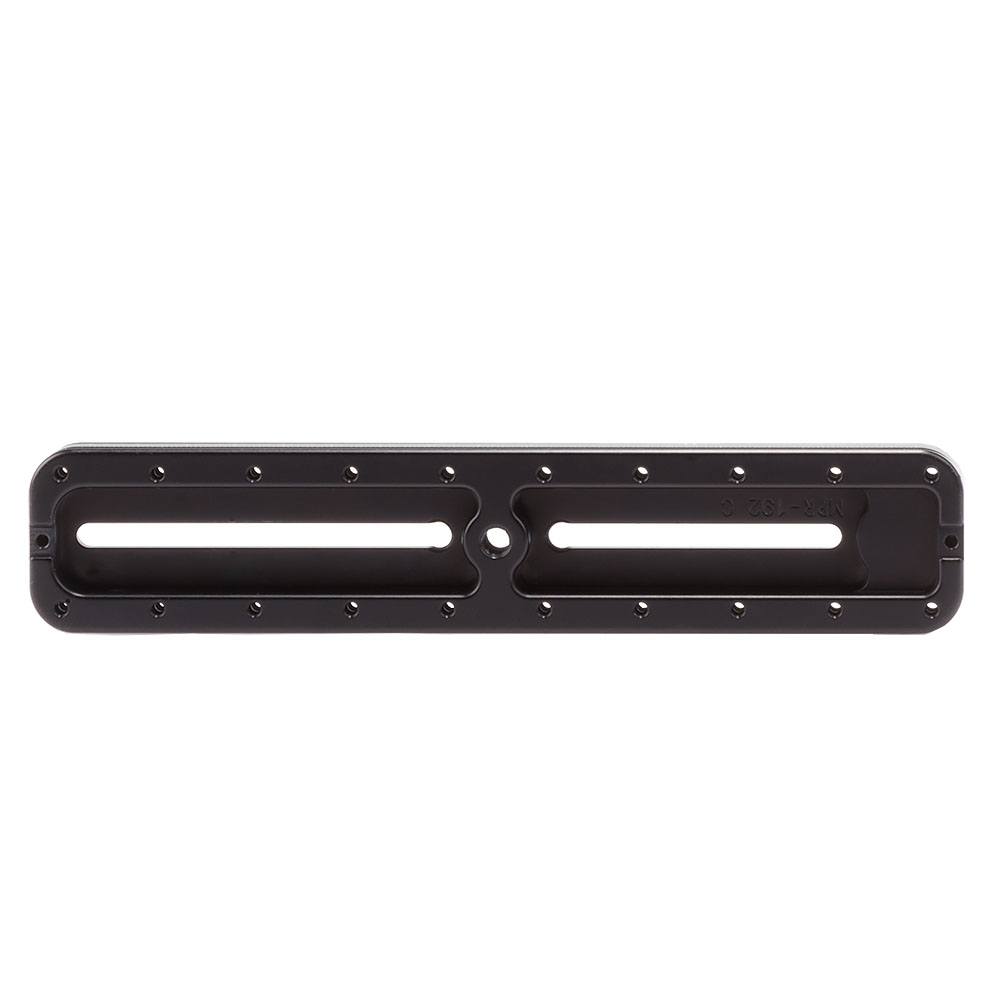

  • Double dovetail rail accepts -Type clamps on the top and bottom.
  • Includes two 1/4"-20 screws, use both screws or take one out depending on your needs.
  • Use as a camera body plate for some medium and large format cameras.

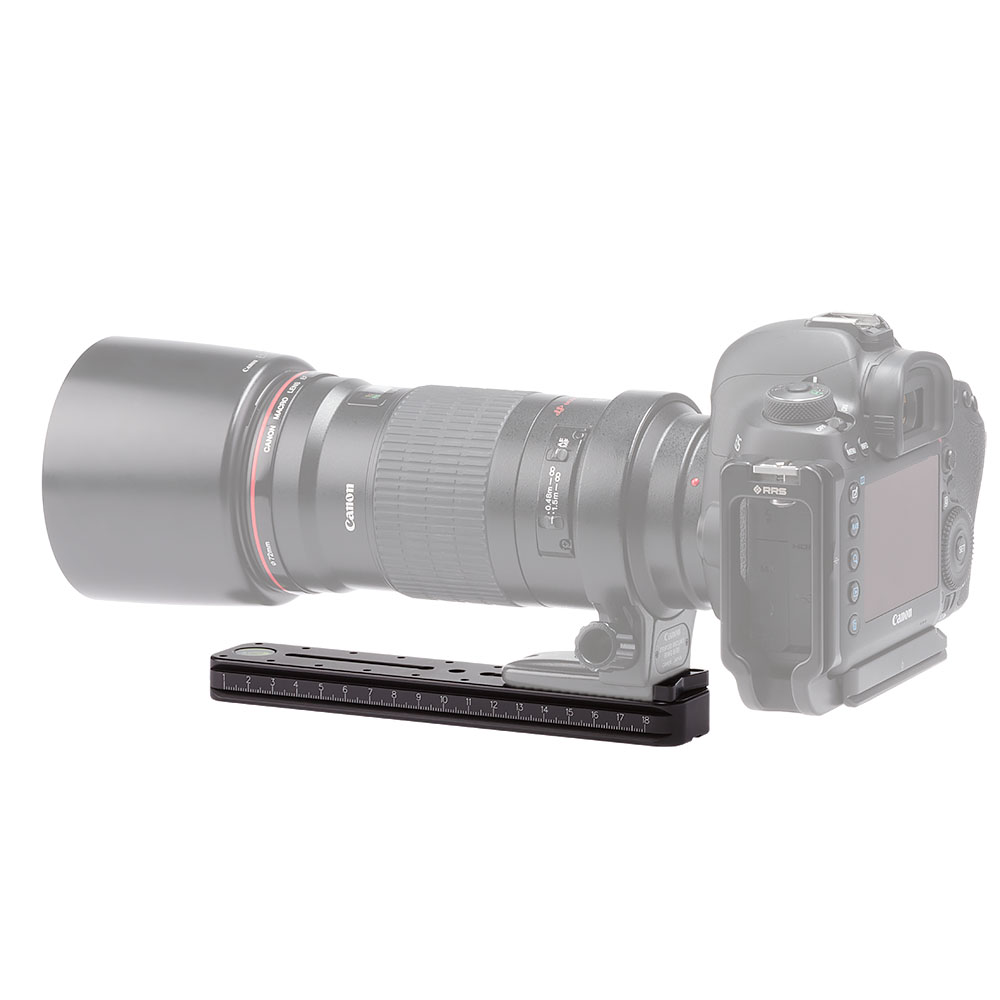

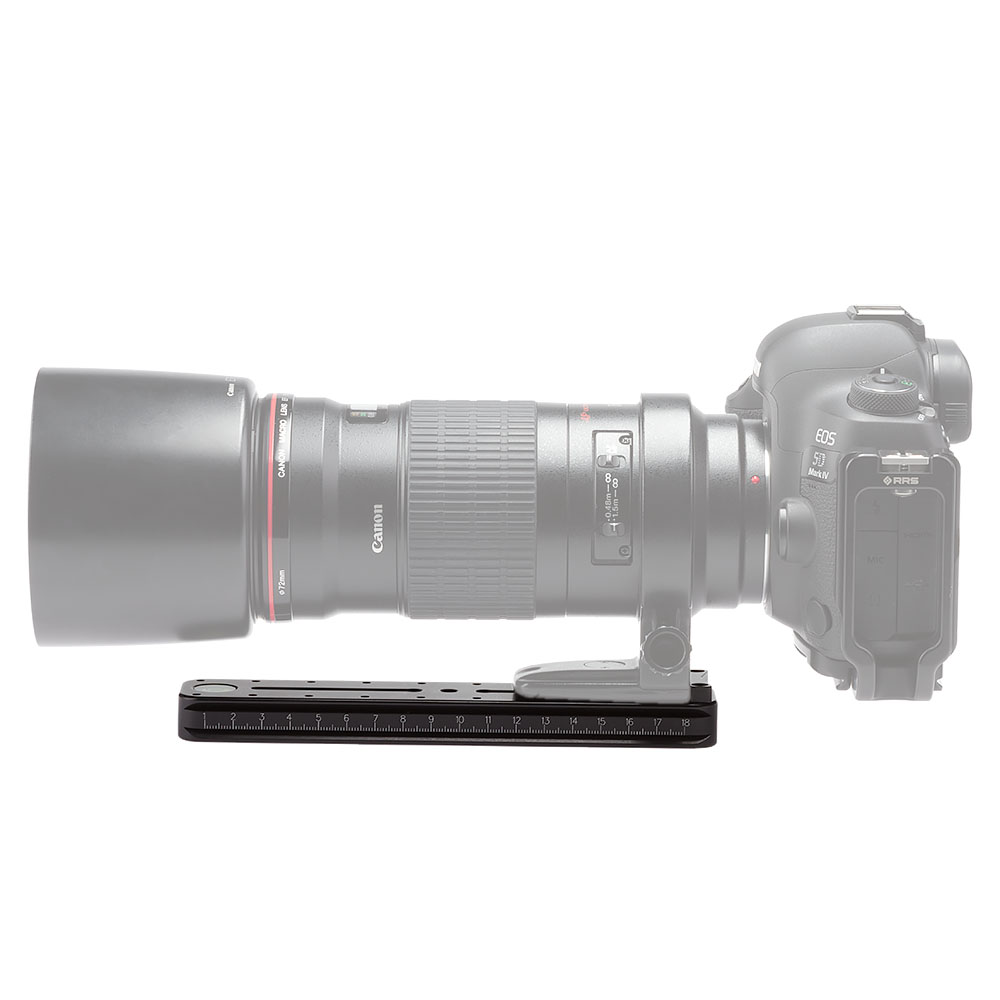

  • Use as a lens plate for any foot that does not exceed 6.75" / 171mm.

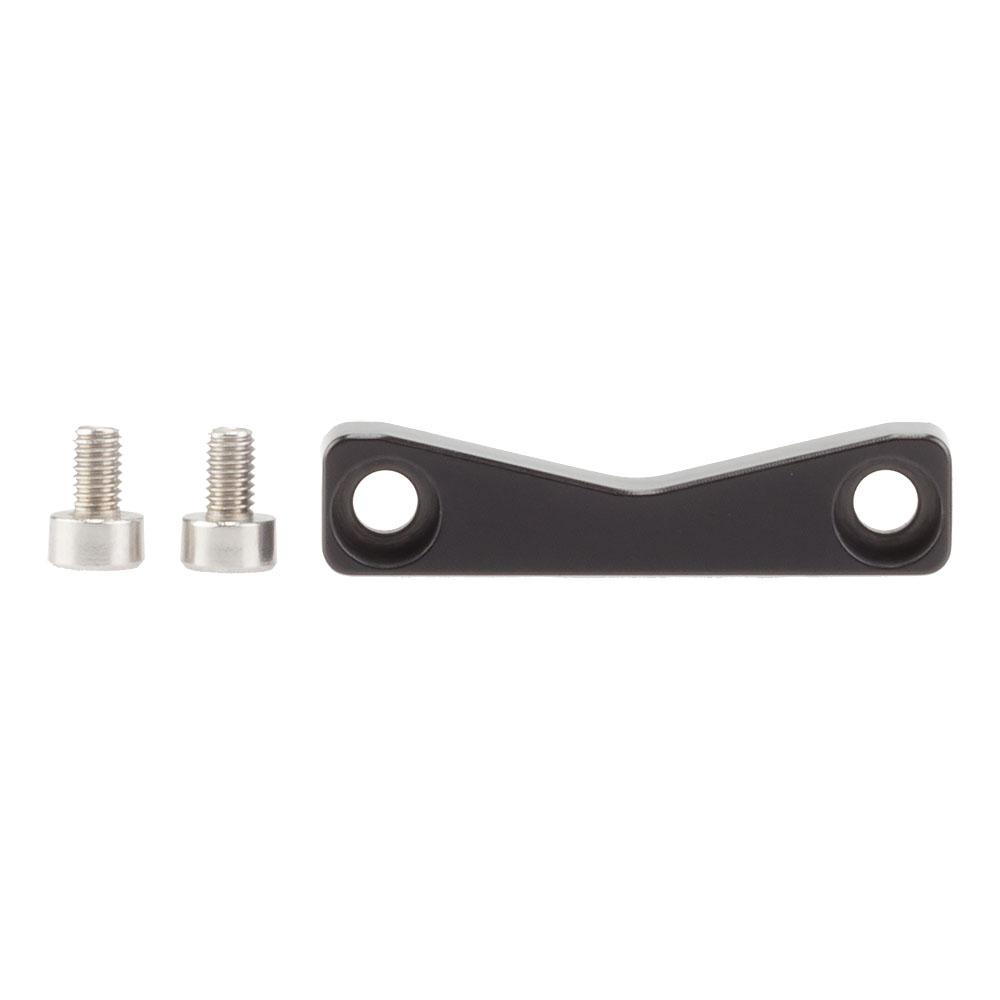

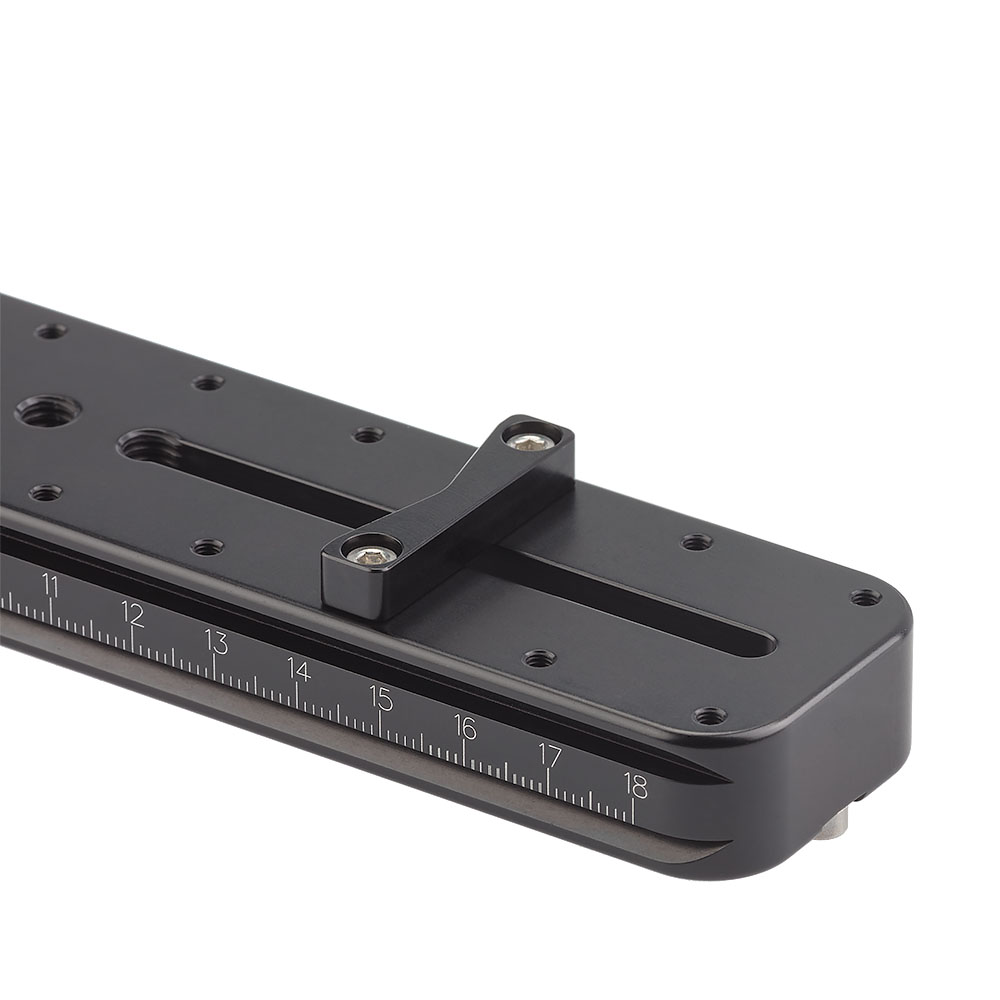

  • Optional MPR-C flange can be installed in ten different positions to prevent twisting.
  • 2.72" / 69mm slot length for adjustability.
  • High-contrast bull's-eye spirit level for precision.

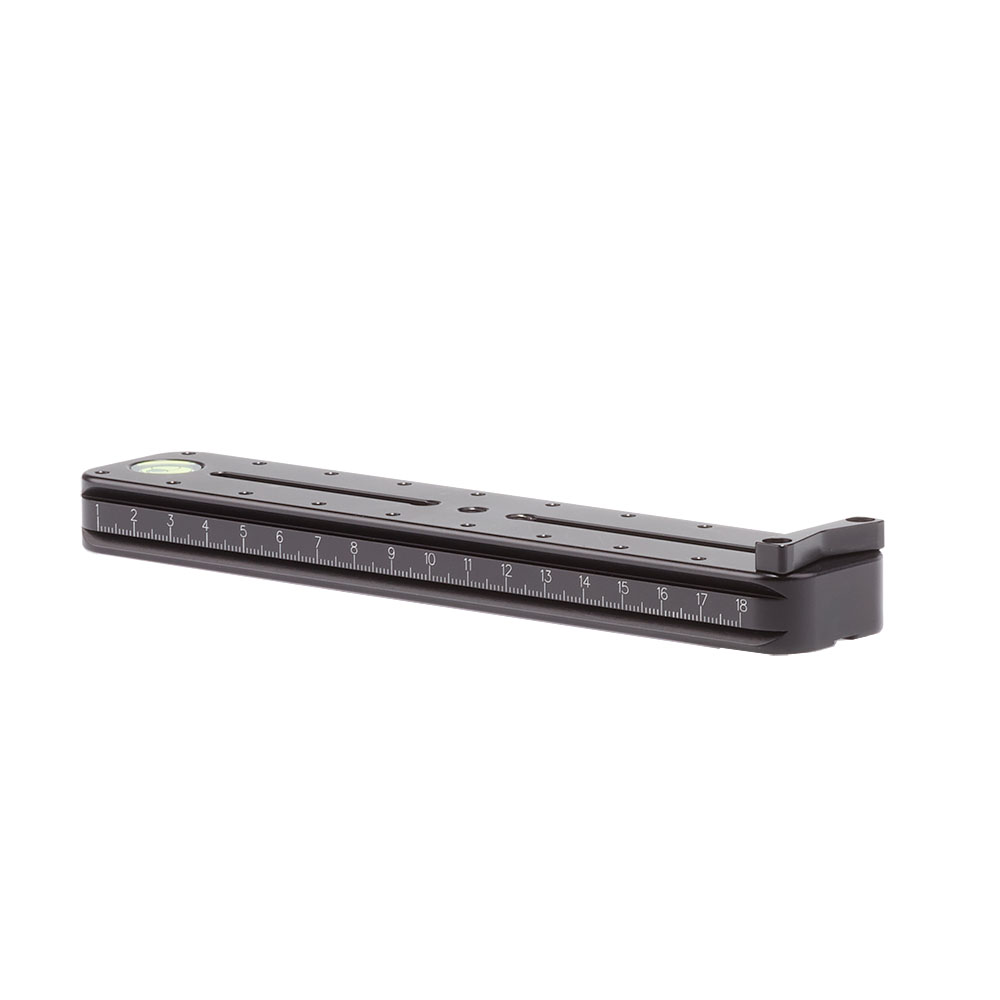

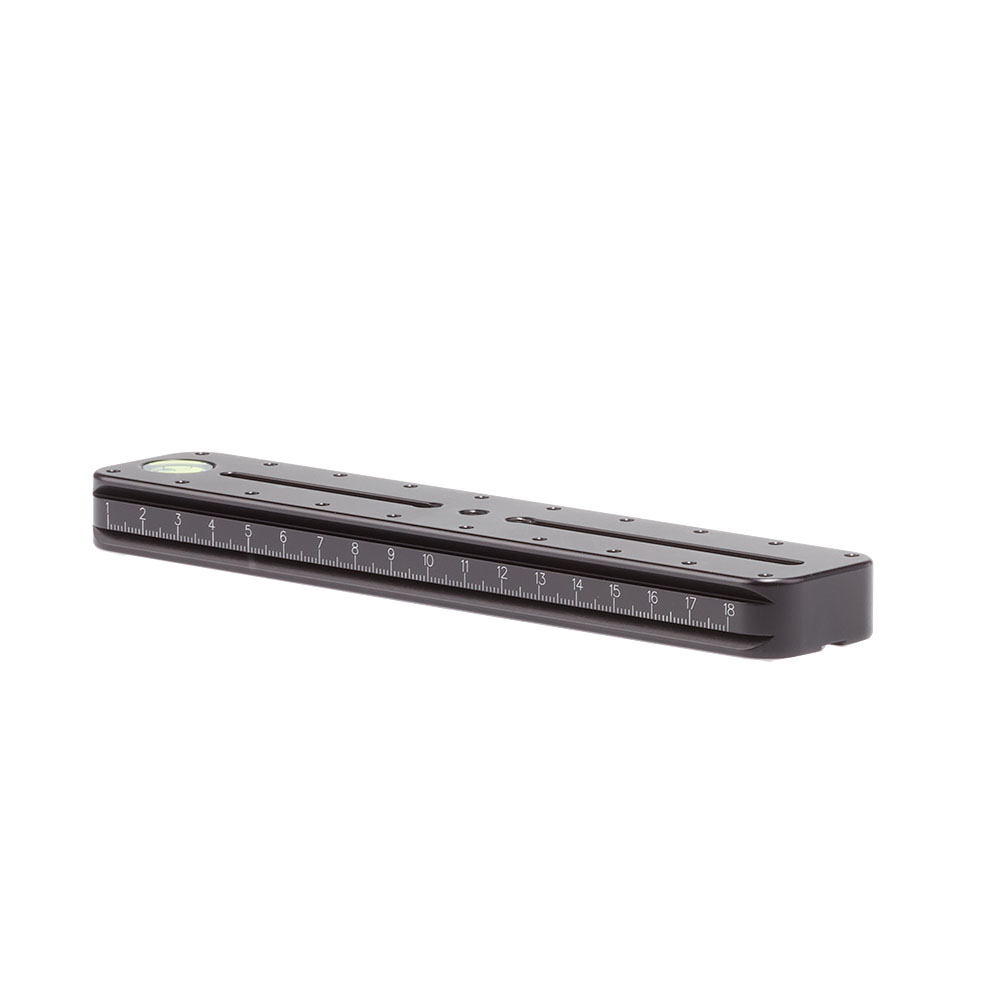

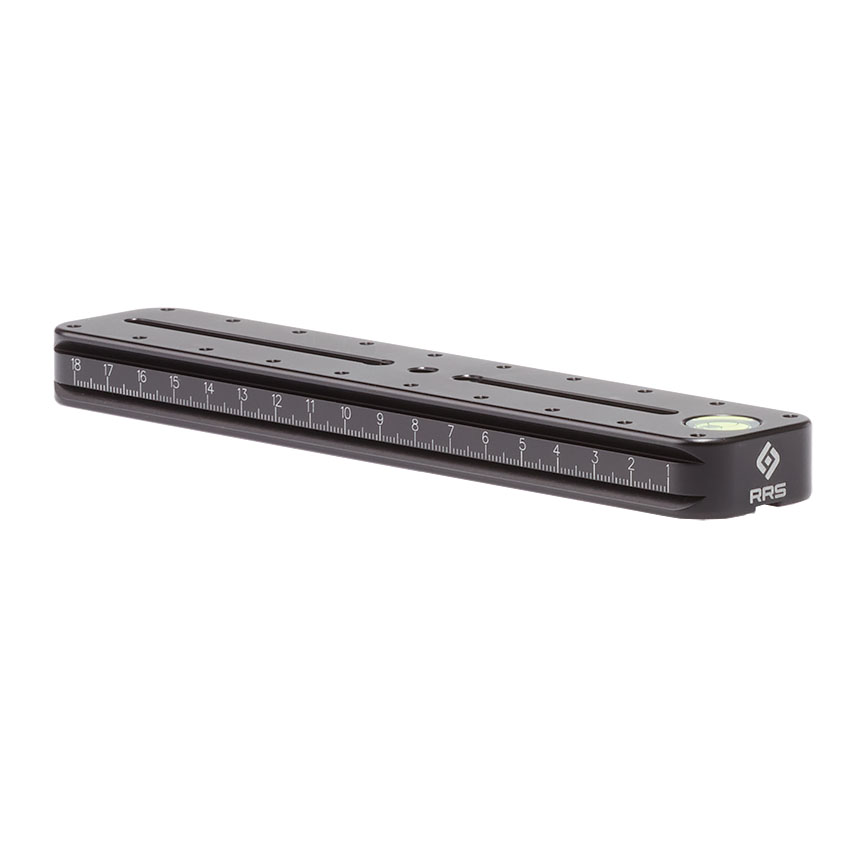

  • Laser-engraved scale in 1mm increments on both sides for easy repetition of settings

Whats in the box?

  • (1) MPR-192 Rail
  • (1) MPR-C Flange
  • (2) B107 screw
  • (1) M2.5 Hex Key
  • (2) Safety Stop Screws
  • (2) Screws for Flange Installation
  • (1) 5/32 Hex Key

Specifications:

  • Weight: 6.6 oz / 187g
  • Height: 0.7" / 17mm
  • Length: 7.6" / 192mm
  • Width: 1.5" / 38mm
  • Shorter Slot Length: 1.6" / 40mm
  • Longer Slot Length: 2.8" / 72mm
Dovetail design
  • double
Feature
  • Arca compatible
Finish
  • Typ II black anodized
Height / cm
  • 1,7
Length / cm
  • 19,2
Material
  • 6061-T6 Aluminum
QR profile fits
  • ARCA SWISS compatible (according to manufacturer) 38 mm clamp
Safety mechanism
  • 2 safety stop screws
Scale
  • scaled (without unit)
Spirit level bubble
  • 1 x circular level
Weight / g
  • 187
Width / cm
  • 3,8
for Nikon Lenses (non Z)
  • Nikon 600mm f/4G ED VR AF-S NIKKOR
