Really Right Stuff: PG-01 Pro Compact Pano-Gimbal Head & Clamp B2-mAS with Fixed Base

By accessing the video, I agree that my data will be transmitted to YouTube or Vimeo and that I have read the privacy policy.
Product information
Really Right Stuff: PG-01 Pro Compact Pano-Gimbal Head & Clamp B2-mAS with Fixed Base
Depth / cm
  • 7,6
Height / cm
  • 15,1
Material
  • 6061-T6 Aluminum
  • Stainless steel
QR base fits
  • ARCA SWISS compatible (according to manufacturer) 38 mm dovetail
Tripod Thread
  • 3/8" UNC
Weight / kg
  • 0,38
Width / cm
  • 16,9
clamp release type
  • Screw locking
for Lenses up to
  • 70-200 f/2.8
maximum payload / kg
  • 3,6
recommended for
  • DSLM
  • DSLR
  • Panoramic photography
  • Travel photography

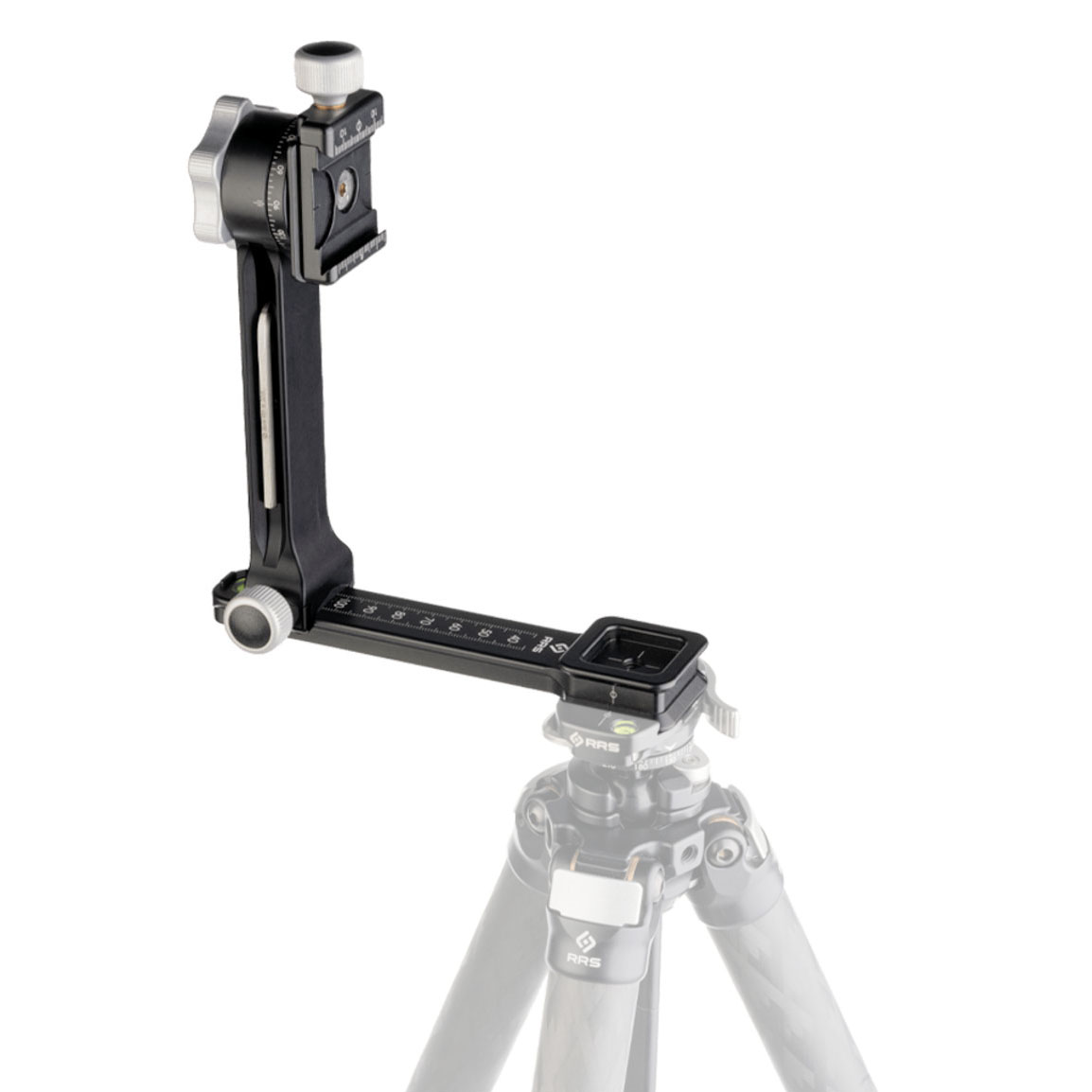

The PG-01 Pro is a light-weight solution for the traveling or weight-conscious photographer who wants independent control over both the pan and tilt. This patent-pending modular head is also perfect for shooting both single and multi-row panos. Setup and packing the head is a breeze: quickly attach or remove the Vertical Arm to/from the Horizontal Bar for superior portability; no tools required. The PG-01 is designed to support smaller camera setups, such as mirrorless cameras or DSLRs with lenses up to a 70-200mm f2.8.

The PG-01 also has a convenient, magnetized storage slot for 5/32 hex key. The hex key can be used for extra leverage to tighten the head on a tripod or for additional lockup on the leveling base. Its also handy to have if you ever need to adjust the plate on your camera!

The horizontal base features an integrated dovetail for quick and easy mounting into any RRS clamp. The non-leveling base version can be easily mated with a ballhead for easy leveling. The optional integrated leveling base eliminates the need for additional parts, keeping your system light and highly portable. The fixed/Ascend base does not feature a panning ring, and was designed to be used with the RRS Ascend-14's integrated ball head, but can also be used with any ball head that already offers an independent horizontal panning axis.

Features:

  • Allows the user to pivot independently on both the vertical and horizontal plane
  • Fixed/Ascend Base does not pan horizontally
  • great for smaller micro four-thirds/mirrorless cameras or light-weight DSLR systems
  • Quick-release dovetail on base for fast & easy mounting
  • 3/8-16" socket on bottom for mounting directly to a tripod
  • Ergonomic design gives superior handling and unsurpassed reliability
  • Independent locking for both pan and tilt axis
  • Laser-engraved millimeter scale offers precise centering and positioning within the clamp jaw
  • All components are of the finest Really Right Stuff quality, machined from solid aircraft aluminum or stainless steel for maximum durability and minimum weight
Depth / cm
  • 7,6
Height / cm
  • 15,1
Material
  • 6061-T6 Aluminum
  • Stainless steel
QR base fits
  • ARCA SWISS compatible (according to manufacturer) 38 mm dovetail
Tripod Thread
  • 3/8" UNC
Weight / kg
  • 0,38
Width / cm
  • 16,9
clamp release type
  • Screw locking
for Lenses up to
  • 70-200 f/2.8
maximum payload / kg
  • 3,6
recommended for
  • DSLM
  • DSLR
  • Panoramic photography
  • Travel photography
