Kirk FR-3 Focusing Rail

489,90 €*

Prezzi incl. IVA più costi di spedizione

non disponibile, l'articolo verrà ordinato per te

Nr. Articolo: AE22016
N. Produttore: FR-3
Peso di spedizione: 0.7 kg
non in magazzino

✔ Consegna rapida DHL
✔ Possibile pagamento a rate tramite PayPal
✔ Acquisto in conto

✔ Consulenza individuale di esperti per e-mail o chat dal vivo
✔ Apparecchiature di alta qualità

Accedendo al video, accetto che i miei dati vengano trasmessi a YouTube o Vimeo e che ho letto l'informativa sulla privacy.

Info sui prodotti

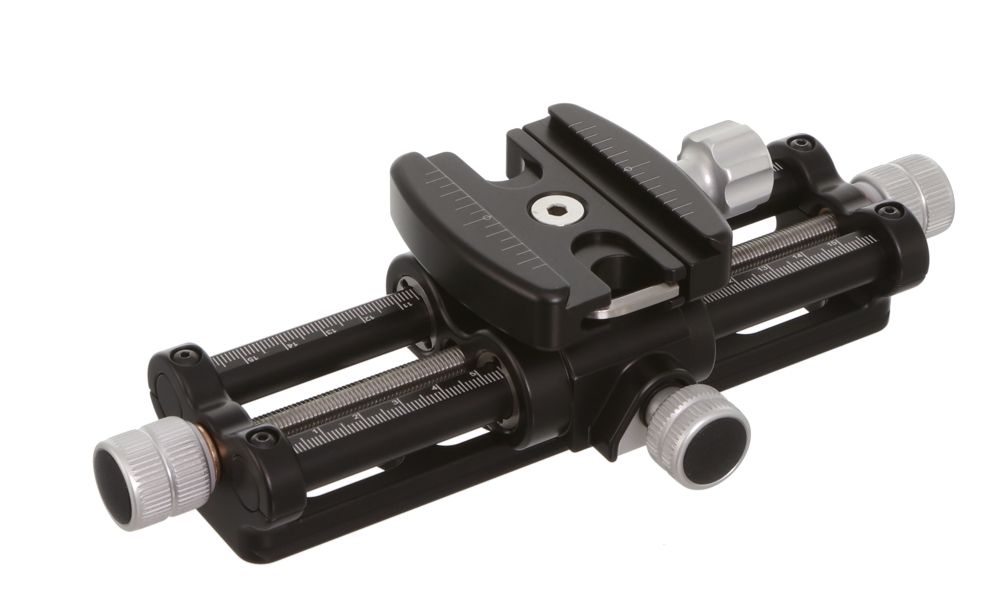

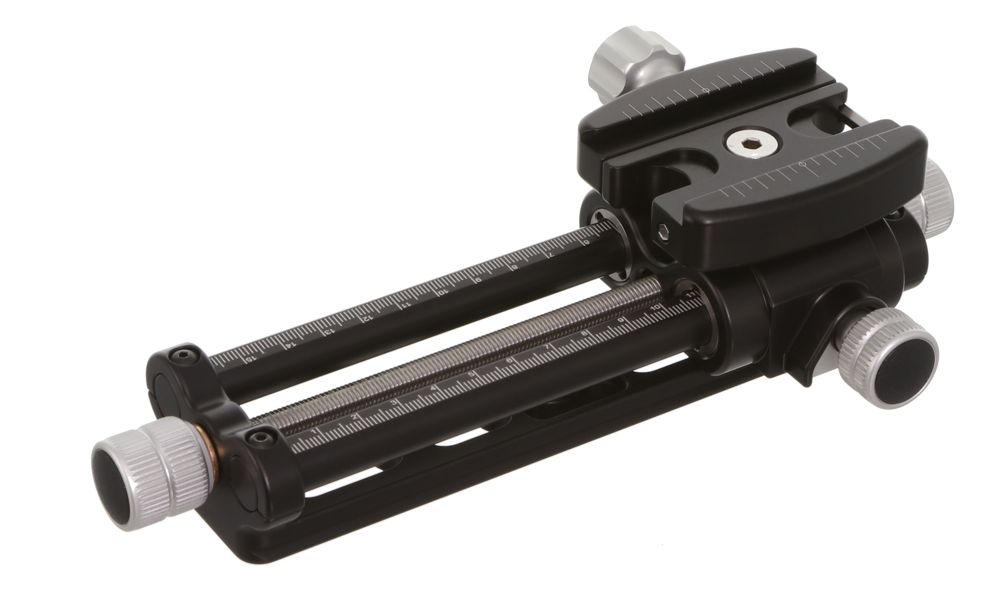

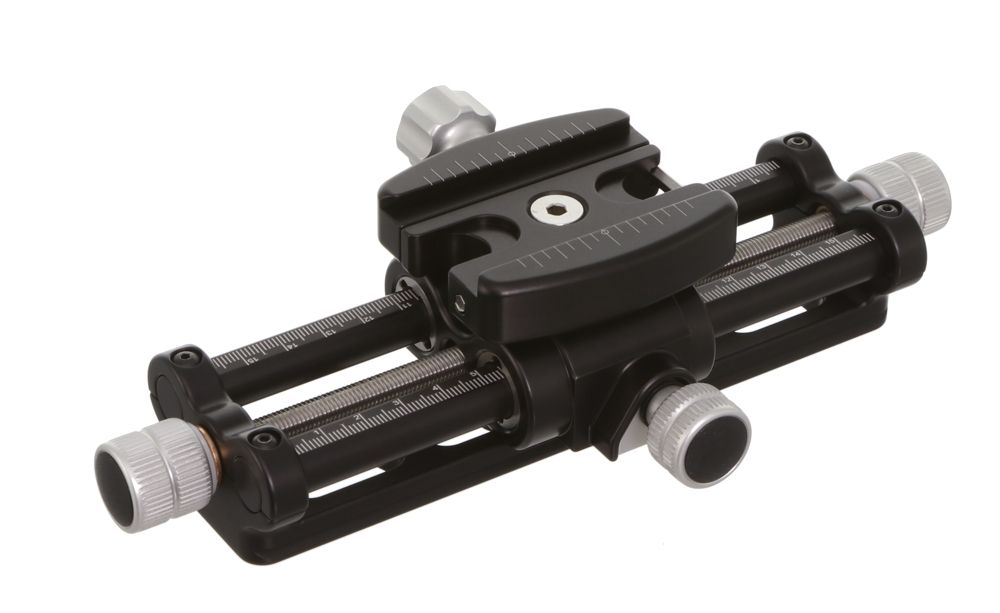

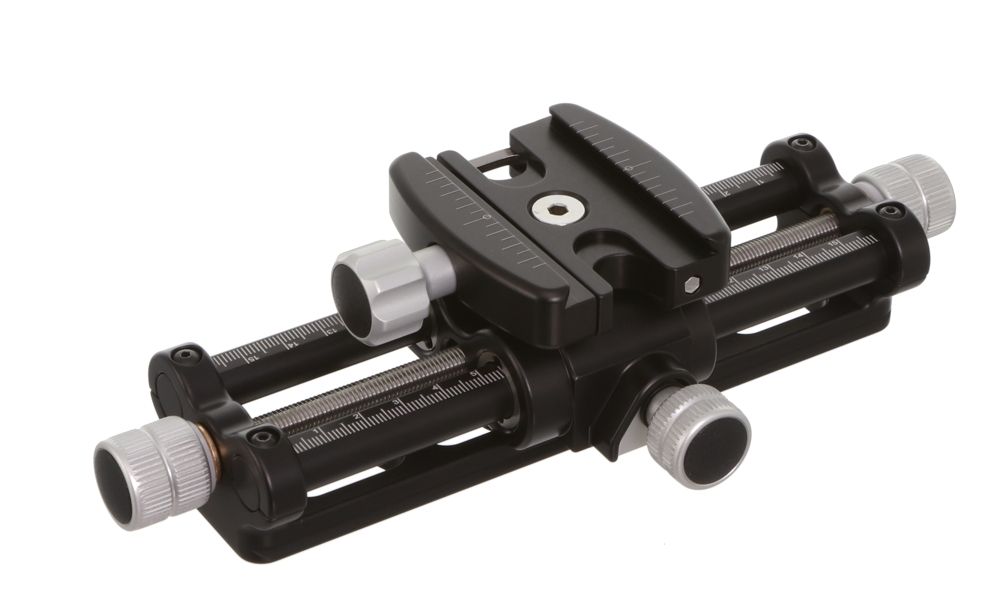

Kirk FR-3 Focusing Rail

Accoppiamento compatibile con

Compatibile con ARCA SWISS (secondo il produttore)

Caratteristica

compatibile con Arca
compatibile con QD

Filo (lato inferiore)

1 x 1/4" filettatura UNC

Materiale

6061-T6 Alluminio
Acciaio

Meccanismo di sicurezza

2 viti di sicurezza

Profilo compatibile con

ARCA SWISS compatibile (secondo il produttore) Morsetto da 38 mm

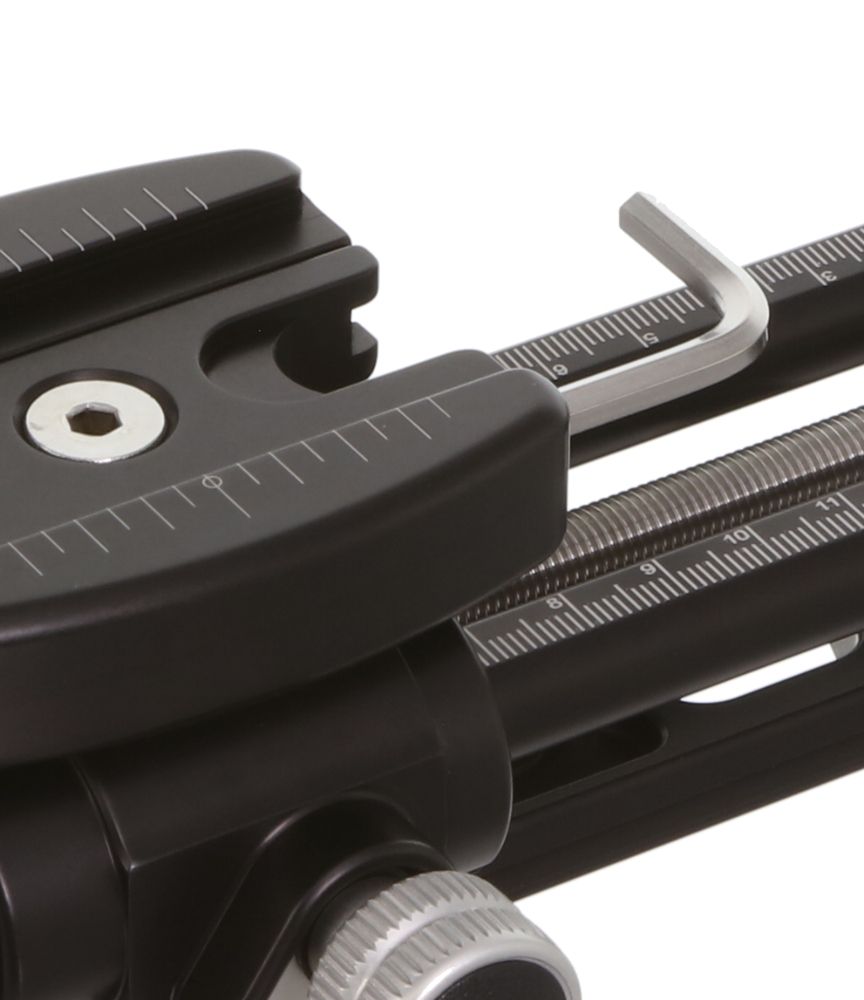

Scale

inciso a laser

raccomandato per

Macro fotografia

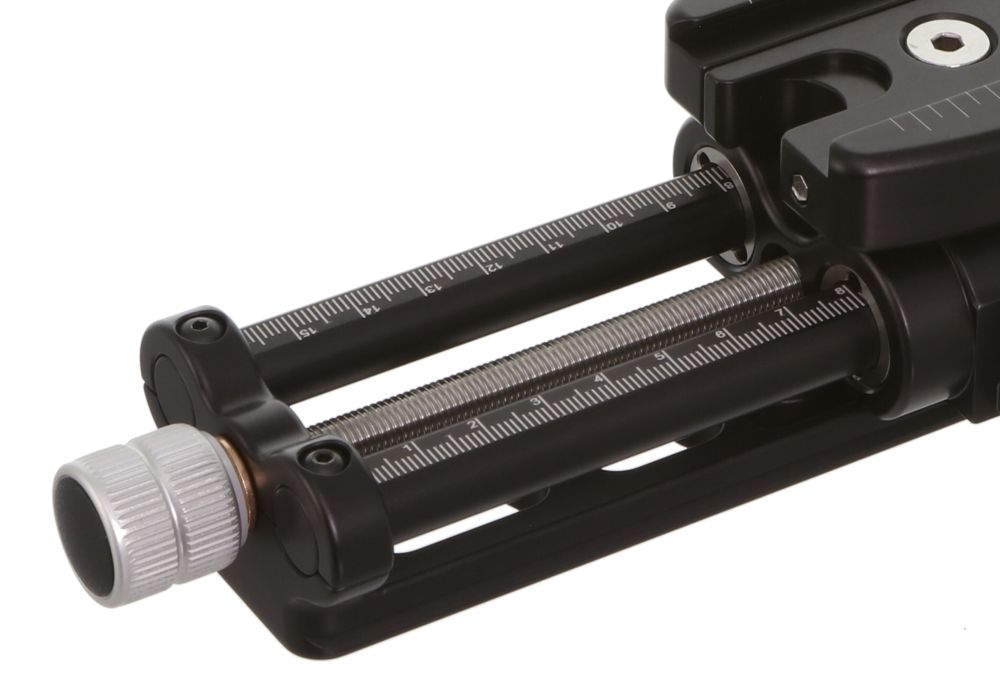

Super fine camera to subject focusing is achieved by the .042 per revolution stainless steel lead screw. The lead screw adjustment range is 4.250 in with a lead screw pitch of 5/16 in x 24.

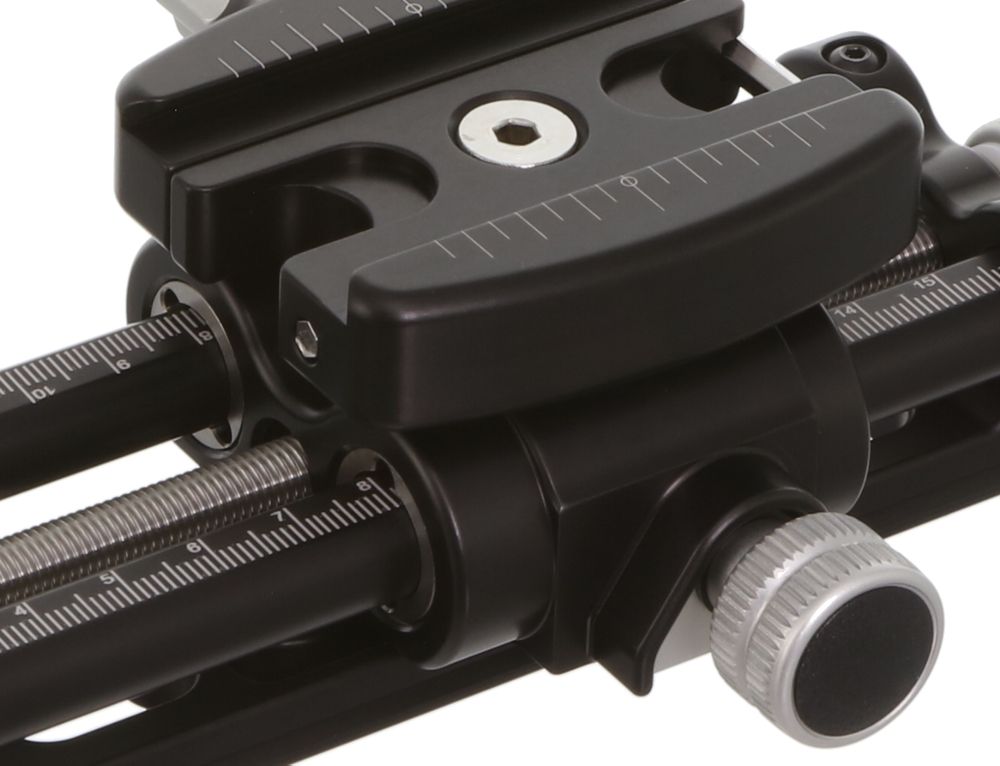

Rough positioning is acheived by the stage release knob

Turn knob clockwise, until it stops, to disenage the drive gear to allow for rough focus positioning

Turn knob counter clockwise, until it stops, to re-engage the drive gear to allow for fine focusing

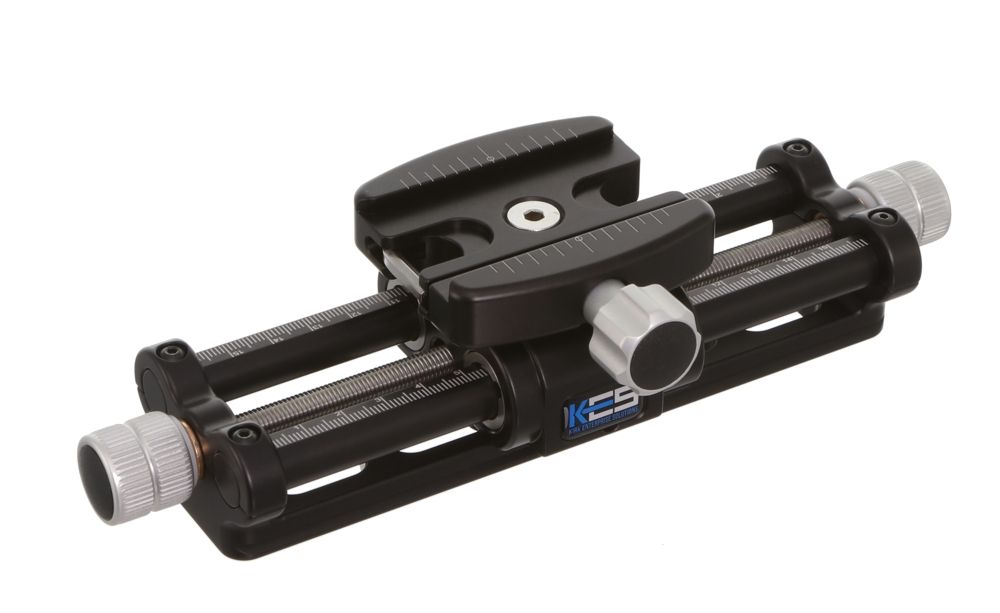

Mounted on the FR-3 is a KES 2.6 inch quick release plate that can rotate 360 degrees at 90 degrees intervals to allow you to mount a camera body or a collared lens. If geared linear motion, in both the X an Y axes is trying to be achieved, a second FR-3 can be stacked to achieve this,

This focusing rail is perfect for macro nature, panorama, and commercial photography.

FEATURES

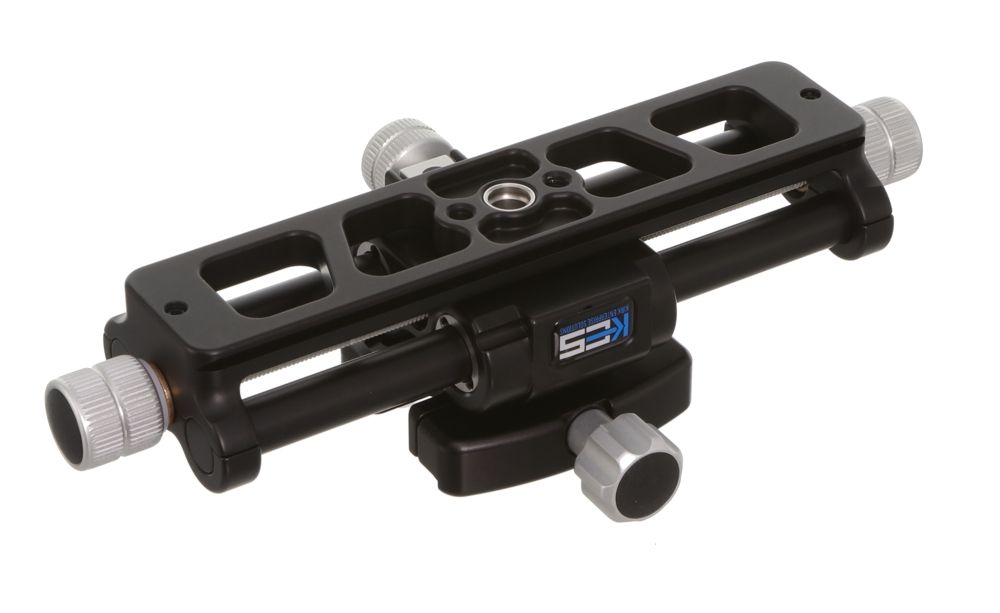

Now offers built in safety stops on the upper quick release carriage Arca style dovetail extends the full length of the FR-3 rail. The rail also offers industry standard 1/4-20 tripod sockets. The KES FR-3 rail has a standard knob style quick release that can easily be rotated to accommodate a camera body or collared lens Fine adjustments are made with the stainless steel lead screw by turning the knobs at either end of the rail Large adjustments are made by disengaging the drive gear knob.

Specs:

Overall Length: 8.624 in
Width: 2.500 in Height: 2.250 in
Weight: 23.5 oz
Lead screw adjustment range 4.250
Stage travel per revolution of lead screw is .042
Lead screw thread pitch 5/16 in x 24
Maximum Suported Weight: 50 lbs
Finish: Black and Satin Silver anodize
Material: 6061-T6 aluminum and 18.8 stainless
QD System: Yes,
Material: Stainless Steel (Industry Standard Quick Disconnect System)
Safety Stops: Yes
Included: Neoprene storage bag
Made in USA
