Acratech 1165 Panoramic Head (incl. Standard Clamp with Knob)

By accessing the video, I agree that my data will be transmitted to YouTube or Vimeo and that I have read the privacy policy.
Product information
Acratech 1165 Panoramic Head (incl. Standard Clamp with Knob)
Base Ø / cm
  • 6,0
Finish
  • black anodized
Height / cm
  • 8,9
Material
  • Aluminum
  • Stainless steel
Pivoting range / °
  • 360
QR base fits
  • ARCA SWISS compatible (according to manufacturer) 38 mm dovetail
Spirit level bubble
  • 1 x circular level
Tilt range / °
  • Front -90 / +90
Tripod Thread
  • 3/8" UNC
Weight / kg
  • 0,43
note
  • ATTENTION: the 3/8" mounting thread is 8mm long, if screws longer than 8mm are screwed in, the ball will be damaged!
recommended for
  • Action & Sports photography
  • DSLM
  • DSLR
  • Long Lens Photography
  • Panoramic photography
  • Tripods with 3/8" UNC thread

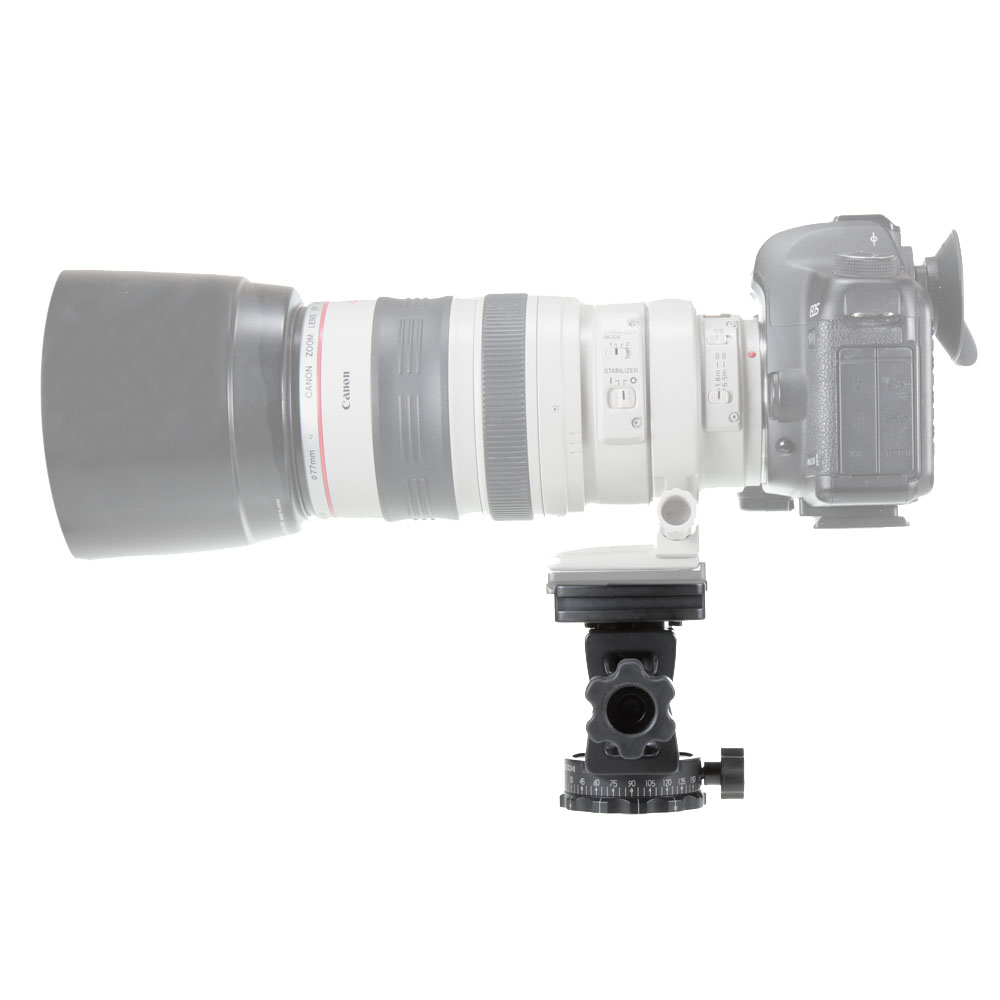

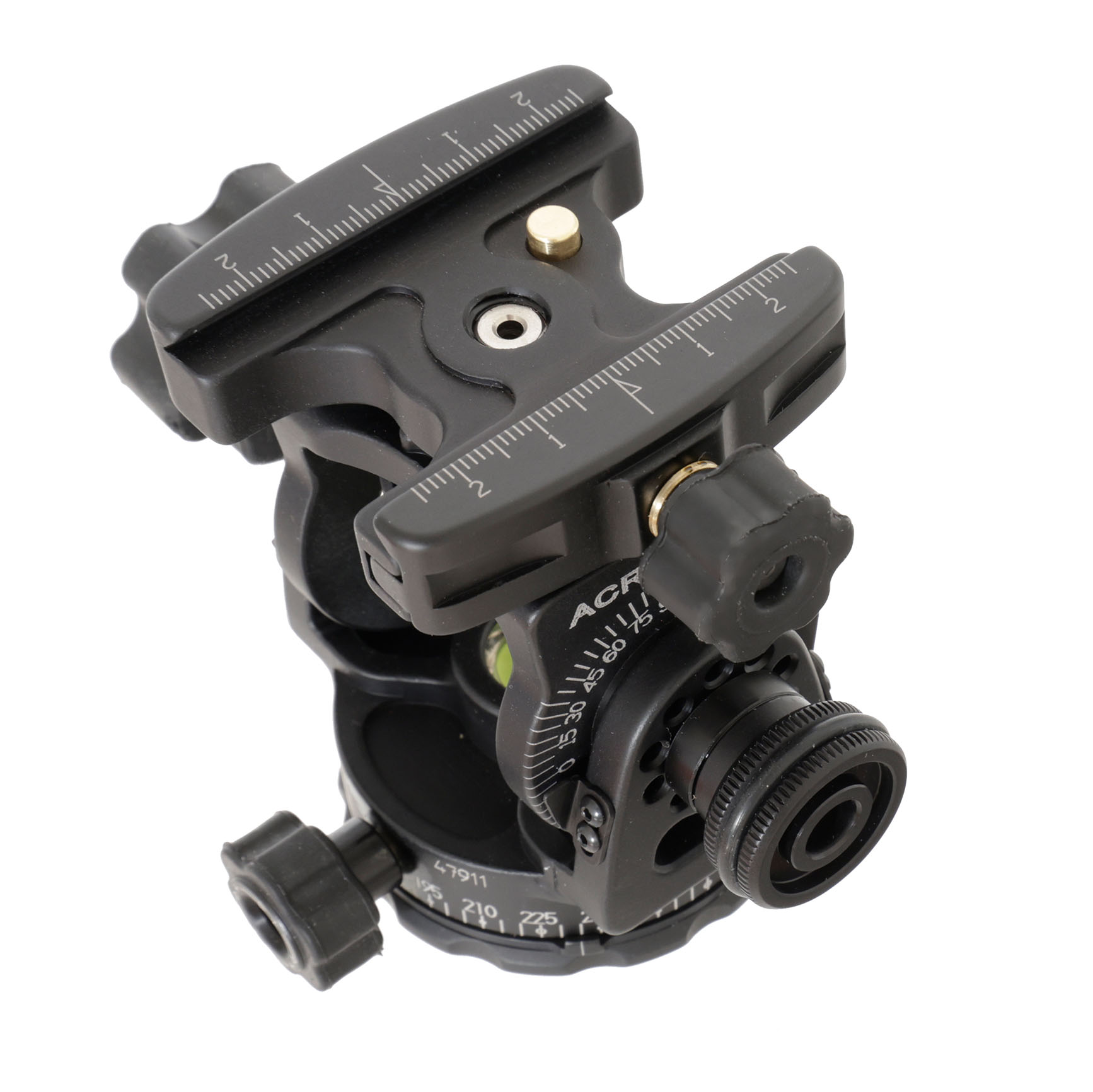

Acratech Panoramic Head 1165 is designed as a multi-row panoramic head that also works well as a long lens head. The large degree scale on the tilt axis and the adjustable zero pointers on the pan axis make multi-row panoramas very quick and easy. The index able quick release rotates so you can attach a camera body or a long lens with a tripod collar directly to the head.

  • Designed to work as a multi-row panoramic head and as a long lens head
  • Easily holds over 25 lbs. (11.4kg) at any angle
  • Will solidly support 600 f4.0 lenses
  • Eliminates the need to carry a large, heavy gimbal head
  • Provides easy, smooth balance for long lenses
  • Weighs less than 1 lb. (.45kg) with quick release clamp
  • Fully adjustable tension control
  • Compatible with Kirk, Arca, and many other QR plates
  • Fits all standard tripods (1/4-20 and 3/8-16 threads)
  • Index able quick release clamp can be rotated in 90 degree increments
Base Ø / cm
  • 6,0
Finish
  • black anodized
Height / cm
  • 8,9
Material
  • Aluminum
  • Stainless steel
Pivoting range / °
  • 360
QR base fits
  • ARCA SWISS compatible (according to manufacturer) 38 mm dovetail
Spirit level bubble
  • 1 x circular level
Tilt range / °
  • Front -90 / +90
Tripod Thread
  • 3/8" UNC
Weight / kg
  • 0,43
note
  • ATTENTION: the 3/8" mounting thread is 8mm long, if screws longer than 8mm are screwed in, the ball will be damaged!
recommended for
  • Action & Sports photography
  • DSLM
  • DSLR
  • Long Lens Photography
  • Panoramic photography
  • Tripods with 3/8" UNC thread
