Acratech 1287 GXP-SS Ballhead with Locking Lever Quick release Clamp

By accessing the video, I agree that my data will be transmitted to YouTube or Vimeo and that I have read the privacy policy.
Product information

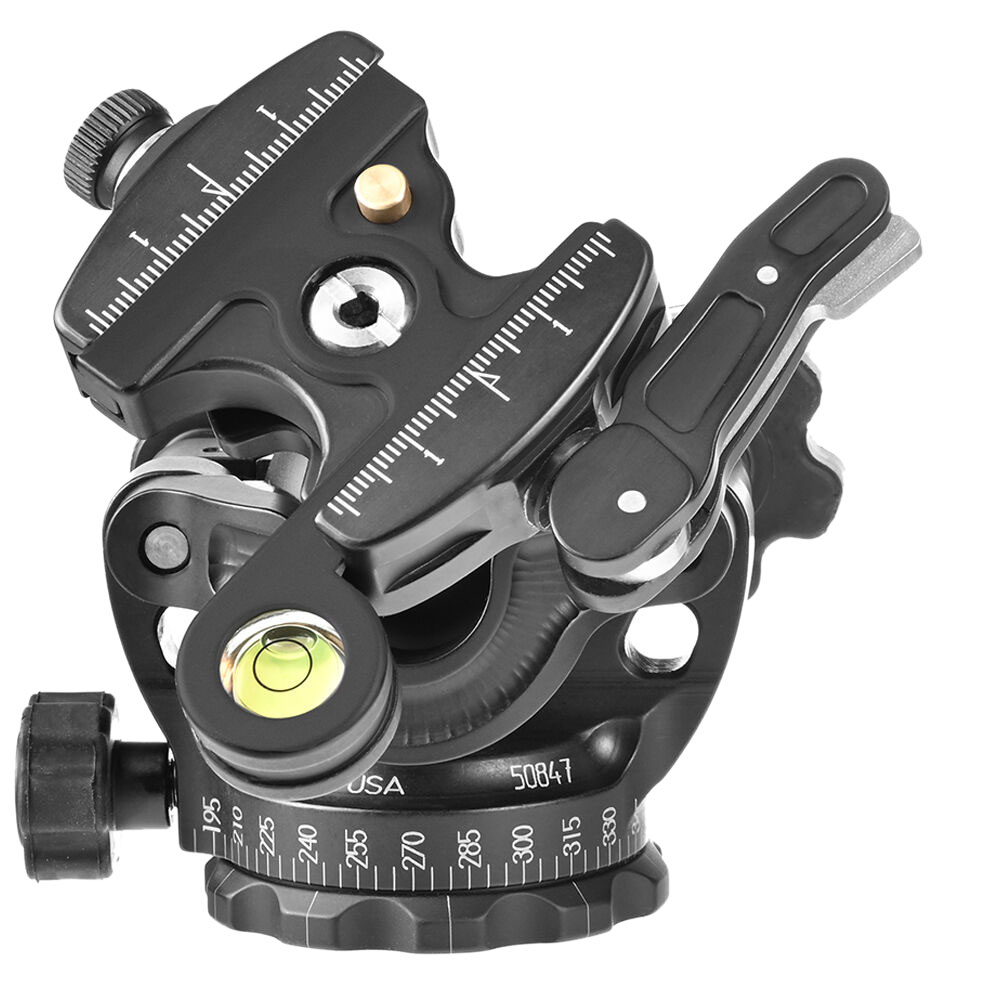

Acratech 1287 GXP-SS Ballhead with Locking Lever Quick release Clamp
Ball Ø / mm
  • 38
Base Ø / cm
  • 5,3
Height / cm
  • 9,5
QR base fits
  • ARCA SWISS compatible (according to manufacturer) 38 mm dovetail
  • Flexshooter 38 mm dovetail
  • Kirk dovetail
  • Pro Media Gear dovetail
  • Really Right Stuff dovetail
  • UniqBall 38 mm dovetail
  • Wimberley dovetail
Spirit level bubble
  • 1 x circular level
Stativkopftyp
  • Kugelkopf
Tripod Thread
  • 1/4 " UNC female thread
  • 3/8" UNC
Weight / kg
  • 0,38
clamp release type
  • Lever release
maximum payload / kg
  • 15,8
note
  • ATTENTION: the 3/8" mounting thread is 8mm long, if screws longer than 8mm are screwed in, the ball will be damaged!
recommended for
  • Architecture photography
  • DSLM
  • DSLR
  • Landscape photography
  • Long Lens Photography
  • Macro photography
  • Medium Format
  • Panoramic photography
  • Studio Photography
  • Travel photography
  • Tripods with 3/8" UNC thread
  • Wedding photography
separate panorama base
  • yes

A smaller version of our GXP Ball-Head, but it still has a robust 35 lb. (15.87kg) capacity, and the ability to function as a Ball-Head, gimbal head, and a panorama head. The GXP-SS has a shorter quick release clamp, and a smaller base diameter than the GXP. It is perfect for travel tripods.

All Acratech Ball-Heads are designed to be lightweight and rugged for the active outdoor photographer. The open structure lets moisture, dirt and debris fall through instead of being trapped inside a socket.

Features:

  • Compact size is perfect for travel tripods.
  • Solidly supports an impressive 35lbs (15.87kg).
  • The GXP-SS only weighs .85lbs bearing a 40:1 load ratio.
  • Large, easy to tighten, high torque lock knob is easy to tighten even with heavy winter gloves on.
  • Open structure allows dirt and debris to fall through instead of getting trapped inside.
  • New extra fine tension adjustment.
  • The quick release clamp has deep side notches for more clearance with other manufacturers stop screws.
  • The level on the quick release clamp is clearly visible even with your camera attached to the clamp.
  • Acratech quick release clamp jaws are more pointed to be more compatible with some manufactures quick release plates with less pointed dovetails.
  • The locking lever clamp has a safety zone so the first 25% of the levers motion will not allow your camera to release.

Ball Ø / mm
  • 38
Base Ø / cm
  • 5,3
Height / cm
  • 9,5
QR base fits
  • ARCA SWISS compatible (according to manufacturer) 38 mm dovetail
  • Flexshooter 38 mm dovetail
  • Kirk dovetail
  • Pro Media Gear dovetail
  • Really Right Stuff dovetail
  • UniqBall 38 mm dovetail
  • Wimberley dovetail
Spirit level bubble
  • 1 x circular level
Stativkopftyp
  • Kugelkopf
Tripod Thread
  • 1/4 " UNC female thread
  • 3/8" UNC
Weight / kg
  • 0,38
clamp release type
  • Lever release
maximum payload / kg
  • 15,8
note
  • ATTENTION: the 3/8" mounting thread is 8mm long, if screws longer than 8mm are screwed in, the ball will be damaged!
recommended for
  • Architecture photography
  • DSLM
  • DSLR
  • Landscape photography
  • Long Lens Photography
  • Macro photography
  • Medium Format
  • Panoramic photography
  • Studio Photography
  • Travel photography
  • Tripods with 3/8" UNC thread
  • Wedding photography
separate panorama base
  • yes
