FlexShooter Extreme for large sized equipment

By accessing the video, I agree that my data will be transmitted to YouTube or Vimeo and that I have read the privacy policy.
Product information
FlexShooter Extreme for large sized equipment
Special features
  • Levelable 2-way tilt/tele tilt, your tripod does not need separate leveling
  • TIP: when using cameras with heavier wide-angle lenses, the use of a nodal point rail can be useful for ideal balancing. However, this should not protrude forward beyond the lens
  • The tilt of the inner ball forwards and backwards is absorbed by a spring mechanism
  • large, highest load capacity
  • suitable for panorama
  • with bidirectional clamp
  • with built-in 2-way-tilt
  • with screw clamp
Stativkopftyp
  • 2 Wege Neiger
  • Kugelkopf
  • Tele-Neiger
clamp release type
  • Cross clamp (bidirectional)
  • Screw locking
for Canon Lenses
  • Canon EF 300mm f/2.8 L
  • Canon EF 300mm f/2.8 L IS USM
  • Canon EF 300mm f/2.8L IS II USM
  • Canon EF 400mm f/2,8 L IS II
  • Canon EF 400mm f/2.8 L IS
  • Canon EF 400mm f/2.8 L IS III
  • Canon EF 400mm f/4 DO IS II USM
  • Canon EF 400mm f/4 DO IS USM
  • Canon EF 500mm f/4L IS II USM
  • Canon EF 500mm f4 L IS USM
  • Canon EF 600mm f/4 L IS III USM
  • Canon EF 600mm f/4 L IS USM
  • Canon EF 600mm f/4L IS II USM
  • Canon EF 800mm f/5.6L IS USM
for Canon RF lenses
  • Canon RF 400mm f/2.8L IS USM (2021)
  • Canon RF 600mm f/4L IS USM (2021)
  • Canon RF 800mm f/5.6L IS USM (2022)
  • Canon RF 1200mm f/8L IS USM (2022)
for Nikon Lenses (non Z)
  • Nikon 300mm f/2,8G ED VR II AF-S NIKKOR
  • Nikon 300mm f/2.8 AF-S I NIKKOR
  • Nikon 300mm f/2.8G ED-IF AFS VR
  • Nikon 400mm f/2,8E FL ED VR AF-S NIKKOR
  • Nikon 400mm f/2,8G ED VR AF-S NIKKOR
  • Nikon 400mm f/2.8 AFS II NIKKOR
  • Nikon 400mm f/2.8 AFS I NIKKOR
  • Nikon 500mm f/4 G ED VR AF-S Nikkor
  • Nikon 500mm f/4 P manual focus
  • Nikon 500mm f/4D ED-IF AF-I NIKKOR
  • Nikon 500mm f/4E FL ED VR AF-S NIKKOR
  • Nikon 600mm f/4 AF I NIKKOR
  • Nikon 600mm f/4 AFS II NIKKOR
  • Nikon 600mm f/4 AFS I NIKKOR
  • Nikon 600mm f/4 AIS
  • Nikon 600mm f/4E FL ED VR AF-S NIKKOR
  • Nikon 600mm f/4G ED VR AF-S NIKKOR
  • Nikon 800mm f/5,6E FL ED VR AF-S NIKKOR
for Nikon Z Lenses
  • Nikon Z 400mm f/2.8 TC VR S NIKKOR (2022)
  • Nikon Z 800mm f/6.3 VR S NIKKOR (2022)
for Olympus / OM SYSTEM Lenses
  • Olympus 300mm f/2.8 ZUIKO DIGITAL ED
for Sigma lenses
  • Sigma 500mm F4 DG OS HSM | Sports
  • Sigma 500mm f/4,5 EX DG HSM
  • Sigma 800mm f/5,6 EX DG HSM
for Sony Lenses
  • Sony 300mm f/2,8 G SSM II [SAL300F28G2]
  • Sony 300mm f/2.8 G [SAL300F28G]
  • Sony 400mm f/2.8 GM OSS FE [SEL400F28GM]
  • Sony 400mm f/2.8 GM OSS FE [SEL400F28GM] (2018)
  • Sony 500mm f/4 G SSM [SAL500F40G]
  • Sony 600mm f/4 GM OSS FE [SEL600F40GM] (2019)
note
  • ATTENTION: locking clamp lever. If the outer ball is not clamped when the lever is in place, pull it out axially and turn it counterclockwise while idling. Re-engage the lever and then turn it clockwise.
  • ATTENTION: the 3/8" mounting thread is 8mm long, if screws longer than 8mm are screwed in, the ball will be damaged!
  • ATTENTION: the clamping profiles used should be at least 55mm long and preferably also have safety stop screws on the underside of the panel!
  • ATTENTION: the return spring of the inner ball is designed for operation with a load, so the tilt and pan mechanism only works as intended when the lens is mounted on the Flexshooter.
  • ATTENTION: the tilt locking knob must not be tightened too much! Optimum clamping takes place well before this.
recommended for
  • Architecture photography
  • DSLM
  • DSLR
  • Ground level work
  • Landscape photography
  • Long Lens Photography
  • Macro photography
  • Medium Format
  • Really Right Stuff Stativ der Versa Serie 3 Mk2
  • Reportage photography
  • Studio Photography
  • Travel photography
  • Tripods with 3/8" UNC thread
  • Wedding photography
weight compensation
  • yes, built-in spring balance for tilt movement

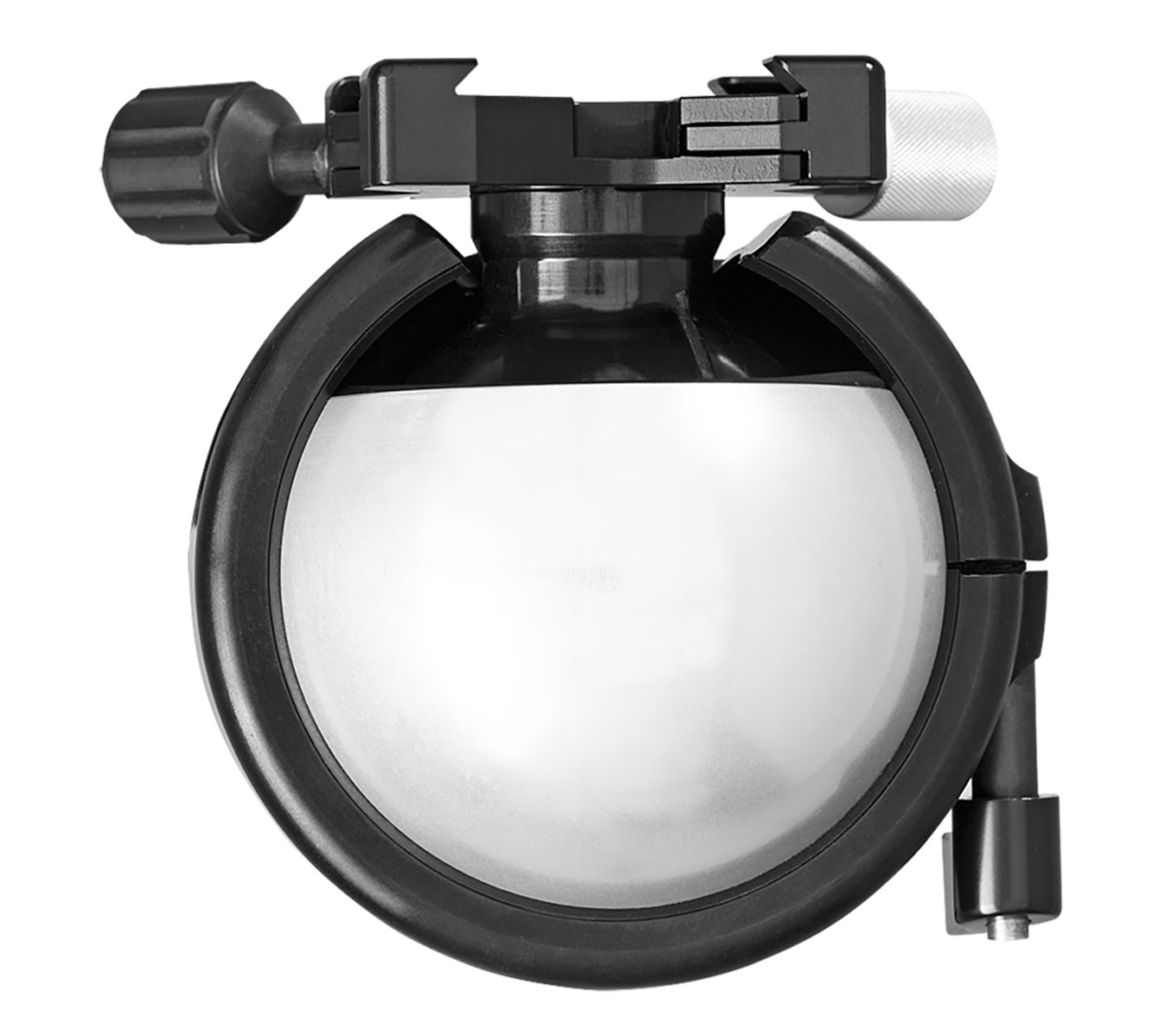

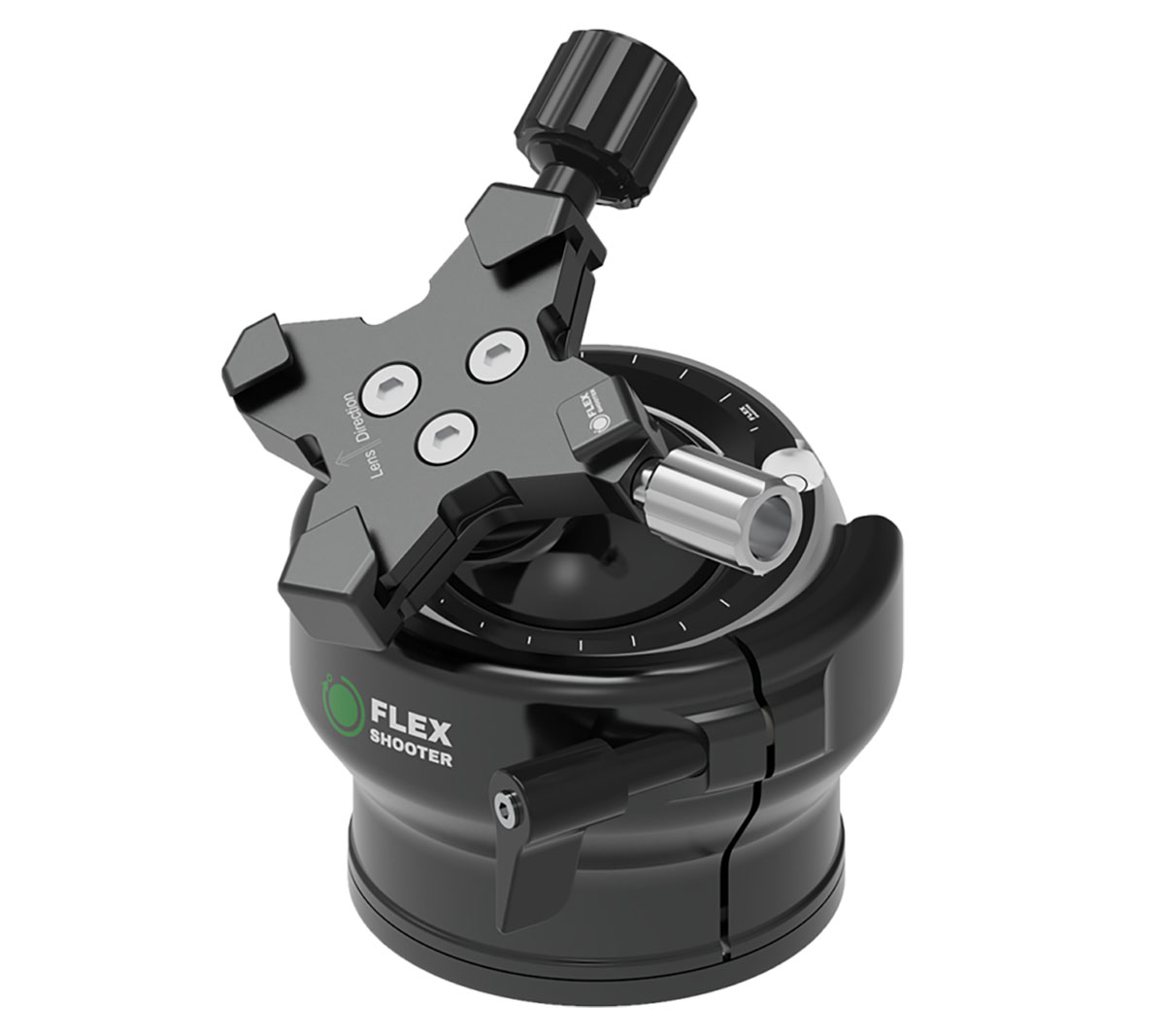

World's only spring balanced multifunctional ballhead.

The patented double ball system unites the three functions in one device, of which the outer ball has two functions.

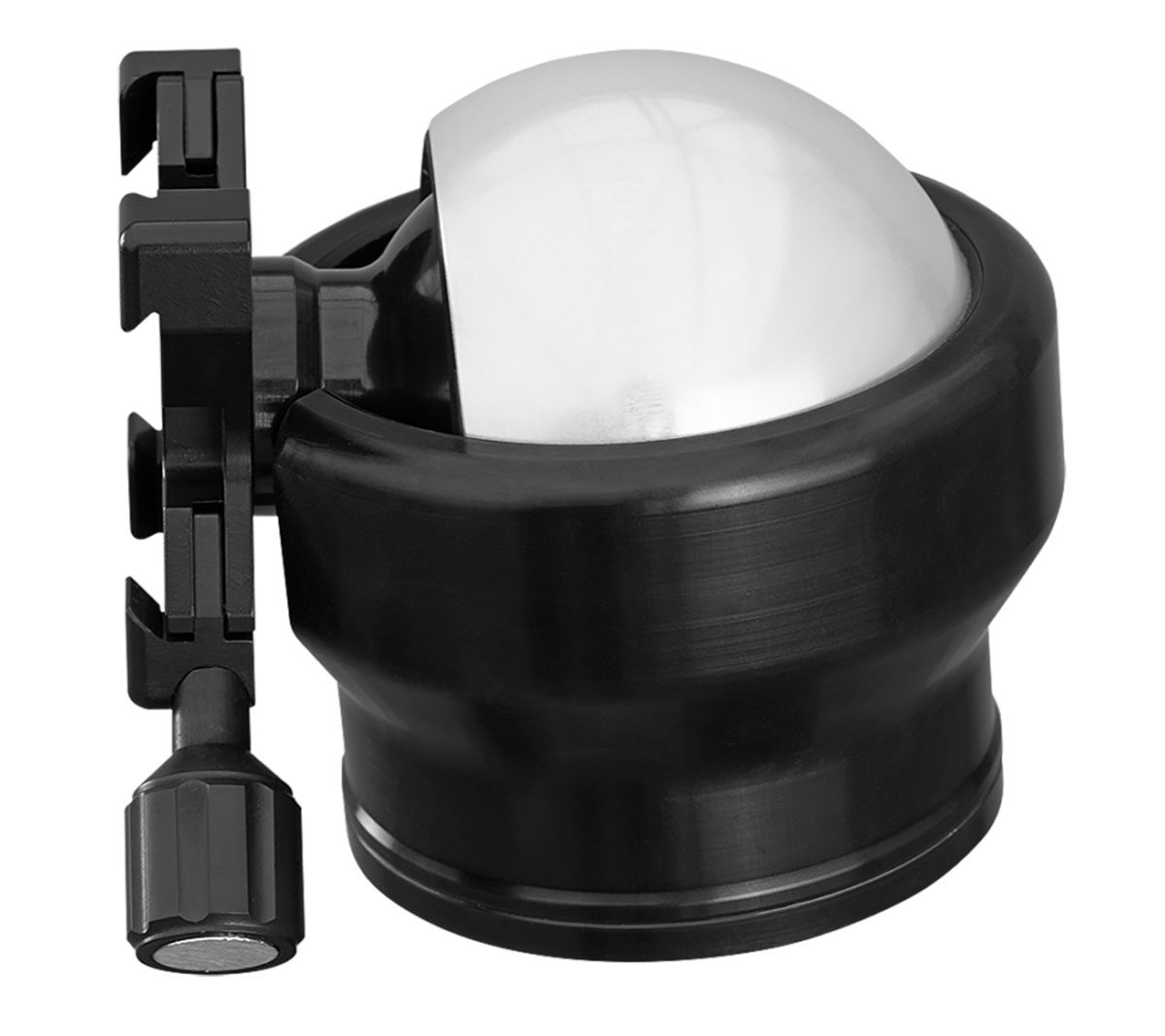

First it works as a classic, low profile ballhead, confined in a teflon filled high quality plastic sleeve, which provide you the stickless motion and adjustable tension.

When you use the inner ball, the outer ball has another function, it provides you a level plane for the pan and tilt motion of the inner ball. The level plane can be set with a precision bubble level with a very high accuracy.

The motion of the inner ball is limited to two axis, works as a two-way head, which you normally need for using your camera for landscapes, telephoto, sport photography, etc. Importantly, the weight of your camera is balanced by a patented spring mechanism, which is in a class by itself, the only spring balanced ballhead in the world, therefore it may truly replace your gimbal head.

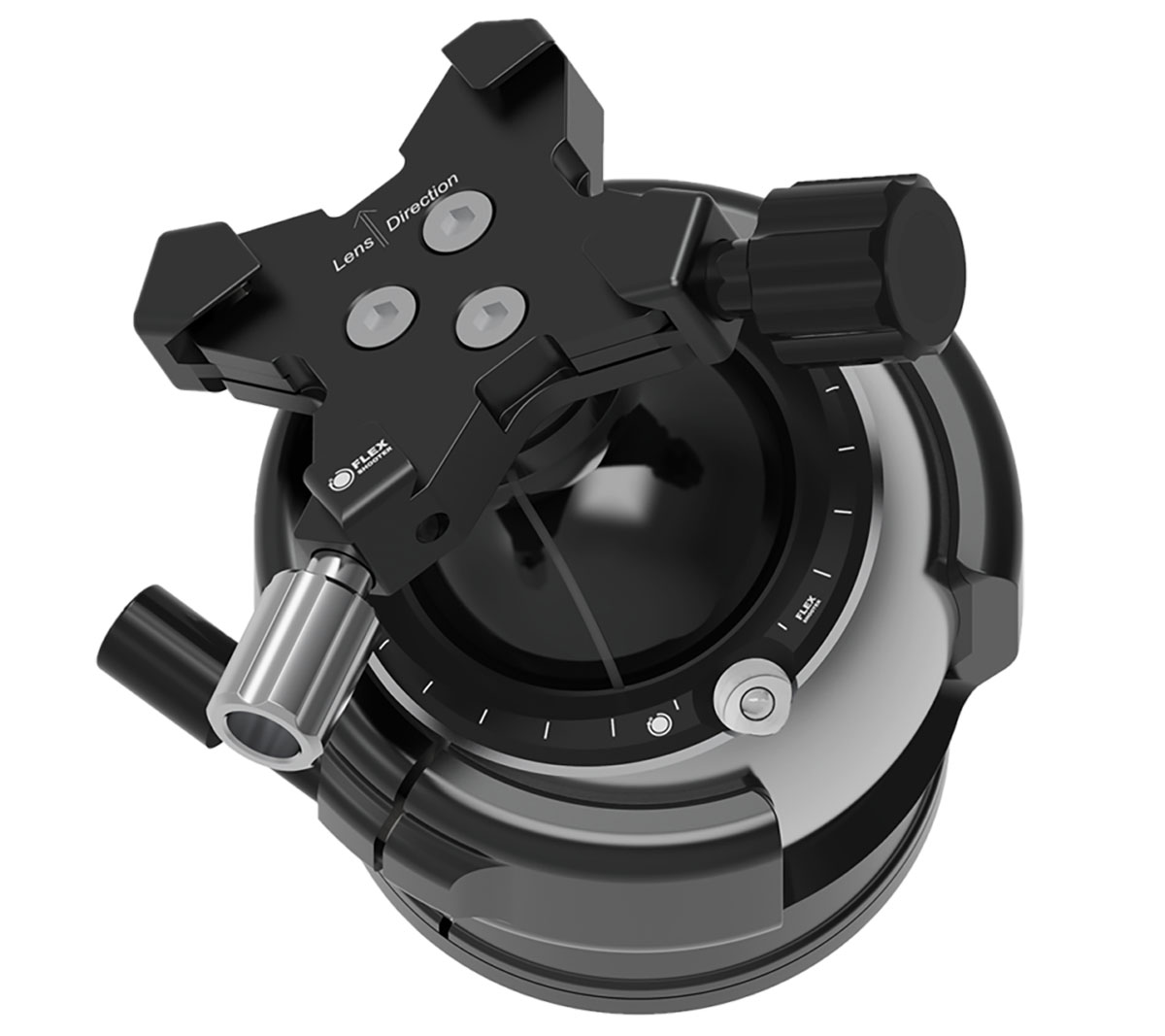

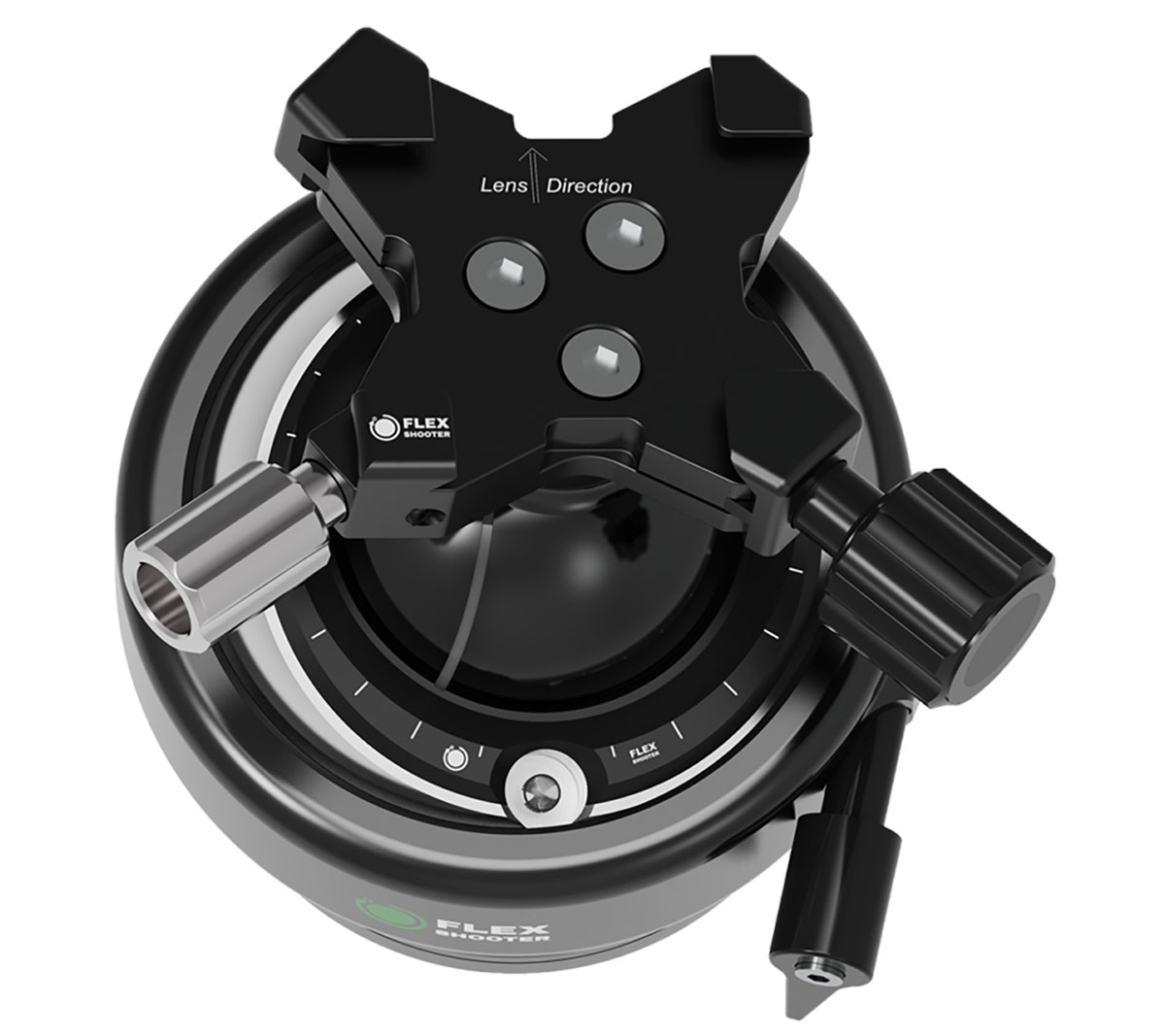

The swiss style clamp was designed specifically for the Flexline ballheads, it is containing the adjustment mechanism of the inner ball, thereby makes possible to reduce the overall height of the unit. It makes possible to mount your camera the proper direction for the two-way head, either you are using a lensfoot or a cameraplate.

Specifications

  • material anodized aircraft grade aluminium alloy
  • weight 1150 g
  • center ball diameter 58 mm
  • outer ball diameter 82 mm
  • base diameter 79 mm
  • tripod thread 3/8"
  • Maximum load 20 kg (44lbs)
  • -style two-way clamp
  • adjustable friction for both balls
  • precision bubble level
  • built-in spring balance for tilt movement

Please note: the manufacturer recommends not to supply the inner and outer ball with lubricant. The balls are self-lubricating bearings. The balls are easy to clean with clean water and then dry with a microfiber cloth.

Special features
  • Levelable 2-way tilt/tele tilt, your tripod does not need separate leveling
  • TIP: when using cameras with heavier wide-angle lenses, the use of a nodal point rail can be useful for ideal balancing. However, this should not protrude forward beyond the lens
  • The tilt of the inner ball forwards and backwards is absorbed by a spring mechanism
  • large, highest load capacity
  • suitable for panorama
  • with bidirectional clamp
  • with built-in 2-way-tilt
  • with screw clamp
Stativkopftyp
  • 2 Wege Neiger
  • Kugelkopf
  • Tele-Neiger
clamp release type
  • Cross clamp (bidirectional)
  • Screw locking
for Canon Lenses
  • Canon EF 300mm f/2.8 L
  • Canon EF 300mm f/2.8 L IS USM
  • Canon EF 300mm f/2.8L IS II USM
  • Canon EF 400mm f/2,8 L IS II
  • Canon EF 400mm f/2.8 L IS
  • Canon EF 400mm f/2.8 L IS III
  • Canon EF 400mm f/4 DO IS II USM
  • Canon EF 400mm f/4 DO IS USM
  • Canon EF 500mm f/4L IS II USM
  • Canon EF 500mm f4 L IS USM
  • Canon EF 600mm f/4 L IS III USM
  • Canon EF 600mm f/4 L IS USM
  • Canon EF 600mm f/4L IS II USM
  • Canon EF 800mm f/5.6L IS USM
for Canon RF lenses
  • Canon RF 400mm f/2.8L IS USM (2021)
  • Canon RF 600mm f/4L IS USM (2021)
  • Canon RF 800mm f/5.6L IS USM (2022)
  • Canon RF 1200mm f/8L IS USM (2022)
for Nikon Lenses (non Z)
  • Nikon 300mm f/2,8G ED VR II AF-S NIKKOR
  • Nikon 300mm f/2.8 AF-S I NIKKOR
  • Nikon 300mm f/2.8G ED-IF AFS VR
  • Nikon 400mm f/2,8E FL ED VR AF-S NIKKOR
  • Nikon 400mm f/2,8G ED VR AF-S NIKKOR
  • Nikon 400mm f/2.8 AFS II NIKKOR
  • Nikon 400mm f/2.8 AFS I NIKKOR
  • Nikon 500mm f/4 G ED VR AF-S Nikkor
  • Nikon 500mm f/4 P manual focus
  • Nikon 500mm f/4D ED-IF AF-I NIKKOR
  • Nikon 500mm f/4E FL ED VR AF-S NIKKOR
  • Nikon 600mm f/4 AF I NIKKOR
  • Nikon 600mm f/4 AFS II NIKKOR
  • Nikon 600mm f/4 AFS I NIKKOR
  • Nikon 600mm f/4 AIS
  • Nikon 600mm f/4E FL ED VR AF-S NIKKOR
  • Nikon 600mm f/4G ED VR AF-S NIKKOR
  • Nikon 800mm f/5,6E FL ED VR AF-S NIKKOR
for Nikon Z Lenses
  • Nikon Z 400mm f/2.8 TC VR S NIKKOR (2022)
  • Nikon Z 800mm f/6.3 VR S NIKKOR (2022)
for Olympus / OM SYSTEM Lenses
  • Olympus 300mm f/2.8 ZUIKO DIGITAL ED
for Sigma lenses
  • Sigma 500mm F4 DG OS HSM | Sports
  • Sigma 500mm f/4,5 EX DG HSM
  • Sigma 800mm f/5,6 EX DG HSM
for Sony Lenses
  • Sony 300mm f/2,8 G SSM II [SAL300F28G2]
  • Sony 300mm f/2.8 G [SAL300F28G]
  • Sony 400mm f/2.8 GM OSS FE [SEL400F28GM]
  • Sony 400mm f/2.8 GM OSS FE [SEL400F28GM] (2018)
  • Sony 500mm f/4 G SSM [SAL500F40G]
  • Sony 600mm f/4 GM OSS FE [SEL600F40GM] (2019)
note
  • ATTENTION: locking clamp lever. If the outer ball is not clamped when the lever is in place, pull it out axially and turn it counterclockwise while idling. Re-engage the lever and then turn it clockwise.
  • ATTENTION: the 3/8" mounting thread is 8mm long, if screws longer than 8mm are screwed in, the ball will be damaged!
  • ATTENTION: the clamping profiles used should be at least 55mm long and preferably also have safety stop screws on the underside of the panel!
  • ATTENTION: the return spring of the inner ball is designed for operation with a load, so the tilt and pan mechanism only works as intended when the lens is mounted on the Flexshooter.
  • ATTENTION: the tilt locking knob must not be tightened too much! Optimum clamping takes place well before this.
recommended for
  • Architecture photography
  • DSLM
  • DSLR
  • Ground level work
  • Landscape photography
  • Long Lens Photography
  • Macro photography
  • Medium Format
  • Really Right Stuff Stativ der Versa Serie 3 Mk2
  • Reportage photography
  • Studio Photography
  • Travel photography
  • Tripods with 3/8" UNC thread
  • Wedding photography
weight compensation
  • yes, built-in spring balance for tilt movement
