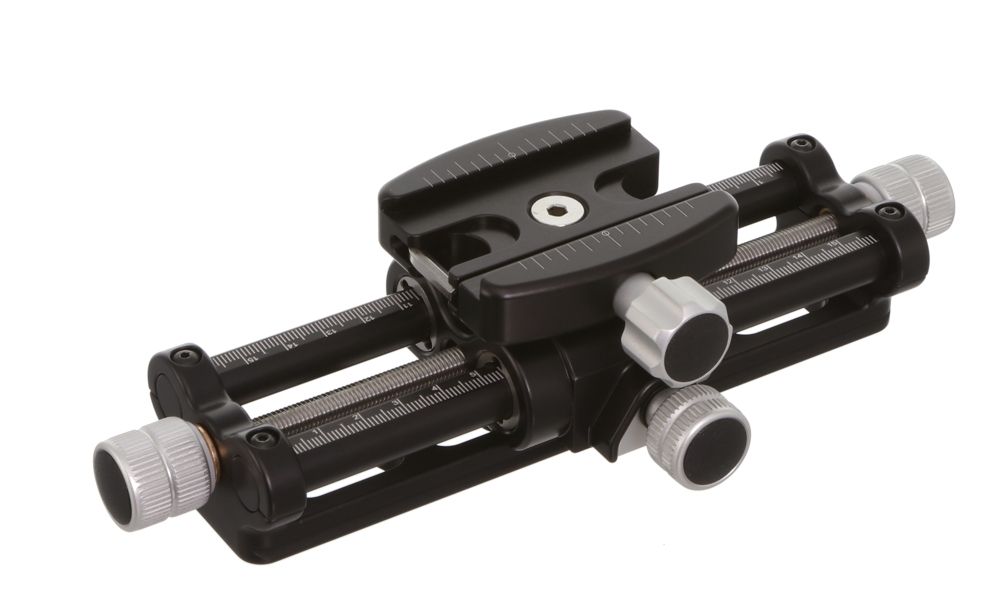

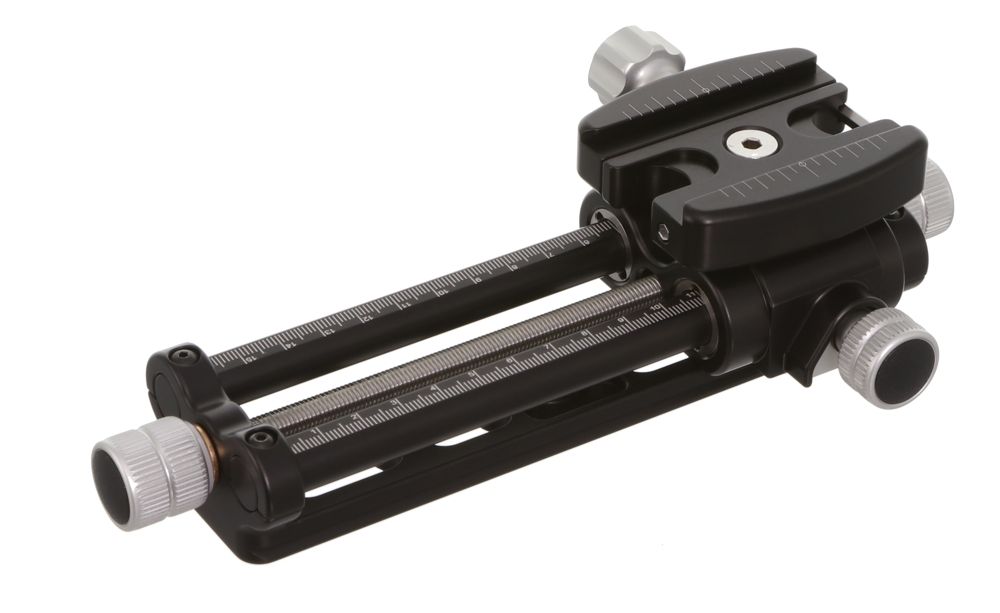

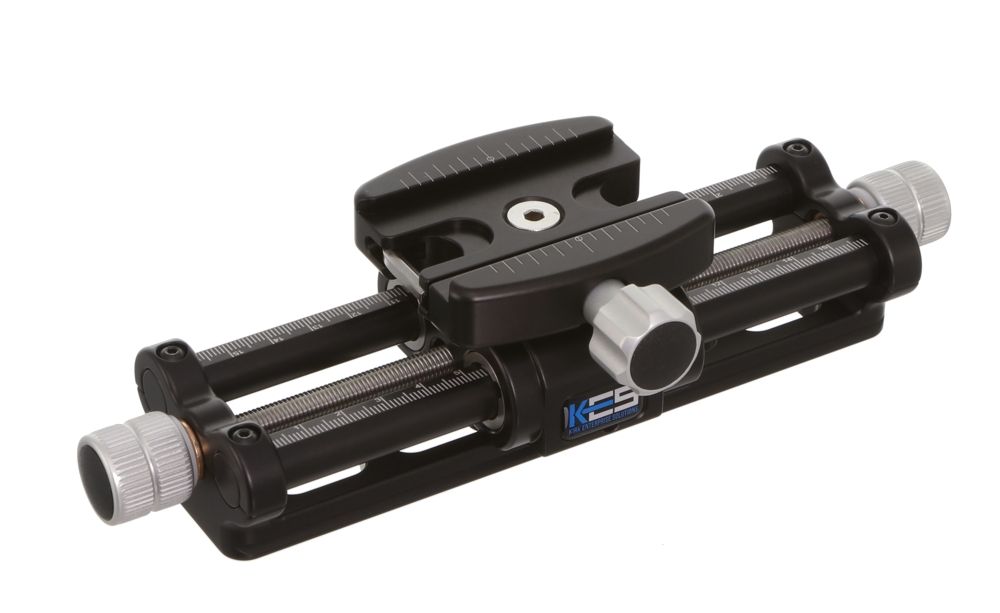

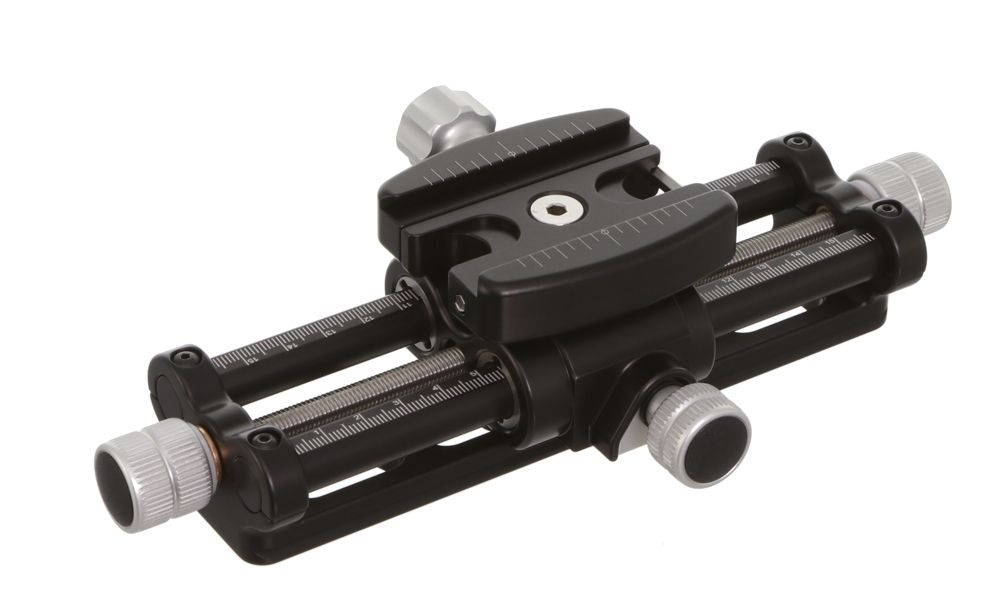

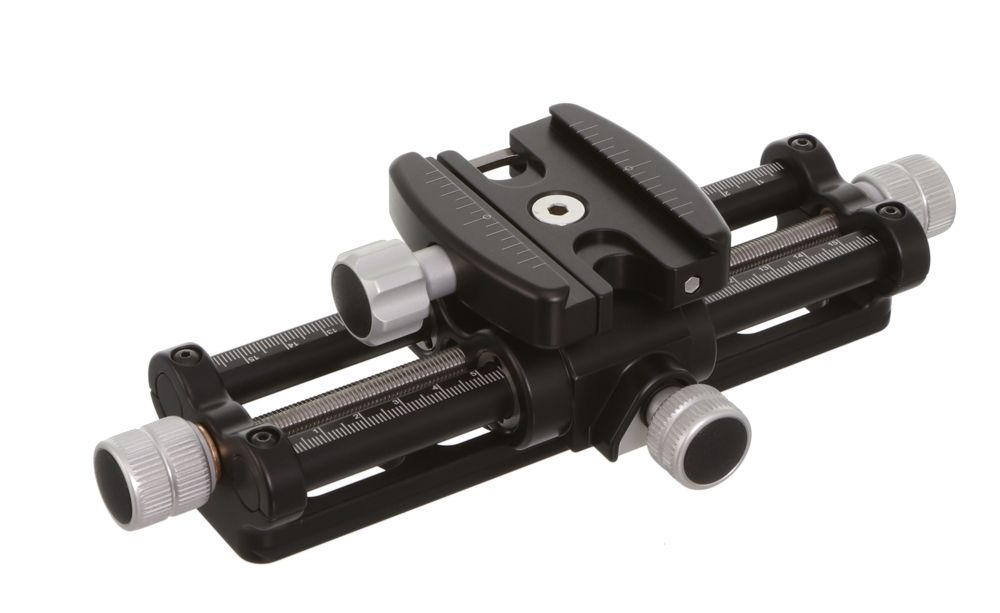

Kirk FR-3 Focusing Rail

€489.90*

Prices incl. VAT plus shipping costs

not in stock, the item will be ordered for you

Article No.: AE22016
Manufacturer No.: FR-3
Shipping weight: 0.7 kg
not in stock

✔ Fast DHL delivery
✔ Payment in installments via PayPal possible
✔ Purchase on account

✔ Individual expert advice via email or live chat
✔ Qualitative high-quality equipment

By accessing the video, I agree that my data will be transmitted to YouTube or Vimeo and that I have read the privacy policy.

Product information

Kirk FR-3 Focusing Rail

Feature

Arca compatible
QD compatible

Material

6061-T6 Aluminum
Steel

QR base fits

ARCA SWISS compatible (according to manufacturer) 38 mm dovetail

QR profile fits

ARCA SWISS compatible (according to manufacturer) 38 mm clamp

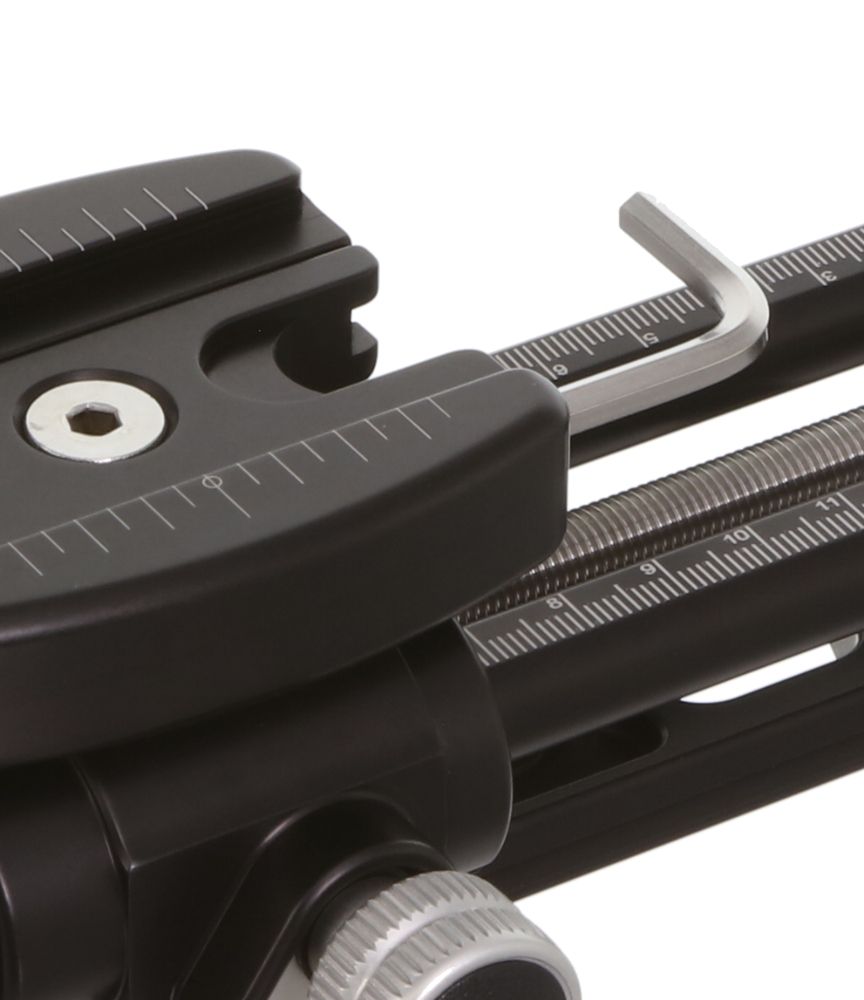

Safety mechanism

2 safety stop screws

Scale

laser engraved

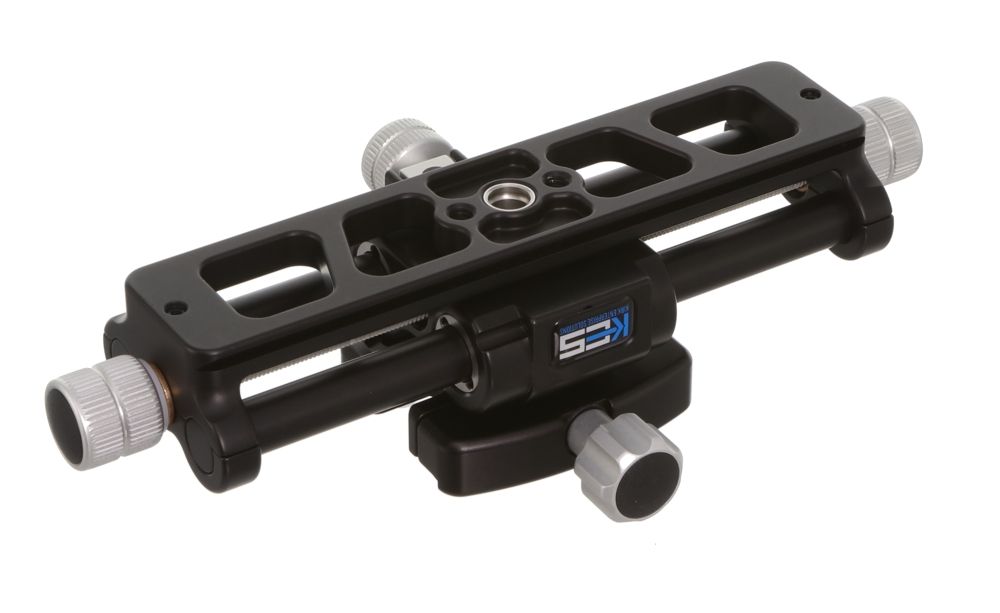

Thread (bottom side)

1 x 1/4" UNC thread

recommended for

Macro photography

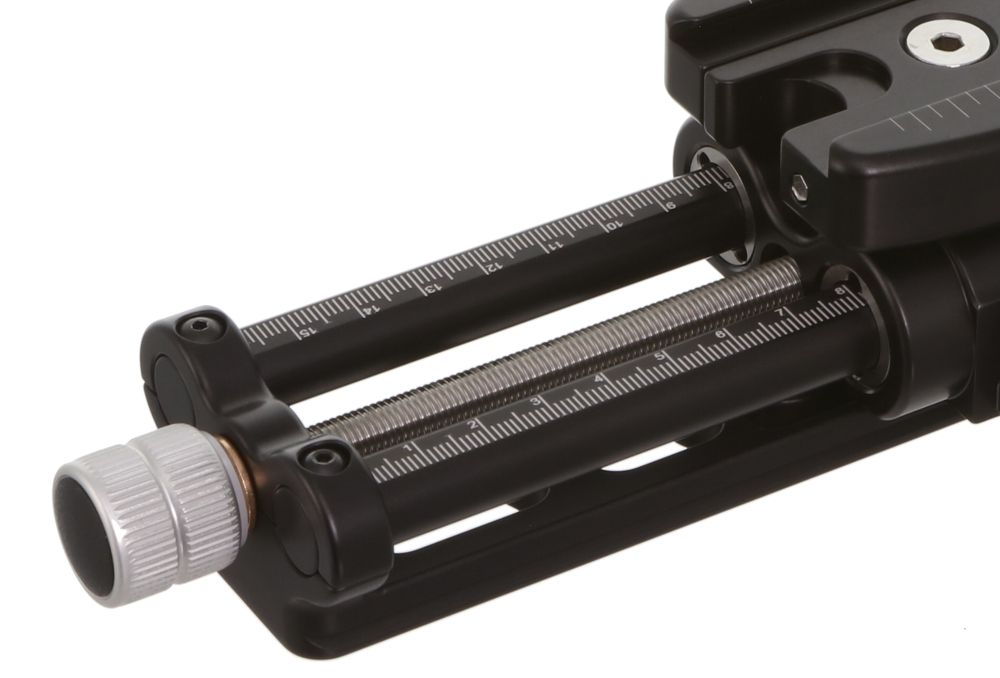

Super fine camera to subject focusing is achieved by the .042 per revolution stainless steel lead screw. The lead screw adjustment range is 4.250 in with a lead screw pitch of 5/16 in x 24.

Rough positioning is acheived by the stage release knob

Turn knob clockwise, until it stops, to disenage the drive gear to allow for rough focus positioning

Turn knob counter clockwise, until it stops, to re-engage the drive gear to allow for fine focusing

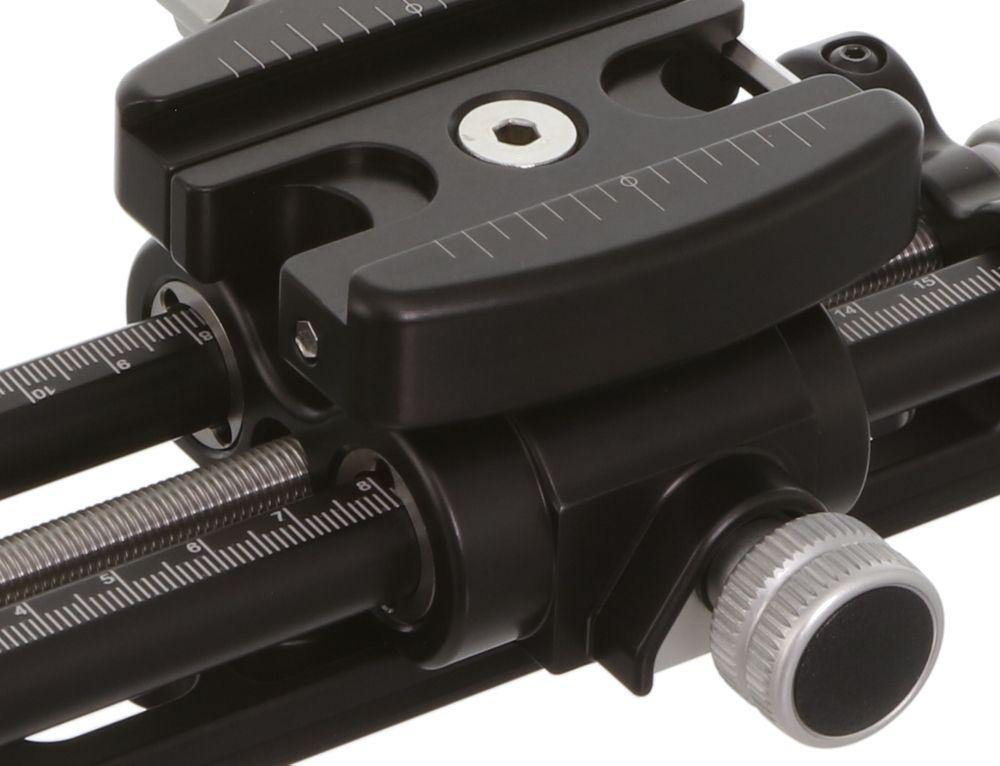

Mounted on the FR-3 is a KES 2.6 inch quick release plate that can rotate 360 degrees at 90 degrees intervals to allow you to mount a camera body or a collared lens. If geared linear motion, in both the X an Y axes is trying to be achieved, a second FR-3 can be stacked to achieve this,

This focusing rail is perfect for macro nature, panorama, and commercial photography.

FEATURES

Now offers built in safety stops on the upper quick release carriage Arca style dovetail extends the full length of the FR-3 rail. The rail also offers industry standard 1/4-20 tripod sockets. The KES FR-3 rail has a standard knob style quick release that can easily be rotated to accommodate a camera body or collared lens Fine adjustments are made with the stainless steel lead screw by turning the knobs at either end of the rail Large adjustments are made by disengaging the drive gear knob.

Specs:

Overall Length: 8.624 in
Width: 2.500 in Height: 2.250 in
Weight: 23.5 oz
Lead screw adjustment range 4.250
Stage travel per revolution of lead screw is .042
Lead screw thread pitch 5/16 in x 24
Maximum Suported Weight: 50 lbs
Finish: Black and Satin Silver anodize
Material: 6061-T6 aluminum and 18.8 stainless
QD System: Yes,
Material: Stainless Steel (Industry Standard Quick Disconnect System)
Safety Stops: Yes
Included: Neoprene storage bag
Made in USA
