Leofoto LQ-284C Carbon Fiber Tripod + LH-30 Ball Head Mr. Q-Series

By accessing the video, I agree that my data will be transmitted to YouTube or Vimeo and that I have read the privacy policy.
Product information
Leofoto LQ-284C Carbon Fiber Tripod + LH-30 Ball Head Mr. Q-Series
Center Column
  • existing
Folded length / cm
  • 54
Gewicht
  • 1,6
Leg Ø / mm
  • 28 / 25 / 22 / 19
Material
  • Carbon fiber Tubes / 10x layers
Minimum height / cm w/o center column
  • 16
Number of Leg Sections (per Leg)
  • 4
QR base fits
  • ARCA SWISS compatible (according to manufacturer) 38 mm dovetail
Thread for tripod foot
  • 3/8" UNC female thread
Transportlänge
  • 55
Tripod type
  • Tripod with centre column
  • Tripod with head
Weight / kg
  • 1,53
max. Aufbauhöhe >= / m
  • 1,5
max. Height / m with center column
  • 1,58
max. height / m w/o center column
  • 1,29
max. installation height / cm **
  • 158
maximum payload / kg
  • 10,0
min. installation height / cm **
  • 16
recommended for
  • DSLM
  • Ground level work
  • Landscape photography
  • Macro photography
  • Reportage photography
  • Travel photography

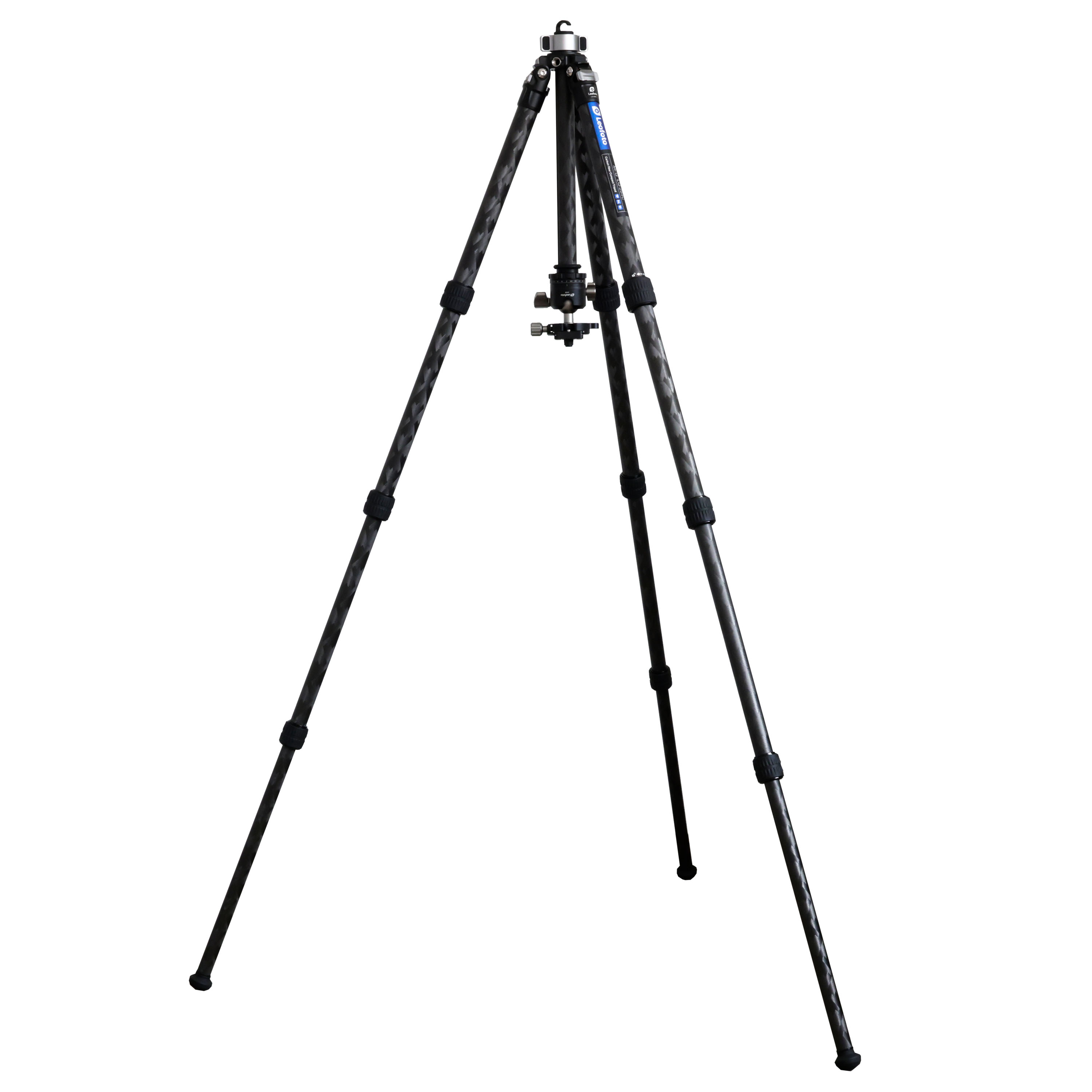

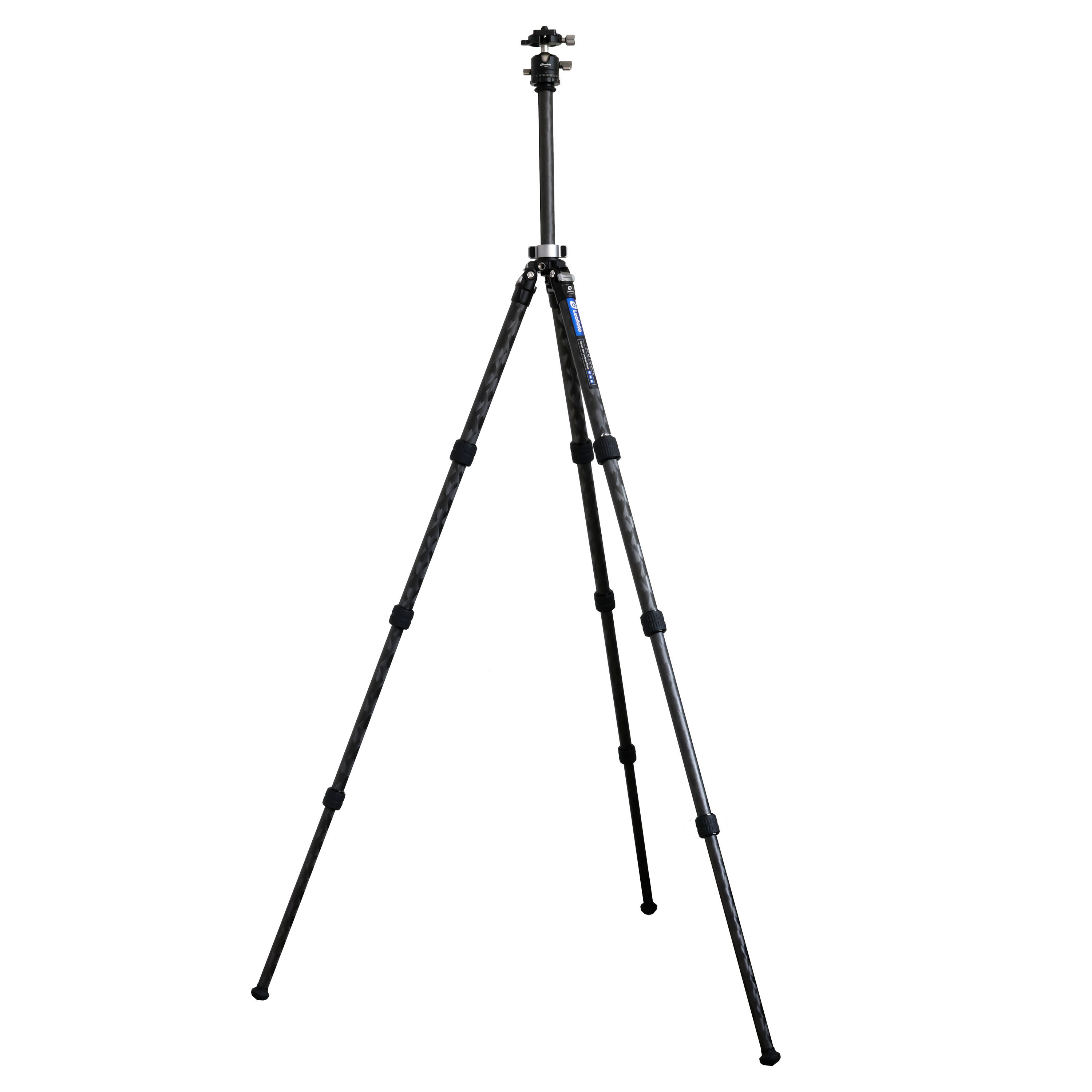

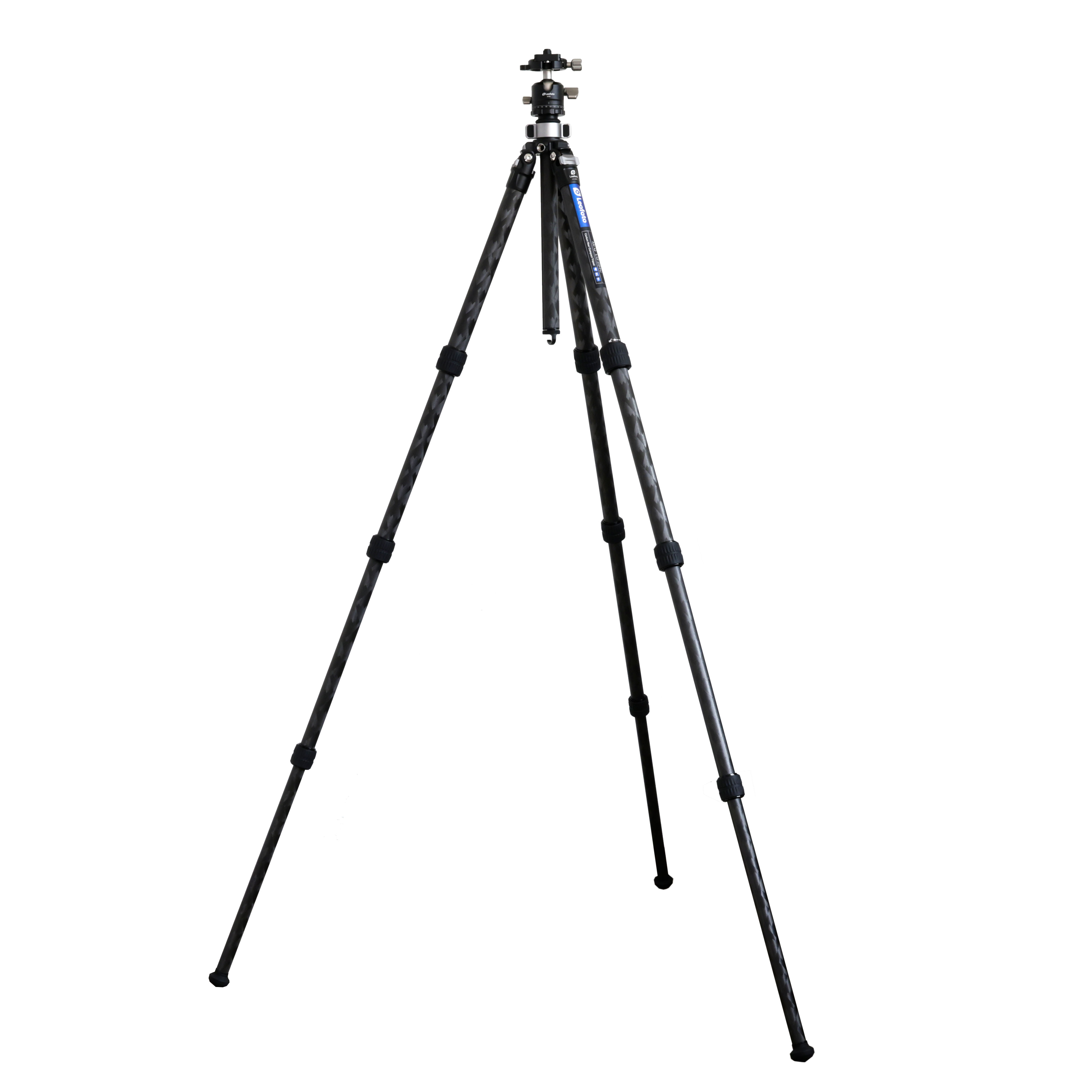

The high quality tripod set consists of the TQ-284C carbon tripod from the Mr. Q series and the LH-30 ball head.

Specifications of the TQ-284C with the LH-30 ball head:

  • Transport length: 54 cm
  • min. Working height: 16 cm
  • max. working height (with center column): 1.58 m
  • max. working height (without center column): 1.29 m
  • weight (with ball head): 1,53 kg
  • number of leg segments: 4
  • load capacity: 10 kg
  • diameter platform: 50 mm
  • Diameter center column platform: 25 mm
  • Height of center column: 31 cm

Features:

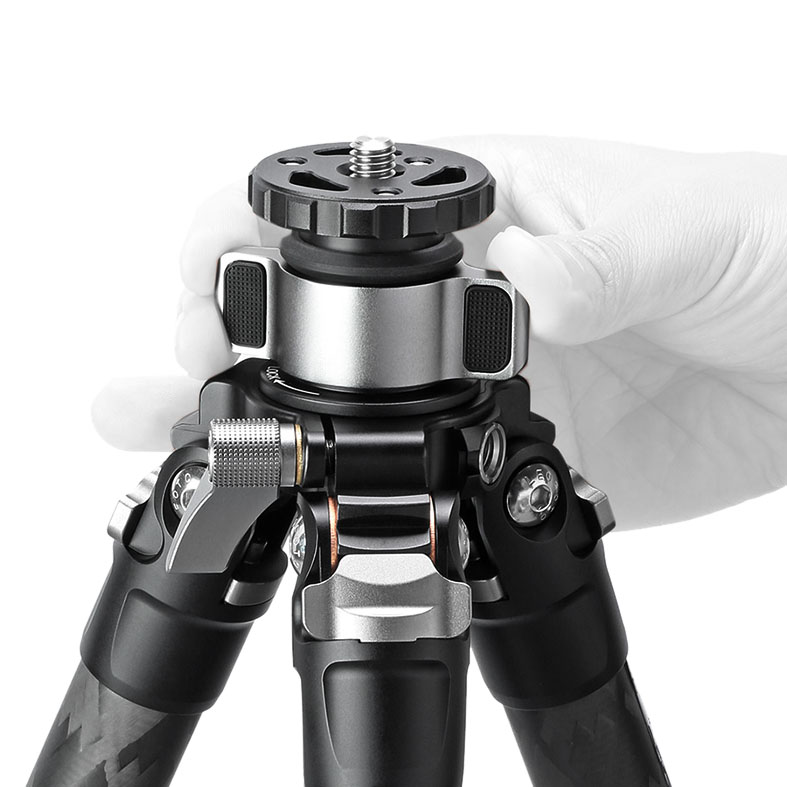

  • The unique tripod shoulder, modeled after the "Q", is super sturdy and opens with just a half turn of the lever, allowing you to swap the platform for the center column (included) in seconds.
  • The sturdy carbon legs are 3rd generation and made with the latest carbon fiber technology. The distinctive "snow capped mountain" pattern characterizes the stable and multi-wrapped carbon tripod legs of the Mr.Q series.

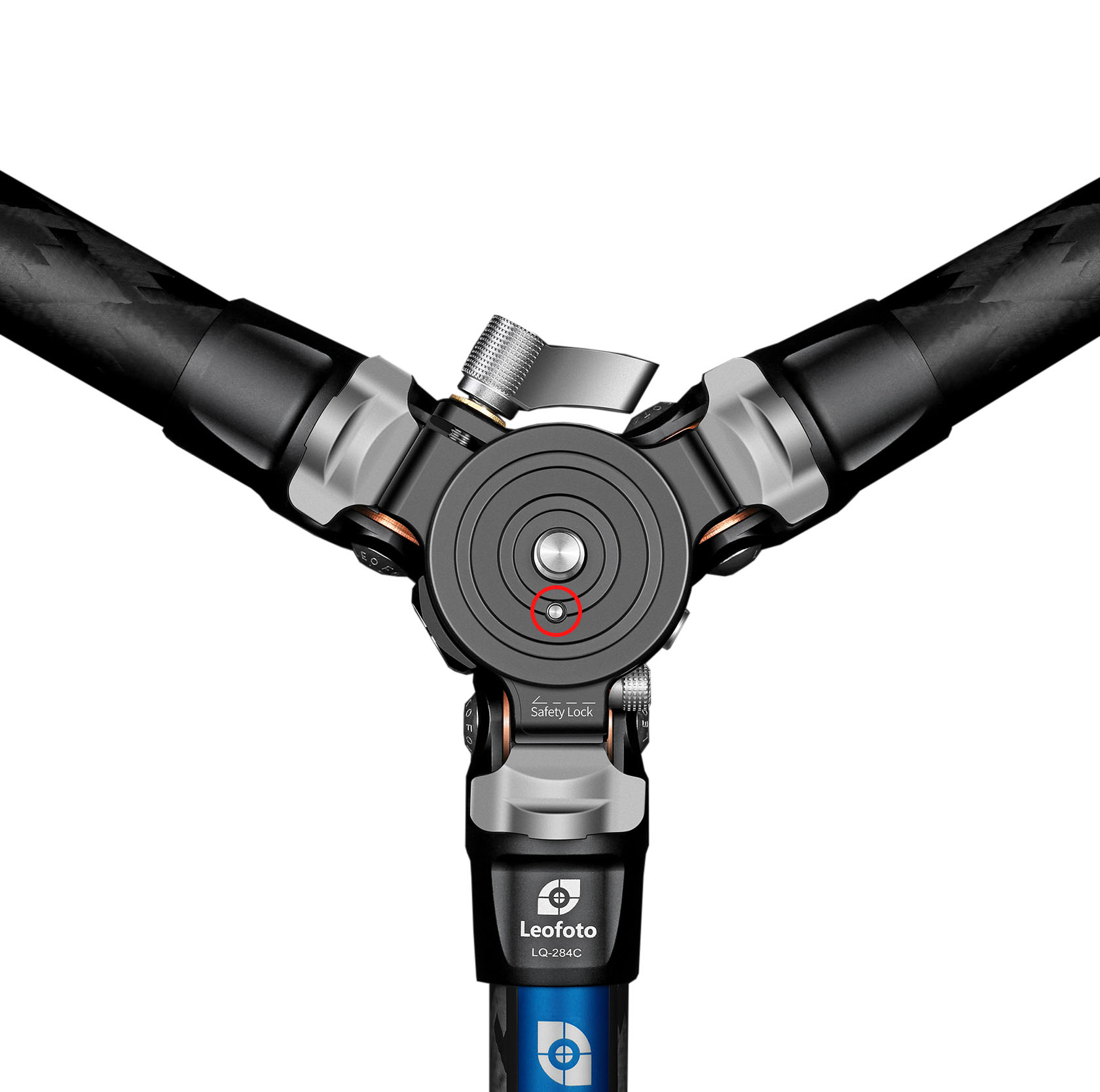

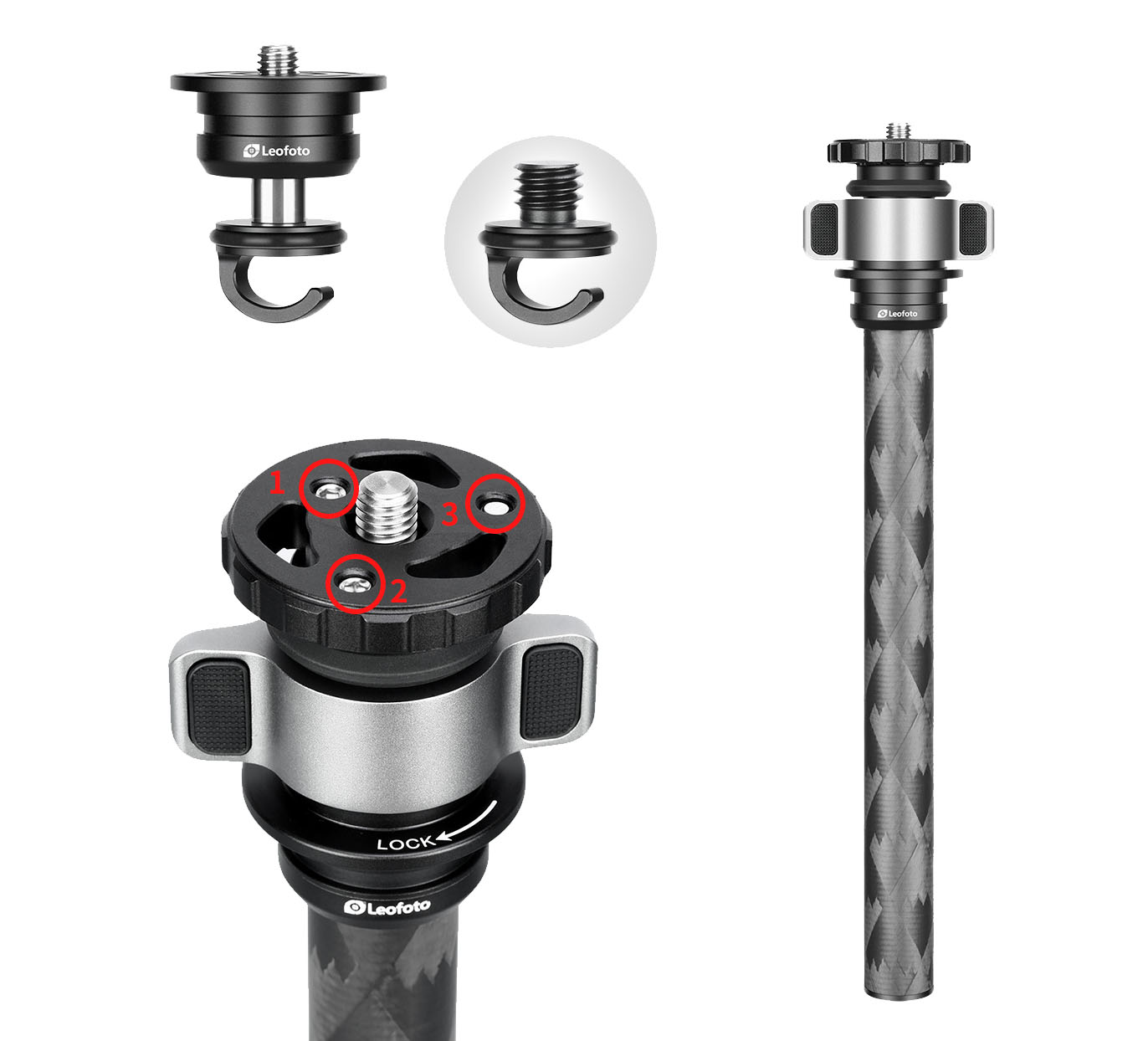

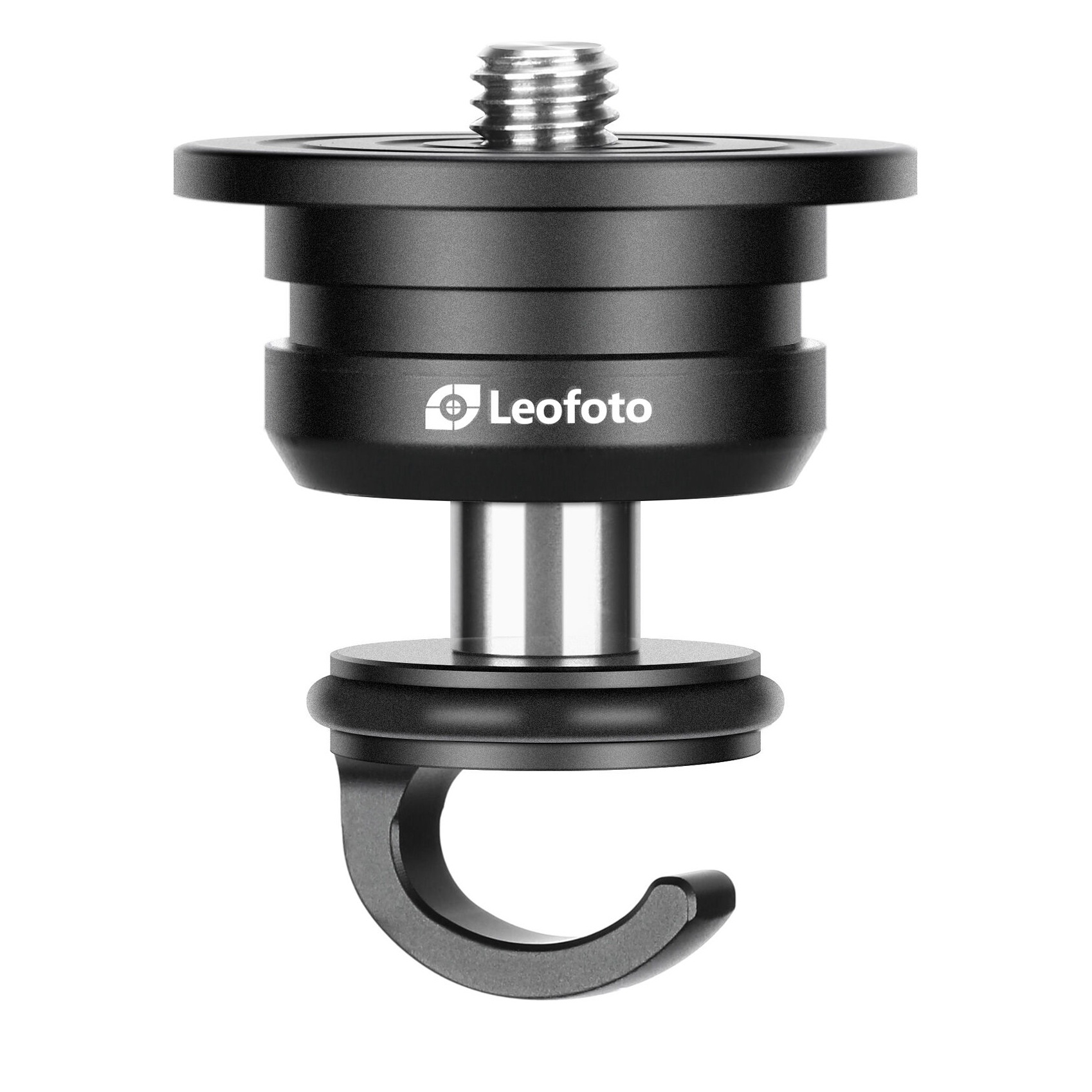

  • The center column as well as the platform have grub screws that prevent the mounted tripod head from twisting. The platform has a removable load hook that can also be mounted on the center column.
  • For better handling, the center column has a wing-shaped twist-lock mechanism. Anti-slip pads on the wings provide excellent haptics.
  • Tripod shoulder with multi tasking: 1/4" and 3/8" threads are integrated on the tripod shoulder, which can be used for mounting additional accessories (AM-1 / AM-2/ AM-3 / AM-4 ).
  • Twist lock: The locks of the tripod legs are equipped with easy-to-grip twist locks and only need a 1/4 turn to be opened and closed again.
  • Even the maintenance & cleaning of the tripod legs is easier - because the inside of the tripod leg consists of only one part. Moreover, this one-piece solution is more stable and reliable than the two-piece solution.
  • Tripod feet with 3/8" provide the safe stand - no matter on which surface you set up the tripod.
  • The spikes provide grip on softer ground such as sand or mud.
  • The rubber feet in mushroom design with aluminum core are suitable for indoor use and are a reliable support due to the special shape in different leg angle.

LH-30 ball head with quick release plate

The professionalLH-30 ball head can be rotated 360 degrees and tilted from portrait to landscape position, and features a universal 3/8" tripod screw that allows you to attach almost any camera. The friction is adjustable via a knob that offers precise adjustment options. The ball head has a diameter of 30 mm and a swivel base of 47 mm. The height is 84 mm. This ball head comes with a BPL-50 quick release plate and is Arca-Swiss compatible. It has a load capacity of up to 15 kilos and weighs 310 grams itself.

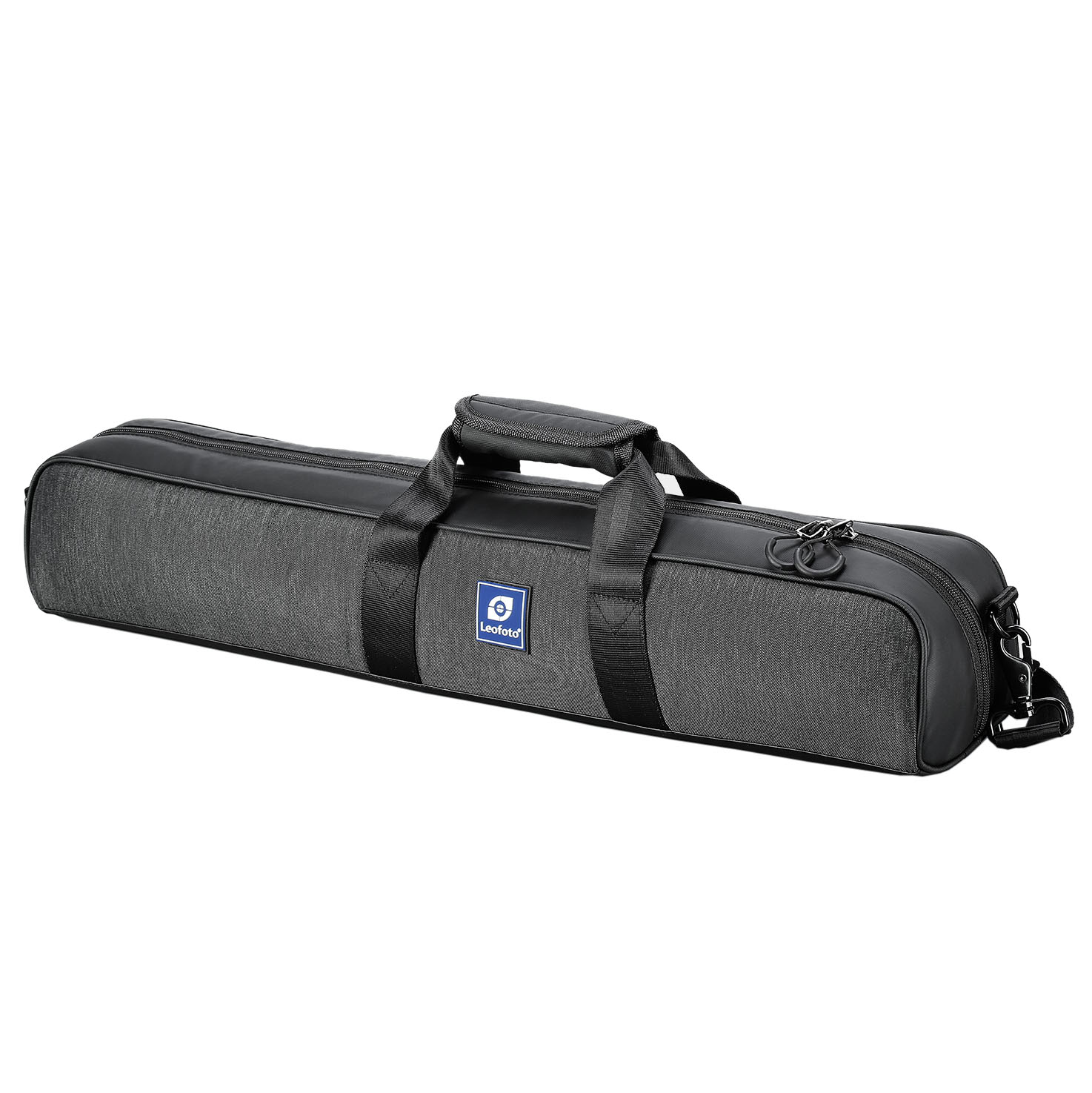

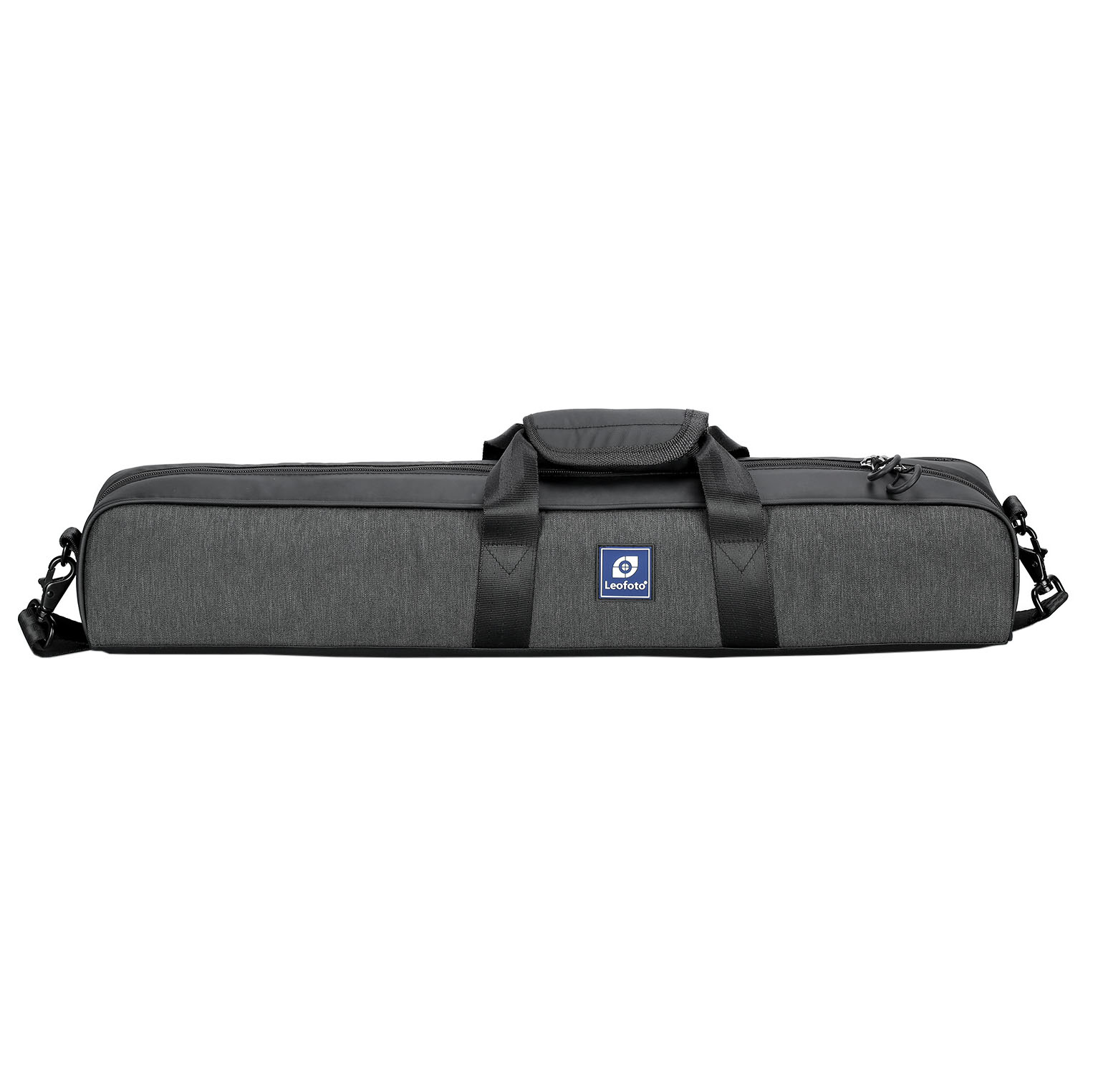

Tripod bag

To match the high quality tripod set, a professional padded tripod bag is included. Features such as: double YKK zippers, metal hooks, 900D polyester coated with waterproof PU material, and the 1.5"-wide nylon carrying strap speak for themselves. The hand strap was positioned asymmetrically to balance the weight.

Center Column
  • existing
Folded length / cm
  • 54
Gewicht
  • 1,6
Leg Ø / mm
  • 28 / 25 / 22 / 19
Material
  • Carbon fiber Tubes / 10x layers
Minimum height / cm w/o center column
  • 16
Number of Leg Sections (per Leg)
  • 4
QR base fits
  • ARCA SWISS compatible (according to manufacturer) 38 mm dovetail
Thread for tripod foot
  • 3/8" UNC female thread
Transportlänge
  • 55
Tripod type
  • Tripod with centre column
  • Tripod with head
Weight / kg
  • 1,53
max. Aufbauhöhe >= / m
  • 1,5
max. Height / m with center column
  • 1,58
max. height / m w/o center column
  • 1,29
max. installation height / cm **
  • 158
maximum payload / kg
  • 10,0
min. installation height / cm **
  • 16
recommended for
  • DSLM
  • Ground level work
  • Landscape photography
  • Macro photography
  • Reportage photography
  • Travel photography
