Leofoto LQ-284C Carbon Fiber Tripod + LH-36 Ball Head Mr. Q-Series

By accessing the video, I agree that my data will be transmitted to YouTube or Vimeo and that I have read the privacy policy.
Product information

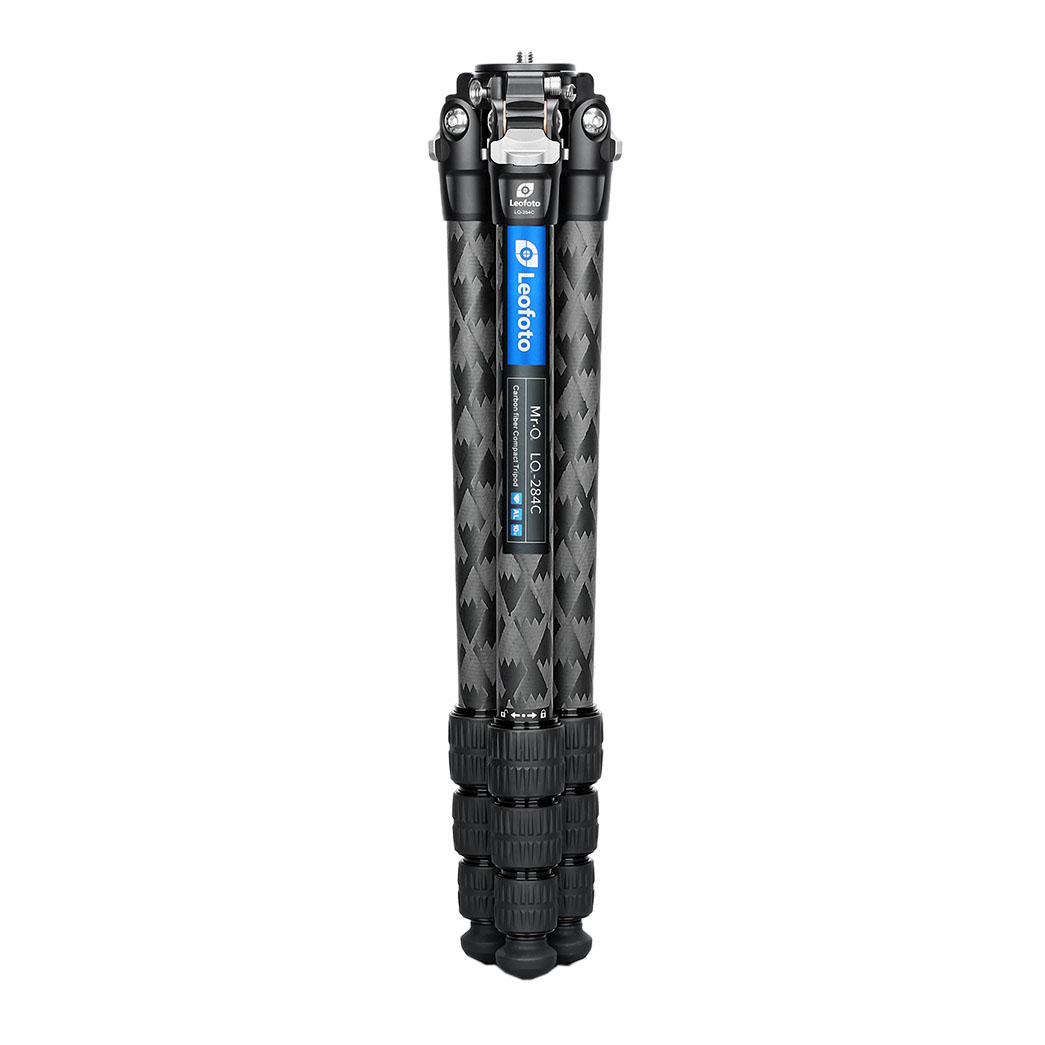

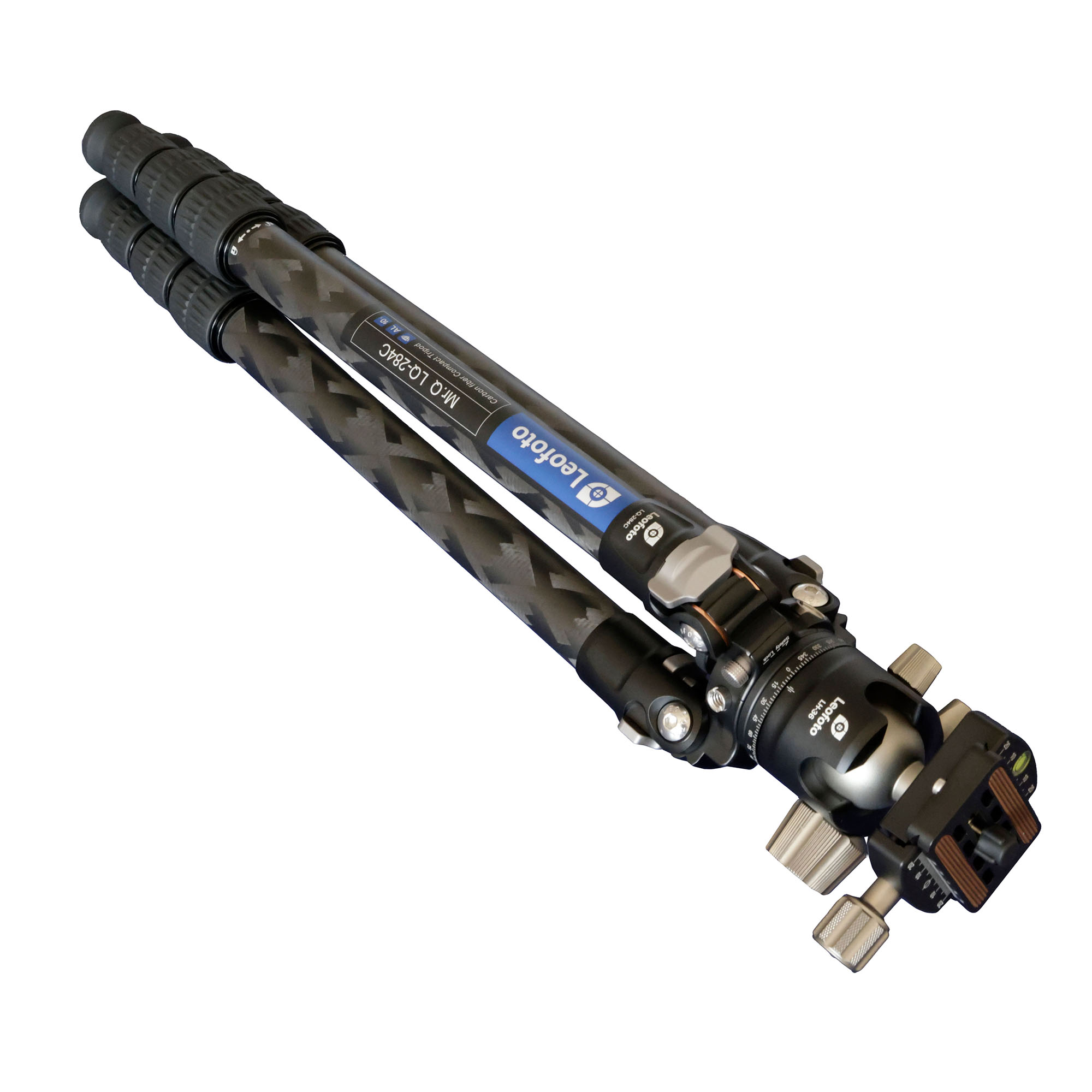

Leofoto LQ-284C Carbon Fiber Tripod + LH-36 Ball Head Mr. Q-Series
Center Column
  • existing
Folded length / cm
  • 54
Gewicht
  • 1,8
Leg Ø / mm
  • 28 / 25 / 22 / 19
Material
  • Aluminum
  • Carbon fiber Tubes / 10x layers
  • Stainless steel
Minimum height / cm w/o center column
  • 16
Number of Leg Sections (per Leg)
  • 4
QR base fits
  • ARCA SWISS compatible (according to manufacturer) 38 mm dovetail
Thread for tripod foot
  • 3/8" UNC female thread
Transportlänge
  • 55
Tripod type
  • Carbon tripod
  • Tripod
  • Tripod with centre column
  • Tripod with head
Weight / kg
  • 1,62
max. Aufbauhöhe >= / m
  • 1,5
max. Height / m with center column
  • 1,58
max. height / m w/o center column
  • 1,29
max. installation height / cm **
  • 158
maximum payload / kg
  • 10,0
min. Aufbauhöhe
  • 16
min. installation height / cm **
  • 16
recommended for
  • DSLM
  • Ground level work
  • Landscape photography
  • Macro photography
  • Reportage photography
  • Travel photography

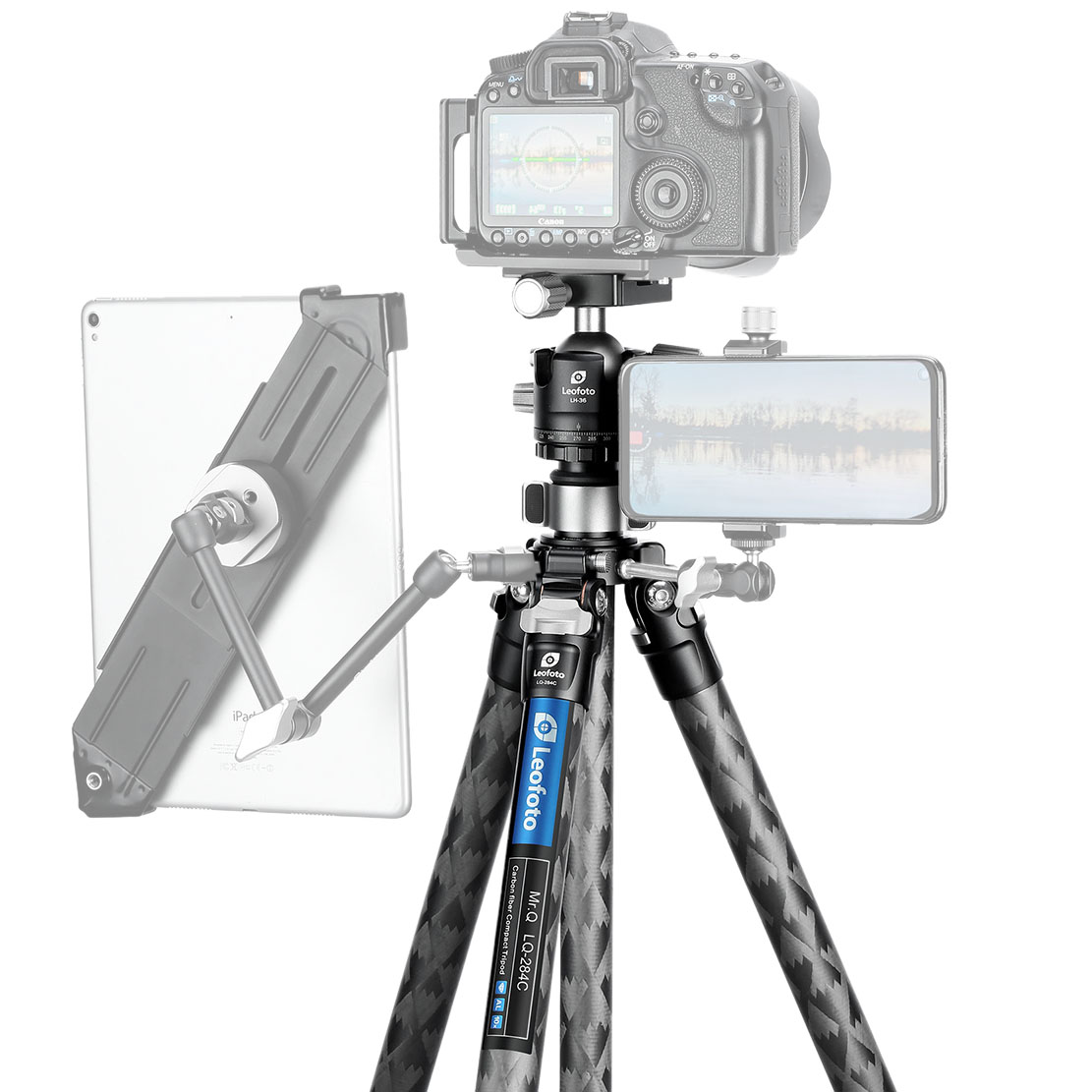

The versatile Mr. Q LQ-284C+LH-36 Carbon Fiber Tripod from Leofoto is a feature-rich yet lightweight tripod with a maximum height of 62.2" when used with the convertible 12" rapid center column and a maximum height of 50.8" when used with the camera platform instead. The legs feature independent spread to achieve level positioning on uneven terrain and to allow a low perspective minimum shooting height of 6.3" while still maintaining a load capacity of 22 pounds.

The included low-profile LH-36 ball head is lightweight aluminum and features an Arca-type compatible quick release system. A precisely-machined ball provides ultra-smooth movements, and a large, ergonomically-designed locking knob enables the movement of the ball head to be controlled. Laser-engraved scales on the panning base provides precise control during panorama shooting, and dual drop notches provide the capability for rapidly changing from horizontal to vertical orientation.

Features:

  • Center column Length: 12.2"
  •  Platform Diameter: 2.0" / 50mm
  •  Lens platform and center column can be exchanged quickly
  •  Removable hook fits center column and platform
  •  Leg Axis feature one 1/4"-20 and one 3/8"-16 threaded accessory mounts
  •  Mushroom-shaped rubber feet for secure footing at any leg angle
  •  Included stainless steel spike foot set
Center Column
  • existing
Folded length / cm
  • 54
Gewicht
  • 1,8
Leg Ø / mm
  • 28 / 25 / 22 / 19
Material
  • Aluminum
  • Carbon fiber Tubes / 10x layers
  • Stainless steel
Minimum height / cm w/o center column
  • 16
Number of Leg Sections (per Leg)
  • 4
QR base fits
  • ARCA SWISS compatible (according to manufacturer) 38 mm dovetail
Thread for tripod foot
  • 3/8" UNC female thread
Transportlänge
  • 55
Tripod type
  • Carbon tripod
  • Tripod
  • Tripod with centre column
  • Tripod with head
Weight / kg
  • 1,62
max. Aufbauhöhe >= / m
  • 1,5
max. Height / m with center column
  • 1,58
max. height / m w/o center column
  • 1,29
max. installation height / cm **
  • 158
maximum payload / kg
  • 10,0
min. Aufbauhöhe
  • 16
min. installation height / cm **
  • 16
recommended for
  • DSLM
  • Ground level work
  • Landscape photography
  • Macro photography
  • Reportage photography
  • Travel photography
