Leofoto MBC-18 Mini Ballhead

By accessing the video, I agree that my data will be transmitted to YouTube or Vimeo and that I have read the privacy policy.
Product information
Leofoto MBC-18 Mini Ballhead
Stativkopftyp
  • Kugelkopf
clamp release type
  • Lever release
  • Screw locking

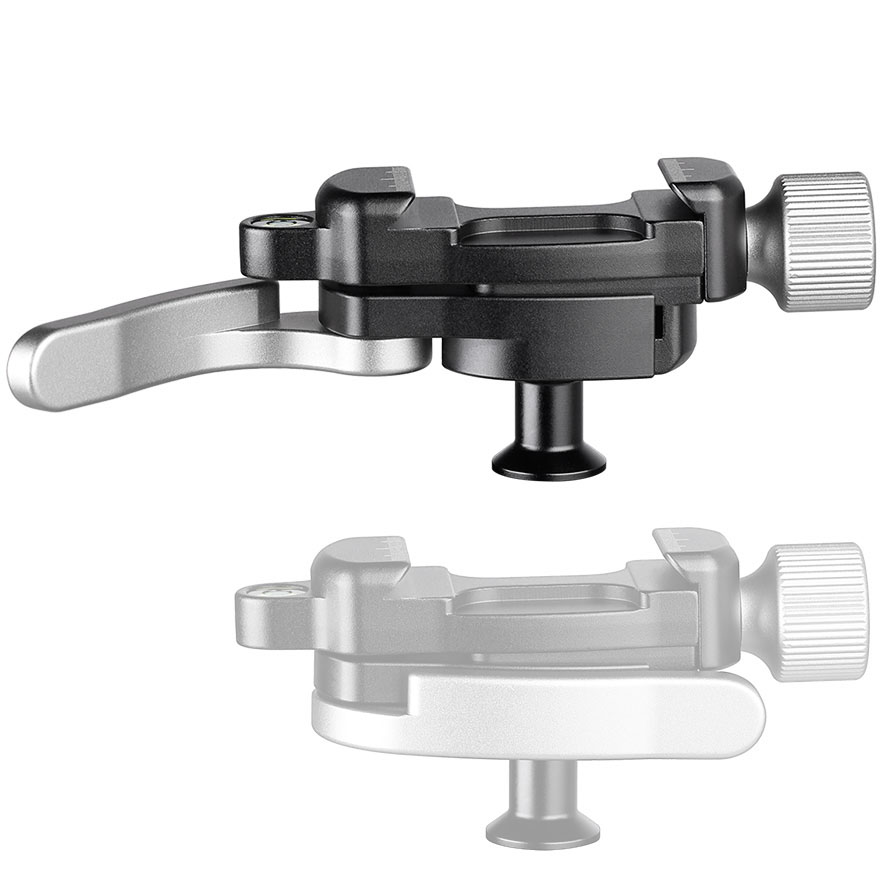

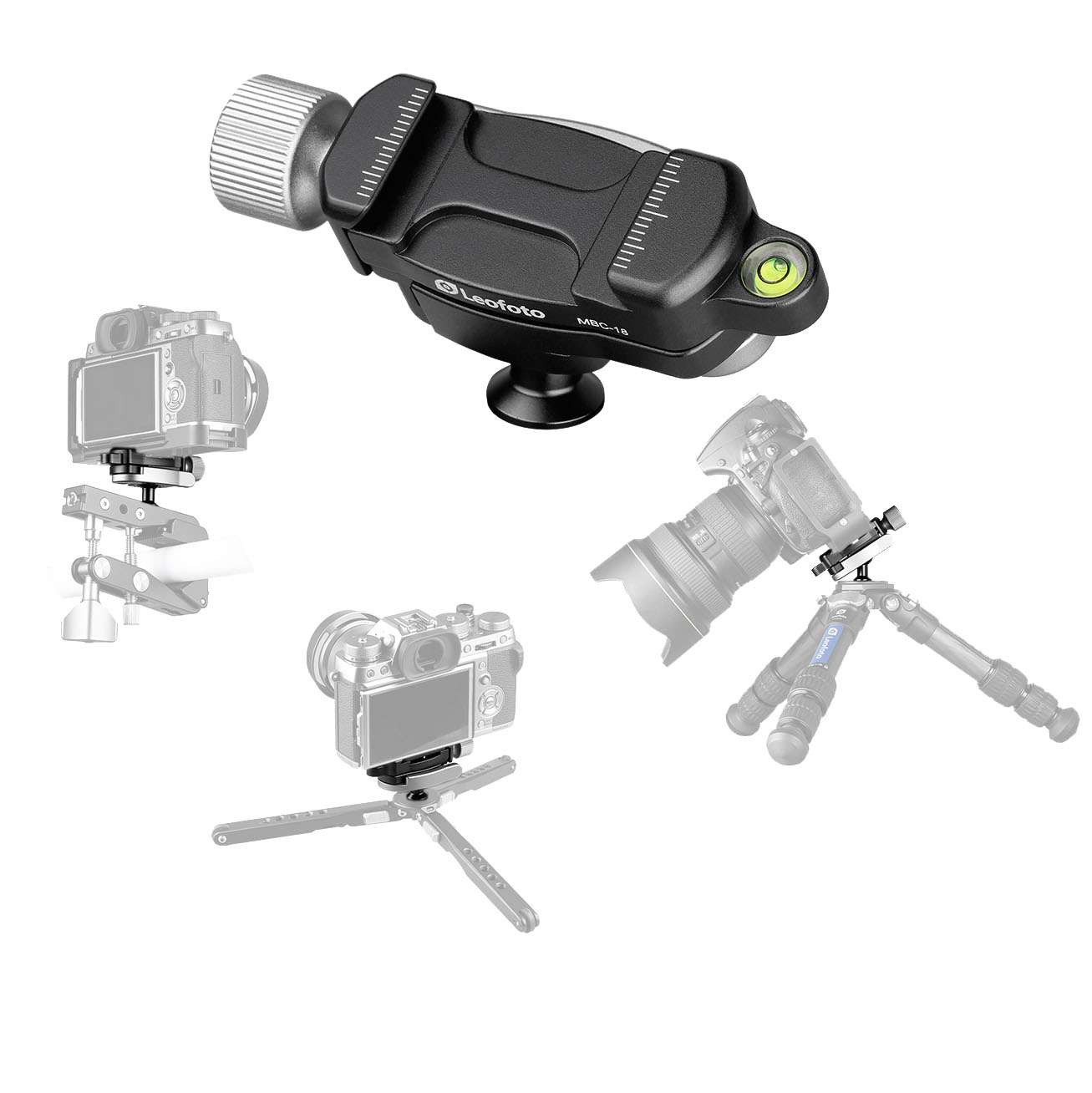

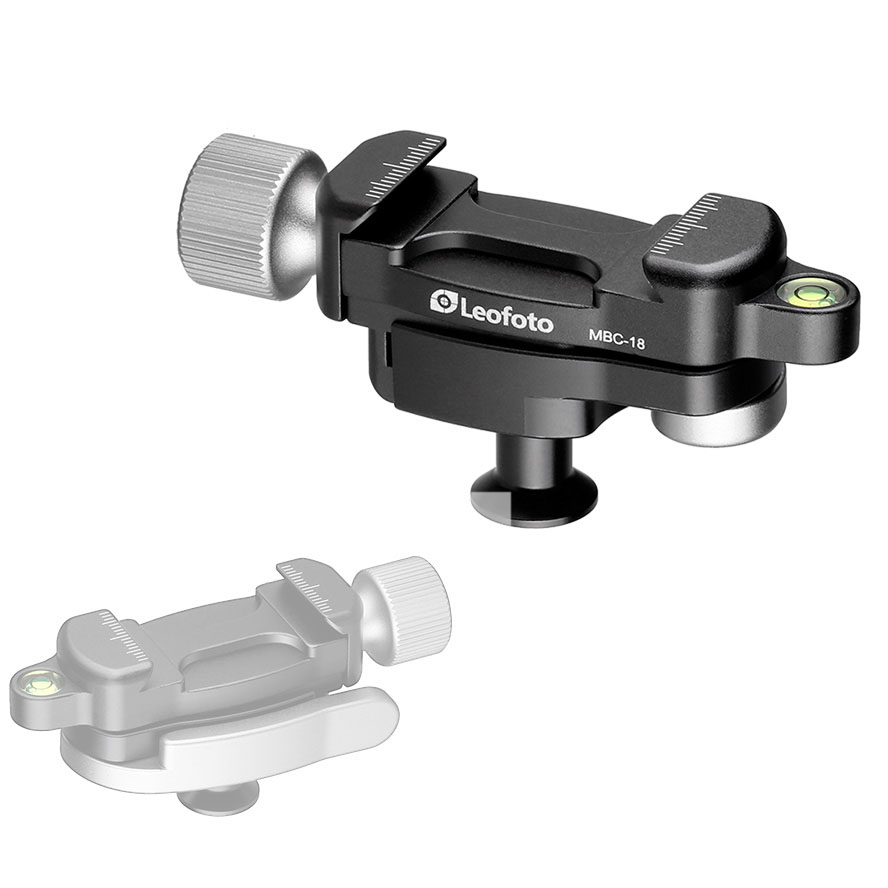

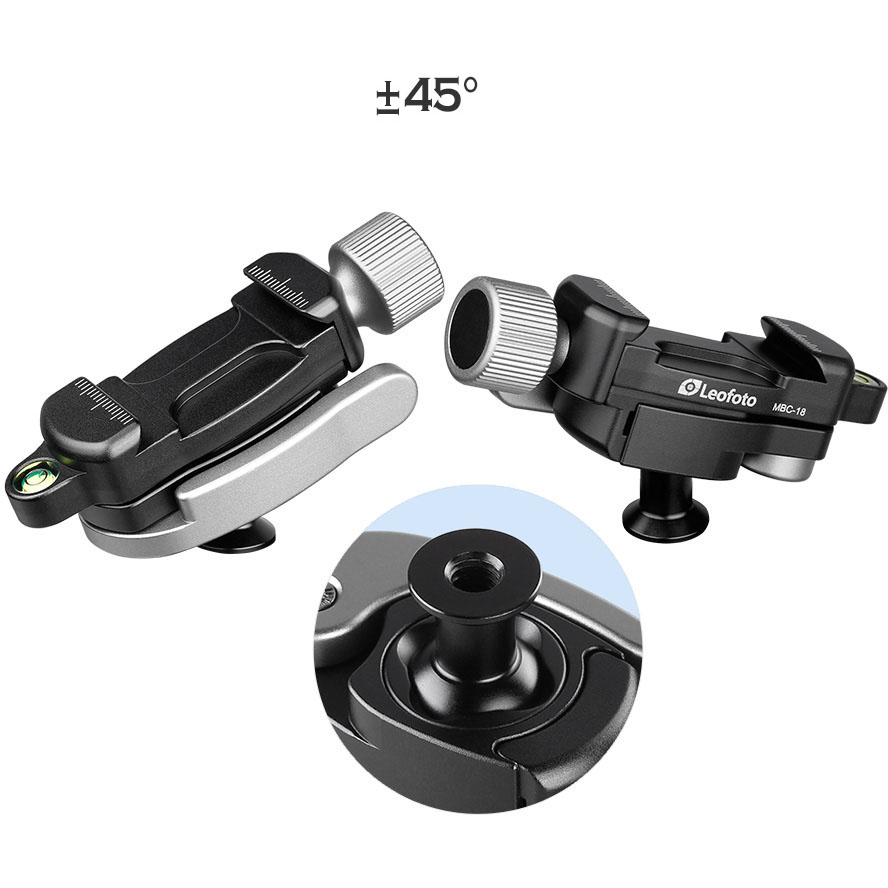

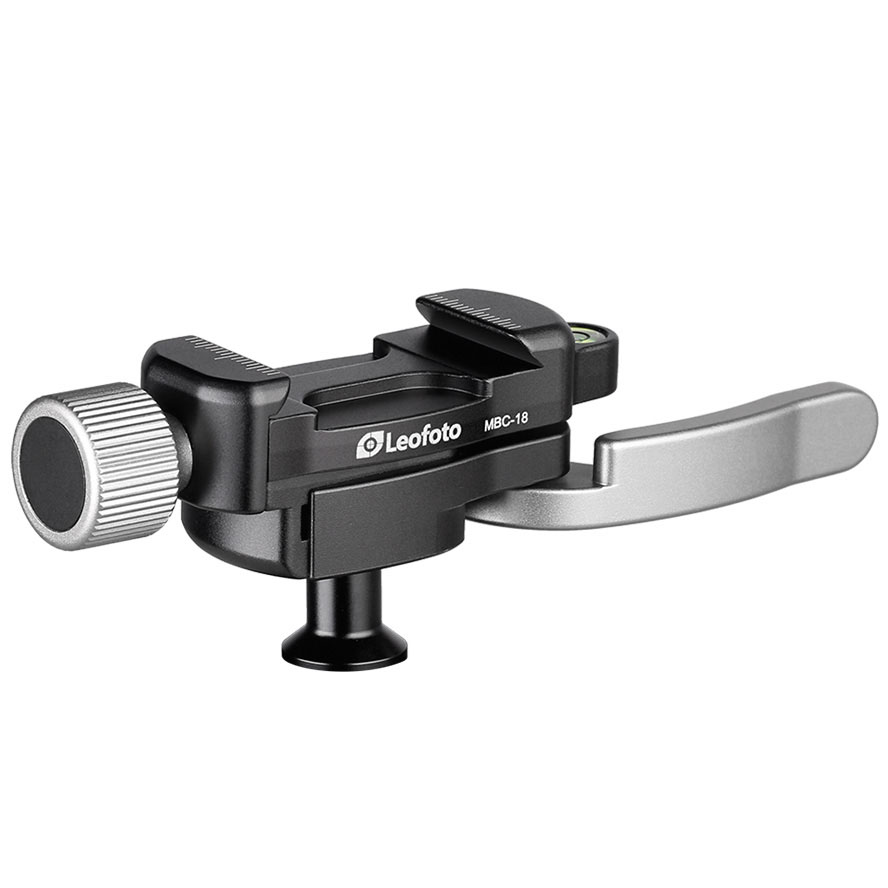

Leofoto MBC-18 is a compact and portable 18mm diameter ball head with a load capacity of 5 kg, making it suitable for small DSLRs, mirrorless cameras or other small accessories for photo or video applications. In addition, the integral screw knob locks the Arca-compatible clamp, while the second locking wheel surrounding the first knob allows the head to be rotated through a full 360°. Meanwhile, the quick-release lever at the top of the shaft disengages to allow movement on the ball.

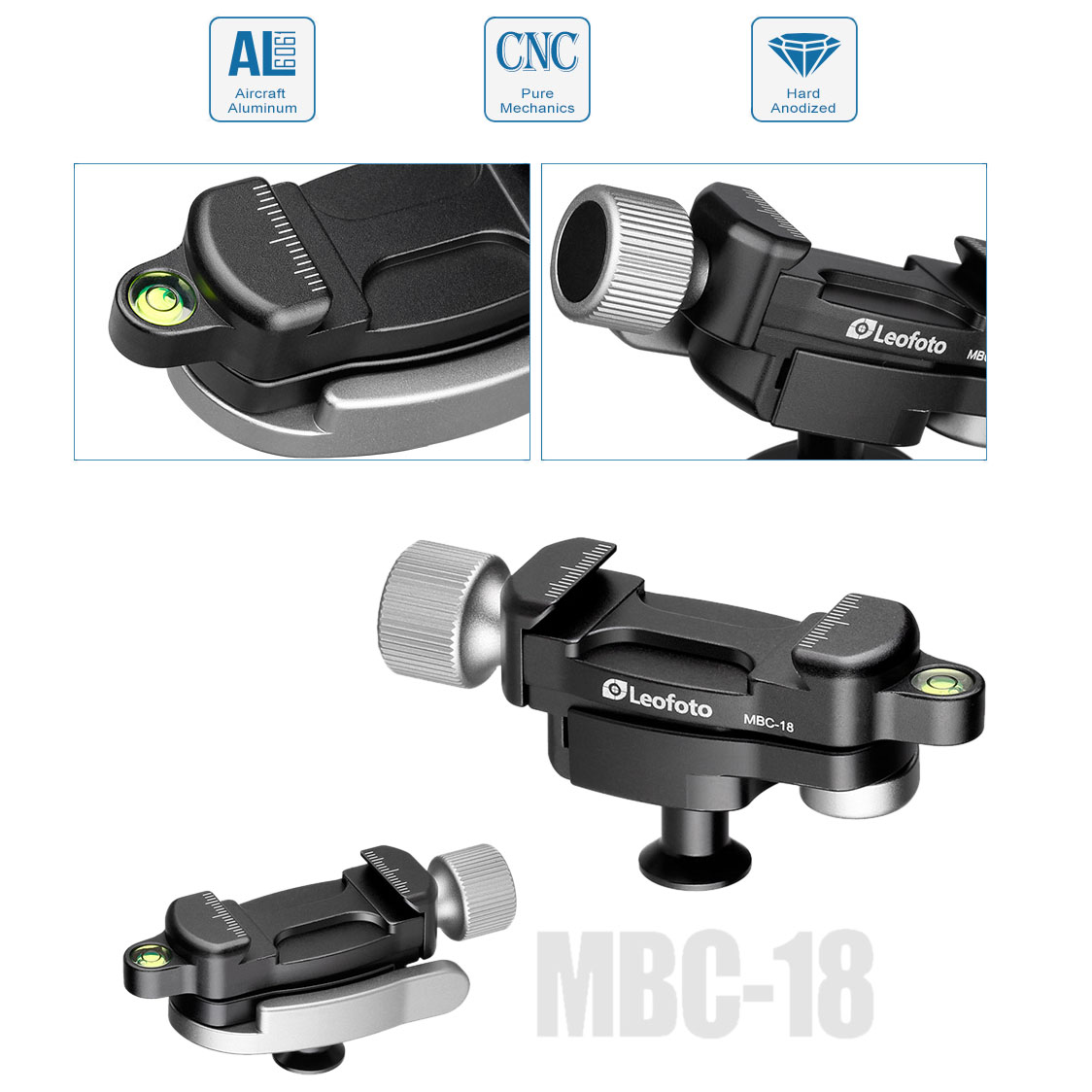

The 3.9 cm high micro ball head is constructed from 6061-T6 aluminium with steel components. Both metals have a durable surface. The aluminium has a black anodised surface, while the steel components are ferritic nitrocarburised, which protects the surfaces from scratches and oxidation. At the bottom of the shaft is a holder with internal thread UNC 1/4"-16.

 Features:

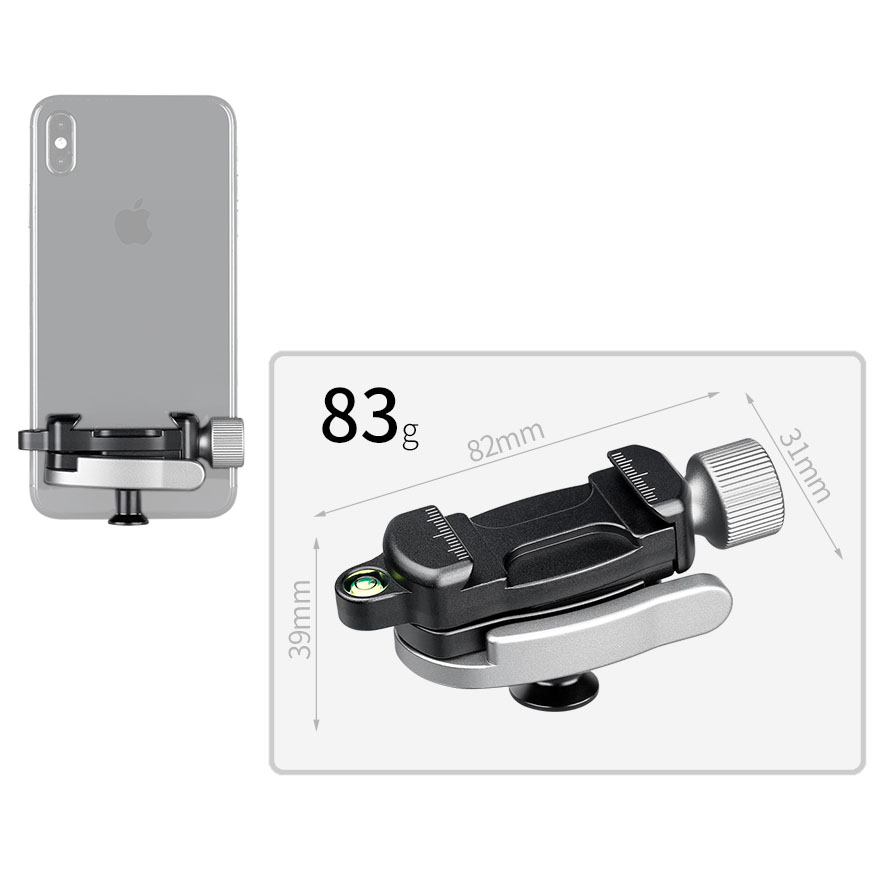

  • low centre of gravity, only 39 mm high
  • made of high-grade aircraft aluminium alloy
  • with quick clamp
  • 5 kg load capacity
  • integrated bubble level
  • bottom connection: 1/4" UNC thread
Stativkopftyp
  • Kugelkopf
clamp release type
  • Lever release
  • Screw locking
