Leofoto Rapid Ranger LSR-284C with FlipLock

By accessing the video, I agree that my data will be transmitted to YouTube or Vimeo and that I have read the privacy policy.
Product information
Leofoto Rapid Ranger LSR-284C with FlipLock
Folded length / cm
  • 47,5
  • 48
Leg Angle Adjustments / °
  • 23 / 55 / 85
Leg Ø / mm
  • 28 / 25 / 22 / 19
Material
  • Carbon fiber Tubes / 10x layers
Maximum Height / m
  • 1,3
Minimum height / cm
  • 7
Number of Leg Sections (per Leg)
  • 4
QR base fits
  • ARCA SWISS compatible (according to manufacturer) 38 mm dovetail
Special features

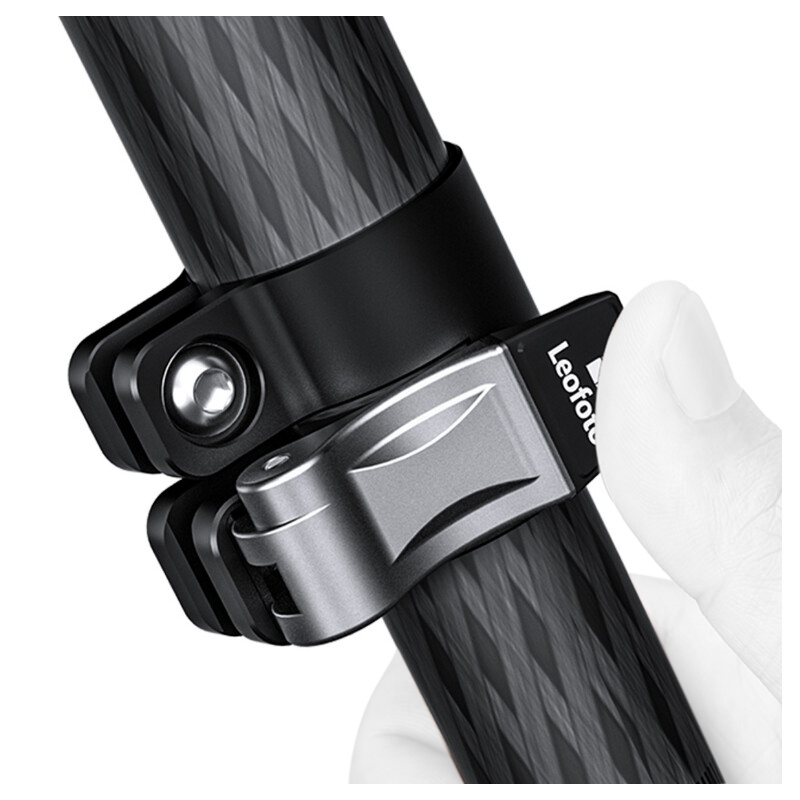

  • Flip-lock tripod leg closure
Thread for tripod foot
  • 3/8" UNC female thread
Tripod Thread
  • 3/8" UNC photo thread Mounting bolt
Weight / kg
  • 1,29

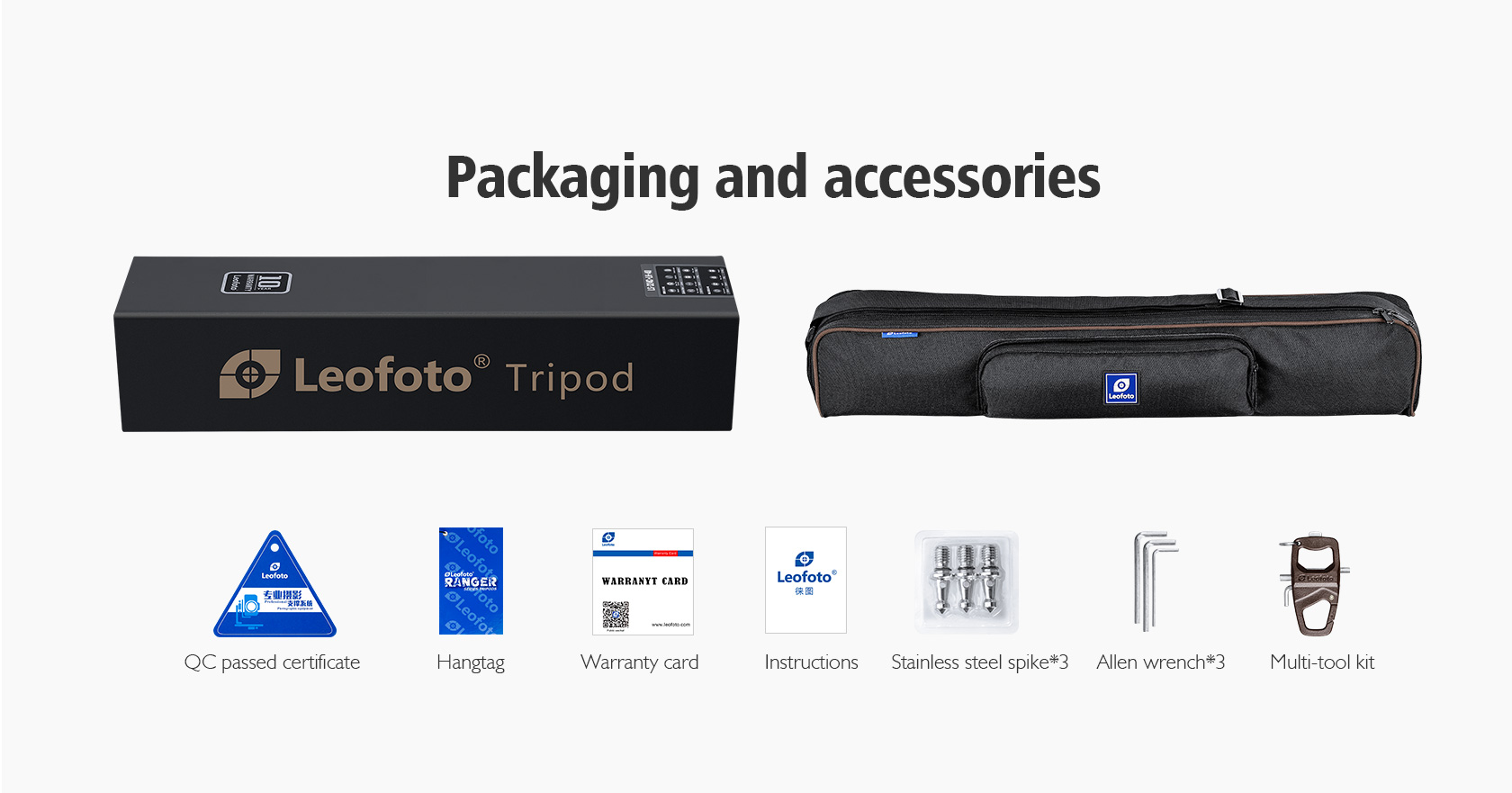

included
  • Allen wrench
  • Multi-Tool

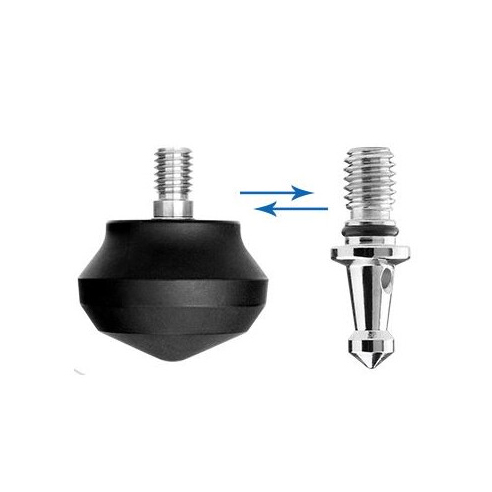

  • Stainless steel spike (3)
  • carrier bag padded
max. installation height / cm **
  • 130
maximum payload / kg
  • 10,0
min. installation height / cm **
  • 7
recommended for
  • DSLM
  • Ground level work
  • Landscape photography
  • Macro photography
  • Reportage photography
  • Travel photography

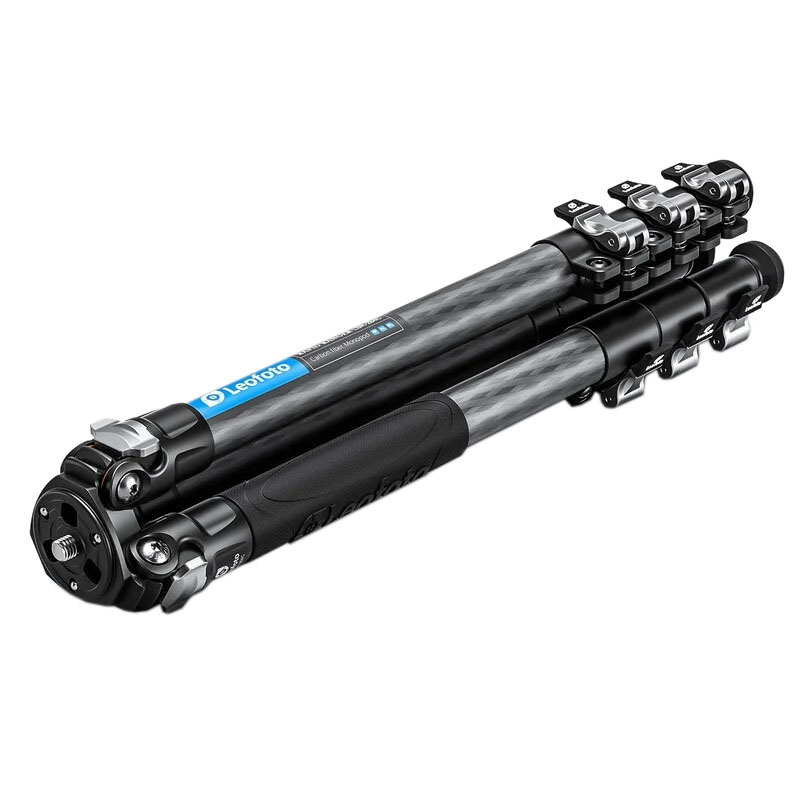

The particularly compact design of the Leofoto LSR.284C from the Ranger Rapid series makes it an always-on tripod.

Weighing only 1.29 kg, pack size 47.5 cm and a maximum assembly height of 1.30 m are the outstanding properties of the carbon tripod with flip-lock fasteners on the tripod legs.

Folded length / cm
  • 47,5
  • 48
Leg Angle Adjustments / °
  • 23 / 55 / 85
Leg Ø / mm
  • 28 / 25 / 22 / 19
Material
  • Carbon fiber Tubes / 10x layers
Maximum Height / m
  • 1,3
Minimum height / cm
  • 7
Number of Leg Sections (per Leg)
  • 4
QR base fits
  • ARCA SWISS compatible (according to manufacturer) 38 mm dovetail
Special features
  • Flip-lock tripod leg closure
Thread for tripod foot
  • 3/8" UNC female thread
Tripod Thread
  • 3/8" UNC photo thread Mounting bolt
Weight / kg
  • 1,29
included
  • Allen wrench
  • Multi-Tool
  • Stainless steel spike (3)
  • carrier bag padded
max. installation height / cm **
  • 130
maximum payload / kg
  • 10,0
min. installation height / cm **
  • 7
recommended for
  • DSLM
  • Ground level work
  • Landscape photography
  • Macro photography
  • Reportage photography
  • Travel photography
