Leofoto SO-322CX Carbon Tripod (inverted)

By accessing the video, I agree that my data will be transmitted to YouTube or Vimeo and that I have read the privacy policy.
Product information
Leofoto SO-322CX Carbon Tripod (inverted)
Material
  • 6061-T6 Aluminum
  • Carbon fiber Tubes / 10x layers
Maximum Height / m
  • 1,63
Minimum height / cm
  • 16,0
SOAR
  • Stativ
Thread for tripod foot
  • 3/8" UNC female thread
Tripod type
  • Carbon tripod
  • Inverted tripod
  • SOAR
  • Tripod
Weight / kg
  • 1,92
maximum payload / kg
  • 30
recommended for
  • Hunting and Shooting

The Leofoto SO-322CX Version" 2-Section Inverted Carbon Fiber Tripod is an excellent choice for full-sized firearm combos that need rock-solid support for a full-length rifle chassis with a spotting scope. The robust load capacity also makes it suitable for use with extreme spotting scopes, cameras, and large format surveillance equipment.

The "X" version features a knurled-bar angle stop design which allows for one handed operation as well as leg tubes which do not cross.

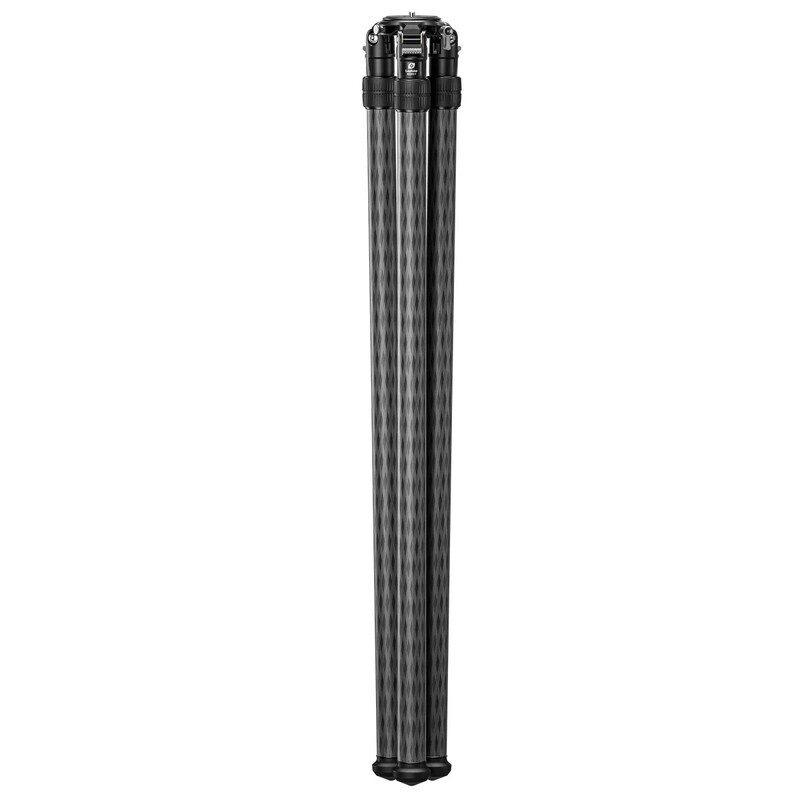

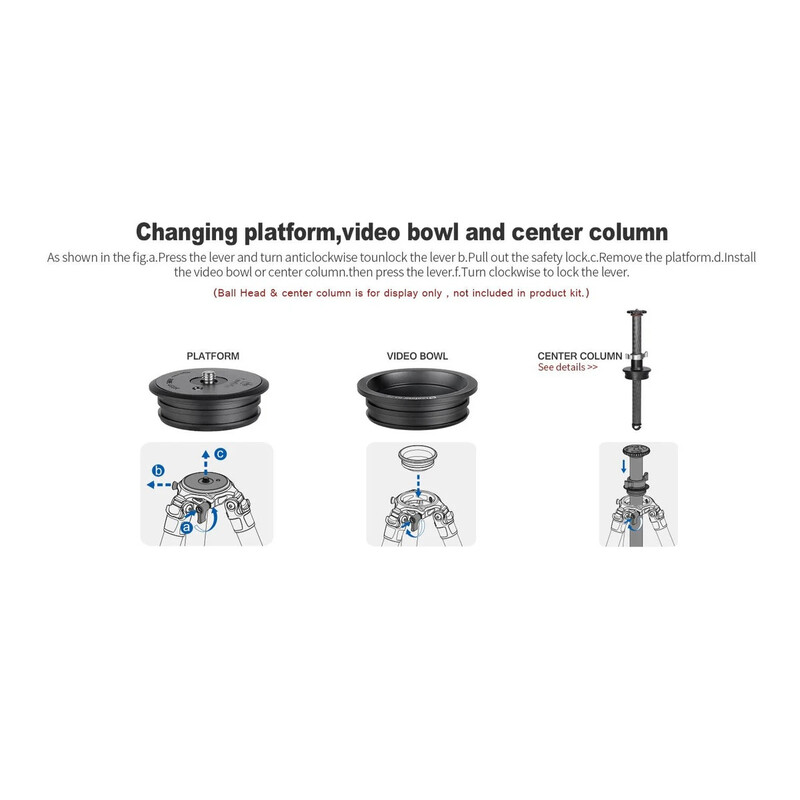

The carbon fiber legs are inverted, with the widest tube at the bottom, for added stability and incredibly quick full collapse and deployment. The legs feature twist-lock joints, individual spread and three available locking positions making it possible to achieve the proper level even when on uneven terrain. This lightweight tripod is made more versatile by merit of having an included, interchangeable 75mm bowl that can be quickly exchanged for the 75mm platform.

Features:

  • Inverted Leg design for added stability and rapid setup
  • "X" Version Angle Stop: Allows for one handed angle adjustment
  • Leg tubes no longer cross

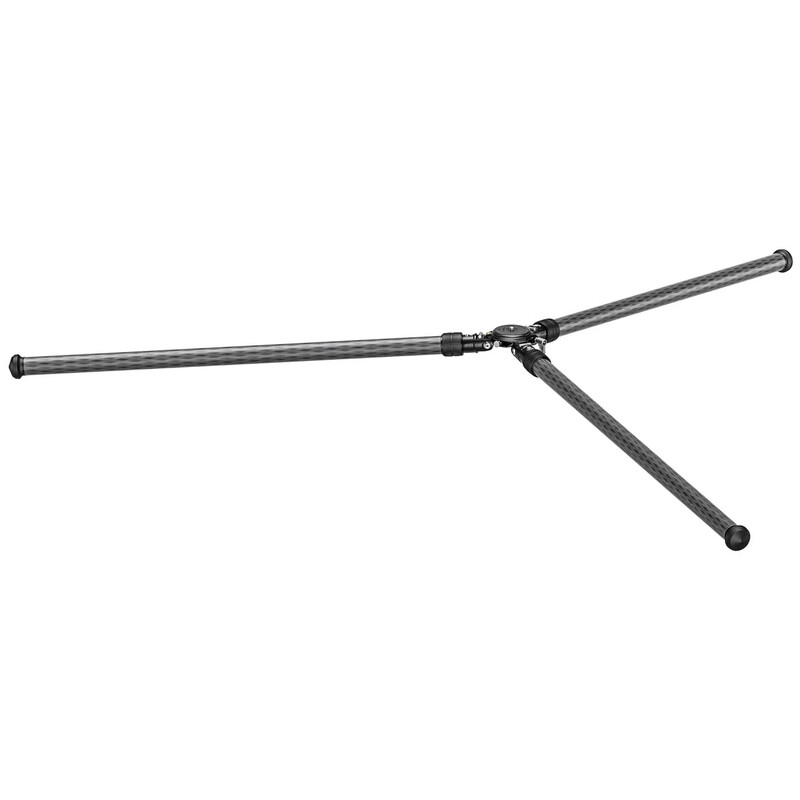

  • Independent leg spread
  •  Three locking leg positions
  • 10x layers of Toray carbon fiber

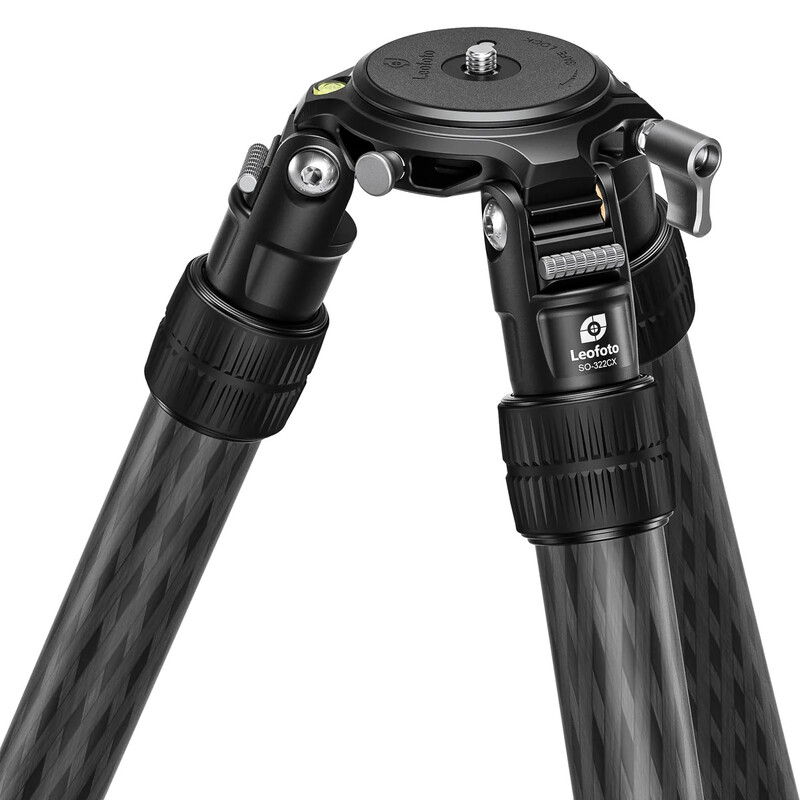

  • CNC-Machined 6061-T6 aluminum apex platform
  • 3/8" mounting stud
  • 3/8" Accessory Mounting Socket

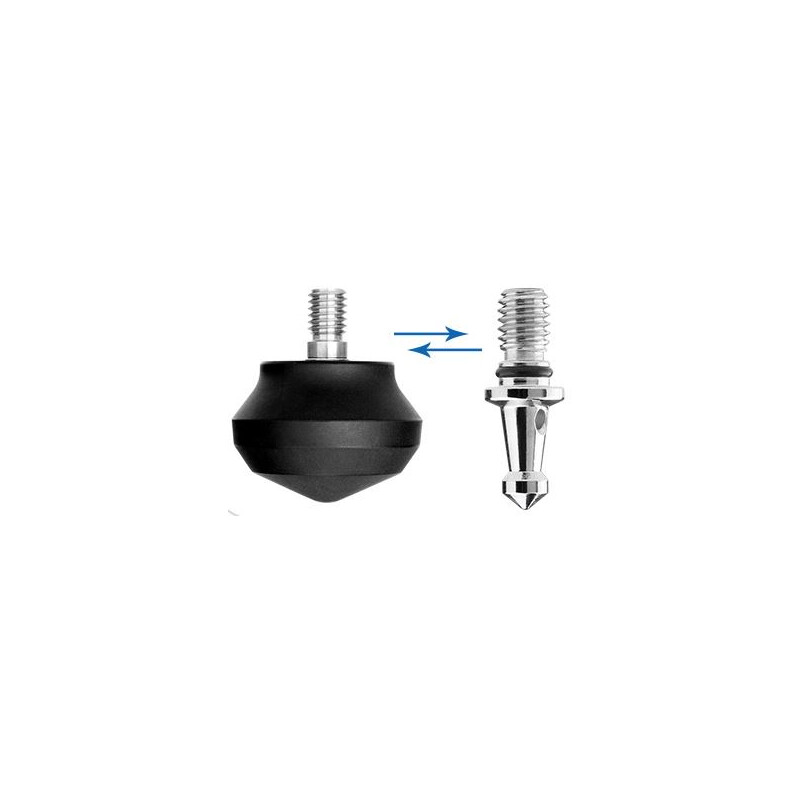

  • Rubber feet with included steel spiked feet set

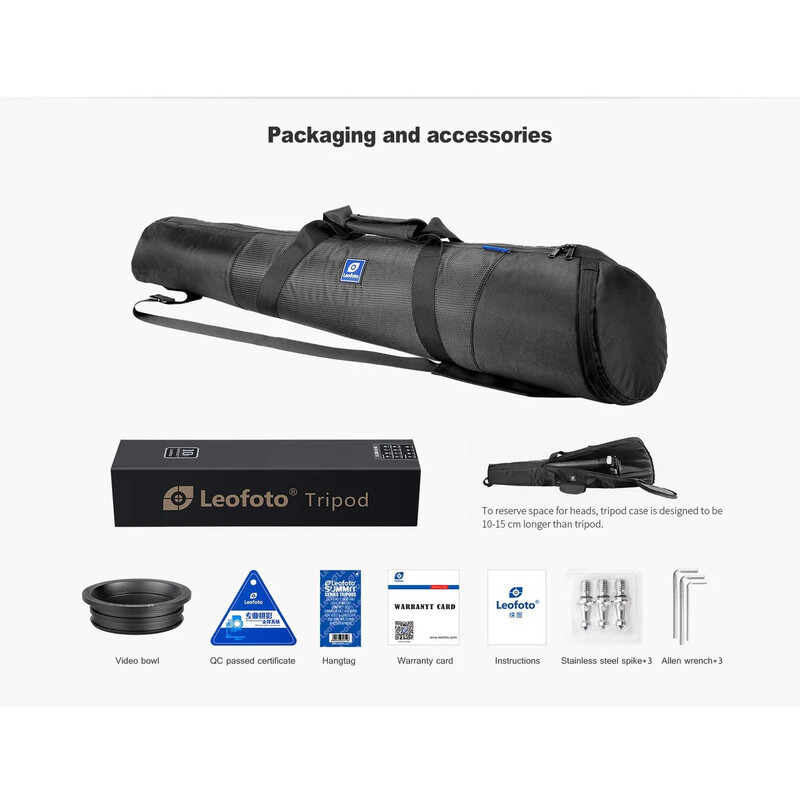

  • Included padded carrying case designed with extra space for head
Material
  • 6061-T6 Aluminum
  • Carbon fiber Tubes / 10x layers
Maximum Height / m
  • 1,63
Minimum height / cm
  • 16,0
SOAR
  • Stativ
Thread for tripod foot
  • 3/8" UNC female thread
Tripod type
  • Carbon tripod
  • Inverted tripod
  • SOAR
  • Tripod
Weight / kg
  • 1,92
maximum payload / kg
  • 30
recommended for
  • Hunting and Shooting
