Wimberley F-1 Tele Bracket

Wimberley F-1 Tele Bracket, maximum control for your flash

Sometimes a good telephoto shot doesn’t just depend on the lens, but quite simply on where your flash is positioned. That’s exactly where the Wimberley F-1 Tele Bracket comes into play: a well-designed flash mounting system developed specifically for long focal lengths, fast action, and precise light control. Especially if you work in telephoto or sports photography, you’ll notice the difference very quickly.

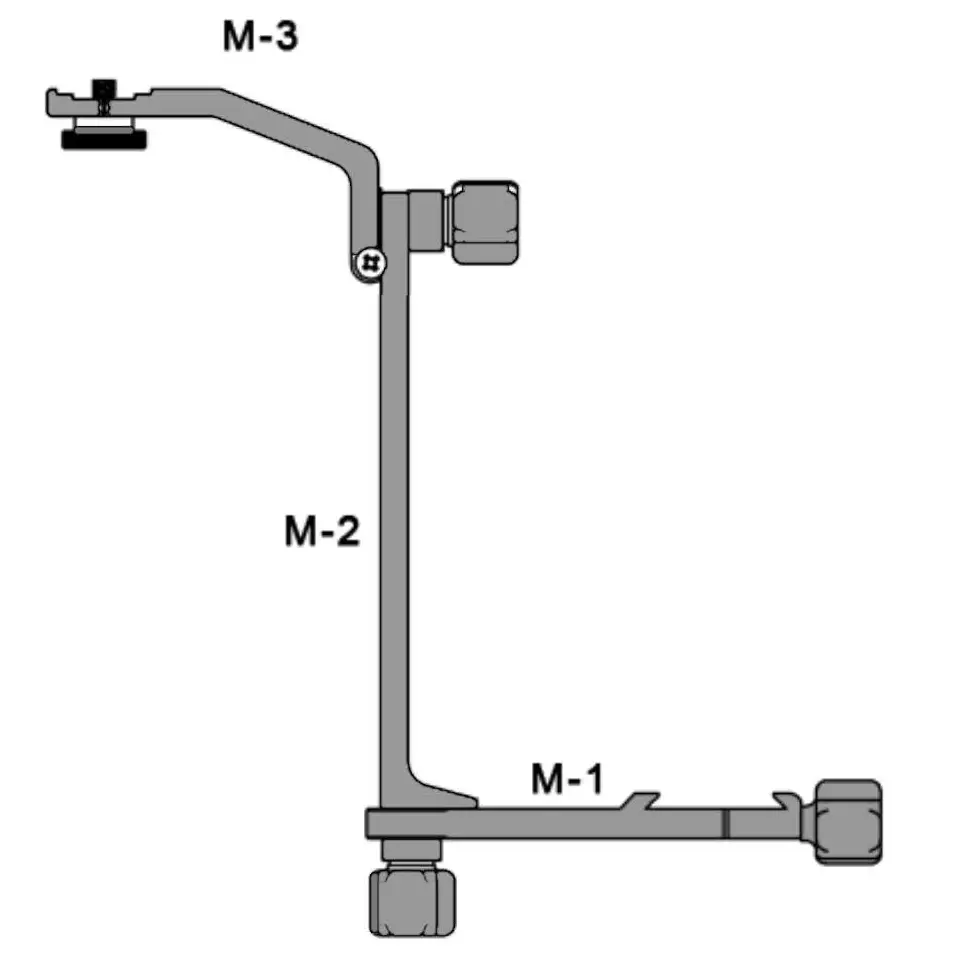

The F-1 consists of the modular Wimberley components M-1, M-2, and M-3, making it the most versatile tele bracket in the Wimberley system. You mount it on a 38 mm dovetail-compatible lens plate, allowing it to integrate seamlessly into professional setups. It works both with a ball head and with the Wimberley Head, and in a slightly modified configuration it can also be used with the Sidekick. This keeps you flexible, whether you’re tracking birds in flight, freezing fast sports action, or simply need clean, controlled flash light on your telephoto lens.

Innovative flash accessory for demanding telephoto work

What makes the F-1 Tele Bracket so compelling is the way you can position the flash. You can vary the flash height and place it deliberately off the lens axis. That may sound technical at first, but in practice it reduces harsh cast shadows, makes reflections easier to control, and gives your subject more dimensionality. Especially in wildlife, with fast sports subjects, or in strong backlight, this is a real advantage.

Thanks to its modular design, the system can be expanded. With the M-4 module, you can turn the F-1 into a macro flash bracket to illuminate small subjects with precise, controlled light. If you add the M-8 module, it can also be mounted on a camera plate. This way, you don’t have to buy a completely new system for every application, but simply adapt your existing setup to your current task.

Made in USA, rugged quality for tough everyday photography

The Wimberley F-1 Tele Bracket is built for durability. The aluminum parts are made from 6061 T6 aluminum and matte black anodized. This combination provides high stability while keeping the weight pleasantly low. At just 272 g, your setup remains manageable, even when you’re working with large telephoto lenses and additional accessories.

The locking screws are made of stainless steel and are designed so they cannot be lost. It’s a detail you only truly appreciate once you’ve had to search for a tiny screw in grass or sand out in the field. The connections and joints of the system are engineered for high stability so that nothing twists or slips unintentionally, even if you pan the camera frequently or need to react quickly.

Compatibility and handling in everyday photography

The F-1 Tele Bracket is designed for 38 mm dovetail-compatible lens plates and thus integrates seamlessly into many professional quick-release systems. The slim, Arca-style-compatible quick release clamp ensures that you can attach the bracket quickly and remove it just as fast, without fiddling around or using tools. You build your setup, tighten the clamps, and you’re ready to shoot.

All Wimberley flash brackets are mutually compatible. For you, this means: if you already own other Wimberley modules, you can combine them with the F-1 and expand your system step by step. For storage, the complete bracket can be disassembled into its individual modules, which significantly reduces the space it takes up in your bag. This is a real plus, especially when traveling or when space is limited.

Practical details for telephoto and sports photography

In telephoto and sports photography, fractions of a second often matter. You don’t want to be fighting with wobbly mounts or complicated adjustments at those moments. The F-1 Tele Bracket is designed so that you don’t need any tools. You adjust the height and orientation of the flash directly on the system and lock everything in place with the integrated clamps.

Especially with long focal lengths, such as in wildlife or outdoor sports, the variable flash position helps you direct the light exactly where you need it. You can raise the flash to soften shadows under helmets, caps, or beaks, or shift it to the side to add more depth and structure to your subject. It may sound like a small detail, but in the final image it often makes the decisive difference.

Expandability and system concept

If you want to expand your setup later, you don’t have to start from scratch. With the M-4 module, the F-1 becomes a macro flash bracket that lets you light small subjects such as insects, flowers, or product details with great precision. This is particularly interesting if you switch from telephoto work in the field to close-ups later on and still want to work with familiar gear.

With the M-8 module, you can also mount the system on a camera plate. This allows the F-1 Tele Bracket to be adapted flexibly to different configurations, whether you’re working with large telephoto lenses, mid-range zooms, or more compact setups. The entire system follows a clear idea: you invest once in high-quality components and then adapt them to your photographic needs instead of constantly buying completely new solutions.

Notes on use with flash cables and adapters

To use the Wimberley flash brackets, including the F-1 Tele Bracket, you need an off-camera flash cord or a remote hot shoe adapter. This connection ensures that your flash communicates reliably with the camera, even when it’s not sitting directly in the hot shoe. If you use the Nikon flash cable SC-29 together with the M-3 module, you will also need the Wimberley FA-11 Flash Adapter to connect everything correctly and securely.

This combination allows for clean, stable, and repeatable mounting of your flash without having to compromise on functionality. Especially in professional work, where you need to rely on every component, this is an important factor.
