Wimberley P-10 Lens Plate (Quick Release)

By accessing the video, I agree that my data will be transmitted to YouTube or Vimeo and that I have read the privacy policy.
Product information
Wimberley P-10 Lens Plate (Quick Release)
Anti rotating Pins/Flange
  • yes
Dovetail design
  • double
Feature
  • Arca compatible
Finish
  • black anodized
Height (without Flange) / cm
  • 1,016
Length / cm
  • 8,4
Material
  • 6061-T6 Aluminum
  • Stainless steel
QR profile fits
  • ARCA SWISS compatible (according to manufacturer) 38 mm clamp
  • Kirk clamps
  • Really Right Stuff lever clamps
  • Really Right Stuff screw knob clamps
  • Wimberley clamps
Safety mechanism
  • 2 safety stop screws
Weight / g
  • 65
Width / cm
  • 3,8
for Canon Lenses
  • Canon EF 70-200mm f/2.8 L IS II
  • Canon EF 70-200mm f/2.8L IS USM
for Fuji Lenses
  • Fuji 50-140mm f/2.8 R LM OIS WR XF
for Nikon Lenses (non Z)
  • Nikon 70-180 mm f/4.5-5.6 AF-D Micro NIKKOR (1997-2004)
  • Nikon 80-200mm f/2.8 ED AF-D
  • Nikon 80-400mm f/4,5–5,6D ED VR AF NIKKOR
  • Nikon 80-400mm f/4,5–5,6G ED VR AF-S NIKKOR
  • Nikon 200mm f/4 D IF-ED AF MICRO-NIKKOR
  • Nikon 300mm f/4 AF NIKKOR (1987-2000)
  • Nikon 300mm f/4E AF-S PF ED VR NIKKOR
for Olympus / OM SYSTEM Lenses
  • Olympus 40-150mm f/2.8 M.ZUIKO DIGITAL ED PRO
for Sigma lenses
  • Sigma 180mm f/2,8 EX DG OS HSM MAKRO
for Sony Lenses
  • Sony 70–200mm f/2,8 GM OSS FE [SEL70200GM]
  • Sony 70–200mm f/2,8 GM OSS FE [SEL70200GM] (2016)
for Tamron Lenses
  • Tamron 200-500mm f/5-6.3 Di LD SP AF
universal
  • yes

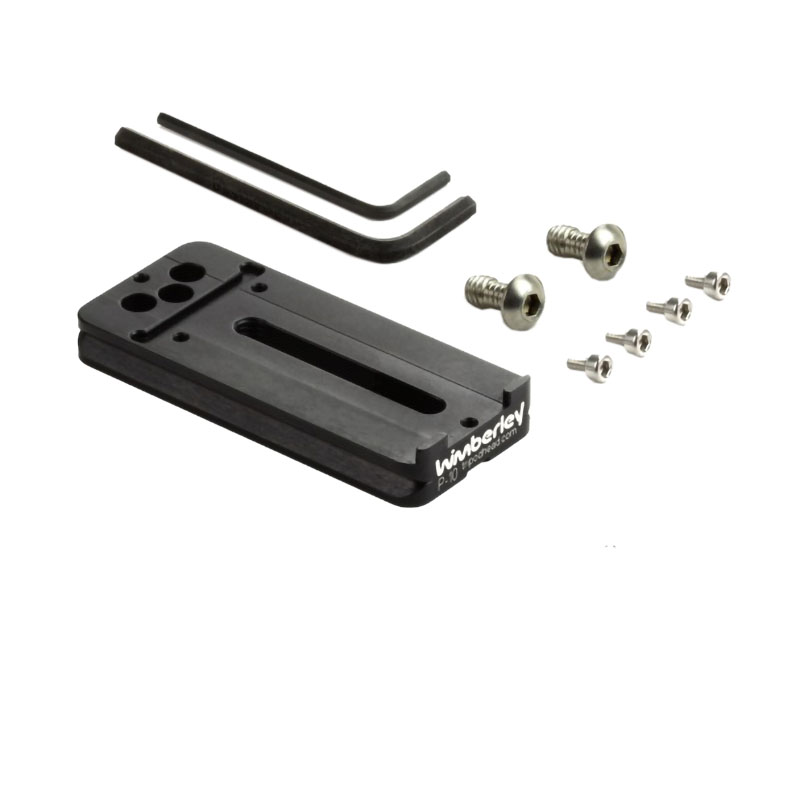

The P-10 is a 3.31” long, double dovetail, Arca-Swiss style quickrelease plate. It is used to connect a camera lens, fitted with both a rotation collar and tripod mounting foot, to a compatible quick-release clamp. Wimberley plates are compatible with most Arca-Swiss style quick-release clamps, such as those made by Wimberley, Really Right Stuff, Kirk Enterprises, Markins, Arca-Swiss, Foba, Graf and others.

Dual Safety Stops

Safety stops at the front and back of our plates keep your expensive lens from accidentally slipping out of the quick-release clamp. If you wish to use only one or neither of these stops, simply remove them with the hex key provided.

Double-Dovetail Cross-Section

Our unique double-dovetail design allows you to attach Wimberley quick-release flash brackets to the upper or lower Double-dovetail design of Wimberley Lens Plate surface of the plate.

Anti-Twist Nubs

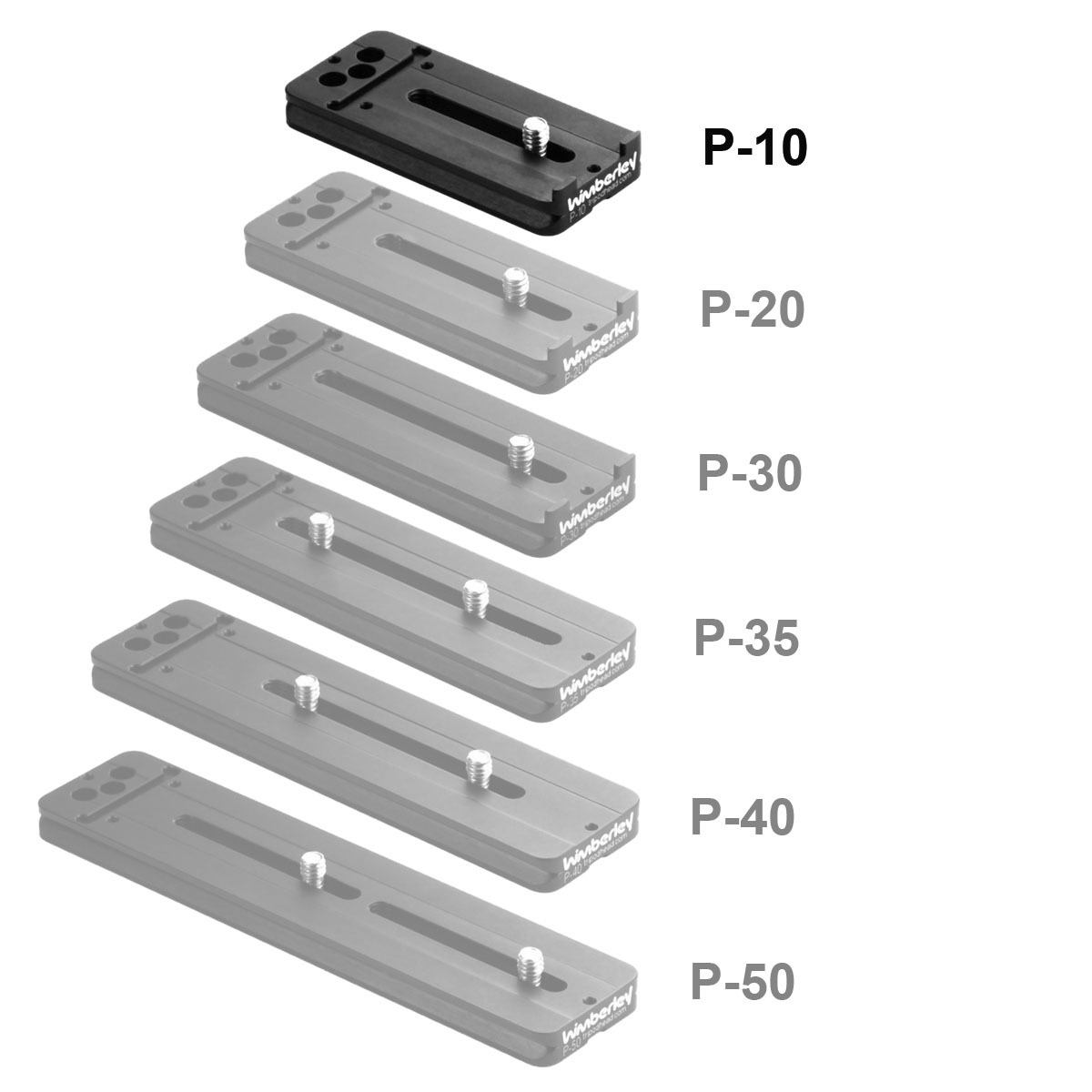

The P-10, P-20, and P-30 plates have anti-twist nubs at the back of the plate. These help to keep the plate from twisting if it is mounted with only one fastener. The unique dual-nub design (as opposed to a single continuous flange) provides better performance when butted against a curved surface. The P-40, P-35, and P-50 plates do not have anti-twist nubs because the lenses they are normally mounted to usually have more than one mounting hole.

Flash Bracket Versatility

Our plates are designed to accept RRS & Kirk flash brackets as well as our own quick-release flash brackets.

Anti rotating Pins/Flange
  • yes
Dovetail design
  • double
Feature
  • Arca compatible
Finish
  • black anodized
Height (without Flange) / cm
  • 1,016
Length / cm
  • 8,4
Material
  • 6061-T6 Aluminum
  • Stainless steel
QR profile fits
  • ARCA SWISS compatible (according to manufacturer) 38 mm clamp
  • Kirk clamps
  • Really Right Stuff lever clamps
  • Really Right Stuff screw knob clamps
  • Wimberley clamps
Safety mechanism
  • 2 safety stop screws
Weight / g
  • 65
Width / cm
  • 3,8
for Canon Lenses
  • Canon EF 70-200mm f/2.8 L IS II
  • Canon EF 70-200mm f/2.8L IS USM
for Fuji Lenses
  • Fuji 50-140mm f/2.8 R LM OIS WR XF
for Nikon Lenses (non Z)
  • Nikon 70-180 mm f/4.5-5.6 AF-D Micro NIKKOR (1997-2004)
  • Nikon 80-200mm f/2.8 ED AF-D
  • Nikon 80-400mm f/4,5–5,6D ED VR AF NIKKOR
  • Nikon 80-400mm f/4,5–5,6G ED VR AF-S NIKKOR
  • Nikon 200mm f/4 D IF-ED AF MICRO-NIKKOR
  • Nikon 300mm f/4 AF NIKKOR (1987-2000)
  • Nikon 300mm f/4E AF-S PF ED VR NIKKOR
for Olympus / OM SYSTEM Lenses
  • Olympus 40-150mm f/2.8 M.ZUIKO DIGITAL ED PRO
for Sigma lenses
  • Sigma 180mm f/2,8 EX DG OS HSM MAKRO
for Sony Lenses
  • Sony 70–200mm f/2,8 GM OSS FE [SEL70200GM]
  • Sony 70–200mm f/2,8 GM OSS FE [SEL70200GM] (2016)
for Tamron Lenses
  • Tamron 200-500mm f/5-6.3 Di LD SP AF
universal
  • yes
