Kirk TQR-3S Tripod head quick disconnect system with (SMALL) plate

By accessing the video, I agree that my data will be transmitted to YouTube or Vimeo and that I have read the privacy policy.
Product information
Kirk TQR-3S Tripod head quick disconnect system with (SMALL) plate
QR base fits
  • ARCA SWISS compatible (according to manufacturer) 38 mm dovetail
clamp release type
  • Screw locking

One tripod, several tripod heads, and tired of screwing them on and off?

We have the perfect solution for you. Our new tripod head quick release system will give you the ability to quickly and easily switch between ball heads, pan heads, gimbal heads and more. Our system consists of two parts. The tripod quick release and our tripod head quick release plates, both shown below. Installation is simple, by installing the quick release on the top of your tripod and installing one of the two quick release plates on your tripod head that best suits your needs. You will be up in going in no time. The tripod head quick release plates, offer a 3/8-16 mounting bolt, anti-rotation mounting screw and two oversized safety stops to ensure a perfect and safe assembly. Follow the steps below to decide which assembly will work best for your needs depending on the base size of your tripod heads.

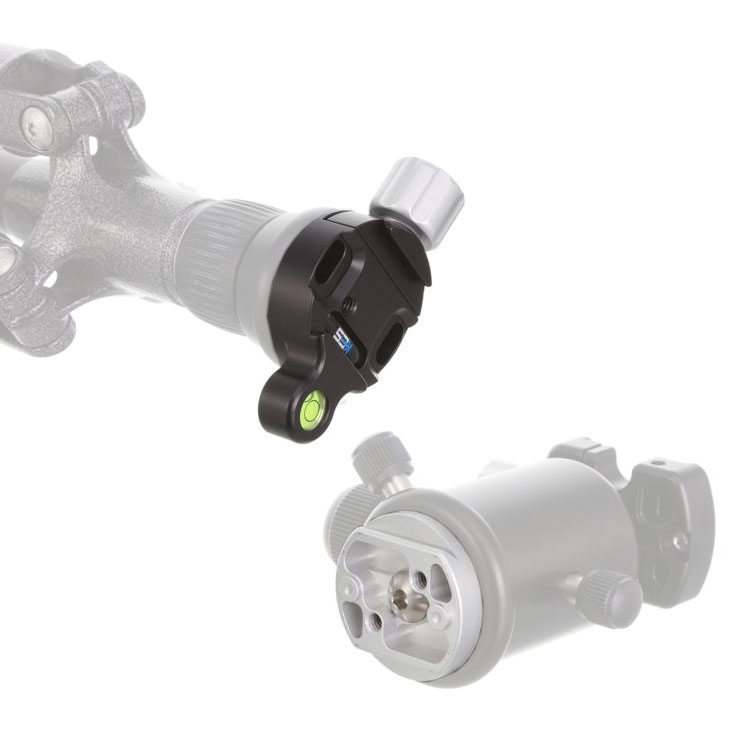

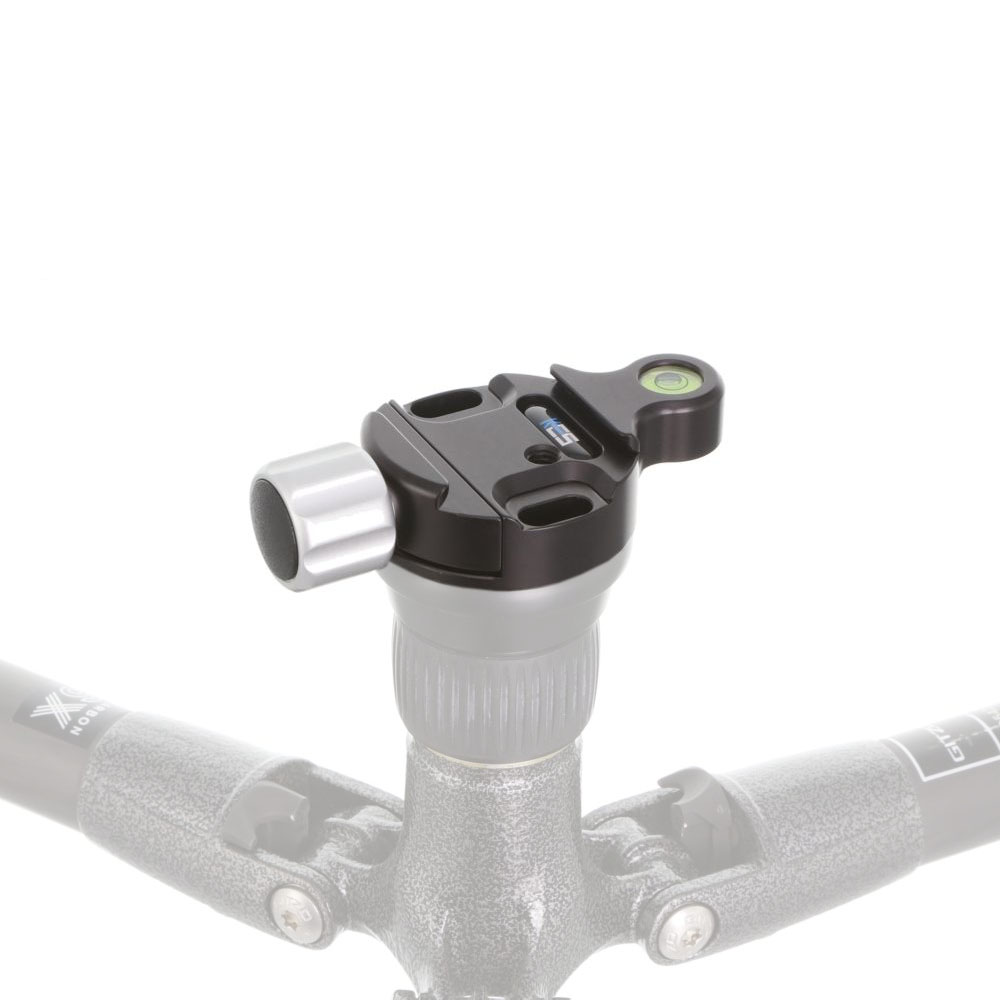

Tripod Quick Release Assembly

Tripod quick release is constructed from 6061-T6 aluminum and stainless. The mounting hole size will accept a 3/8-16 tripod stud. Also offered in the quick release is an anti-rotation lock screw, oversized safety stop pockets, and a captive quick release knob.

The small quick disconnect plate is recommended for tripod head bases 2.250 inches and under.

Please Note: The TQR-3S Quick Release will only work with the KES TQR-MPS (2") Adapter Plate. If the TQR-MPL (2.5") Adapter Plate is used, it will make contact with the Quick Release Tightening Knob, not allowing you to tighten your equipment.

 SPECIFICATIONS: Quick Release
  • Fits: Tripods
  • Spirit Level: No
  • Knob: Captive
  • Material: 6061-T6 Aluminum and Stainless
  • Finish: Black and Satin Silver Anodize
  • Sensor center lines: Laser engraved
  • Diameter: 5 cm
  • Width: Overall with closed knob and level 9 cm
  • Height: 0,790  inches
  • Weight: 81 g
  • Mounting thread for Tripod: 3/8-16
  • Lock screw to prevent rotation: Yes

SPECIFICATIONS: Quick Release Mounting Plate-Small

  • Material: 6061-T6 Aluminum and Stainless
  • Finish: Satin Silver Anodize
  • Diameter: 1.980 inches
  • Height: .450 inches
  • Weight: 1.5 ounces
  • Tripod Head Mounting Screw: 3/8-16
  • Lock screw to prevent rotation: Yes
  • Safety Stop feature: Yes
  • Compatible: any tripod head with a 3/8-16 threaded mounting hole
QR base fits
  • ARCA SWISS compatible (according to manufacturer) 38 mm dovetail
clamp release type
  • Screw locking
