Leofoto G2 Geared panning clamp

By accessing the video, I agree that my data will be transmitted to YouTube or Vimeo and that I have read the privacy policy.
Product information
Leofoto G2 Geared panning clamp
Center lines
  • Laser engraving, scale
Feature
  • Arca compatible
Finish
  • black anodized
Height / cm
  • 6,2
Material
  • Aluminum
Mounting hole
  • Screw on 3/8" UNC
  • Screw through from above with 1/4" UNC countersunk head and M6 countersunk head
QR base fits
  • ARCA SWISS compatible (according to manufacturer) 38 mm dovetail
  • Kirk dovetail
  • Leofoto clamping profile
  • Really Right Stuff dovetail
  • Wimberley dovetail
QR profile fits
  • ARCA SWISS compatible (according to manufacturer) 38 mm clamp
Scale
  • 360° in 2,5° steps
Stativkopftyp
  • 3 Wege Neiger
  • Getriebeneiger
Thread (bottom side)
  • 1 x 3/8" UNC thread
Weight / g
  • 82
  • 360
clamp release type
  • Screw locking
maximum payload / kg
  • 20
recommended for
  • Architecture photography
  • DSLM
  • DSLR
  • Landscape photography
  • Panoramic photography
  • Travel photography
snap-in positions
  • none
  • stepless (360°)

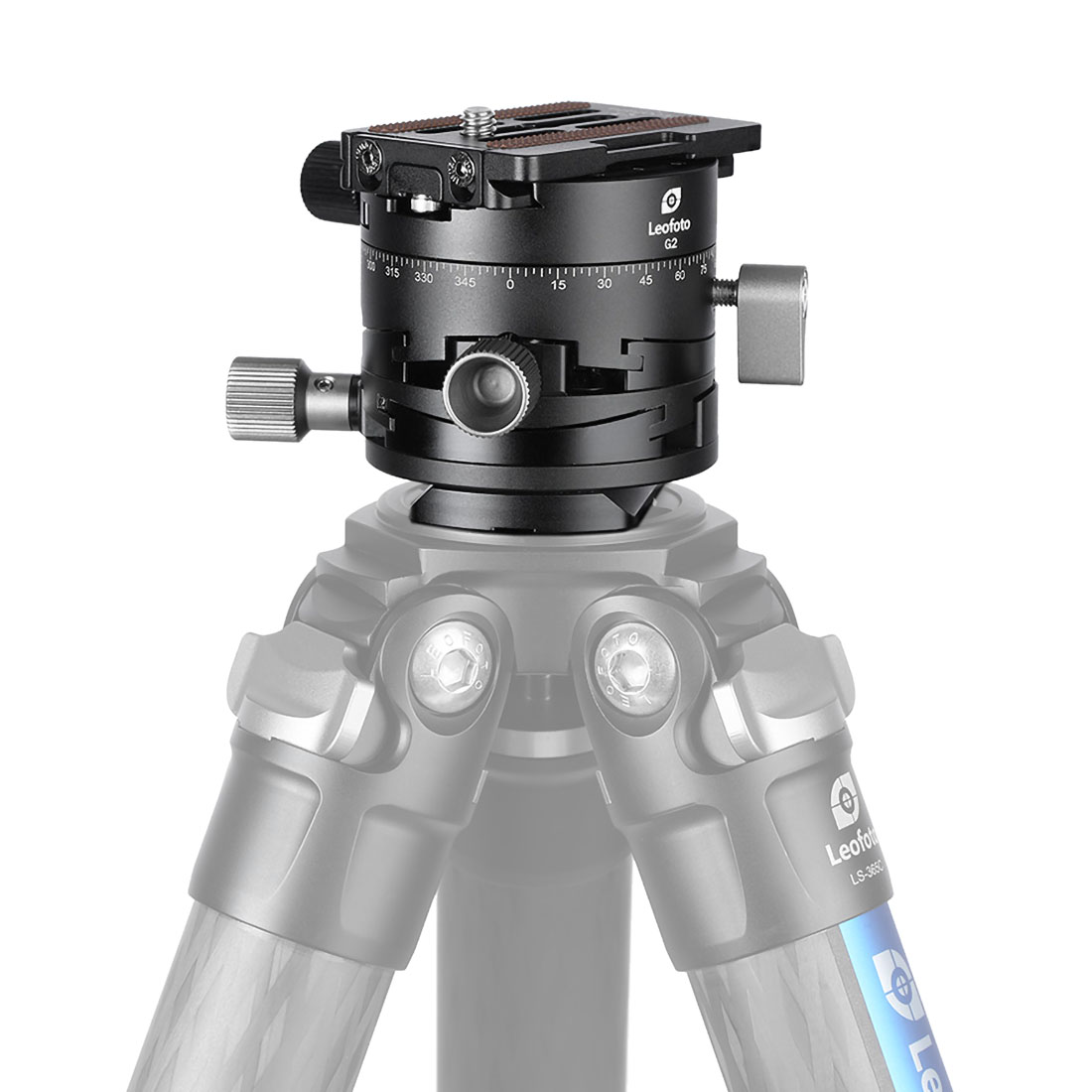

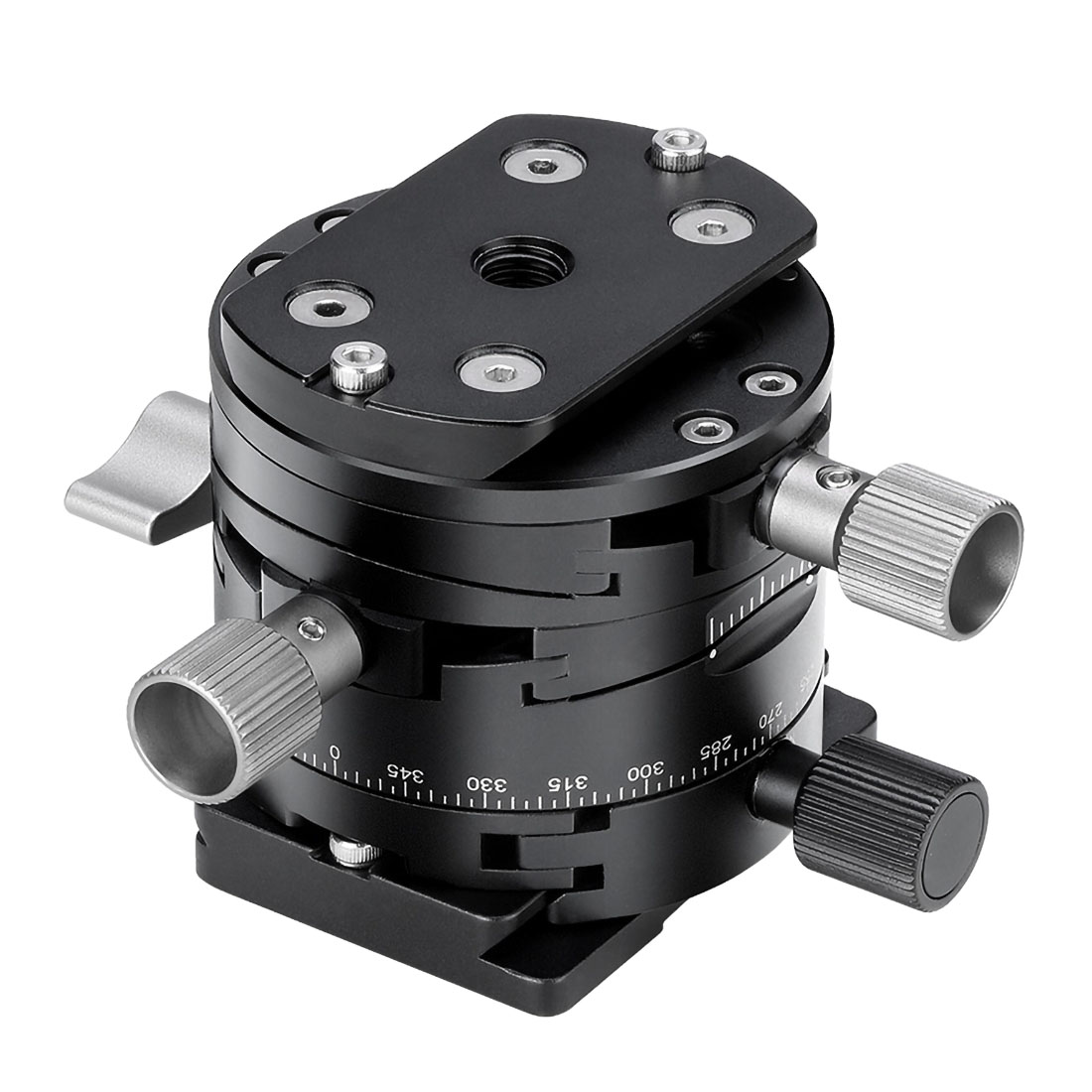

Leofoto G2 "3-in-1" geared panorama plate with NP-60 tripod plate Such a panorama plate is an ideal aid when it comes to positioning the camera precisely. This makes the G2 geared panorama plate not only ideal for panorama photography, but also for architectural, landscape and product photography. The gear-assisted adjustment by plus/minus 10° in two axes, which can be easily corrected at any time, and the 360° panorama leave hardly any wish unfulfilled in terms of fine adjustment. In addition, a laser-engraved all-round scale and the built-in spirit level make it easy to work with this device.



The absolutely easy-grip main locking knob makes it possible to change and fix positions quickly. And a very low centre of gravity thanks to the flat height of 62 mm (with a diameter of 60 mm) helps to reduce vibrations enormously. An Arca-Swiss-compatible NP-60 tripod plate from Leofoto is included in the scope of delivery. The G2's 20 kg load capacity is not a cardboard handle, so its base has a very strong 3/8" brass thread for a stable connection of the G2 gearhead panorama plate with a matching ball head. Thanks to precise CNC manufacturing from highly durable aircraft aluminum, the weight of 360 g remains nice and low.



Center lines
  • Laser engraving, scale
Feature
  • Arca compatible
Finish
  • black anodized
Height / cm
  • 6,2
Material
  • Aluminum
Mounting hole
  • Screw on 3/8" UNC
  • Screw through from above with 1/4" UNC countersunk head and M6 countersunk head
QR base fits
  • ARCA SWISS compatible (according to manufacturer) 38 mm dovetail
  • Kirk dovetail
  • Leofoto clamping profile
  • Really Right Stuff dovetail
  • Wimberley dovetail
QR profile fits
  • ARCA SWISS compatible (according to manufacturer) 38 mm clamp
Scale
  • 360° in 2,5° steps
Stativkopftyp
  • 3 Wege Neiger
  • Getriebeneiger
Thread (bottom side)
  • 1 x 3/8" UNC thread
Weight / g
  • 82
  • 360
clamp release type
  • Screw locking
maximum payload / kg
  • 20
recommended for
  • Architecture photography
  • DSLM
  • DSLR
  • Landscape photography
  • Panoramic photography
  • Travel photography
snap-in positions
  • none
  • stepless (360°)
