Leofoto LR-50 Quick Release Lever Clamp + NP-50 Plate

By accessing the video, I agree that my data will be transmitted to YouTube or Vimeo and that I have read the privacy policy.
Product information

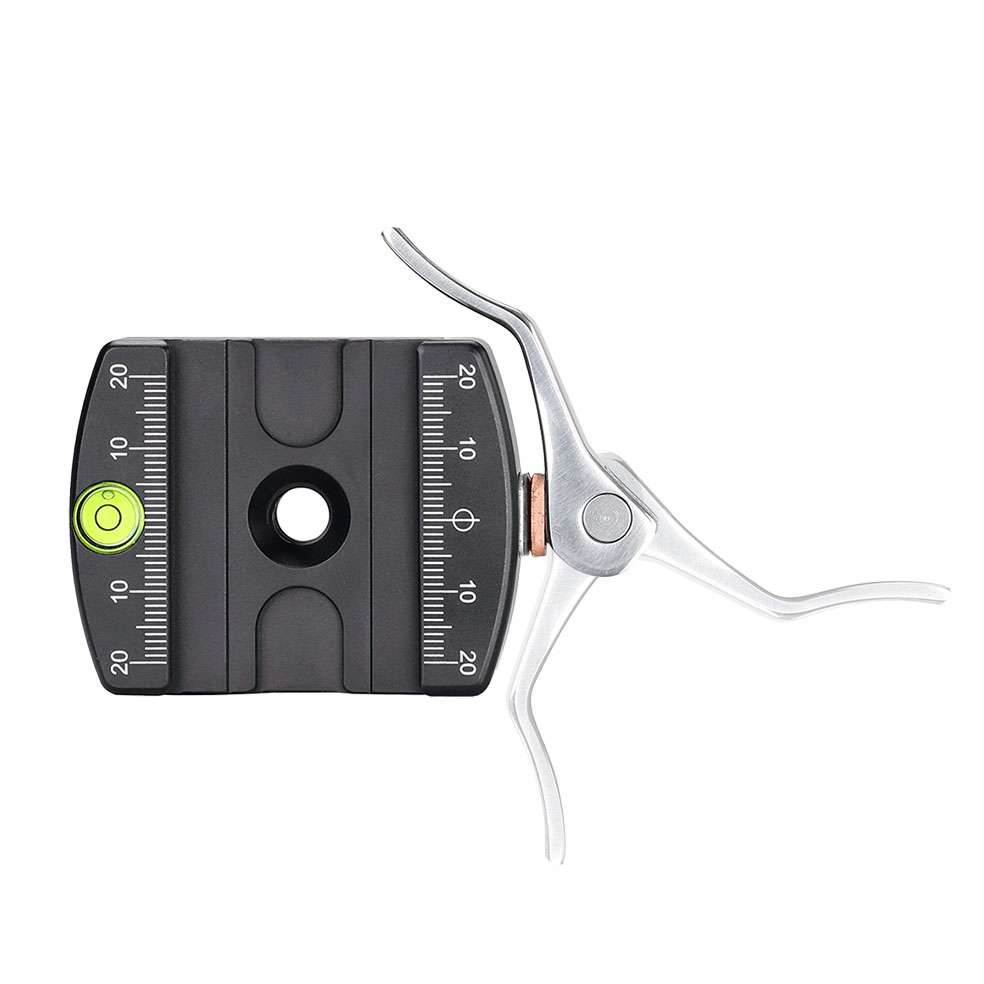

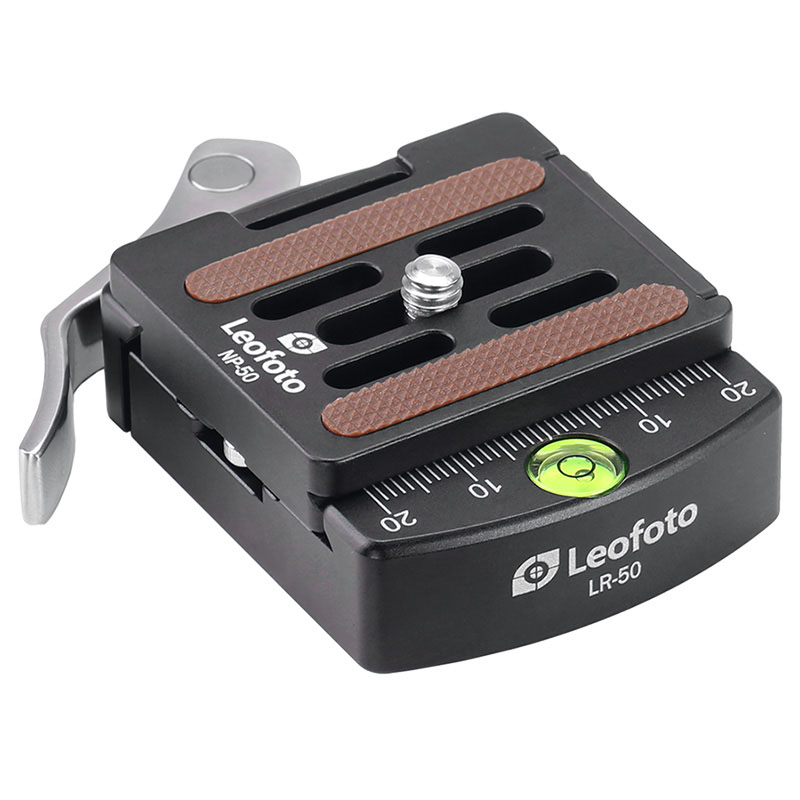

Leofoto LR-50 Quick Release Lever Clamp + NP-50 Plate
Center lines
  • Laser engraving, scale
Finish
  • black anodized
Jaw length / cm
  • 5,0
Length / cm
  • 8,1
Material
  • 6061-T6 Aluminum
  • Stainless steel
Mounting hole
  • Screw on 3/8" UNC
  • Screw through from above with 1/4" UNC countersunk head and M6 countersunk head
QR base fits
  • ARCA SWISS compatible (according to manufacturer) 38 mm dovetail
  • Kirk dovetail
  • Wimberley dovetail
Special features
  • Clamp width adjustable
Spirit level bubble
  • 1 x circular level
Weight / g
  • 93
Width / cm
  • 6,6
clamp release type
  • Lever release
note
  • adjustable

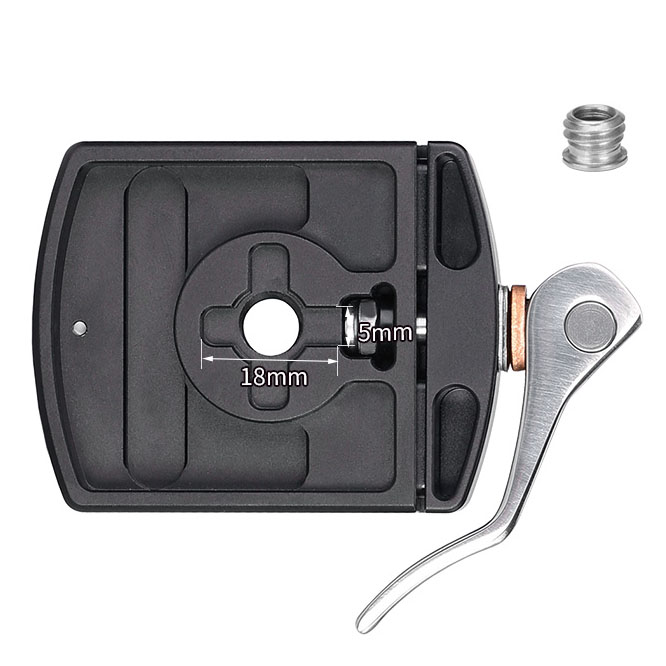

Leofoto LR-50 quick release clamp The clamp remains on your tripod head all the time and the plate remains on your camera. You will need a separate quick-release plate for each camera or telephoto lens. The clamp open and close by turning the lever on the release clamps. The shapely S-shaped cam locking lever is made of stainless steel and offers the desired advantages over conventional screw knob clamps.



Tip: The clamp width setting can be adjusted with the supplied Allen key when the clamp is closed.

Center lines
  • Laser engraving, scale
Finish
  • black anodized
Jaw length / cm
  • 5,0
Length / cm
  • 8,1
Material
  • 6061-T6 Aluminum
  • Stainless steel
Mounting hole
  • Screw on 3/8" UNC
  • Screw through from above with 1/4" UNC countersunk head and M6 countersunk head
QR base fits
  • ARCA SWISS compatible (according to manufacturer) 38 mm dovetail
  • Kirk dovetail
  • Wimberley dovetail
Special features
  • Clamp width adjustable
Spirit level bubble
  • 1 x circular level
Weight / g
  • 93
Width / cm
  • 6,6
clamp release type
  • Lever release
note
  • adjustable
