Leofoto Manba LV-324C Carbon Tripod

By accessing the video, I agree that my data will be transmitted to YouTube or Vimeo and that I have read the privacy policy.
Product information
Leofoto Manba LV-324C Carbon Tripod
Center Column
  • existing

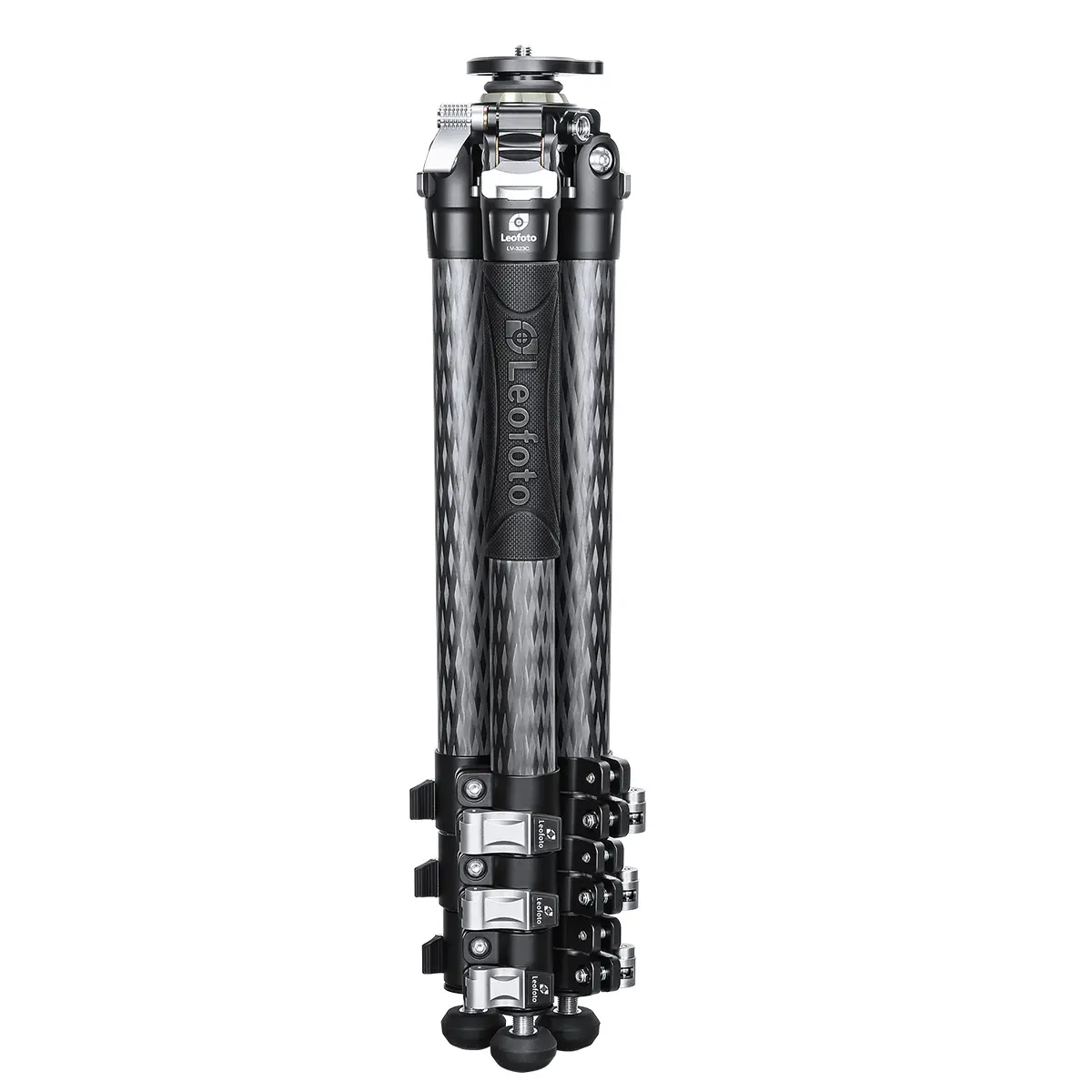

Folded length / cm
  • 50
Leg Angle Adjustments / °
  • 23 / 55 / 85
Leg Ø / mm
  • 32 / 28 / 25 / 22
Levelling Unit
  • integrated
Material
  • Carbon fiber Tubes / 10x layers
Maximum Height / m
  • 1,56
Minimum height / cm
  • 10
Number of Leg Sections (per Leg)
  • 4
Special features
  • Flip-lock tripod leg closure
Thread for tripod foot
  • 3/8" UNC female thread
Tripod Thread
  • 3/8" UNC photo thread Mounting bolt
Tripod type
  • Tripod with centre column
  • Tripod with levelling
Weight / kg
  • 1,8
included
  • Allen wrench
  • carrier bag padded
max. installation height / cm **
  • 156
maximum payload / kg
  • 15
min. installation height / cm **
  • 10
recommended for
  • DSLR
  • Long Lens Photography
  • Macro photography
  • Travel photography
  • Video
  • photography out of hiding

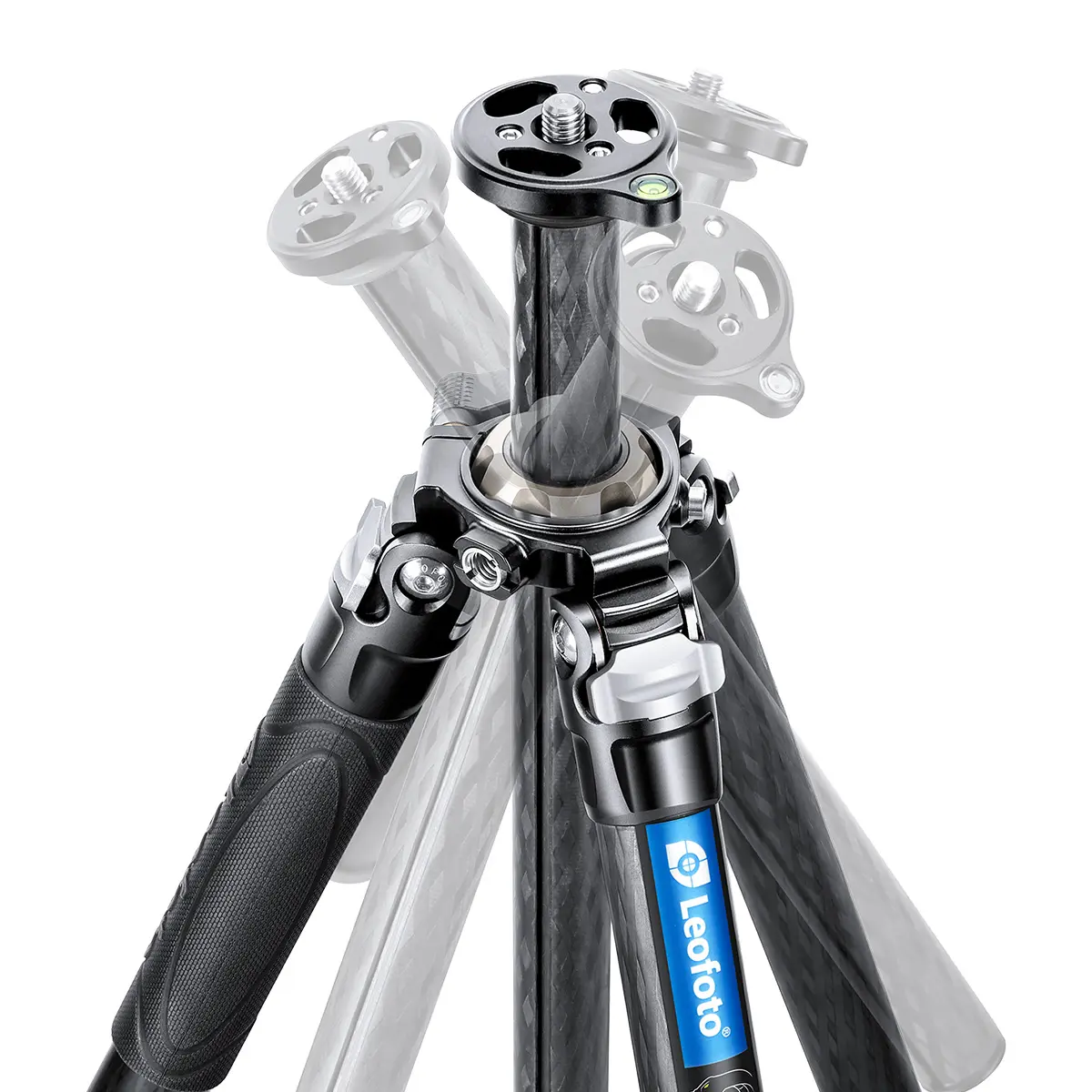

This lightweight Leofoto carbon tripod comes with an integrated adjustable center column. This allows you to easily level the mounting plate on uneven ground without having to change the length of the tripod legs. This allows you to adapt very quickly to different situations in the great outdoors.

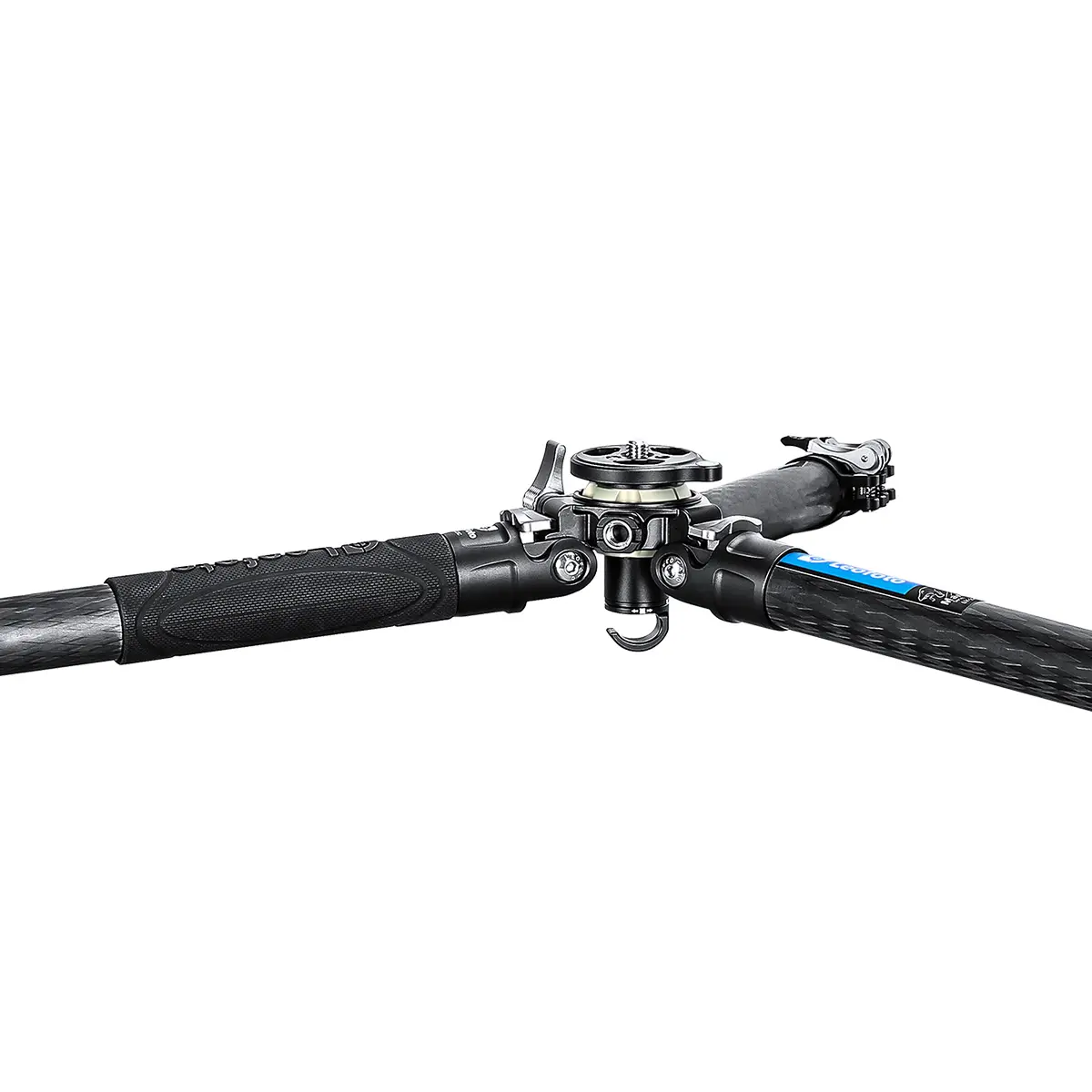

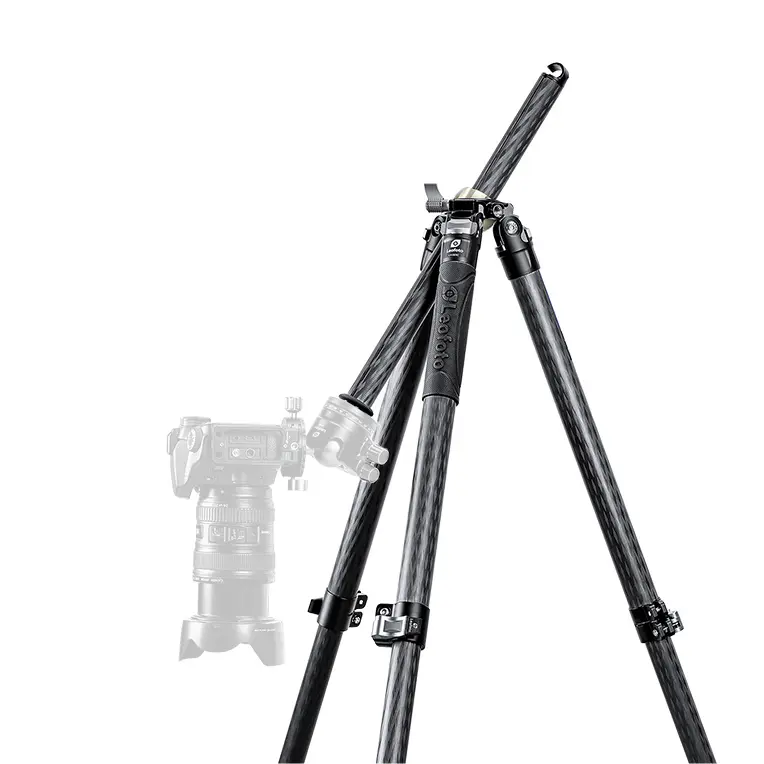

They are also very flexible in terms of height adjustment. This is ensured by several leg extensions, the interchangeable center column and a high, variably adjustable splay angle. A special hook allows you to attach a weight, such as a rucksack, to increase stability.

The leg extensions are fitted with quick-release fasteners. These fasteners are rubberized for a better grip.

The tripod legs are fitted with rubber feet that can be replaced with spikes by simply turning them. The metal feet therefore do not need to be fitted separately, but are always included, so to speak.

The legs of this tripod are wound from 10 layers of carbon fibers (carbon). The special diamond-shaped winding of these layers provides additional stability and vibration damping at a very low weight!

Scope of delivery

  • Tripod with column

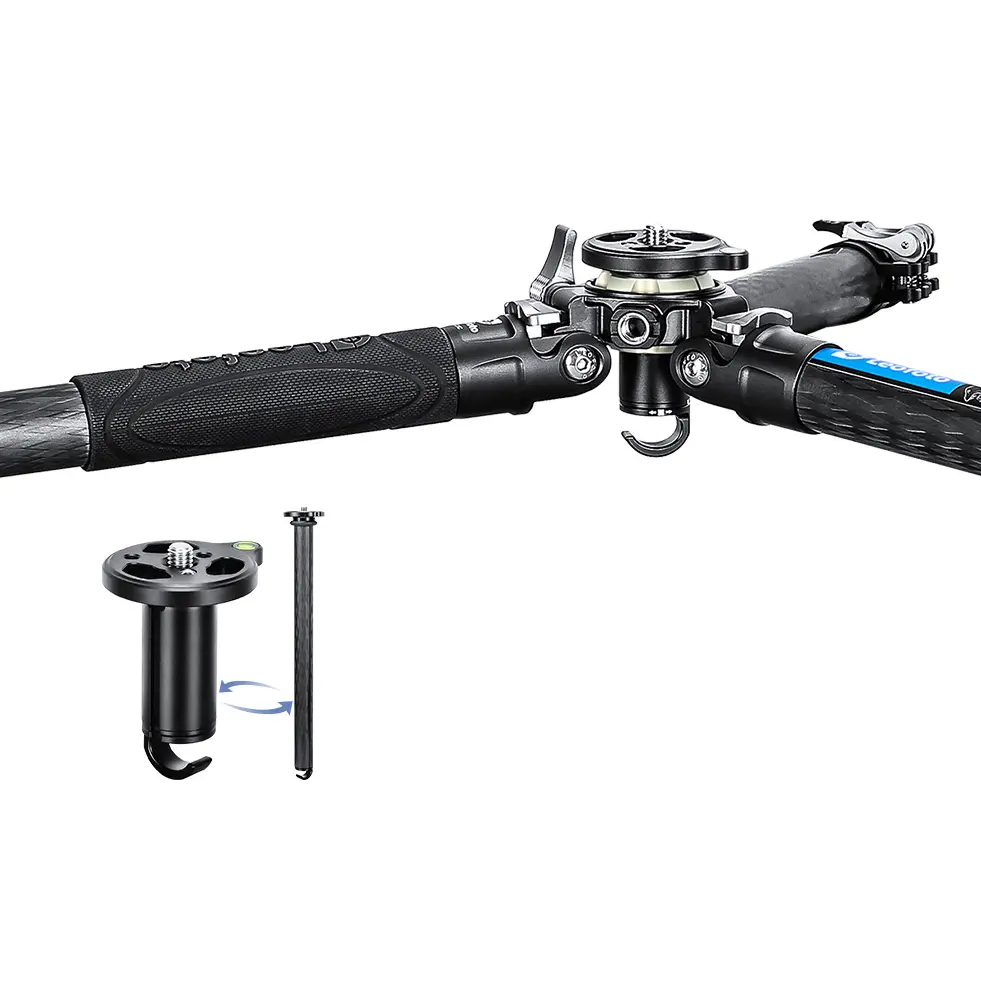

  • Additional short center column

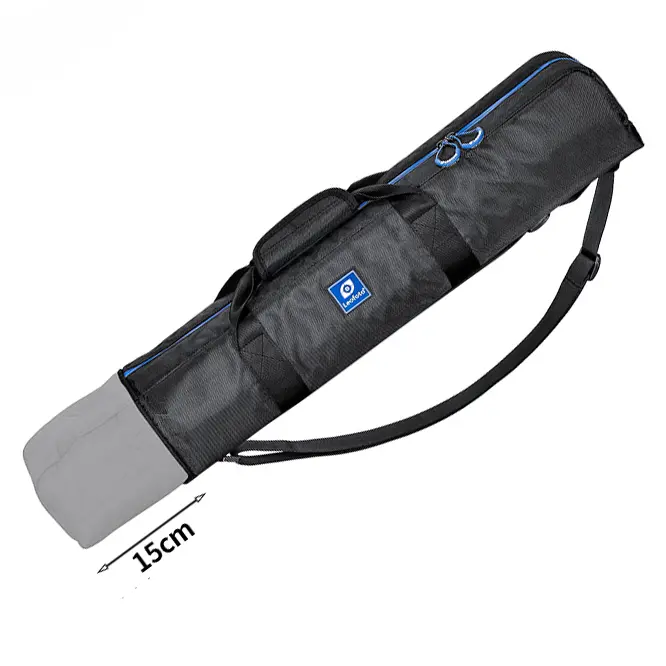

  • Carrying bag
  • Tool kit





Center Column
  • existing
Folded length / cm
  • 50
Leg Angle Adjustments / °
  • 23 / 55 / 85
Leg Ø / mm
  • 32 / 28 / 25 / 22
Levelling Unit
  • integrated
Material
  • Carbon fiber Tubes / 10x layers
Maximum Height / m
  • 1,56
Minimum height / cm
  • 10
Number of Leg Sections (per Leg)
  • 4
Special features
  • Flip-lock tripod leg closure
Thread for tripod foot
  • 3/8" UNC female thread
Tripod Thread
  • 3/8" UNC photo thread Mounting bolt
Tripod type
  • Tripod with centre column
  • Tripod with levelling
Weight / kg
  • 1,8
included
  • Allen wrench
  • carrier bag padded
max. installation height / cm **
  • 156
maximum payload / kg
  • 15
min. installation height / cm **
  • 10
recommended for
  • DSLR
  • Long Lens Photography
  • Macro photography
  • Travel photography
  • Video
  • photography out of hiding
