Really Right Stuff LCF-103 FOR SONY FE 400MM F/2.8 GM & 600MM GM F/4.0 GM LENSES

By accessing the video, I agree that my data will be transmitted to YouTube or Vimeo and that I have read the privacy policy.
Product information
Really Right Stuff LCF-103 FOR SONY FE 400MM F/2.8 GM & 600MM GM F/4.0 GM LENSES
Feature
  • Arca compatible
  • QD compatible
Finish
  • Typ II black anodized
Height / cm
  • 4,2
Integrated QD Socket
  • yes, 1
Length / cm
  • 14,6
Material
  • 6061-T6 Aluminum
PMG Strap Attachment
  • no
QR profile fits
  • ARCA SWISS compatible (according to manufacturer) 38 mm clamp
  • Acratech lever clamps
  • Acratech screw clamps
  • FlexShooter two-way screw knop clamp
  • Jobu Design QR clamps
  • Kirk clamps
  • ProMediaGear QR clamps
  • Really Right Stuff lever clamps
  • Really Right Stuff screw knob clamps
  • Wimberley clamps
Safety mechanism
  • 2 safety stop screws
Thread (bottom side)
  • 1 x 3/8" UNC thread
  • 2 x 1/4" UNC
Weight / g
  • 122
Width / cm
  • 3,8
for Sony Lenses
  • Sony 400mm f/2.8 GM OSS FE [SEL400F28GM]
  • Sony 400mm f/2.8 GM OSS FE [SEL400F28GM] (2018)
  • Sony 600mm f/4 GM OSS FE [SEL600F40GM] (2019)
universal
  • no

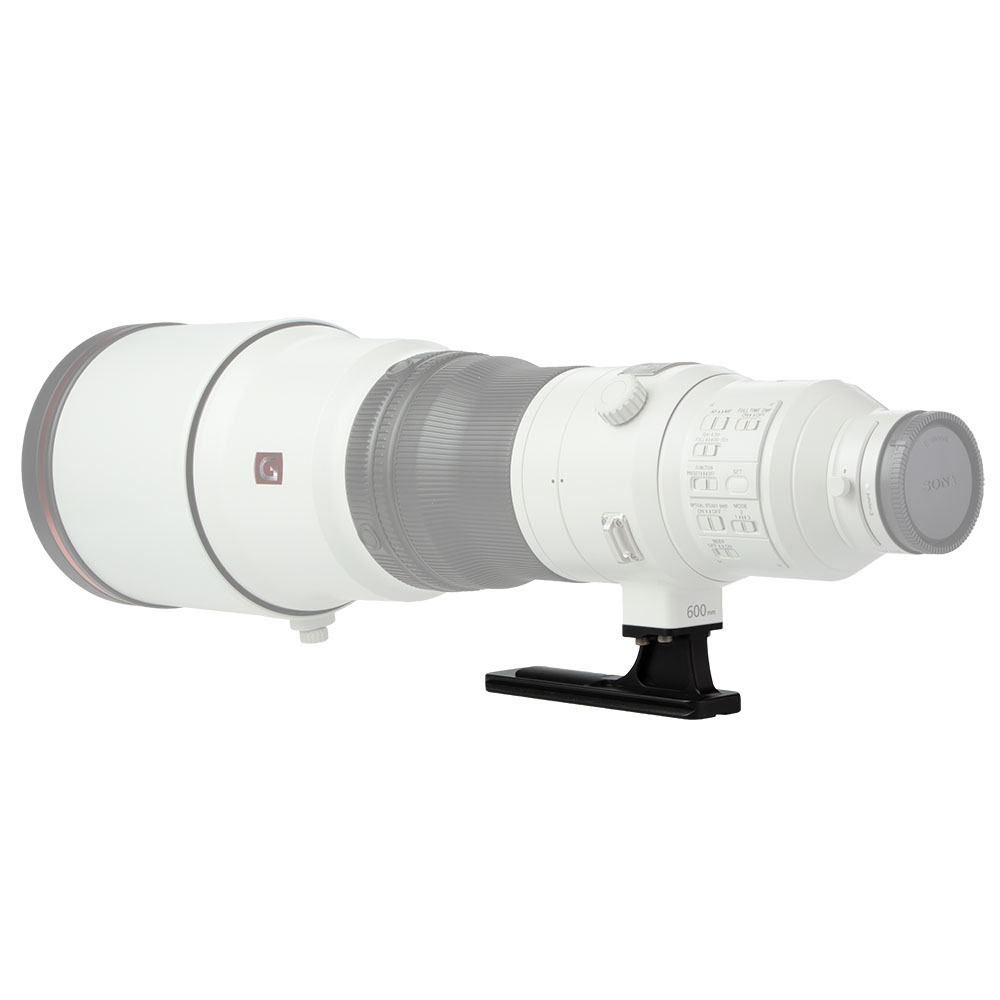

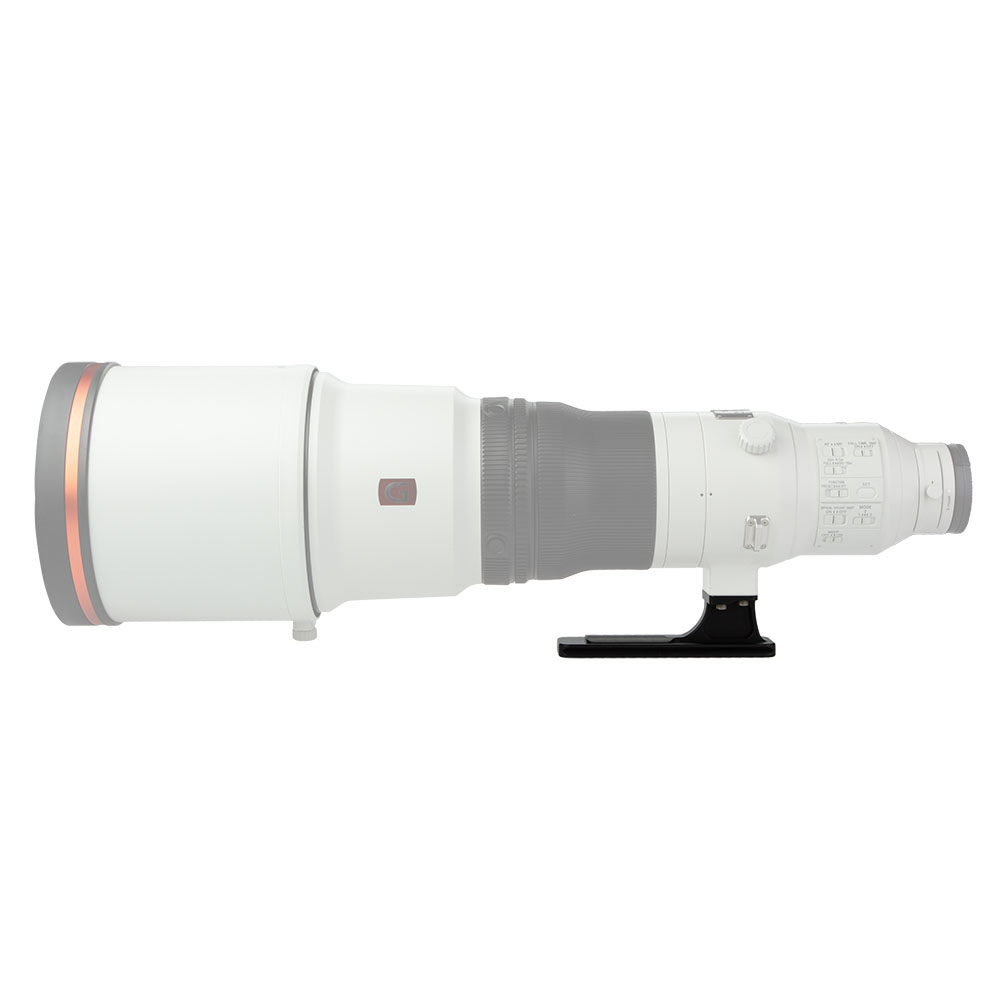

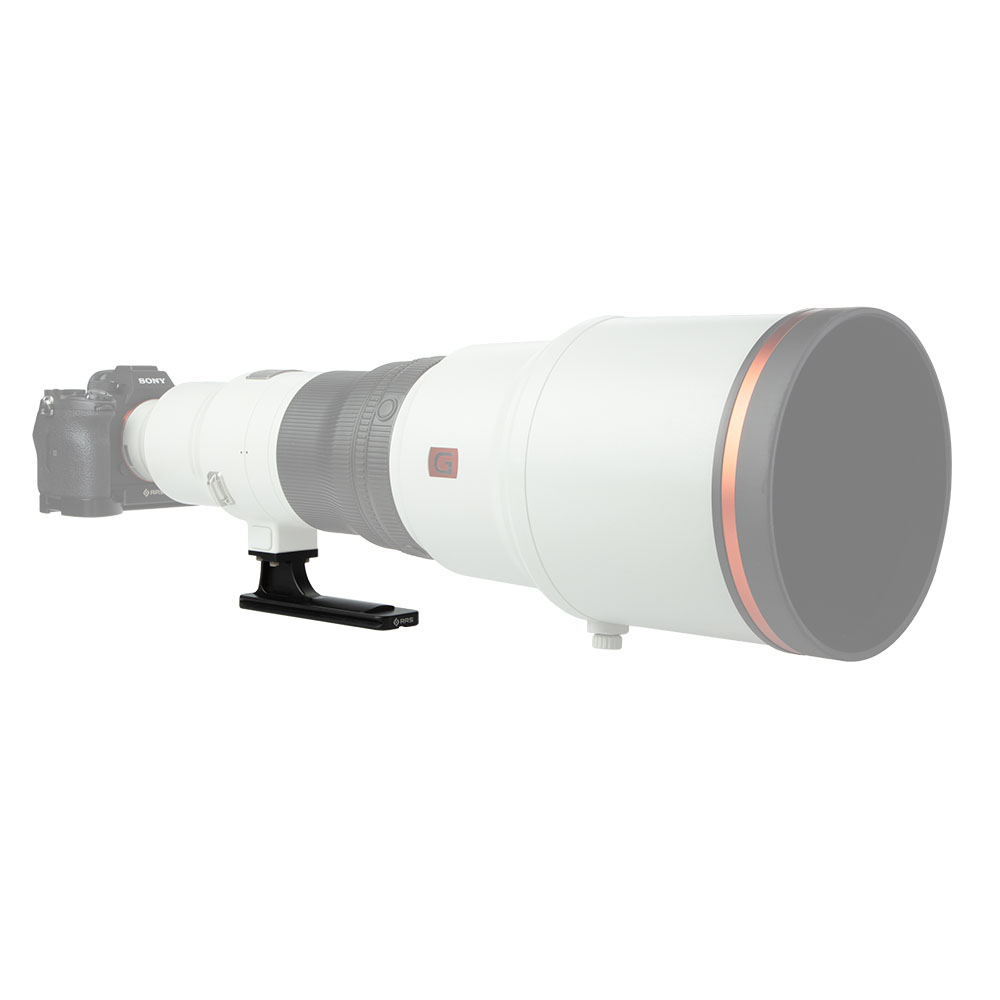

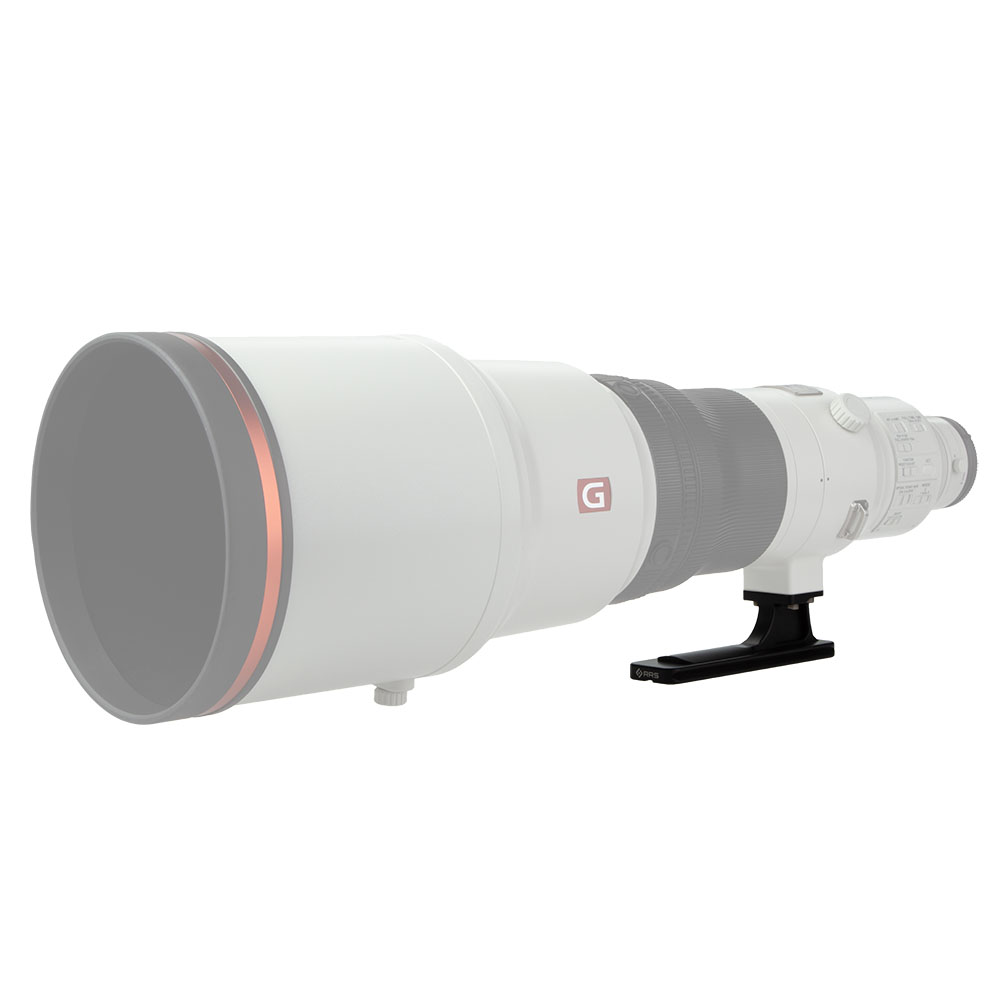

The LCF-103 lens replacement foot with built-in-dovetail mounting for the FE 400MM F/2.8 GM & 600MM GM F/4.0 GM LENSES will be lighter, lower in profile, and provide the best possible stability for your lens.

The LCF-103 is an updated lens foot that  replaces the Sony lens collar foot  on Sony FE 400MM F/2.8 GM & 600MM GM F/4.0 GM LENSES.

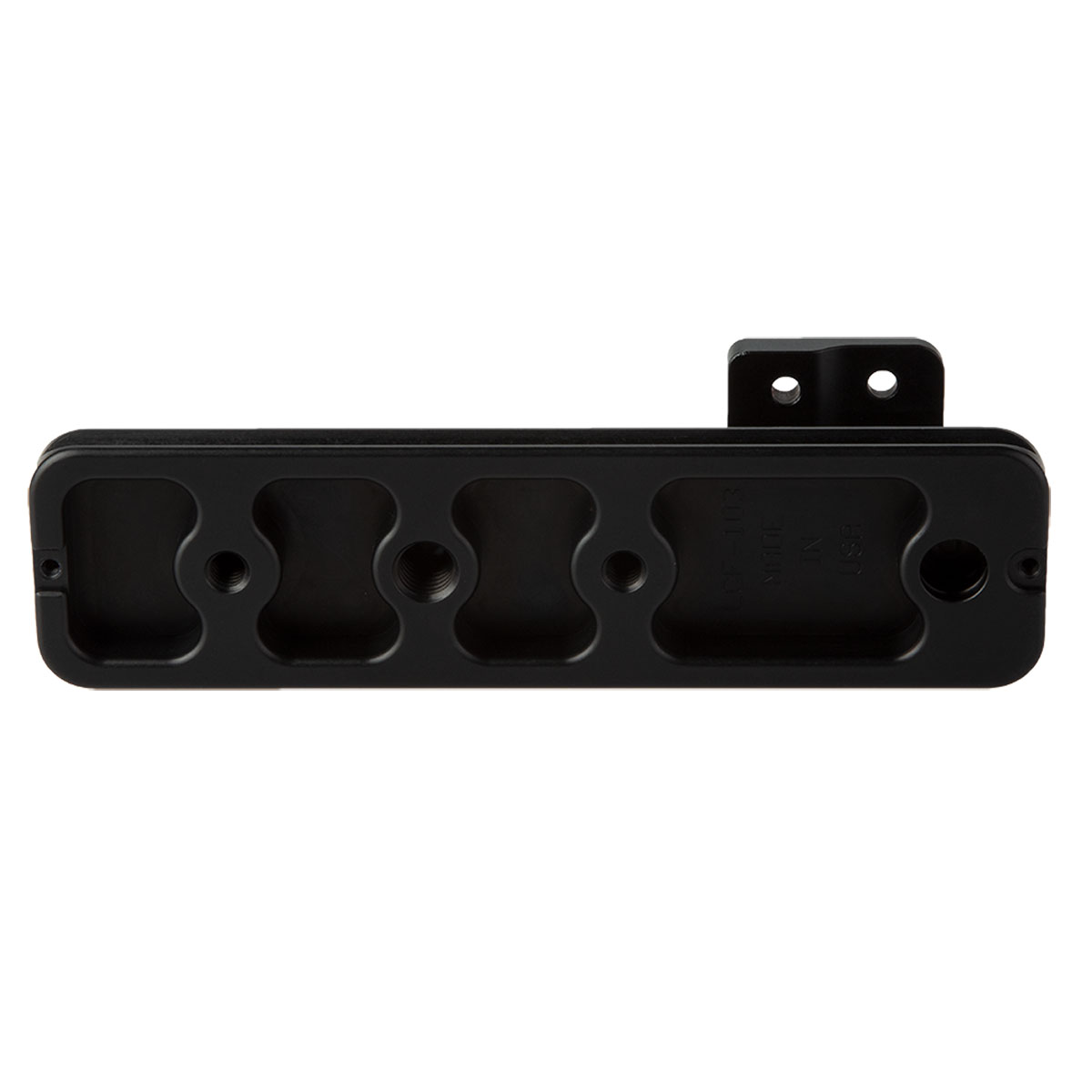

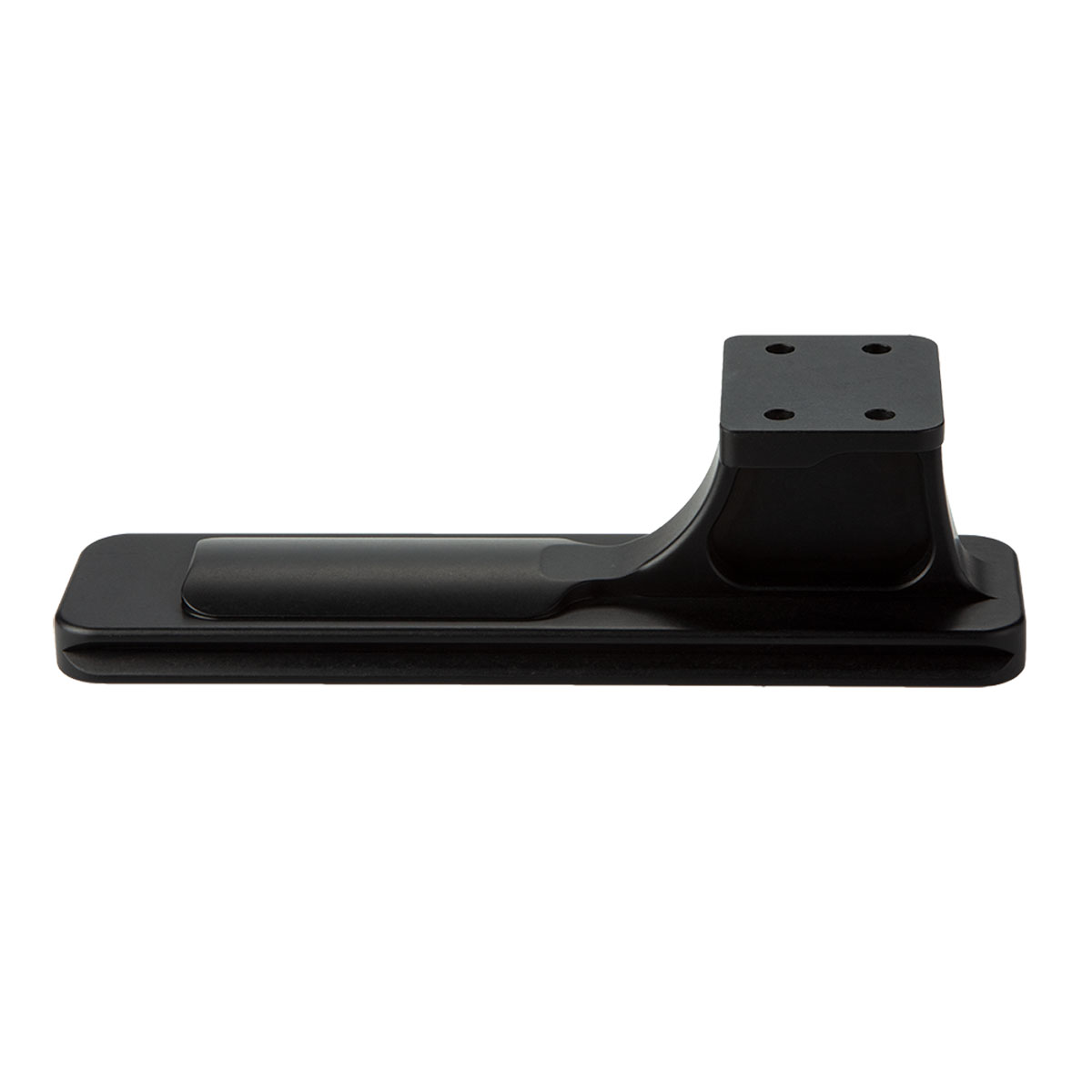

The Really Right Stuff LCF-103 foot replacement is precision machined from a solid block of 6061-T6 aluminum and is fully compatible with 1.5" RRS Dovetail Standard.

Installation

1. To remove the Sony foot, use 3 mm hex key to unscrew the four screws holding on the foot.

2. To install the LCF-103, simply use the original 4 screws to mount the RRS foot to the lens.


Feature
  • Arca compatible
  • QD compatible
Finish
  • Typ II black anodized
Height / cm
  • 4,2
Integrated QD Socket
  • yes, 1
Length / cm
  • 14,6
Material
  • 6061-T6 Aluminum
PMG Strap Attachment
  • no
QR profile fits
  • ARCA SWISS compatible (according to manufacturer) 38 mm clamp
  • Acratech lever clamps
  • Acratech screw clamps
  • FlexShooter two-way screw knop clamp
  • Jobu Design QR clamps
  • Kirk clamps
  • ProMediaGear QR clamps
  • Really Right Stuff lever clamps
  • Really Right Stuff screw knob clamps
  • Wimberley clamps
Safety mechanism
  • 2 safety stop screws
Thread (bottom side)
  • 1 x 3/8" UNC thread
  • 2 x 1/4" UNC
Weight / g
  • 122
Width / cm
  • 3,8
for Sony Lenses
  • Sony 400mm f/2.8 GM OSS FE [SEL400F28GM]
  • Sony 400mm f/2.8 GM OSS FE [SEL400F28GM] (2018)
  • Sony 600mm f/4 GM OSS FE [SEL600F40GM] (2019)
universal
  • no
