Product information
Really Right Stuff ARC-LR Adjustable R-LOCK Lever-Release Clamp
Anti rotating Pins/Flange
  • R-Lock
  • R-Mount
Center lines

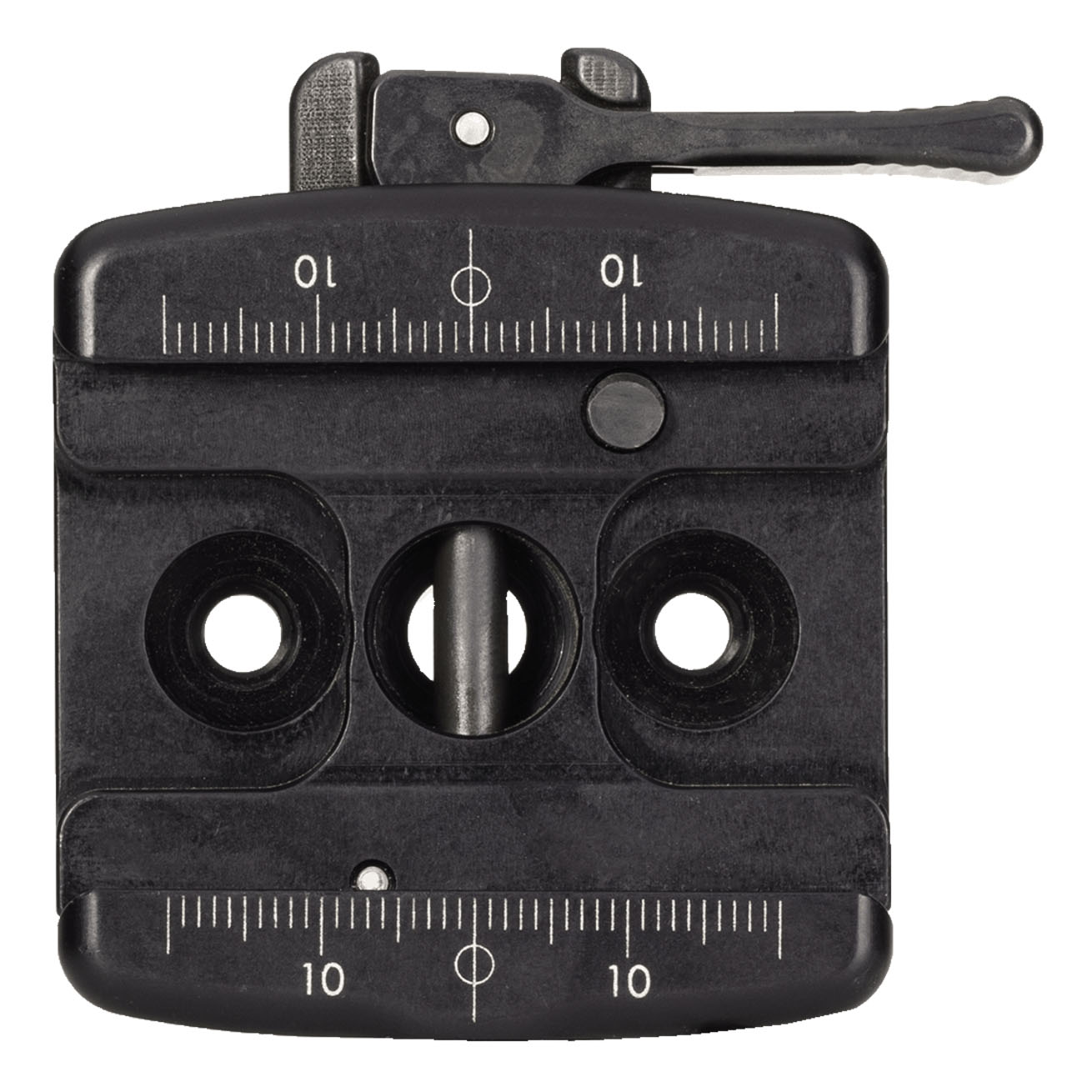

  • Laser engraving, scale
Finish
  • black anodized
Height / cm
  • 1,8
Jaw length / cm
  • 4,0
Material
  • Aluminum
  • Stainless steel
Mounting hole
  • Screw through from above with 1/4" UNC countersunk head and M6 countersunk head
QR base fits
  • ARCA SWISS compatible (according to manufacturer) 38 mm dovetail
  • Kirk dovetail
  • Really Right Stuff dovetail
  • Wimberley dovetail
Special features
  • Clamp width adjustable
Thread (bottom side)
  • 2 x 1/4" UNC
Weight / g
  • 114
Width / cm
  • 6,5
clamp release type
  • Lever release

Features:

  • R-Lock R-LOCK (short for Rapid-Lock) System adds unique safety-stop features which are built in to both a mounting rail and quick-release clamp that adhere to the RRS 1.5” Standard. The ”hard-stop” feature is comprised of a 5mm diameter steel pin that engages 5.5mm diameter holes in the rail. In addition to supplementing the traditional friction-based clamping mechanism, the interface prevents unintentional repositioning of the rail within the clamp when the R-LOCK is engaged.

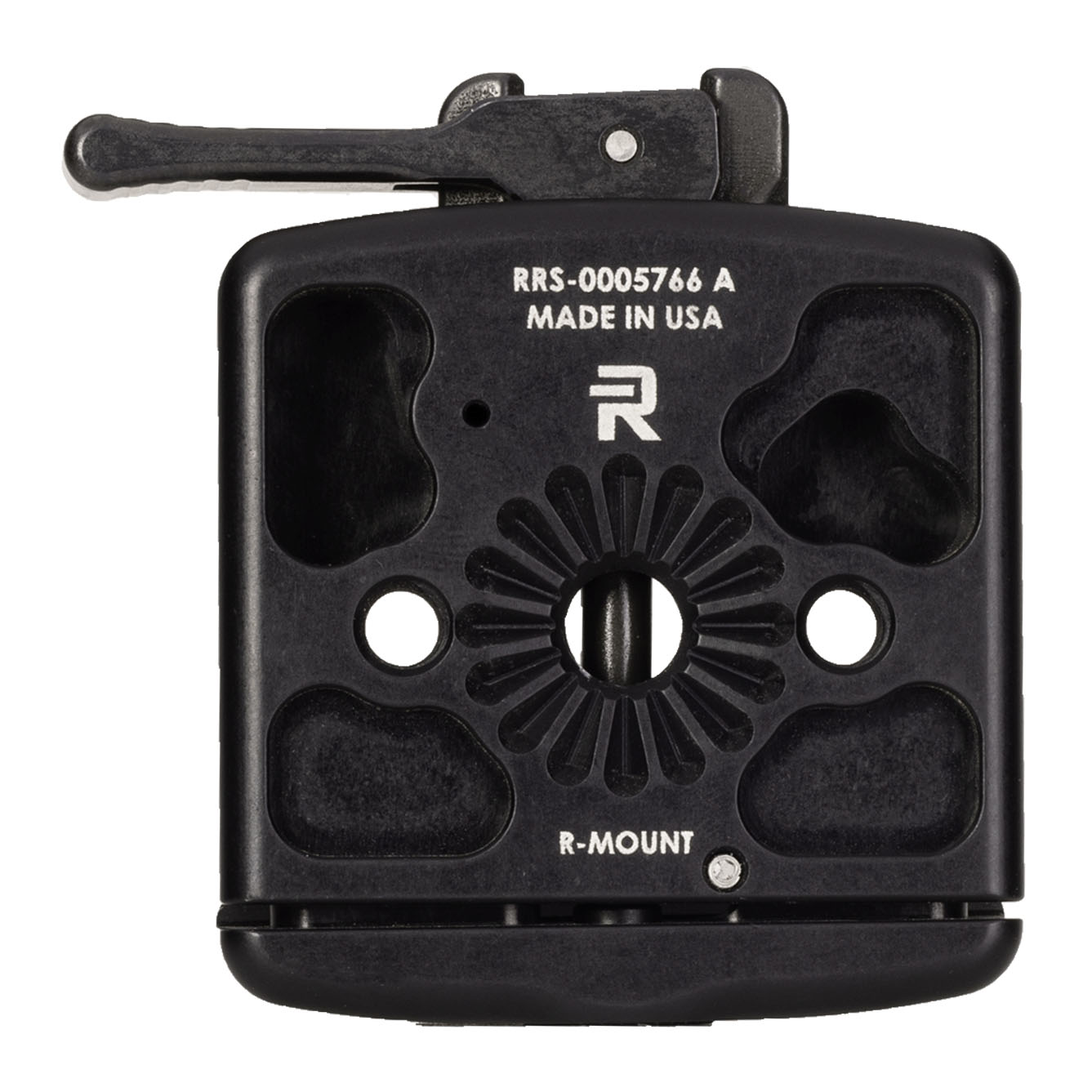

  • R-Mount Interface: R-Mount’s rosette will prevent twisting at the coupling point between the ARC-LR and RRS head over time, and will assist in eliminating “play” that results from regular use on our earlier tongue-and-groove designs.
  • Easy Top-Loading: In one quick action, the clamp can go from closed to fully open, allowing easy top-loading of RRS Dovetail and arca-swiss compatible quick-release plates
  • Visual Confirmation of Lock Position: You can readily observe if the lever is locked, half-open or fully open
  • Adjustable Clamp Tolerance: For the first time, the ARC-LR allows users to adjust a RRS clamp's jaw tolerance to conform to some 3rd party Arca-style plates or rails.



Anti rotating Pins/Flange
  • R-Lock
  • R-Mount
Center lines
  • Laser engraving, scale
Finish
  • black anodized
Height / cm
  • 1,8
Jaw length / cm
  • 4,0
Material
  • Aluminum
  • Stainless steel
Mounting hole
  • Screw through from above with 1/4" UNC countersunk head and M6 countersunk head
QR base fits
  • ARCA SWISS compatible (according to manufacturer) 38 mm dovetail
  • Kirk dovetail
  • Really Right Stuff dovetail
  • Wimberley dovetail
Special features
  • Clamp width adjustable
Thread (bottom side)
  • 2 x 1/4" UNC
Weight / g
  • 114
Width / cm
  • 6,5
clamp release type
  • Lever release
