Really Right Stuff TA-2U-LB: Versa 2 Leveling Base

By accessing the video, I agree that my data will be transmitted to YouTube or Vimeo and that I have read the privacy policy.
Product information
Really Right Stuff TA-2U-LB: Versa 2 Leveling Base
Adjustment angle +/- °
  • 20
Finish
  • black anodized
Height / cm
  • 5,4
Material
  • Aluminum
Spirit level bubble
  • 1 x circular level
Thread (bottom side)
  • 1 x 3/8" UNC thread
Weight / g
  • 322
Width / cm
  • 9,7
maximum payload / kg
  • 11
recommended for
  • Architecture photography
  • DSLR
  • Landscape photography
  • Long Lens Photography
  • Macro photography
  • Medium Format
  • Panoramic photography
  • Studio Photography
  • Travel photography
  • photography out of hiding

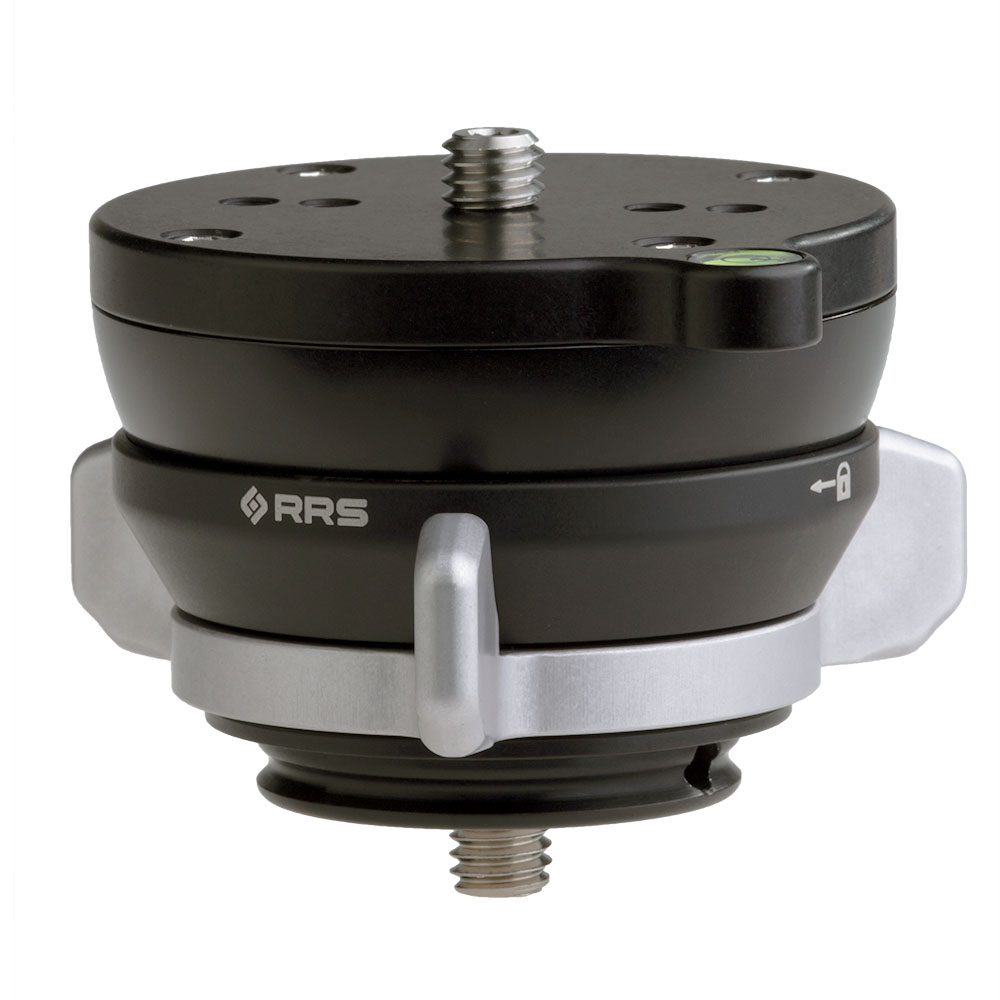

The Really Right Stuff TA-2U-LB improves in nearly every respect over popular TA-2 and TA-U leveling bases.

First and most obviously, the size.  We've shrunk the overall height by nearly 30% to improve packability and strength of any tripod+LB+head setup.

Second, despite this smaller size there is now more freedom to move.   As is industry standard, our TA-2 and TA-U can tilt up to 15 degrees from level in any direction.  The new TA-2U-LB moves 33% further at 20 degress.  This can mean a world of difference in achieving desired photo composition in steep terrain.

Third, the TA-2U-LB locks up to 15% more, and with less effort.  Now you can more confidently position and secure valuable rigs at any angle.

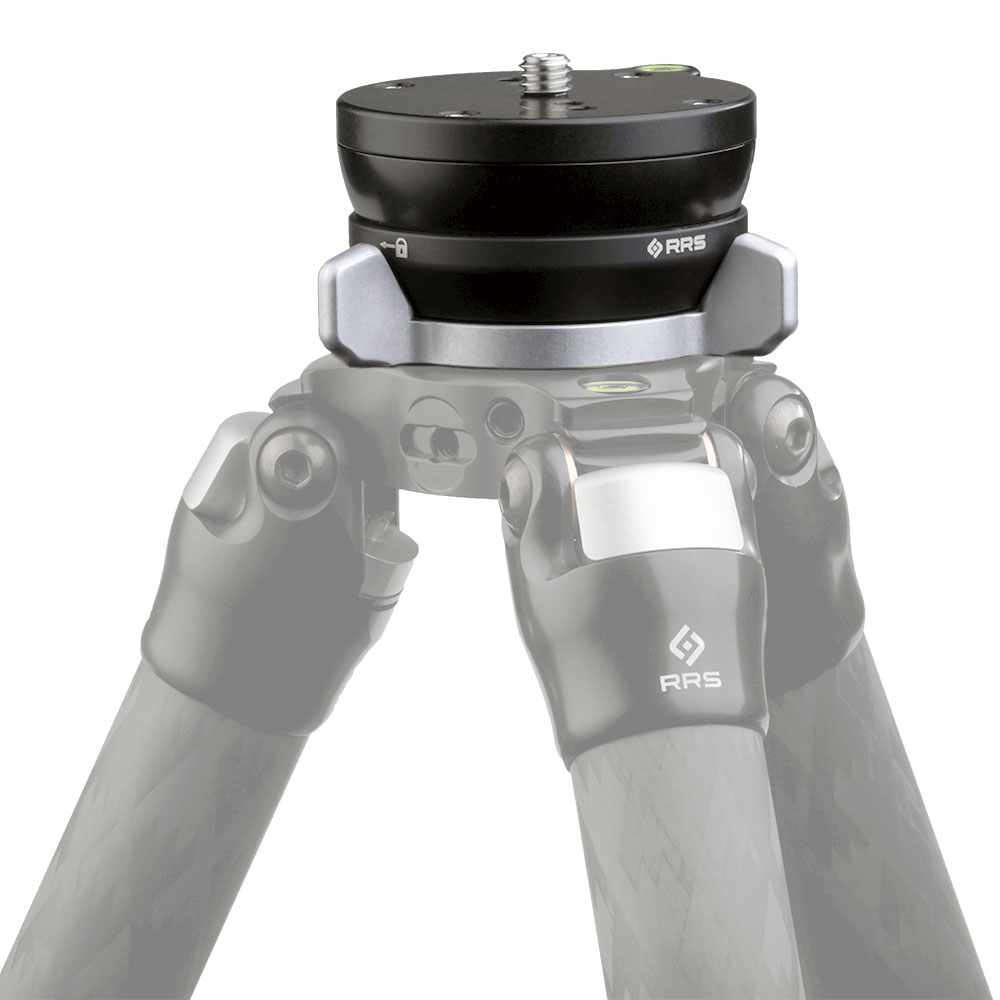

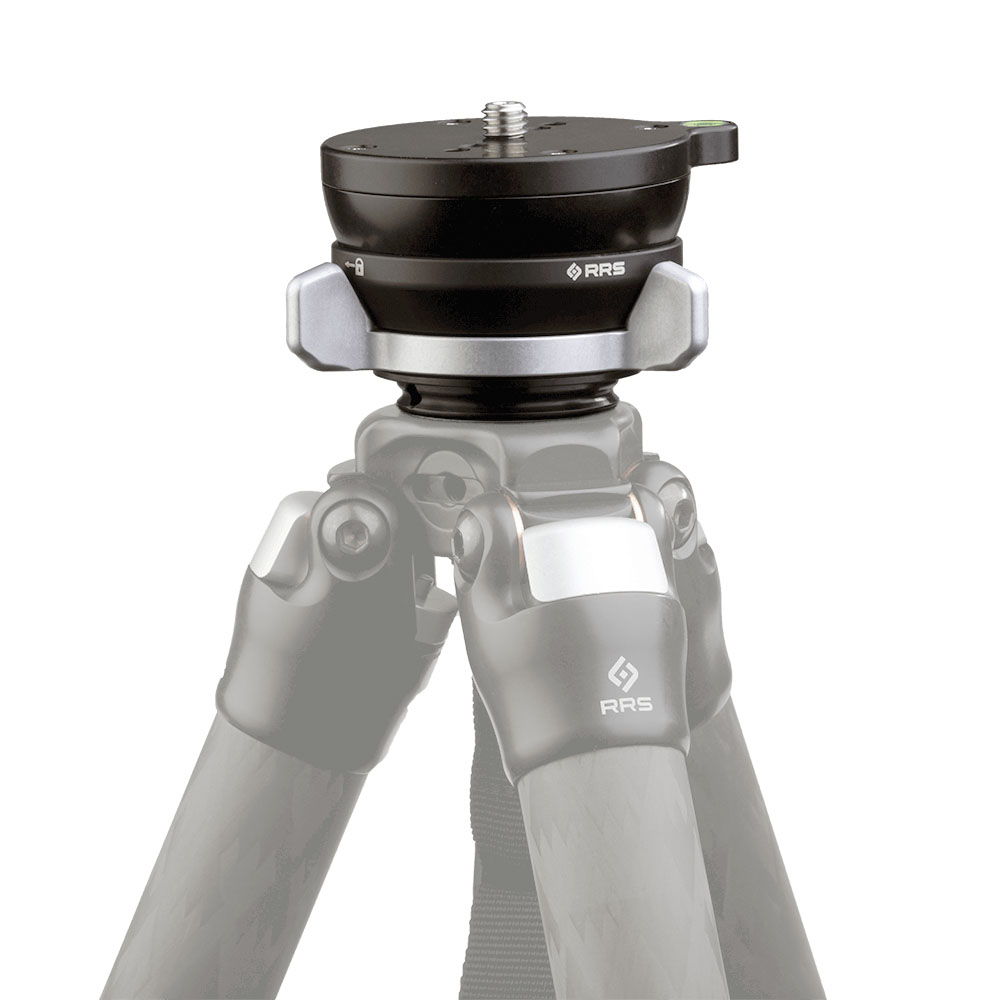

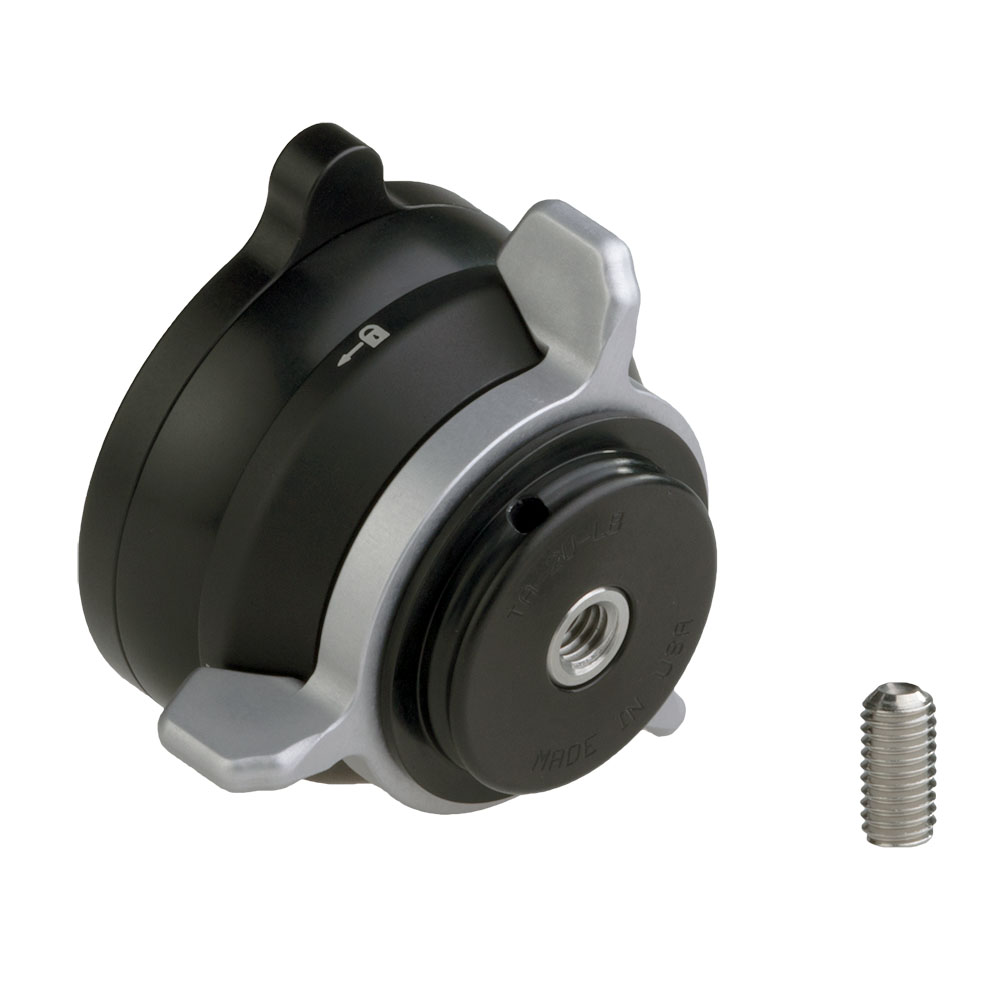

Finally, the ergonomics and usability have all gotten better.  The triple-lobe lock lever means that the position of the thumb pads relative to your tripod legs remains the same no matter which leg faces you.  The placement of these thumb pads reduce the needed effort to achieve lockup.  With a removable male mounting stud, the TA-2U-LB can attach to any tripod platform with a male 3/8"-16 stud, a Really Right Stuff Quick Column tube, or directly into a 2 series Versa Tripod SureGrip apex.  The TA-2U-LB can even be loosened or further tightened in place with the aid of a 5/32" hex key placed in the 3/16" holes around the base's bottom.

Features:

  •  The lightest leveling base in its class
  •  Compatible with any tripod with a 3/8"-16 mounting stud on the platform
  • Holds up to 25 lbs. without slipping
  •  Low friction polymer anti-jam plate secures your head solidly and accentuates vibration damping for your load
  • 3/8"-16 Stainless steel stud for mounting tripod head

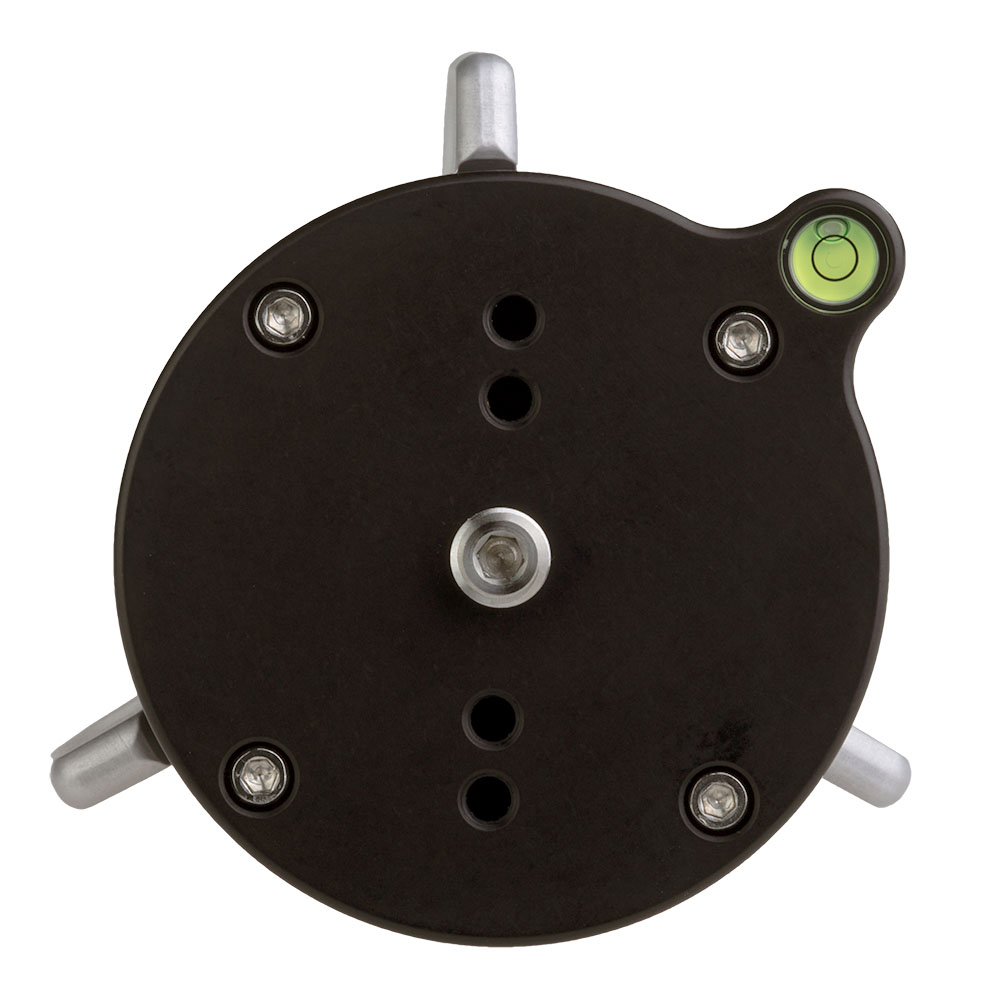

  • Large 12mm diameter bullseye level is easy to see
  • Unique locking ring allows greater leverage for locking the ball and eliminates any ground clearance issues when fully splaying your tripod legs
  • CNC machined 6061 aircraft-grade aluminum with type II anodizing

Specifications

  • Height (no clamp installed): 2.11in (53.56mm)
  • Height above 2 series tripod (no clamp): 1.76in (44.67mm)
  • Overall Diameter: 3.83in (97.21mm)
  • Weight: 11.4oz (322g)



Adjustment angle +/- °
  • 20
Finish
  • black anodized
Height / cm
  • 5,4
Material
  • Aluminum
Spirit level bubble
  • 1 x circular level
Thread (bottom side)
  • 1 x 3/8" UNC thread
Weight / g
  • 322
Width / cm
  • 9,7
maximum payload / kg
  • 11
recommended for
  • Architecture photography
  • DSLR
  • Landscape photography
  • Long Lens Photography
  • Macro photography
  • Medium Format
  • Panoramic photography
  • Studio Photography
  • Travel photography
  • photography out of hiding
