Mounting adapter for 38 mm Dovetail Clamps on Manfrotto MH05*M0 Ballheads and MH055-M8 Fluid Head

By accessing the video, I agree that my data will be transmitted to YouTube or Vimeo and that I have read the privacy policy.
Product information
Mounting adapter for 38 mm Dovetail Clamps on Manfrotto MH05*M0 Ballheads and MH055-M8 Fluid Head

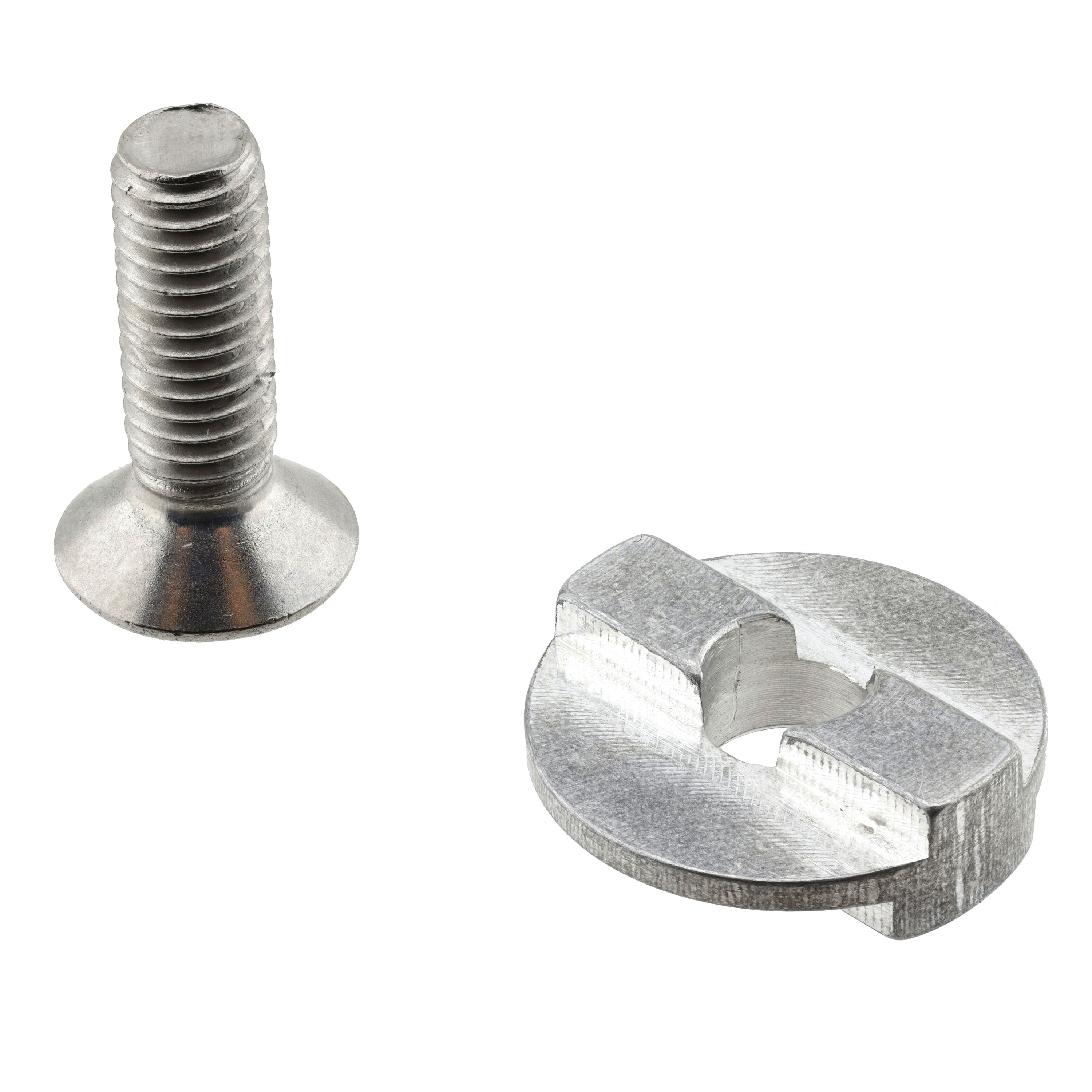

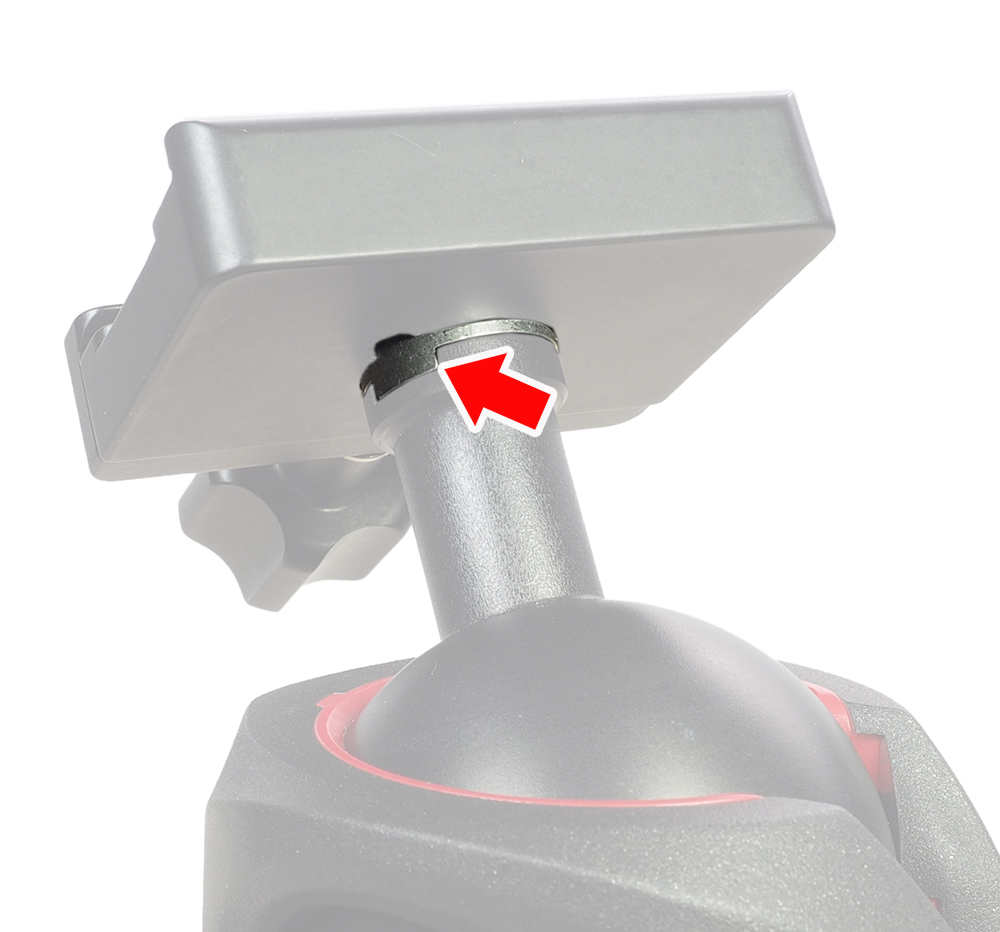

The adapter fits all Manfrotto tripod heads with a mounting stamp as shown on picture 4 and 5.

With this adapter you can use the following quick-release clamps:

  • Wimberley quick release C-12
  • Really Right Stuff B2 LR II 60mm LR Quick Release Clamp
  • Really Right Stuff B2 LLR II 80mm LR Quick Release Clamp
  • Really Right Stuff B2-Pro II Quick Release Clamp
  • Really Right Stuff B2-Pro 60mm Quick Release Clamp
  • Really Right Stuff B2-Pro / L 80mm Quick Release Clamp
  • Really Right Stuff B2-AS II Quick Release Clamp
  • Really Right Stuff B2-40 LR Quick Release Clamp
  • Really Right Stuff B2-mAS 38mm quick-release clamp with through hole and 3/8 "thread ... suitable for smaller ball heads

these ball heads from Manfrotto:

  • Manfrotto MH054M0-Q2 054 magnesium ball head
  • Manfrotto MH054M0-Q2 055 magnesium ball head
  • Manfrotto MH054M0-Q2 057 Magnesium Ball Head
  • Manfrotto MHXPRO-BHQ2 XPRO magnesium ball head with 200PL quick release plate
  • Manfrotto MHXPRO-BHQ6 XPRO ball head made of magnesium with Top Lock quick release plate
  • Manfrotto 494 Ball Head Mini
  • Manfrotto 496 Ball Head Compact
  • Manfrotto 498 Ball Head Midi

these ball heads from Gitzo:

  • Gitzo GH1382*
  • Gitzo GH3382*

to install.

On the Manfrotto 055 magnesium photo-video head MH055M8-Q5 can be exchanged with this adapter, the Manfrotto coupling for the following couplings:

  • Really Right Stuff B2 LR II 60mm LR Quick Release Clamp
  • Really Right Stuff B2 LLR II 80mm LR Quick Release Clamp
  • Really Right Stuff B2-Pro II Quick Release Clamp
  • Really Right Stuff B2-Pro 60mm Quick Release Clamp
  • Really Right Stuff B2-Pro / L 80mm Quick Release Clamp
  • Really Right Stuff B2-AS II Quick Release Clamp
  • Really Right Stuff B2-40 LR Quick Release Clamp

Attention: the Wimberley C-12 is NOT compatible with the Manfrotto 055 Magnesium Photo-Video Head MH055M8-Q5!

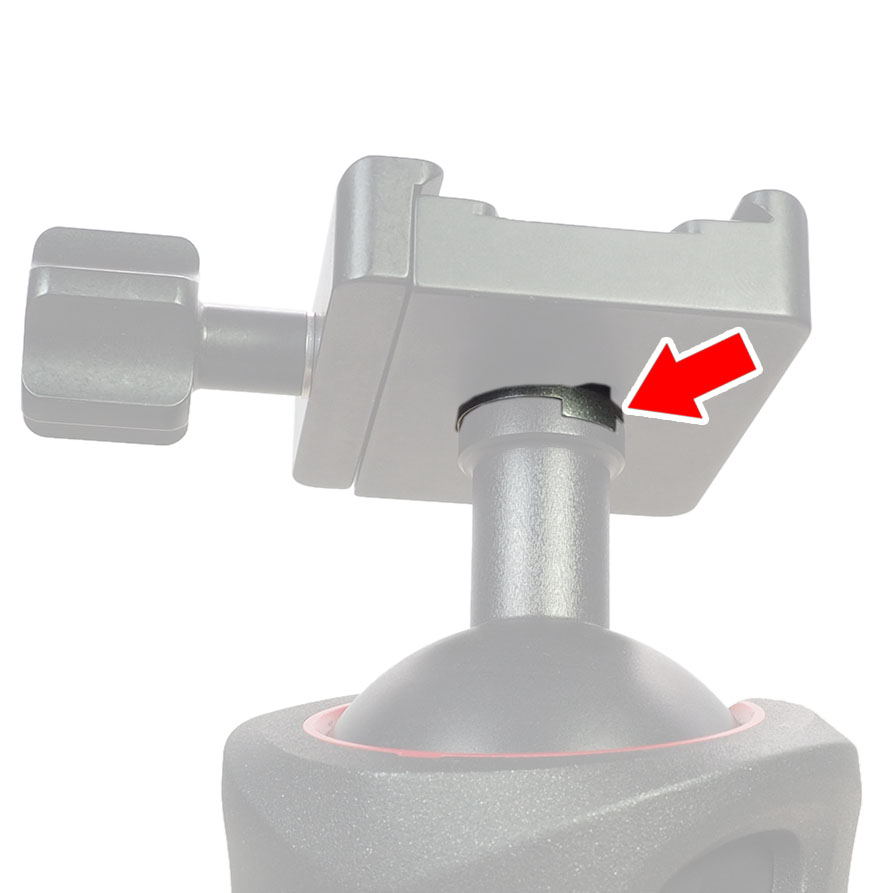

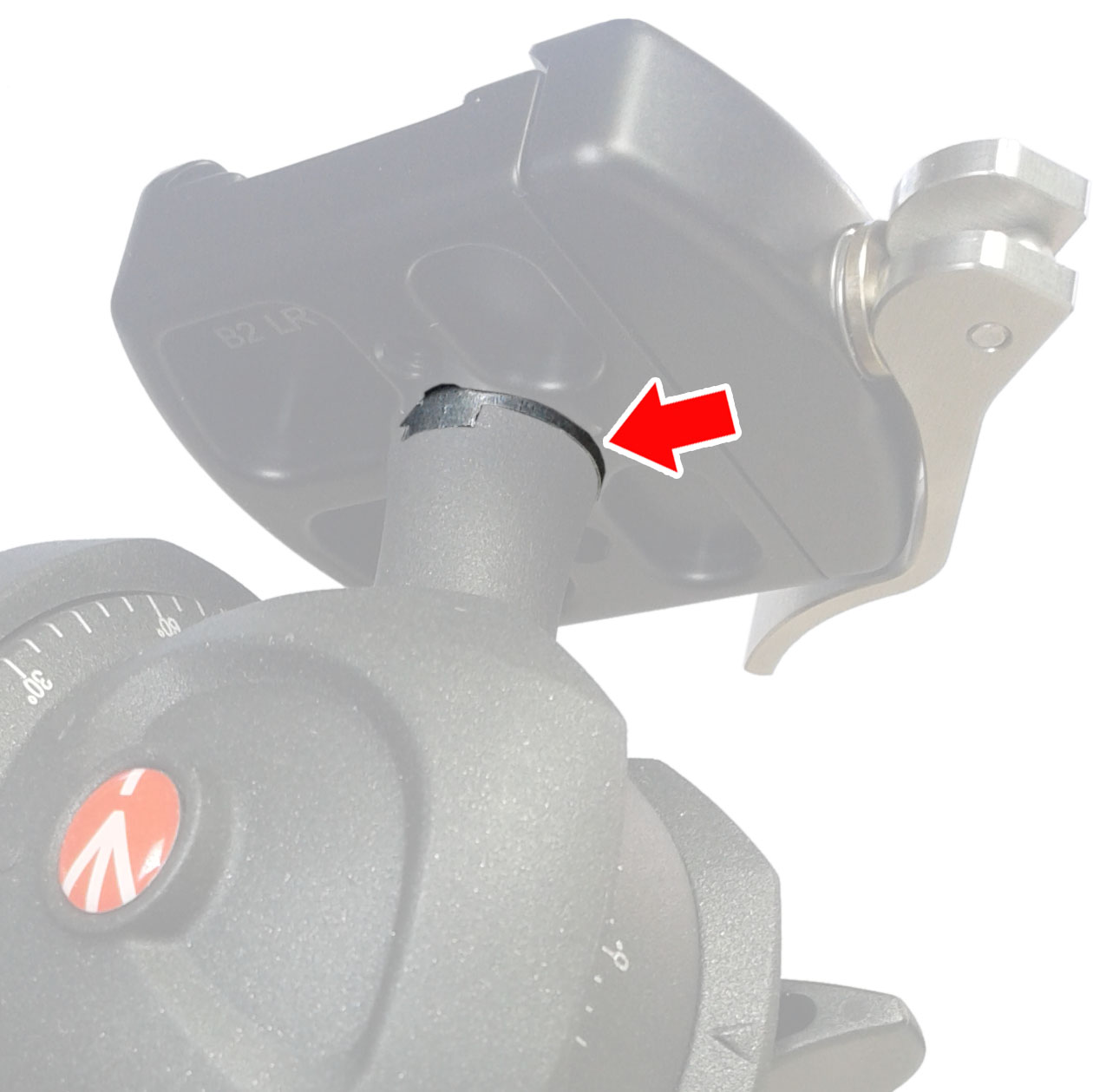

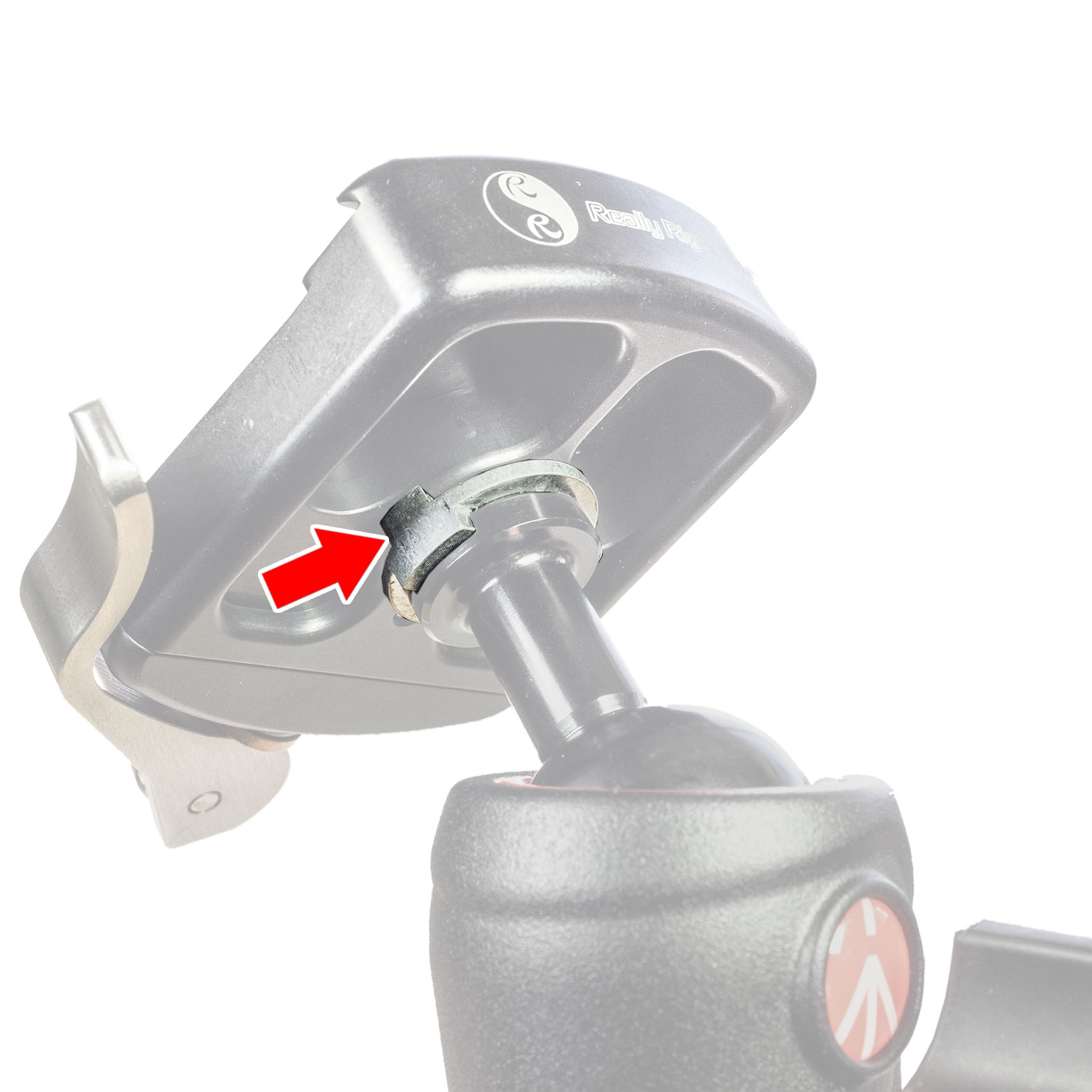

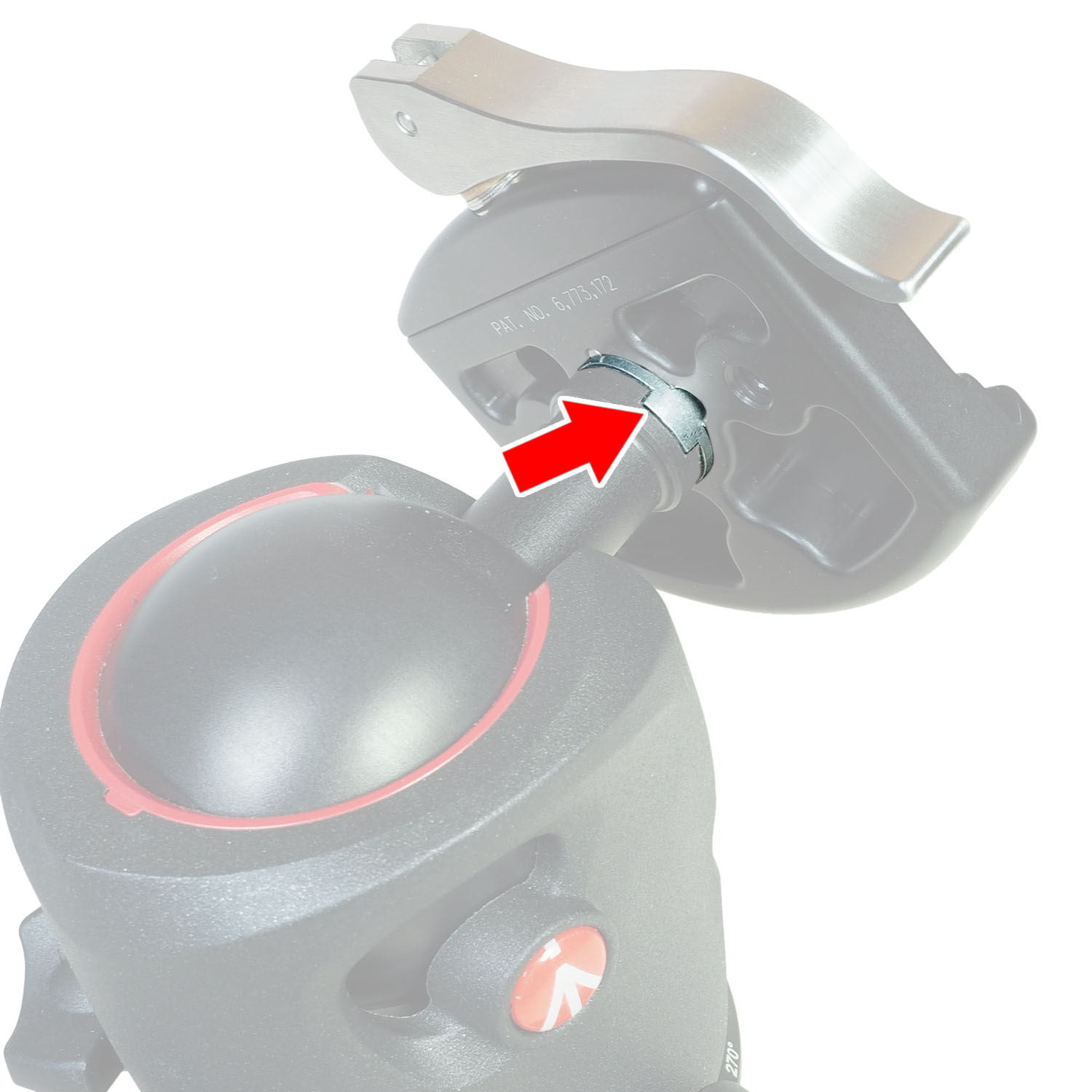

The webs of the adapter grip against rotation in the corresponding cut-outs of ball and quick-change clamp.

Now you can use the Manfrotto Ball Heads with the above listed 38mm Knurled and Lever Clamps giving you all the quick change options of

  • Really Right Stuff
  • Wimberley
  • Kirk
  • Berlebach
    ...

38 mm Style dovetail profiles.

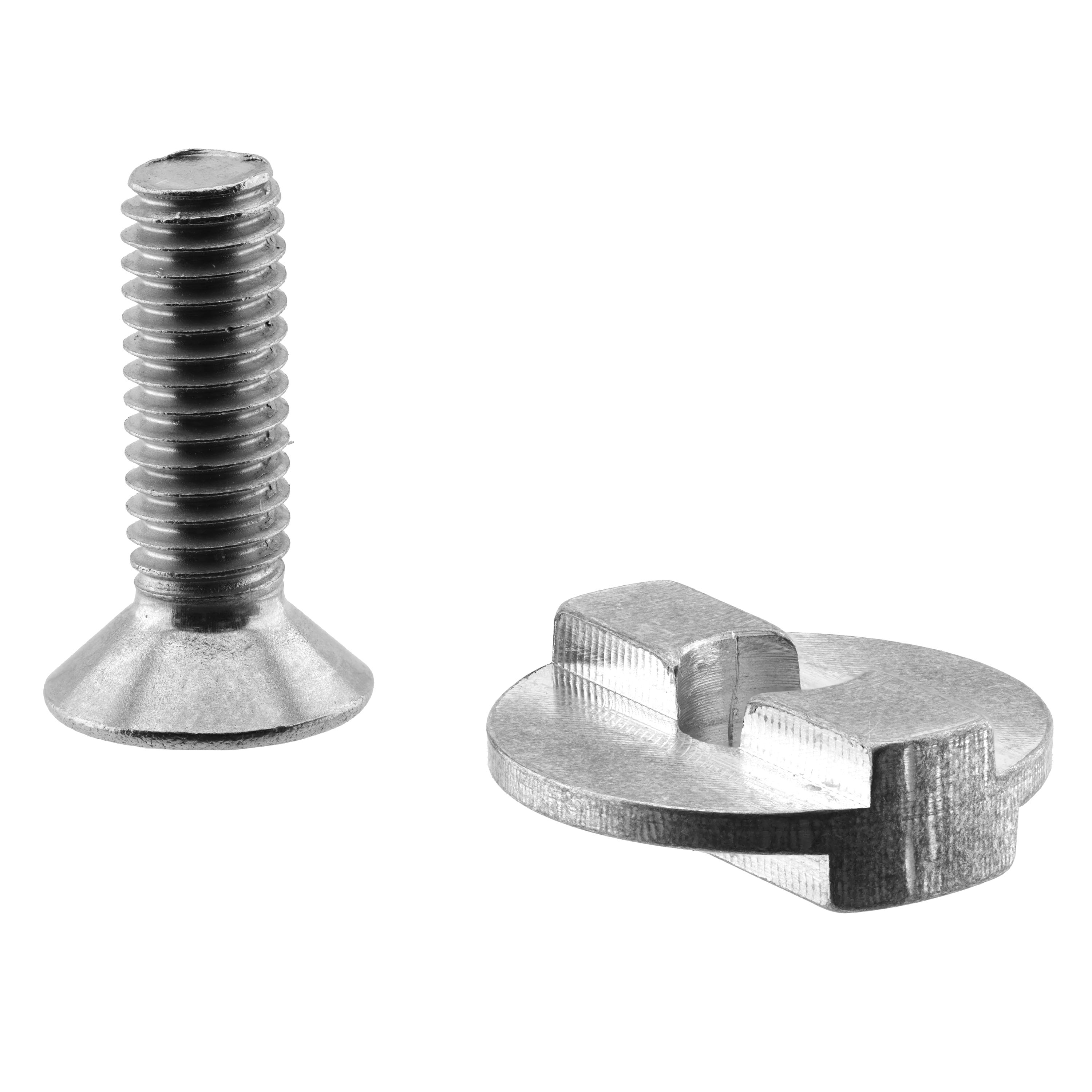

Technical data of the adapter:

  • Material: aluminum
  • Weight: approx. 2.2 g

Technical data of the screw:

  • Material: steel
  • Weight: about 4 g
  • Head: Countersunk head with hexagon socket
  • Thread: M6
  • Total length: 20 mm

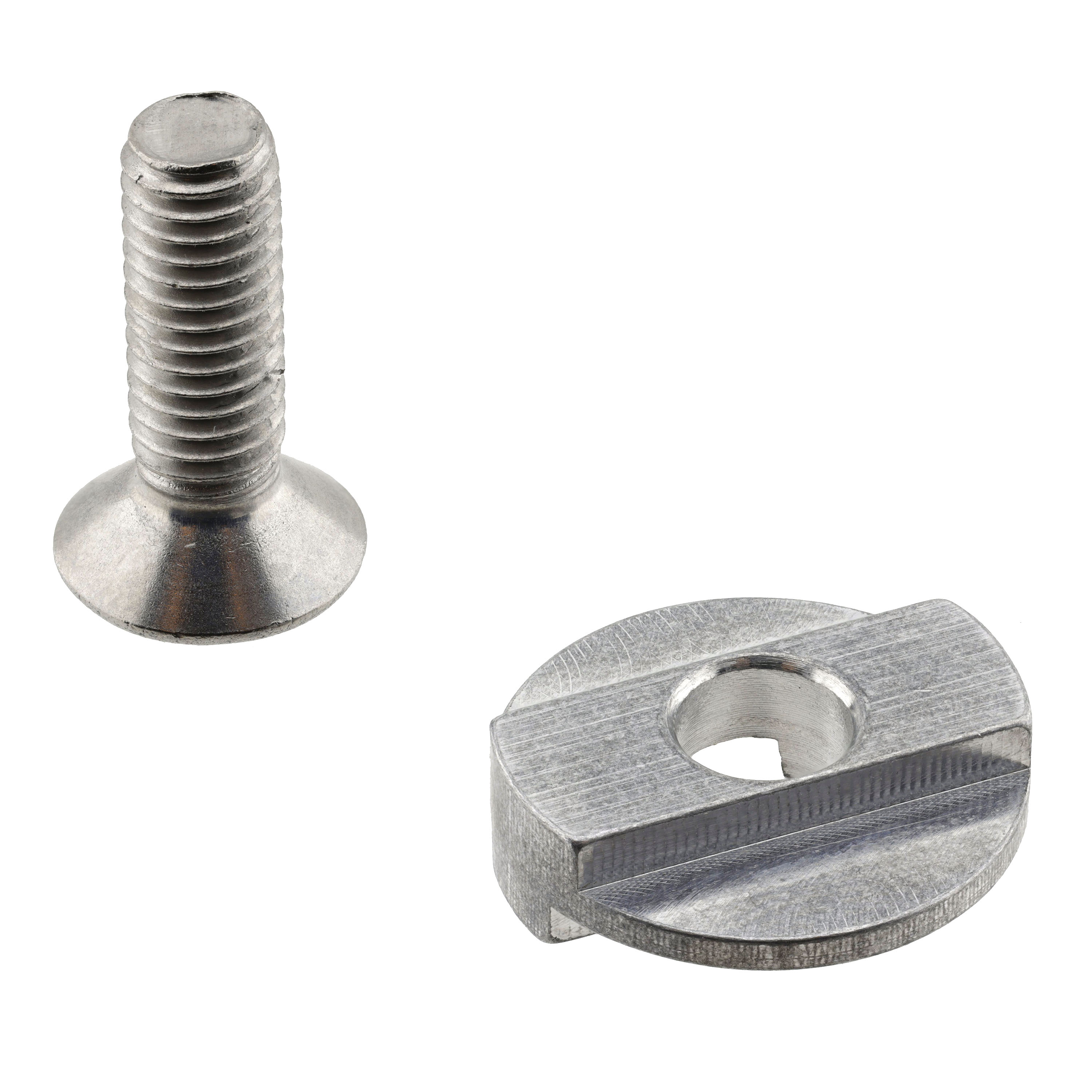

Included in delivery is an M6 x 20 countersunk screw.

Here you can find more information (in german language) about the installation of the adapter: Manfrotto Kugelköpfe umgerüstet auf 38 mm Schwalbenschwanz-Klemmprofil)
